fuse box TOYOTA 4RUNNER 2005 N210 / 4.G Owners Manual

’05 4Runner_U (L/O 0504)
258

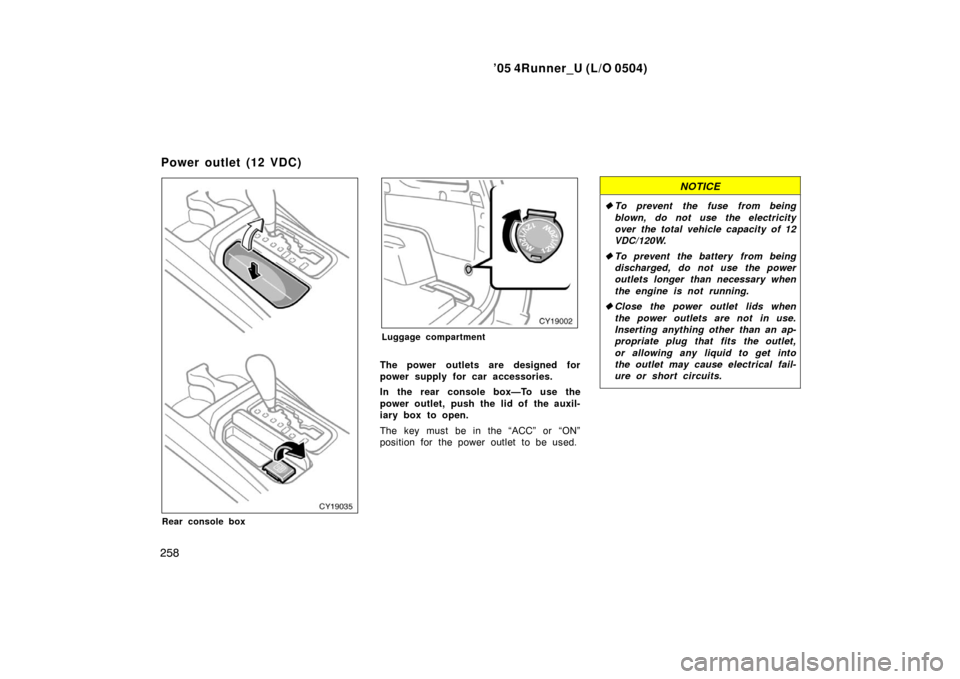

Rear console box
Luggage compartment
The power outlets are designed for
power supply for car accessories.
In the rear console box—To use the
power outlet, push the lid of the auxil-
iary box to open.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
VDC/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
Power outlet (12 VDC)

’05 4Runner_U (L/O 0504)
392
Ty p e A
Ty p e B
Ty p e CGood Blown
Good
Good
Blown
Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 370 in Sec-
tion 7
−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 406 in Section 8 for the functions
controlled by each circuit. Type A fuses can be pulled out by using
the pull
−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “PWR
OUTLET” or “HEATER NO.2” fuse, which
may be dispensable for normal driving,
and use it if its amperage rating is the
same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

’05 4Runner_U (L/O 0504)
408
33. FR WIPWSH 30 A: Windshield wipers
and washer
34. 4WD 20 A: Four−wheel drive control
system
35. D P/SEAT 30 A: Driver ’s power seat
36. P P/SEAT 30 A: Front passenger ’s
power seat
37. PWR OUTLET 15 A: Power outlets
38. RR WSH 15 A: Back window washer,
multiplex communication system
39. ECUIG 10 A: Shift lock control sys-
tem, power windows, anti −lock brake
system, traction control system (two −
wheel drive models), active traction
control system (four −wheel drive mod-
els), vehicle stability control system,
electric moon roof, multiplex commu-
nication system, theft deterrent system,
rear height control air suspension, tire
pressure warning system 40. IG1 15 A:
Anti−lock brake system,
traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), ve-
hicle stability control system, air condi-
tioning system, charging system, back
window defogger, back −up lights, turn
signal lights, emergency flashers, seat
heaters, AC inverter, instrument panel
light control, auto anti −glare inside rear
view mirror
41. STA 7.5 A: No circuit
42. SECU/HORN 10 A: Theft deterrent sys-
tem
43. TAIL 10 A: Tail lights, license plate
lights, parking lights, instrument panel
light control, multiport fuel injection
system/se quential multiport fuel injec-
tion system, instrument panel lights,
meter and gauge, grove box light
44. ACC 7.5 A: Power outlets, outside rear
view mirrors, audio system, navigation
system, rear seat audio system, shift
lock control system, instrument panel
lights
45. CIG 10 A: No circuit Fuses (type B)
46. A/PUMP 50 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
47. AIRSUS 50 A: Rear height control air
suspension
48. AM1 50 A: All components in “ACC”,
“CIG”, “IG1”, “ECU −IG”, “FR WIP −
WSH”, “RR WIP”, “RR −WSH”, “4WD”,
and “STA” fuses
49. TOWING BRK 30 A: Trailer brake con-
troller
50. J/B 50 A: All components in “PWR
OUTLET”, “D P/SEAT”, “P P/SEAT”,
“POWER”, “TAIL” and “SECU/HORN”
fuses
51. BATT CHG 30 A: Trailer sub battery
52. TOWING 40 A: Trailer lights (tail
lights)
5

3. ABS MTR 40 A: Anti−lock brake sys-
tem, traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), ve-
hicle stability control system
54. AM2 30 A: Starter system, “IGN”,
“GAUGE”, “STA NO.2” and “SRS” fuses
