Page 48 of 426

’05 4Runner_U (L/O 0504)
38
3. The removed cap can be stored on
the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right or up and down, and
set it in the receptacle on the back side
of the door.
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
Sliding operation
Tilting operation
Electric moon roof
Page 174 of 426

’05 4Runner_U (L/O 0504)
164
Use this for maximum power and traction.
Use this for hard pulling in situations the
vehicle cannot negotiate even in the “L4”
(low speed position, center differential un-
locked) mode. Also, using this mode when
driving down steep off −road inclines will
help contribute to increased vehicle stabil-
ity.
The indicator light tells when the differen-
tial lock is engaged. Note that the differ-
ential is not still locked as long as the
indicator light remains off.
When the operation is not completed, the
indicator blinks. If the indicator light does
not go off when you push out the center
differential lock switch, drive straight
ahead while accelerating or decelerating,
or drive in reverse.
If the center differential lock system op-
eration is not completed within 5 seconds
while the cruise control system is set,
cancel the cruise control system. To can-
cel the cruise control system, see “Cruise
control” on page 193 in Section 1 −7.
If the indicator blinks even if doing so,
contact your Toyota dealer as soon as
possible. There may be a trouble in the
center differential lock system.
See “(b) Shifting procedure” for further in-
structions. SHIFTING BETWEEN “H4” (UNLOCKED)
AND “H4” (LOCKED)
To shift between unlock and lock
modes in “H4”, push the center differen-
tial lock switch.
SHIFTING BETWEEN “L4” (UNLOCKED)
AND “L4” (LOCKED)
To shift between unlock and lock
modes in “L4”, push the center differen-
tial lock switch.
SHIFTING BETWEEN “H4” AND “L4”
To shift from “H4” to “L4”,
bring the
vehicle to a complete stop with the brake
pedal held down with your foot, shift the
automatic transmission selector lever into
“N” and push and turn the four −wheel
drive control switch knob fully clockwise.
To shift from “L4” to “H4”, bring the
vehicle to a complete stop with the brake
pedal held down with your foot, shift the
automatic transmission selector lever into
“N” and turn the four −wheel drive control
switch knob fully counterclockwise. If the “4LO” (low speed four
−wheel drive)
indicator light continues to blink when you
operate the four −wheel drive control
switch knob to the “H4” or “L4” position,
drive forward or backward in a short dis-
tance, then stop the vehicle completely,
shift the automatic transmission selector
lever securely into “N” and operate the
switch knob again.
If the indicator continues to blink even if
doing so, contact your Toyota dealer as
soon as possible. There may be a trouble
in the four −wheel drive system.
CAUTION
Never operate the four wheel drive
control switch knob if the wheels are
slipping. Stop the slipping or spin-
ning before operating.
(b) Shifting procedure
Page 256 of 426

’05 4Runner_U (L/O 0504)
246

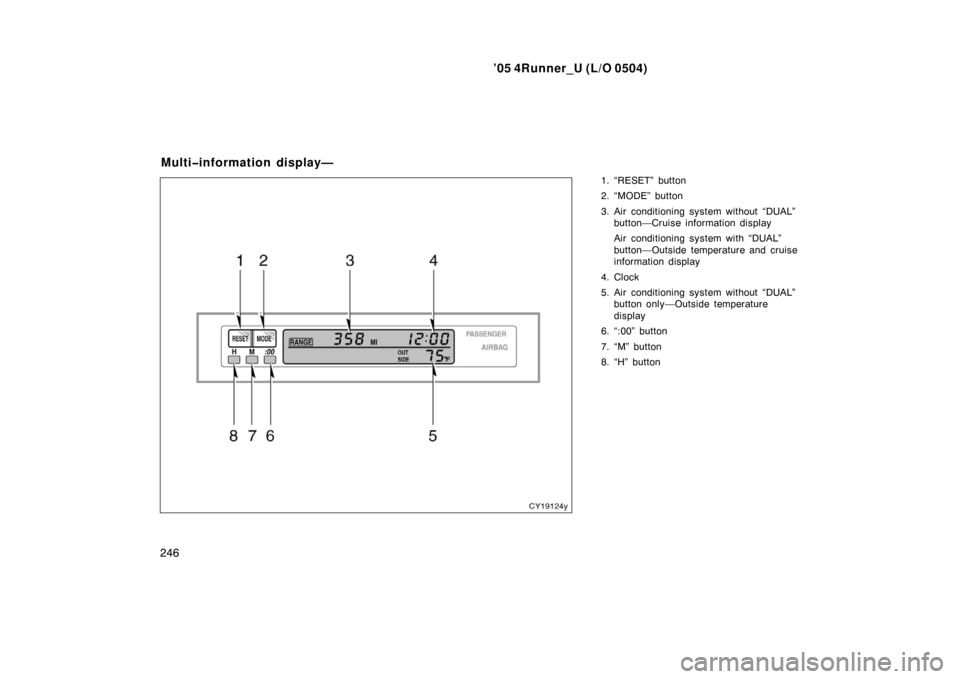

1. “RESET” button
2. “MODE” button
3. Air conditioning system without “DUAL”
button—Cruise information display
Air conditioning system with “DUAL”
button—Outside temperature and cruise
information display
4. Clock
5. Air conditioning system without “DUAL” button only—Outside temperature
display
6. “:00” button
7. “M” button
8. “H” button
Multi information display—
