’05 4Runner_U (L/O 0504)
6

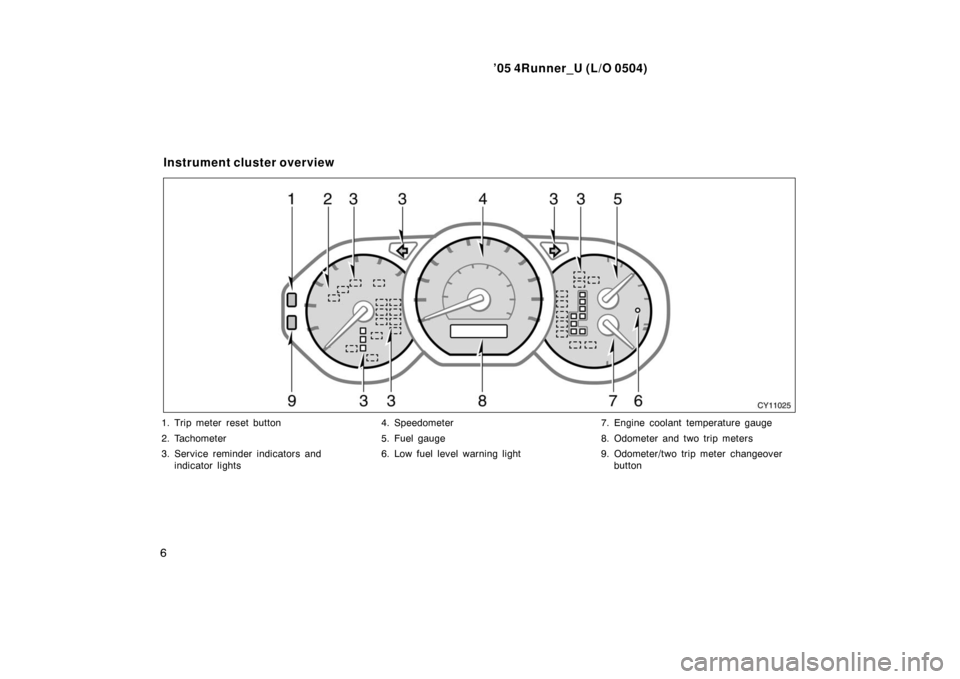

1. Trip meter reset button
2. Tachometer
3. Service reminder indicators and
indicator lights 4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Engine coolant temperature gauge
8. Odometer and two trip meters
9. Odometer/two trip meter changeover
button
Instrument cluster overview

’05 4Runner_U (L/O 0504)
8
Center differential lock indicator light∗
3
(four −wheel drive models)
Automatic transmission indicator lights
Slip indicator light
Turn signal indicator lights
Low speed four
−wheel drive indicator light∗
3
(four −wheel drive models)
Downhill assist control system indicator light
(four −wheel drive models)
Height control indicator lights
Headlight high beam indicator light
Engine immobilizer/theft deterrent system
indicator light
Roll sensing of curtain shield airbags off
indicator light∗
2
Headlight low beam indicator light
Tail light indicator light
“AUTO LSD” indicator light
(two −wheel drive models)
Low windshield washer fluid level warning
light∗
1 (for vehicles sold in Canada)
Front passenger occupant classification indicator
light Vehicle stability control system off indicator light
(four
−wheel drive models)
Four −wheel drive indicator light∗
3
(multi −mode four −wheel drive models)

’05 4Runner_U (L/O 0504)
152
If either of the following conditions oc-
curs, this indicates a malfunction some-
where in the components monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are dri-
ving.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Either of the following conditions may
occur, but do not indicate a malfunc-
tion:
The light may stay on for about 60
seconds after the ignition key is turned
to the “ON” position. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
turns off after a few seconds.
(j) “VSC TRAC” Warning Light
The light warns that there is a problem
somewhere in the following.
Vehicle stability control system
Traction control system
(two −wheel drive models)
Active traction control system
(four− wheel drive models)
“AUTO LSD” system
(two−wheel drive models)
Downhill assist control system
(four− wheel drive models)
Hill−start assist control system
The light will come on when the ignition
key turned to “ON”, and will go off after
a few seconds. It is not a malfunction that the warning
light may stay on for 60 seconds after the
ignition key is turned to the “ON” position.
Depressing the brake pedal repeatedly
may turn on the lights. It is normal if they
go out after a few seconds.
If the light comes on while driving, the
above mentioned systems do not work.
However, as conventional braking operates
when applied, there is no problem to con-
tinue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
When the brake fluid level is too low, the
above mentioned systems will not operate
and the warning light comes on.
(k) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.

’05 4Runner_U (L/O 0504)
154
(o) Low Windshield Washer Fluid Level
Warning Light (for vehicles sold in
Canada)
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 393 in
Section 7 −3.)
(p) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the “ACC” or
“LOCK” position. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on.
The following service reminder indica-
tors go off after a few seconds:
Engine oil replacement reminder light
“ABS” warning light
“VSC TRAC” warning light
Low tire pressure warning light
“RSCA OFF” indicator light
“AUTO LSD” indicator light
(two −wheel drive models)
“VSC OFF” indicator light
(four− wheel drive models)
Slip indicator light
Height control indicator lights
Downhill assist control system indicator
light (four −wheel drive models)
Height control “OFF” indicator light
The SRS warning light goes off after
about 6 seconds.
There may be the case that the “ABS”
warning light (brake assist system
warning light), “VSC TRAC” warning
light and “AUTO LSD” (two −wheel drive
models), “VSC OFF” (four −wheel drive
models) or slip indicator light stay on
for about 60 seconds after the ignition
key is turned to the “ON” position. It
is normal if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

’05 4Runner_U (L/O 0504)
179
The slip indicator light and downhill assist
control system indicator light come on for
a few seconds when the ignition key is
turned to “ON”. If any of the indicator
lights does not come on when the ignition
is turned on, contact your Toyota dealer.
The brake actuator temperature increases
during continuous operation of the hill −
start assist control system, the active
traction control system and the vehicle
stability control system. If the brake ac-
tuator temperature becomes too high while
any of the systems is operating, a buzzer
will start to sound intermittently to indicate
that the downhill assist control system can
no longer operate. In this case, stop your
vehicle immediately at a safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.) At this time, the slip indicator light will
come on, the downhill assist control sys-
tem indicator light flash and the downhill
assist control system stops operating tem-
porarily in order to protect the brake ac-
tuator. (Although the downhill assist con-
trol system does not operate, it is no
problem to continue your driving.) The
system will be automatically restored after
a short time and the slip indicator light
and the downhill assist control system in-
dicator light go out.
If there is any abnormality in the sys-
tem, the “VSC TRAC” warning light will
come on. When the “DAC” switch is
pushed, the downhill assist control sys-
tem indicator light also flash.
If the “VSC TRAC” warning light comes
on, there may be an abnormality in any
of the following systems in addition to the
downhill assist control system.
Hill
−start assist control system
Active traction control system
Vehicle stability control system

’05 4Runner_U (L/O 0504)
364
Power steering fluid level
Check the level through the reservoir. The
level should be in the “HOT” or “COLD”
range depending on the fluid temperature.
See page 381 in Section 7 −2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” on
page 287 in Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise. Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraint move up and down smooth-
ly and that the locks hold securely in any
latched position. For folding
−down rear
seatbacks and swing −up rear seat cush-
ions (vehicles without third seats), tum-
bling second seats (vehicles with third
seats), folding −up third seats and detach-
able third seats, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure that the
belt webbing is not cut, frayed, worn or
damaged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function. Brakes
In a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
On a safe incline, check that your vehicle
is held securely with the selector lever in
“P” position and all brakes released.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.

’05 4Runner_U (L/O 0504)
408
33. FR WIPWSH 30 A: Windshield wipers
and washer
34. 4WD 20 A: Four−wheel drive control
system
35. D P/SEAT 30 A: Driver ’s power seat
36. P P/SEAT 30 A: Front passenger ’s
power seat
37. PWR OUTLET 15 A: Power outlets
38. RR WSH 15 A: Back window washer,
multiplex communication system
39. ECUIG 10 A: Shift lock control sys-
tem, power windows, anti −lock brake
system, traction control system (two −
wheel drive models), active traction
control system (four −wheel drive mod-
els), vehicle stability control system,
electric moon roof, multiplex commu-
nication system, theft deterrent system,
rear height control air suspension, tire
pressure warning system 40. IG1 15 A:
Anti−lock brake system,
traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), ve-
hicle stability control system, air condi-
tioning system, charging system, back
window defogger, back −up lights, turn
signal lights, emergency flashers, seat
heaters, AC inverter, instrument panel
light control, auto anti −glare inside rear
view mirror
41. STA 7.5 A: No circuit
42. SECU/HORN 10 A: Theft deterrent sys-
tem
43. TAIL 10 A: Tail lights, license plate
lights, parking lights, instrument panel
light control, multiport fuel injection
system/se quential multiport fuel injec-
tion system, instrument panel lights,
meter and gauge, grove box light
44. ACC 7.5 A: Power outlets, outside rear
view mirrors, audio system, navigation
system, rear seat audio system, shift
lock control system, instrument panel
lights
45. CIG 10 A: No circuit Fuses (type B)
46. A/PUMP 50 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
47. AIRSUS 50 A: Rear height control air
suspension
48. AM1 50 A: All components in “ACC”,
“CIG”, “IG1”, “ECU −IG”, “FR WIP −
WSH”, “RR WIP”, “RR −WSH”, “4WD”,
and “STA” fuses
49. TOWING BRK 30 A: Trailer brake con-
troller
50. J/B 50 A: All components in “PWR
OUTLET”, “D P/SEAT”, “P P/SEAT”,
“POWER”, “TAIL” and “SECU/HORN”
fuses
51. BATT CHG 30 A: Trailer sub battery
52. TOWING 40 A: Trailer lights (tail
lights)
5

3. ABS MTR 40 A: Anti−lock brake sys-
tem, traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), ve-
hicle stability control system
54. AM2 30 A: Starter system, “IGN”,
“GAUGE”, “STA NO.2” and “SRS” fuses
