window TOYOTA 4RUNNER 2005 N210 / 4.G Scheduled Maintenance Guide

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Perform these service items only if you drive primarily under the conditions indicated.3 See page 37 for details.4 Applies to Corolla Matrix 4WD and Sienna 4WD.
Maintenance Log: Cars
15,000 Miles or 18 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qClean cabin air filter (Camry)
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qInspect engine air filter
qTi ghten nuts and bolts on chassis
Driving while towing:
qReplace rear differential oil4
qR eplace transfer case oil4
qTi gh ten n uts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
5
__ Rear differential oil4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Per for m t hese service items only if you drive primarily under the conditions indicated.3 See p age 37 for details.4 Applies to Corolla Matrix 4WD and Sienna 4WD.
Maintenance Log: Cars

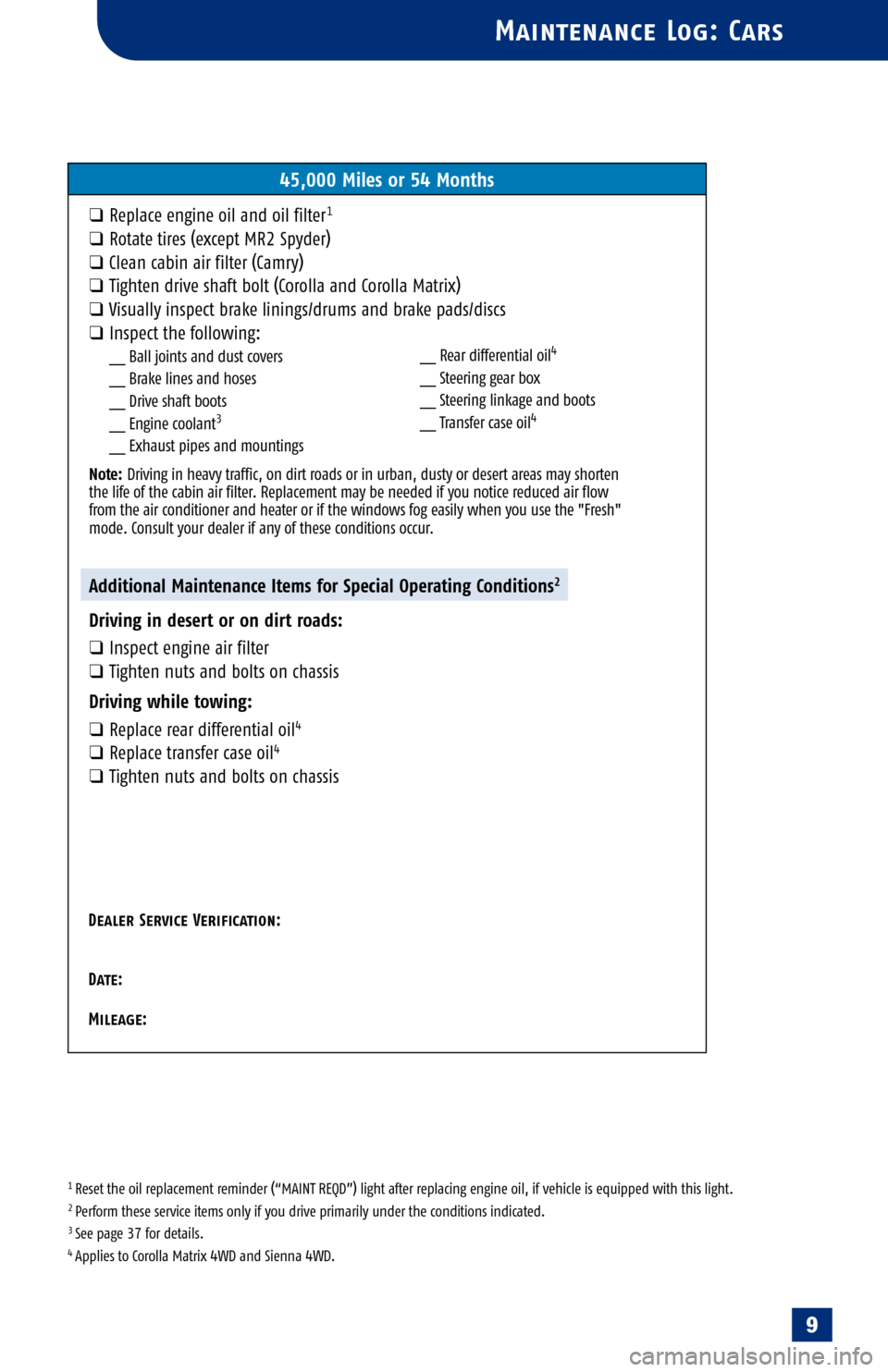

45,000 Miles or 54 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qClean cabin air filter (Camry)
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ E ngine coolant
3
__ Exhaust pipes and mountings
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
t he life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qInspect engine air filter
qTighten nuts and bolts on chassis
Driving while towing:
qReplace rear differential oil4
qReplace transfer case oil4
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
M ileage:
9
__ R ear differential oil4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Perform these service items only if you drive primarily under the conditions indicated.3 See page 37 for details.4 Applies to Corolla Matrix 4WD and Sienna 4WD.
Maintenance Log: Cars

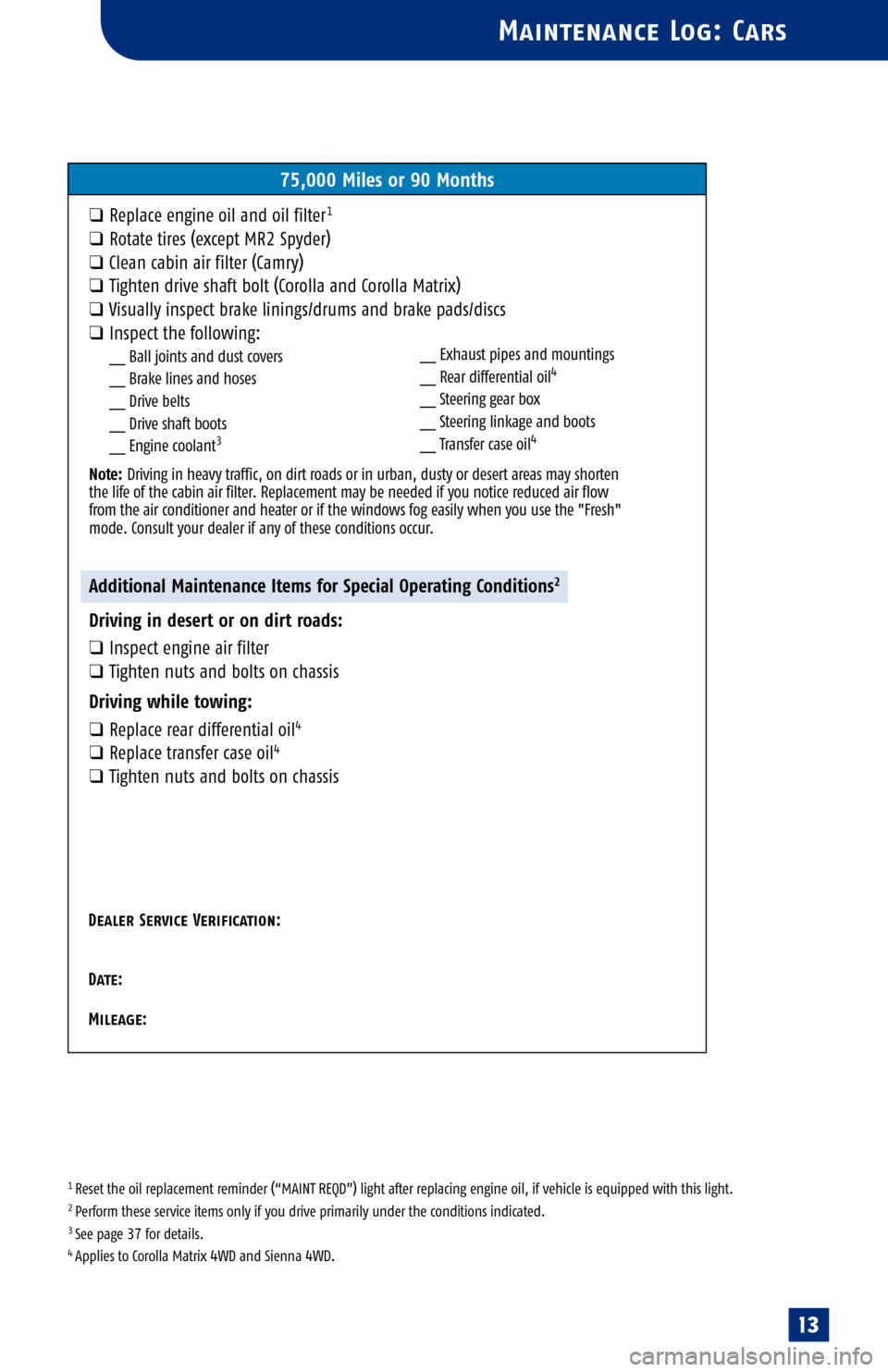

75,000 Miles or 90 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qClean cabin air filter (Camry)
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
3
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qInspect engine air filter
qTi ghten nuts and bolts on chassis
Driving while towing:
qReplace rear differential oil4
qR eplace transfer case oil4
qTi gh ten n uts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
13
__ Exhaust pipes and mountings
__ R ear differential oil4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Perform these service items only if you drive primarily under the conditions indicated.3Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. See page 37
for additional information.
4 See page 37 for details.5 Applies to Corolla Matrix 4WD and Sienna 4WD.
Maintenance Log: Cars

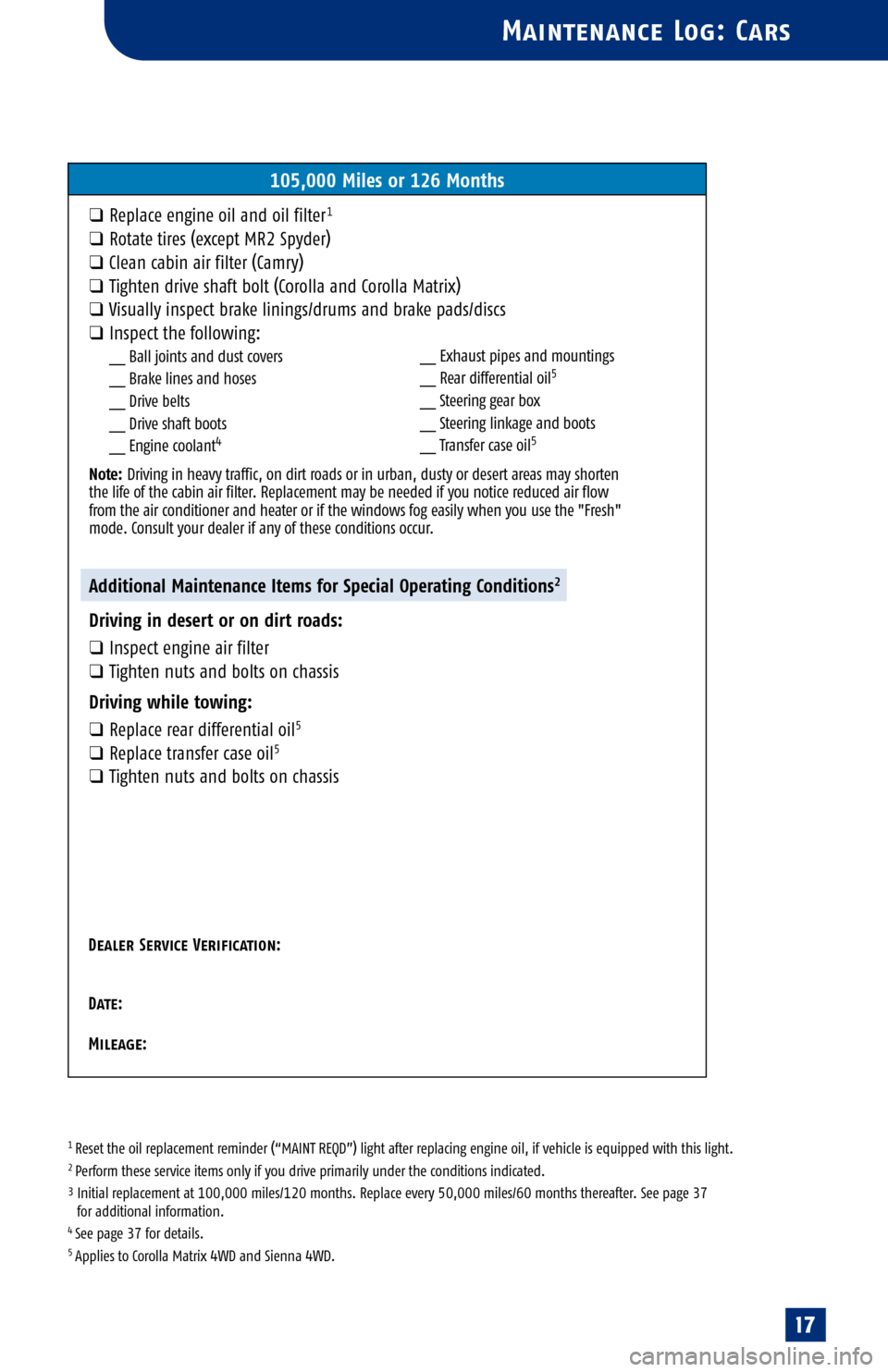

105,000 Miles or 126 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qClean cabin air filter (Camry)
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ B all joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Dr ive shaft boots
__ Engine coolant
4
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qIn spect engine air filter
qTigh ten n uts and bolts on chassis
Driving while towing:
qReplace rear differential oil5
qR epl ac e transfer case oil5
qTigh ten n uts and bolts on c hassis
Dea ler Service Verification:
Date:
M ilea ge:
17
__ Exhaust pipes and mountings
__ Rear differential oil5
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
5

4Applies to Land Cruiser, 4WD Sequoia, 4WD Tundra and 4WD 4Runner.5See page 37 for details.
Maintenance Log: SUVs and Trucks

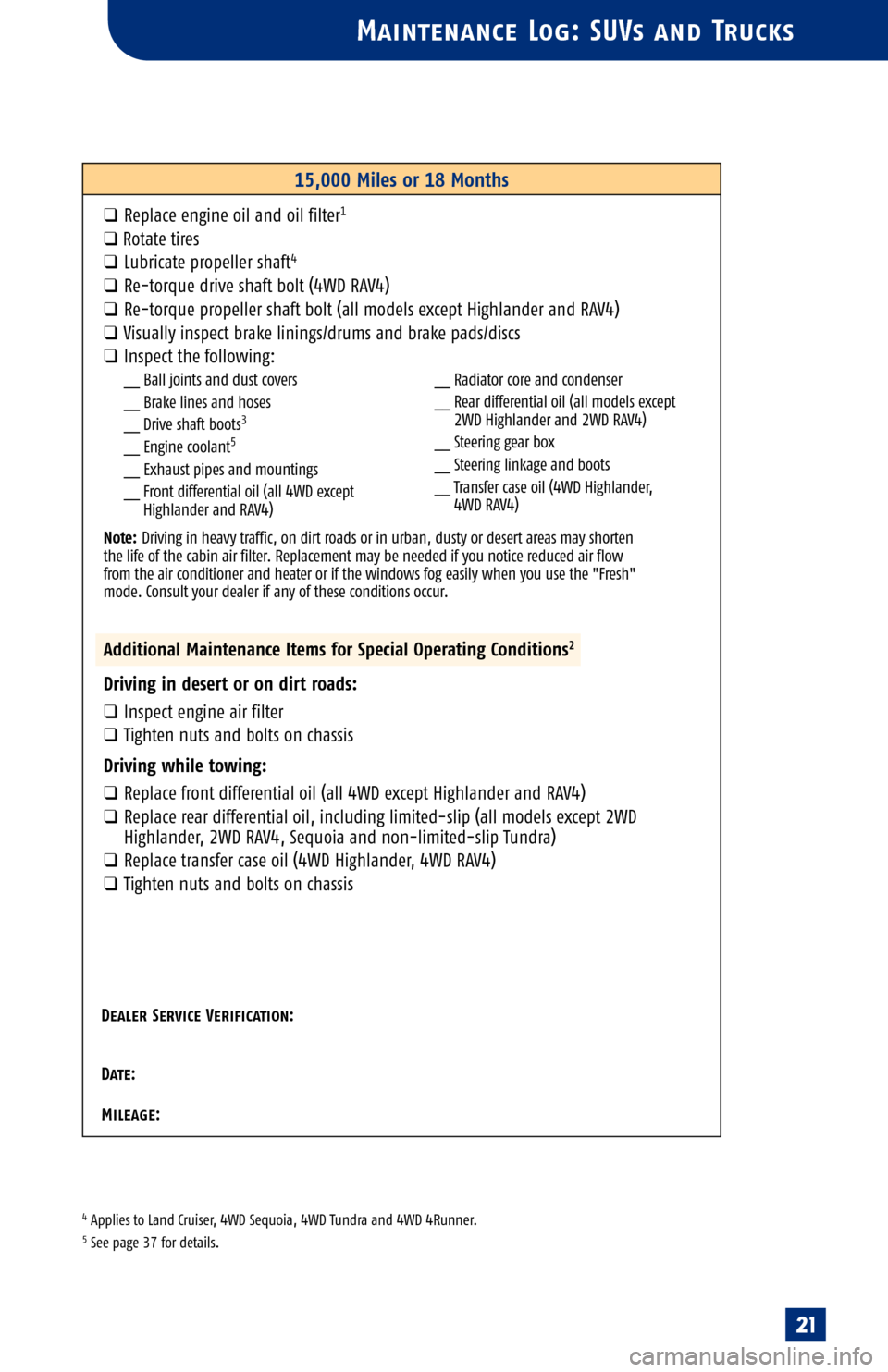

15,000 Miles or 18 Months
qReplace engine oil and oil filter1
qRotate tires
qLubricate propeller shaft4
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
3
__ Engine coolant5
__ Exhaust pipes and mountings
__ Front differential oil (all 4WD exceptHighlander and RAV4)
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mod e. C on sult you rdealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qInspect engine air filter
qTighten nuts and bolts on chassis
Driving while towing:
qReplace front differential oil (all 4WD except Highlander and RAV4)
qReplace rear differential oil, including limitedslip (all models except 2WD
Highlander, 2WD RAV4, Sequoia and nonlimitedslip Tundra)
qRepl ac e t ransfer case oil (4WD Highlander, 4WD RAV4)
qTi gh ten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
21
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander, 4WD RA V4)

Maintenance Log: SUVs and Trucks
4Applies to Land Cruiser, 4WD Sequoia, 4WD Tundra and 4WD 4Runner.5See page 37 for details.

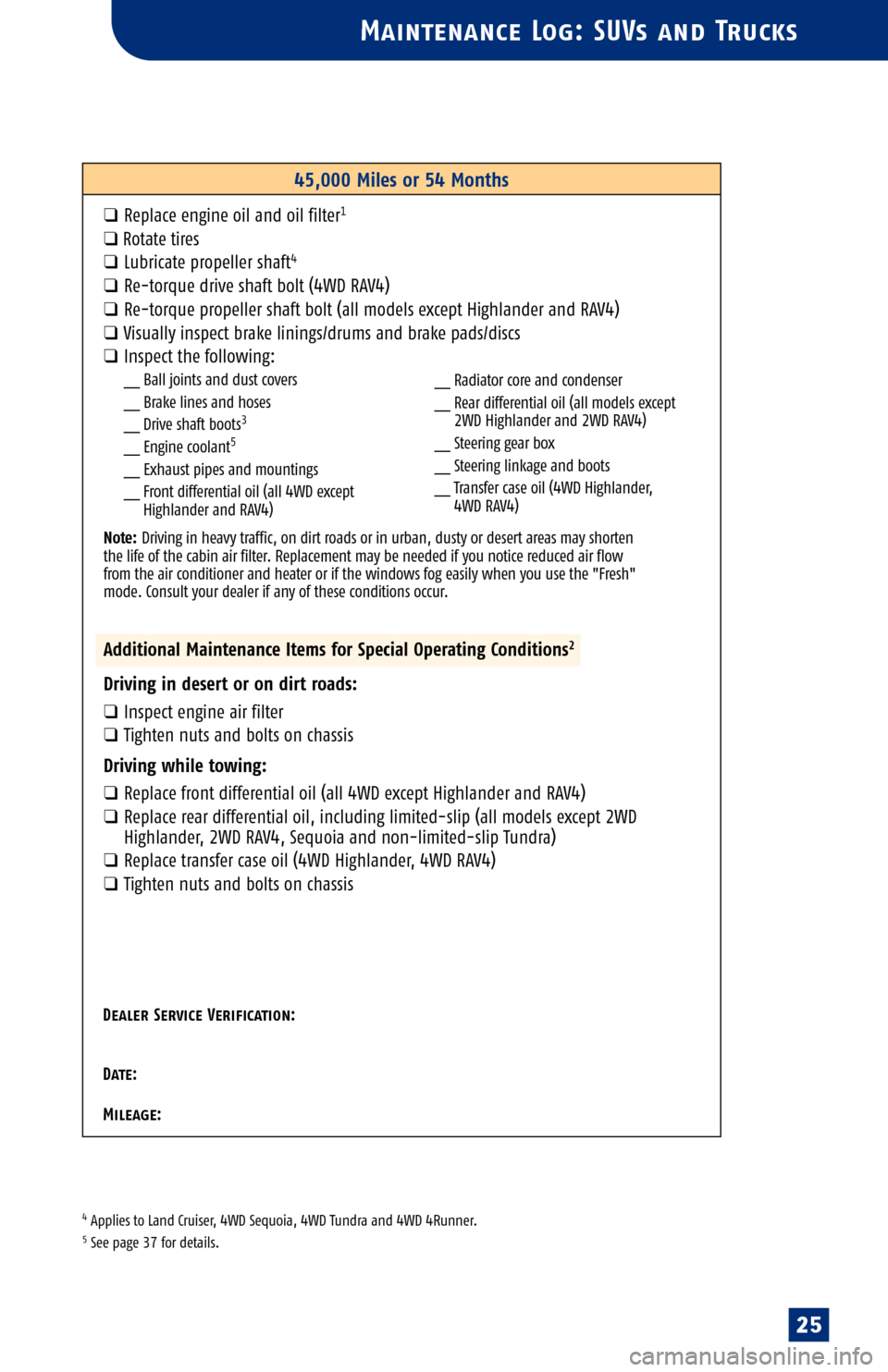

45,000 Miles or 54 Months
qReplace engine oil and oil filter1
qRotate tires
qLubricate propeller shaft4
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
3
__ Engine coolant5
__ Exhaust pipes and mountings
__ Front differential oil (all 4WD exceptHighlander and RAV4)
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
f r om t he air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qInspect engine air filter
qTi gh ten nuts and bolts on chassis
Driving while towing:
qRepl ac e f ront differential oil (all 4WD except Highlander and RAV4)
qReplace rear differential oil, including limitedslip (all models except 2WD
Hi ghlander, 2WD RAV4, Sequoia and nonlimitedslip Tundra)
qReplace transfer case oil (4WD Highlander, 4WD RAV4)
qTi gh ten nuts and bolts on chassis
Dea ler Ser vice Verification:
Date:
Mileage:
25
__ Radiator core and condenser
__ Rear differential oil (all models except 2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander, 4WD RAV4)

Maintenance Log: SUVs and Trucks
4Applies to Land Cruiser, 4WD Sequoia, 4WD Tundra and 4WD 4Runner.5See page 37 for details.

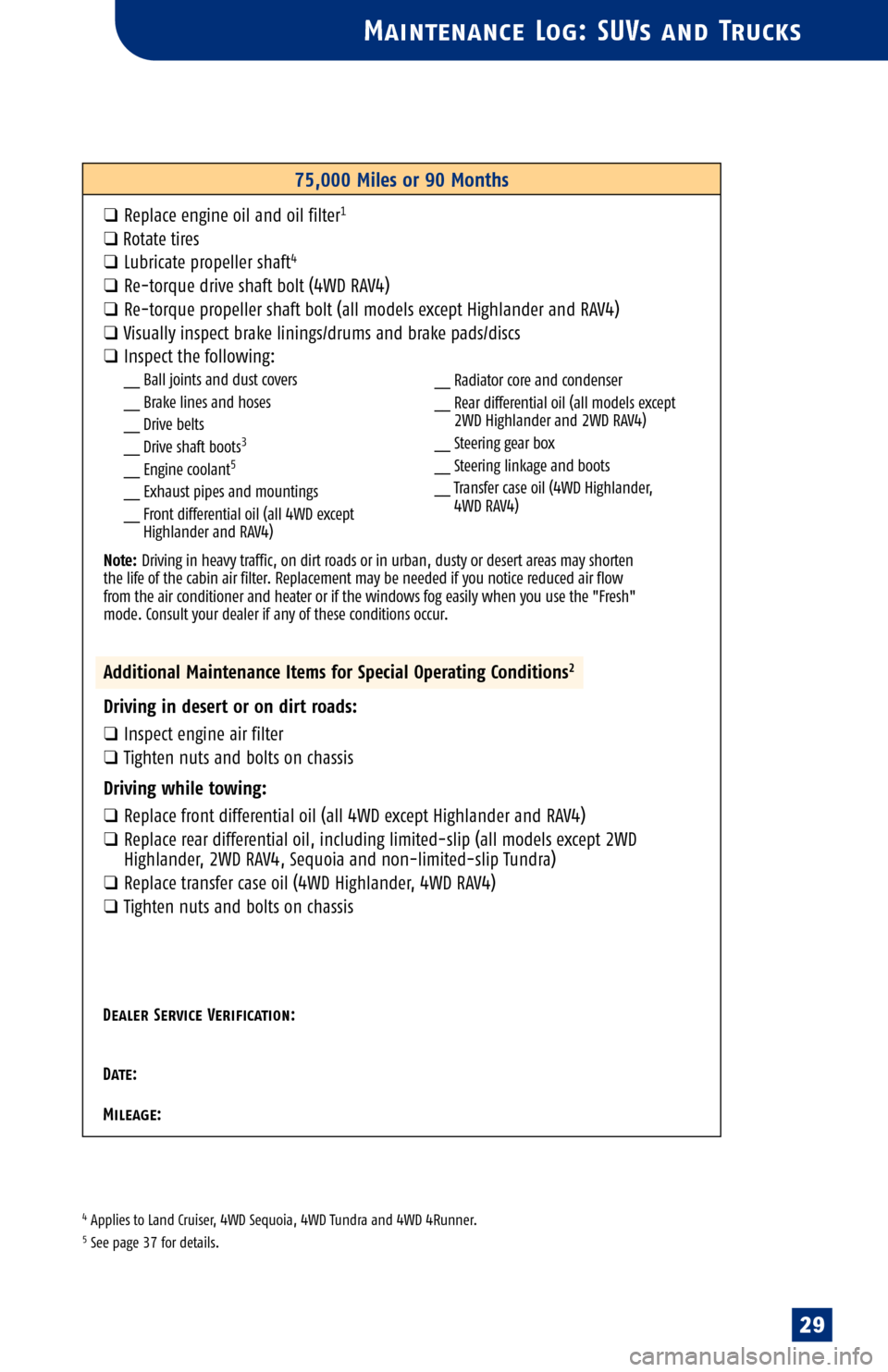

75,000 Miles or 90 Months
qReplace engine oil and oil filter1
qRotate tires
qLubricate propeller shaft4
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
3
__ Engine coolant5
__ Exhaust pipes and mountings
__ Front differential oil (all 4WD exceptHighlander and RAV4)
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
f r om the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Add ition al M aintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qInspect engine air filter
qTighten nuts and bolts on chassis
Dr iv in g while t owing:
qReplace front differential oil (all 4WD except Highlander and RAV4)
qReplace rear differential oil, including limitedslip (all models except 2WD
Highlander, 2WD RAV4, Sequoia and nonlimitedslip Tundra)
qReplace transfer case oil (4WD Highlander, 4WD RAV4)
qTighten nuts and bolts on chassis
Dealer Service Verification:
D at e :
Mileage:
29
__ Radiator core and condenser
__ Rear differential oil (all models except 2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander, 4WD RAV4)

Maintenance Log: SUVs and Trucks
5Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. See page 37
f or add itional information.
6See p age 37 for details.

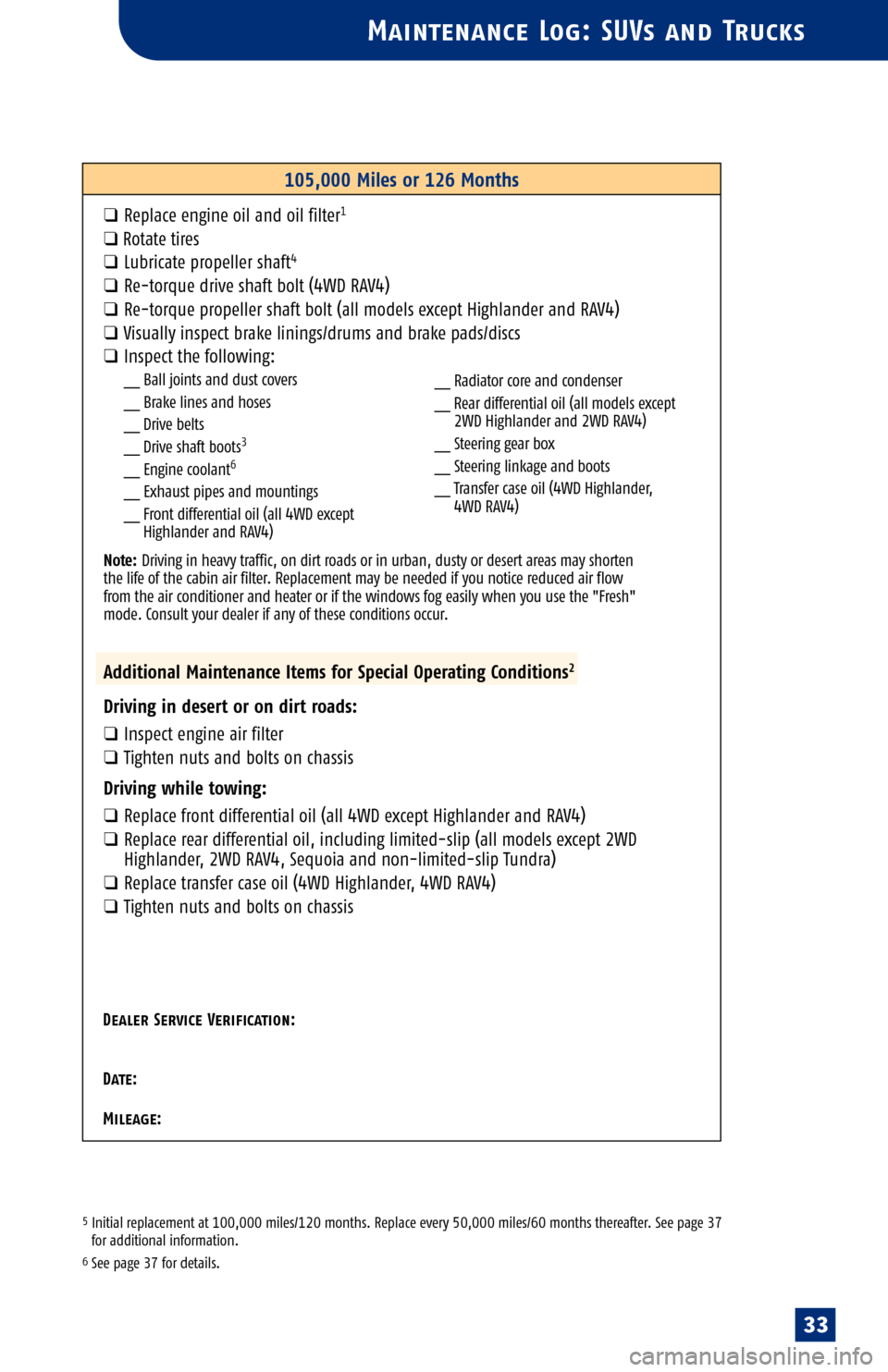

105,000 Miles or 126 Months
qReplace engine oil and oil filter1
qRotate tires
qLubricate propeller shaft4
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qVisually inspect brake linings/drums and brake pads/discs
qIn spect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
3
__ Engine coolant6
__ Exhaust pipes and mountings
__ Front differential oil (all 4WD except
Highlander and RAV4)
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
t h e lif e of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Dr iv ing in desert or on dirt roads:
qInspect engine air filter
qTighten nuts and bolts on chassis
Dr iv ing while towing:
qReplace front differential oil (all 4WD except Highlander and RAV4)
qR epl ace rear differential oil, including limitedslip (all models except 2WD
Hi gh lander, 2WD RAV4, Sequoia and nonlimitedslip Tundra)
qReplace transfer case oil (4WD Highlander, 4WD RAV4)
qTighten nuts and bolts on chassis
Dealer Service Verification:
D ate:
Mileage:
33
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander, 4WD RAV4)
