change time TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

83

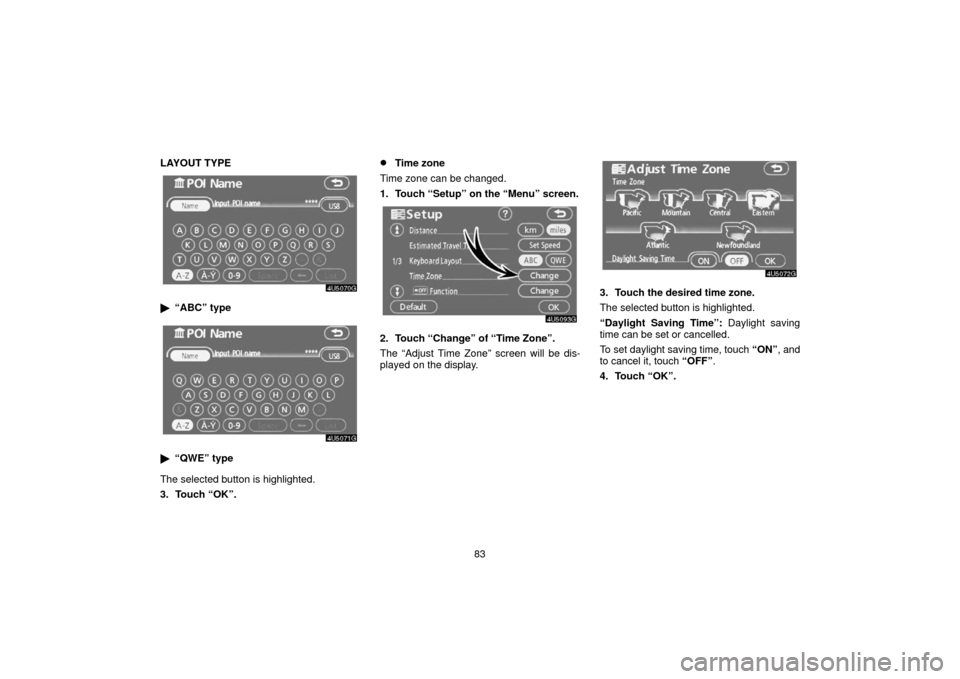

LAYOUT TYPE

“ABC” type
“QWE” type
The selected button is highlighted.
3. Touch “OK”.
Time zone
Time zone can be changed.
1. Touch “Setup” on the “Menu” screen.
2. Touch “Change” of “Time Zone”.
The “Adjust Time Zone” screen will be dis-
played on the display.
3. Touch the desired time zone.
The selected button is highlighted.
“Daylight Saving Time”: Daylight saving
time can be set or cancelled.
To set daylight saving time, touch “ON” , and
to cancel it, touch “OFF” .
4. Touch “OK”.

92
Maintenance information —
— Maintenance information
setting
When the Navigation System is turned on, the
“Information” screen displays when it is time
to replace a part or certain components. (See
page 3.)
1. Push the “INFO” button.
2. Touch “Maintenance”.
3. Touch the desired touchscreen but-
ton.
For details of each touch− screen button, see
“INFORMATION ITEMS” on page 92.
“Delete All”: To cancel all conditions which
have been inputted.
“Reset All”: To reset the item which has sat-
isfied a condition.
“Set Dealer”: To register or edit dealer infor-
mation. (See “ — Dealer setting” on page
93.)
If “ON” is selected, the system gives mainte-
nance information with the “Information”
screen when the system is turned on. (See
page 3.)
If “OFF” is selected, the “Information” screen
is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange. INFORMATION ITEMS
“ENGINE OIL”:
Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items can
be created separately from provided ones

121
(iv) Setting the screen
1. Touch
“Screen” to display the “Screen
Settings” screen.
2. Do the detail settings of the screen and
touch “OK”.
Receiving Call Display
You can select the method of the receiving
call display.
Touch “Full” or “Icon”.
Full mode When a call is received, the
. . . . .
Hands −free screen is
displayed and you can
operate it on the screen.
Icon mode The message is displayed . . . . .
on the upper side of the
screen. You can only
operate the steering
switch.
Auto answer
When a call is received, the display auto-
matically changes to the talking screen
and you can start to talk on the phone
(without touching any switch) after the
preset time.
Touch “On” of “Auto Answer” and “” or
“+” to adjust the waiting time of auto an-
swer within 1 60 seconds.

134

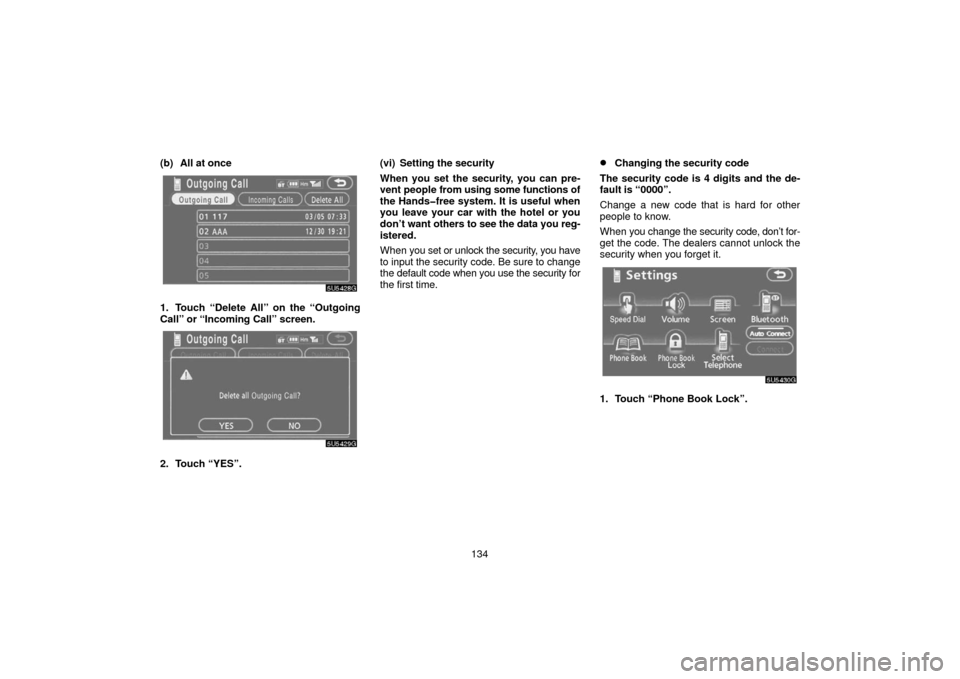

(b) All at once
1. Touch “Delete All” on the “Outgoing
Call” or “Incoming Call” screen.
2. Touch “YES”.
(vi) Setting the security
When you set the security, you can pre-
vent people
from using some functions of
the Handsfree system. It is useful when
you leave your car with the hotel or you
don’t want others to see the data you reg-
istered.
When you set or unlock the security, you have
to input the security code. Be sure to change
the default code when you use the security for
the first time.

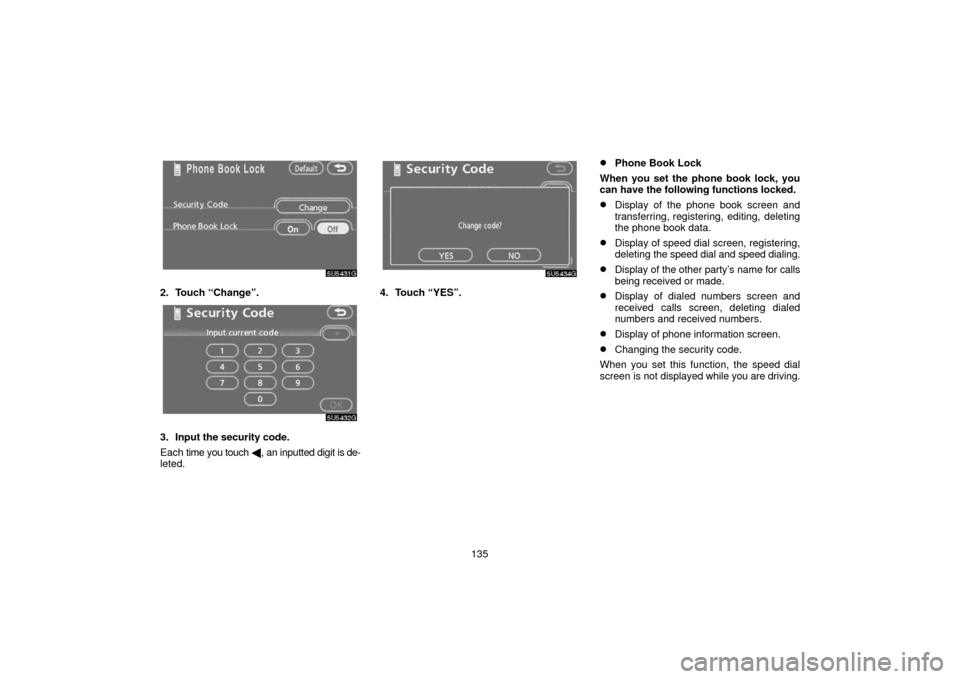

Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t for-
get the code. The dealers cannot unlock the
security when you forget it.
1. Touch “Phone Book Lock”.

135
2. Touch “Change”.
3. Input the security code.
Each time you touch  , an inputted digit is de-
leted.
4. Touch “YES”.
Phone Book Lock
When you set the phone book lock, you
can have the following functions locked.
Display of the phone book screen and
transferring, registering, editing, deleting
the phone book data.
Display of speed dial screen, registering,
deleting the speed dial and speed dialing.
Display of the other party’s name for calls
being received or made.
Display of dialed numbers screen and
received calls screen, deleting dialed
numbers and received numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driving.

156
(e) Your CD changer
When you insert a disc, touch “LOAD” and
gently push
the disc in with the label side up.
This CD changer can store up to four discs.
The changer will play from track 1 through to
the end of the disc. Then it will play from track
1 of the next disc.
The changer is intended for use with 12 cm
(4.7 in.) discs only.

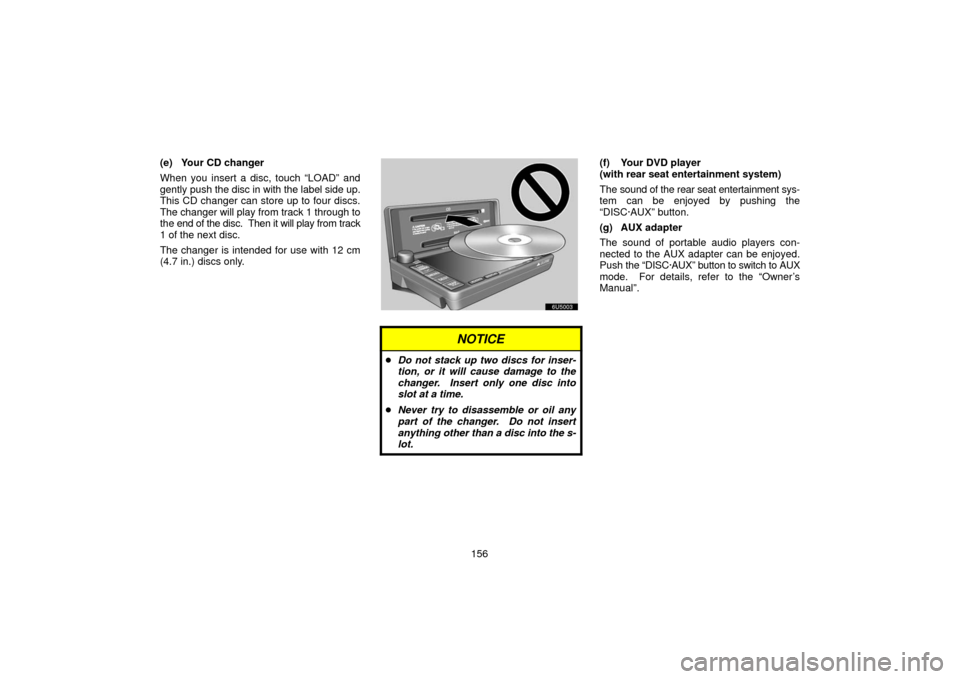

NOTICE
 Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
slot at a time.
 Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the s-
lot.
(f) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment sys-
tem can be enjoyed by pushing the
“DISC·AUX” button.
(g) AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to AUX
mode. For details, refer to the “Owner’s
Manual”.

158
(c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning:
Touch the touch− screen but-
ton (1 — 6) for the station you want. The
touch−screen button is highlighted and the
station frequency appears on the screen.
Seek tuning: Push the “SEEK/TRACK” but-
ton on either side. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched automatically one after another.
To scan all the frequencies: Touch “SCAN”
on the screen or push the “SCAN” button
briefly. “SCAN” appears on the screen. The
radio will find the next station and stay there
for a few seconds, and then scan again. To
select a station, touch “SCAN” or push the
“SCAN” button again.
To scan the preset stations: Touch “SCAN”
on the screen or push the “SCAN” button for
longer than a second. “P . SCAN” appears on
the screen. The radio will tune in the next pre-
set station, stay there for a few seconds, and
then move to the next preset station. To se-
lect a station, touch “SCAN” or push the

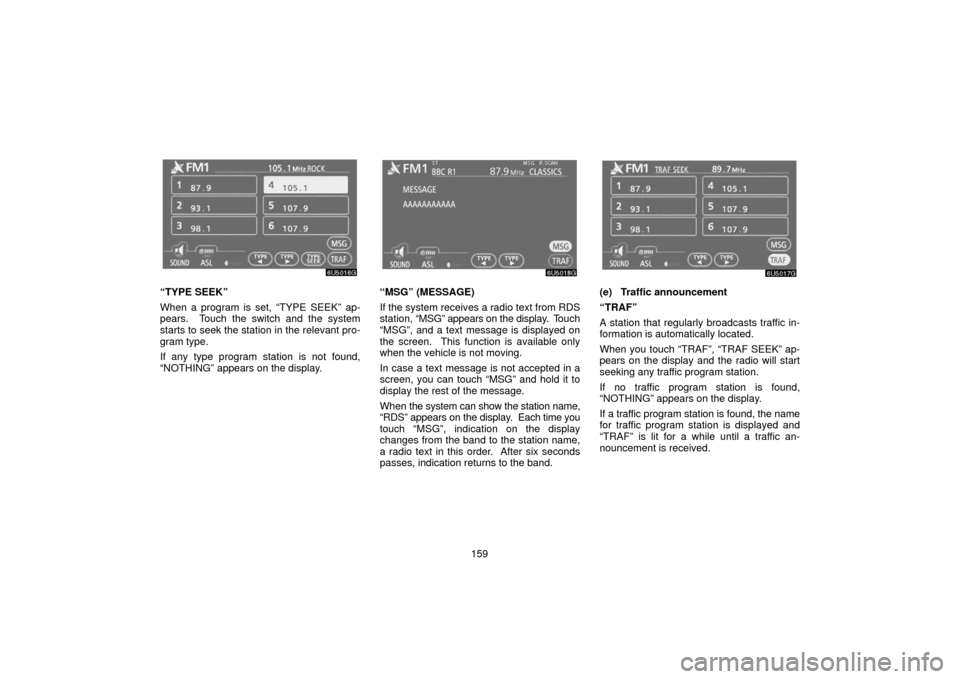

“SCAN” button again. (d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode provides
you to receive text messages from radio sta-
tions that utilize RDS transmitters.
When RDS is on, the radio can
— only select stations of a particular program
type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for the use only on
FM stations which broadcast RDS informa-
tion.
“TYPE
  ”
If the system receives no RDS stations, “NO
PTY” appears on the display.
Each time you touch “TYPE  ” or “TYPE ”,
the program type changes as in the following:
ROCK
MISC (Miscellaneous)
INFORM (Information)
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R & B (Rhythm and Blues)
RELIGION
ALARM (Emergency message)

159
“TYPE SEEK”
When a program is set, “TYPE SEEK” ap-
pears. Touch the switch and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
“NOTHING” appears on the display.“MSG” (MESSAGE)
If the system receives a radio text from RDS
station, “MSG” appears on the display. T ouch
“MSG”, and a text message is displayed on
the screen. This function is available only
when the vehicle is not moving.
In case a text message is not accepted in a
screen, you can touch “MSG” and hold it to
display the rest of the message.
When the system can show the station name,
“RDS” appears on the display . Each time you
touch “MSG”, indication on the display
changes from the band to the station name,
a radio text in this order. After six seconds
passes, indication returns to the band.(e) Traffic announcement
“TRAF”
A station that regularly broadcasts traffic in-
formation is automatically located.
When you touch “TRAF”, “TRAF SEEK” ap-
pears on the display and the radio will start
seeking any traffic program station.
If no traffic program station is found,
“NOTHING” appears on the display.
If a traffic program station is found, the name
for traffic program station is displayed and
“TRAF” is lit for a while until a traffic an-
nouncement is received.

162
3. Remove the disc.
The indicators start blinking again and the
next disc is ejected.
If a disc is not remove within 15 seconds after
it is ejected, the operation will be canceled.
When
all the discs are removed, the amber in-
dicators change to green. A disc can be in-
serted.
The numbers of the trays where the disc is not
set are dimmed.

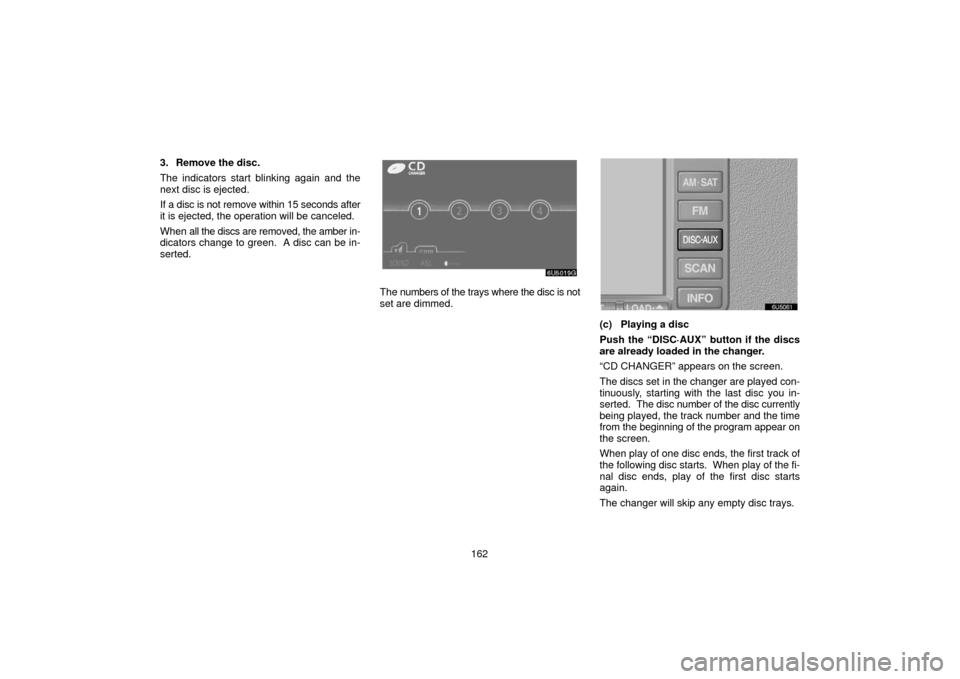

(c) Playing a disc
Push the “DISC·AUX” button if the discs
are already loaded in the changer.
“CD CHANGER” appears on the screen.
The discs set in the changer are played con-
tinuously, starting with the last disc you in-
serted. The disc number of the disc currently
being played, the track number and the time
from the beginning of the program appear on
the screen.
When play of one disc ends, the first track of
the following disc starts. When play of the fi-
nal disc ends, play of the first disc starts
again.
The changer will skip any empty disc trays.

165

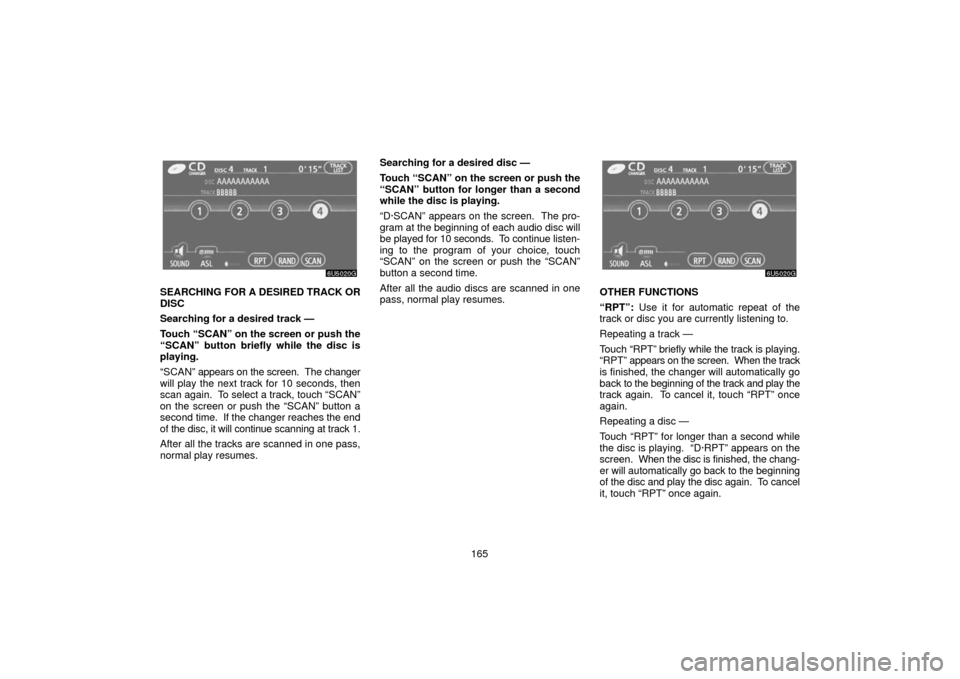

SEARCHING FOR A DESIRED TRACK OR
DISC
Searching for a desired track —
Touch “SCAN” on the screen or push the
“SCAN” button briefly while the disc is
playing.
“SCAN” appears on the screen. The changer
will play the next track for 10 seconds, then
scan again. To select a track, touch “SCAN”
on the screen or push the “SCAN” button a
second time. If the changer reaches the end
of the disc, it will continue scanning at track 1.
After all the tracks are scanned in one pass,
normal play resumes. Searching for a desired disc —
Touch “SCAN” on the screen or push the
“SCAN” button for longer than a second
while the disc is playing.
“D·SCAN” appears on the screen. The pro-
gram at the beginning of each audio disc will
be played for 10 seconds. To continue listen-
ing to the program of your choice, touch
“SCAN” on the screen or push the “SCAN”
button a second time.
After all the audio discs are scanned in one
pass, normal play resumes.OTHER FUNCTIONS
“RPT”:
Use it for automatic repeat of the
track or disc you are currently listening to.
Repeating a track —
Touch “RPT” briefly while the track is playing.
“RPT” appears on the screen. When the track
is finished, the changer will automatically go
back to the beginning of the track and play the
track again. To cancel it, touch “RPT” once
again.
Repeating a disc —
Touch “RPT” for longer than a second while
the disc is playing. “D·RPT” appears on the
screen. When the disc is finished, the chang-
er will automatically go back to the beginning
of the disc and play the disc agai n. To cancel
it, touch “RPT” once again.
