TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

41
If the same two streets cross at more than one
intersection, the screen changes and dis-
plays the menu to select the city name where
the streets intersect. Select the city, and the
map location of the selected destination and
the route preference. (See “Starting route
guidance” on page 43.)
— Destination search by
“Freeway Ent./Exit”
1. To input a freeway entrance or exit,
touch “Freeway Ent./Exit” on the “Des-
tination” screen.
Be sure to use the complete name of the free-
way or highway, including the hyphen, when
entering the destination. Freeways and inter-
states use an “I” (I −405). US highways use
the state designation before the number
(CA−118).
2. Select the desired freeway by touching
the touchscreen button.
3. Either a freeway “Entrance” or “Exit”
can be selected.

42
4. Touch the touchscreen button of the
desired entrance or exit name.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route guid-
ance” on page 43.)
“Input Name”: An applicable list is displayed
by touching this touch− screen button and in-
putting the name.
— Destination search by
“Coordinates”
1. Touch “Coordinates” on the “Destina-
tion” screen.
2. Input the latitude and the longitude.
3. When the input is finished, touch
“OK”.
By touching touch −screen the button of the
desired point, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 43.)
— Destination search by
“Phone #”
1. Touch “Phone #” on the “Destination”
screen.
2. Input a telephone number.
3. After inputting a telephone number,
touch “OK”.
The screen changes and displays the map
location of the selected destination and the
road preference. (See “Starting route guid-
ance” on page 43.)
If there is more than one site having the same
number, the following screen will be dis-
played.

43
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers with different area codes
will be displayed.
 To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 75.)
Starting route guidance
After inputting the destination, the screen
changes and displays the map location of the
selected destination and the route prefer-
ence.
1. When an arrow facing the desired
point is touched, the map scrolls in that di-
rection.
Releasing the finger from the arrow will stop
the scrolling. 2. Touch “Enter”.
The system starts route search and displays
recommended routes.
If there is already a set destination,
“Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
“Route Preference”: To change the route
preference. (See page 45.)
“Info.”: If this touch−screen button is dis-
played on the top of the screen, touch the
switch to view items such as name, address,
and phone number.

44
1Current position
2Destination point
3Type of the route and the distance
4Distance of the entire route
3. To start guidance, touch “Guide”.
“3 Routes”: To select the desired route from
three possible routes. (See page 45.)
“Route”: To change the route. (See pages
53 and 55.)
INFORMATION
 Guidance can be suspended or re-
sumed. (See “Suspending and re-
suming guidance” on page 66.)
 If “Guide” is touched until a beep
sounds, Demo mode will start. Push
the “MAP/VOICE” button to finish
Demo mode.
 The route for returning may not be the
same as that for going.
 The route guidance to the destination
may not be the shortest route nor a
route without traffic congestion.
 Route guidance may not be available
if there is no road data for the speci-
fied location.
 When setting the destination on a
map with a scale larger than 0.5 miles
(800 m), the map scale changes to 0.5
miles (800 m) automatically. Set the
destination again.
 If a destination is entered, the road
nearest to the point you selected is
set as the destination.
CAUTION
Be sure to obey traffic regulations and
keep road conditions in mind while
driving. If a traffic sign on the road
has been changed, the route guidance
may provide wrong information.

45

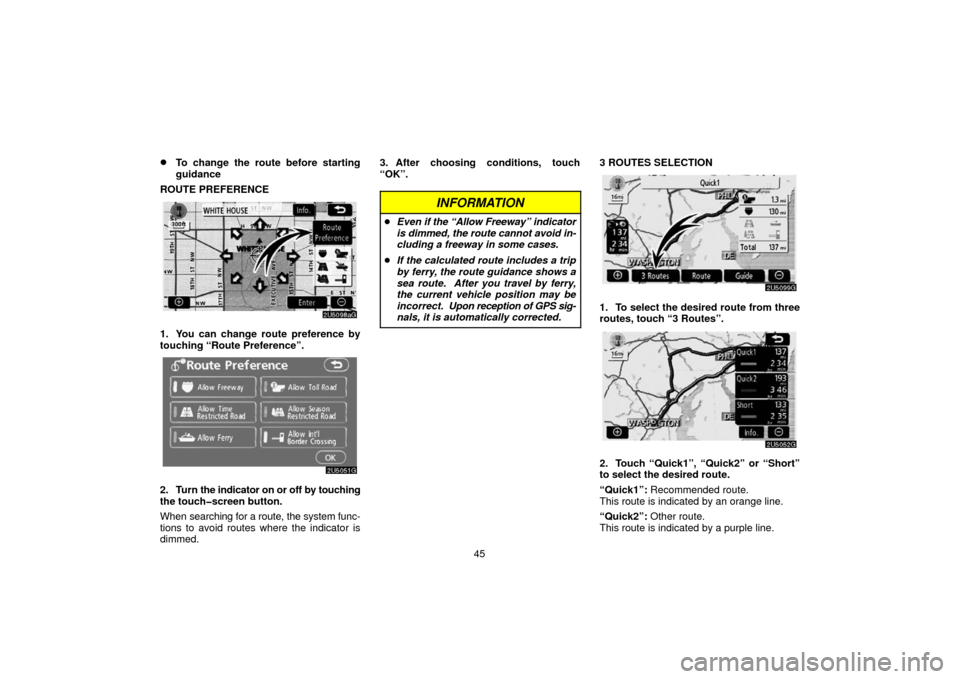

To change the route before starting
guidance
ROUTE PREFERENCE
1. You can change route preference by
touching “Route Preference”.
2. Turn the indicator on or off by touching
the touchscreen button.
When searching for a route, the system func-
tions to avoid routes where the indicator is
dimmed. 3. After choosing conditions, touch
“OK”.
INFORMATION

Even if the “Allow Freeway” indicator
is dimmed, the route cannot avoid in-
cluding a freeway in some cases.
 If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.
3 ROUTES SELECTION
1. To select the desired route from three
routes, touch “3 Routes”.
2. Touch “Quick1”, “Quick2” or “Short”
to select the desired route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.

46
“Short”:
A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.
“Info.”: To display the following information
about each of the 3 routes.
1Time necessary for the entire trip
2Distance of the entire trip
3Toll road
4Freeway
5Ferry

47
ROUTE GUIDANCE
Route guidance
Route guidance screen48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Typical voice guidance prompts 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Distance and time to destination 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Setting and deleting destination 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Adding destinations 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Reordering destinations 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Deleting destination 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Setting route 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Search condition 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Detour setting 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Route preference 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Starting route from adjacent road 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map view 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . .
Display POI icons 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Route overview 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Route preview 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Route trace 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
SECTION III

48
Route guidance screen
During route guidance, various types of guid-
ance screens can be displayed depending on
conditions.
Screen layout
1Distance to the next turn and the ar-
row indicating turning direction
2Current street name
3Distance and travel/arrival time to the
destination
4Current position
5Guidance route
INFORMATION
 If the vehicle goes off the guidance
route, the route is searched again.
 For some areas, the roads have not
been completely digitized in our data-
base. For this reason, the route guid-
ance may select road that should not
be traveled on.
During freeway driving
During freeway driving, the freeway informa-
tion screen will be displayed.
This screen displays the distance to the next
junction and exit, or POIs in the vicinity of the
freeway exit.
1Current position
2Points of Interest that are close to a
freeway exit.
3Exit number and junction name
4Distance from the current position to
the exit or junction
5Current street name
: To display the selected map of the exit
vicinity.

49
:To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest three junctions
or exits.
When approaching a freeway en-
trance, exit or junction
When the vehicle approaches an entrance,
exit, or junction, the guidance screen for the
freeway will be displayed.
1Road/area name
2Distance from the current position to
the entrance, exit, or junction
3Current position
“OFF”: The guidance screen on freeway dis-
appears and the map screen appears.
When touching
or pushing the “MAP/
VOICE” button, the guidance screen on free-
way reappears.
When approaching an intersection
When the vehicle approaches an intersec-
tion, the intersection guidance screen will be
displayed.
1Next street name
2Distance to the intersection
3Current position
“OFF”: The intersection guidance screen
disappears and the map screen appears.
When touching
or pushing the “MAP/
VOICE” button, the intersection guidance
screen reappears.

50
Other screens
TURN LIST SCREEN
On this screen, the list of turns on the guid-
ance route can be viewed.
Touching
during guidance displays the
turn list.
1Next street name or destination name
2Turn direction
3Distance to the next turn
4Current street name ARROW SCREEN
On this screen, information about next turns
on the guidance route can be viewed.
Touching
during guidance displays the
arrow screen.
1Exit number, street name containing
number or next street name
2Turn direction
3Distance to the next turn
4Current street name
Typical voice guidance
prompts
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.
4.7 miles
0.25 miles
+ α
1“Proceed about 5 miles.”
2“In a quarter of a mile, right turn.”
3“Right turn.”
4(Beep sound only)
