CD player TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

152
1Function menu display screen
To control the radio, CD changer or DVD
player, touch the touch−screen buttons.
For details, see page 154.
2“TUNE·FILE” knob
Turn this knob to move the station band
and files up or down. For details, see
pages 157 and 167.
3“AM·SAT” button
Push this button to choose an AM sta-
tion. For details, see pages 154 and
157.
4“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 154 and
157.
5“DISC·AUX” button
Push this button to turn the CD changer,
DVD player and AUX on. For details,
see pages 154, 156, 162 and 171.
6“SCAN” button
Push this button to scan radio stations.
For details, see pages 158, 165, 168,
173 and 175.
7“LOAD·” button
Push this button to display the
“LOAD·EJECT” screen or close the dis-
play. For details, see page 160.
Quick reference

154
Push “AM·SAT”, “FM” or “DISC·AUX” but-
ton to turn on the desired mode. The se-
lected mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the CD changer does not
turn on.
You can turn off the CD changer by ejecting
all the discs. If the audio system was pre-
viously off, then the entire audio system will
be turned off when you eject all the discs. If
the other function was previously playing, it
will come on again.
The touchscreen buttons for radio, CD
changer and DVD player operation are dis-
played on the function touchscreen but-
ton display screen when the audio control
mode is selected. Touch them lightly and
directly on the screen.
The selected switch is highlighted.
INFORMATION
 If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
 You cannot operate dimmed touch
screen buttons.
 Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.

156
(e) Your CD changer
When you insert a disc, touch “LOAD” and
gently push
the disc in with the label side up.
This CD changer can store up to four discs.
The changer will play from track 1 through to
the end of the disc. Then it will play from track
1 of the next disc.
The changer is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
 Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
slot at a time.
 Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the s-
lot.
(f) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment sys-
tem can be enjoyed by pushing the
“DISC·AUX” button.
(g) AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to AUX
mode. For details, refer to the “Owner’s
Manual”.

163
Vehicles with rear entertainment system —
If the DVD player is turned on, push the
“DISC·AUX”
button again to switch to the CD
changer.
If the rear seat entertainment system is on,
pushing the “DISC·AUX” button switches the
sound of the front audio system and that of the
rear seat entertainment system.
(d) Selecting a desired disc
Touch the desired disc number on the
screen.
The selected disc number is highlighted.
The changer will start playing the selected
disc from the first track.(e) Playing an audio disc
Push the “AUDIO” button to display this
screen.

164
SELECTING A DESIRED TRACK
“SEEK/TRACK” button: Use for a direct ac-
cess to a desired track.
Push either side of the “SEEK/TRACK” but-
ton and repeat it until the desired track num-
ber appears on the screen. As you release
the button, the changer will start playing the
selected track from the beginning.
“TRACK LIST”: The desired track can be se-
lected from a list. This function is available
only when the vehicle is not moving.
Touch “TRACK LIST”. The track list is dis-
played.
Touch the desired track number . The changer
will start playing the selected track from the
beginning.
: By touching this touch −screen button,
the list moves up by 6 track groups. If this but-
ton is touched when the top page of the list is
displayed, the last page is displayed.
: By touching this touch −screen button,
the list moves down by 6 track groups. If this
button is touched when the last page of the list
is displayed, the top page is displayed.
Vehicles with rear entertainment system —
While the DVD player is in operation, the
chapter or track can be changed by pushing
either side of the “SEEK/TRACK” button. Fast forward: Push “
” side of the “SEEK/
TRACK” button and hold it to fast forward the
disc. When you release the button, the
changer will resume playing from that posi-
tion.
Reverse: Push “” side of the “SEEK/
TRACK” button and hold it to reverse the disc.
When you release the button, the changer will
resume playing.

170
(g) If the player malfunctions
If “CD ERROR” appears on the screen, audio
signals
of the disc cannot be read or the sys-
tem has trouble. Push the “DISC” button once
again.
If the changer does not operate, check that
the disc surface is not soiled or damaged. If
the disc is O.K., the temperature of the chang-
er’s internal mechanism may be raised be-
cause of high external temperature. Remove
the disc from the changer to cool it.
If the changer still does not operate, have it
checked by your dealer.
If an MP3/WMA disc contains CD −DA files,
only CD −DA files are played. If an MP3/WMA
disc contains files other than CD −DA, only
MP3/WMA files are played.
—DVD player operation
The DVD player can play DVD video, audio
CD, video CD, CD text, dtsCD or MP3 disc
only when a disc is loaded in the DVD play-
er. A WMA disc cannot be played.
Refer to “Rear seat entertainment system” for
details.
For appropriate discs for this player, see “Au-
dio/video system operating hints” on page
189.
(a) Inserting the disc
Insert the disc into the slot with the label
side up.
An adapter must be used for 8 cm (3 in.) discs
which are loaded in the same manner as for
12 cm (4.7 in.) discs.
The indicator light turns on while the disc is
loaded.
If the label faces forward, the disc cannot be
played. In this case, “DISC CHECK” appears
on the screen.
If a disc which is not playable is inserted,
“DISC CHECK” will also appear on the
screen. For appropriate discs for this player,
see “Audio/video system operating hints” on
page 189.
NOTICE
Never try to disassemble or oil any part
of the DVD player. Do not insert any-
thing other than a disc into the slot.

171
(b) Ejecting a disc
Push the
button.
(c) Playing a disc
Push the “DISC·AUX” button if a disc is al-
ready loaded in the player.
“DVD” appears on the screen. (If the CD
changer is turned on, push the “DISC” button
again to switch to the DVD player.)
(d) Operating an audio CD
PLAYING AN AUDIO CD
CD text only — The disc title and track title will
appear on the screen when pushing the
“DISC·AUX” button.
Push the “AUDIO” button to display this
screen.

172
SELECTING A DESIRED TRACK
“SEEK/TRACK” button: Use for direct ac-
cess to a desired track.
Push either side of the “SEEK/TRACK” but-
ton and repeat it until the desired track num-
ber appears on the display. As you release
the button, the player will start playing the se-
lected track from the beginning.
“TRACK LIST”: The desired track can be se-
lected from a list. This function is available
only when the vehicle is not moving.
Touch “TRACK LIST”. The track list is dis-
played.
Touch the desired track number. The player
will start playing the selected track from the
beginning.
: By touching this touch −screen button,
the list moves up by 6 track groups. If this
touch−screen button is touched when the top
page of the list is displayed, the last page is
displayed.
: By touching this touch −screen button,
the list moves down by 6 track groups. If this
touch−screen button is touched when the last
page of the list is displayed, the top page is
displayed. Fast forward: Touch “
” side of “SEEK/
TRACK” button and hold it to fast forward the
disc. When you release the button, the player
will resume playing from that position.
Reverse: Touch “ ” side of the “SEEK/
TRACK” button and hold it to reverse the disc.
When you release the button, the player will
resume playing.

173
SEARCHING FOR A DESIRED TRACK
Touch “SCAN” on the screen or push the
“SCAN” button.
“SCAN” will be highlighted on the screen. The
player will play the next track for 10 seconds,
then scan again. To select a track, touch
“SCAN” on the screen or push the “SCAN”
button a second time. If the player reaches
the end of the disc, it will continue scanning at
track 1.
After all the tracks are scanned in one pass,
normal play resumes.OTHER FUNCTIONS
“RPT”: Use it for automatic repeat of the
track you are currently listening to.
Touch “RPT” while the track is playing. When
the track is finished, the player will automati-
cally go back to the beginning of the track and
play the track again. To cancel it, touch “RPT”
once again.
“RAND”: Use it for automatic and random
selection of the disc which you are currently
listening to.
When “RAND” is touched, the system selects
a track in the disc you are currently listening
to. To cancel it, touch “RAND” once again.
If a CD −TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.(e) Operating a MP3 DISC
PLAYING A MP3 DISC
Push the “AUDIO” button to display this
screen.

174

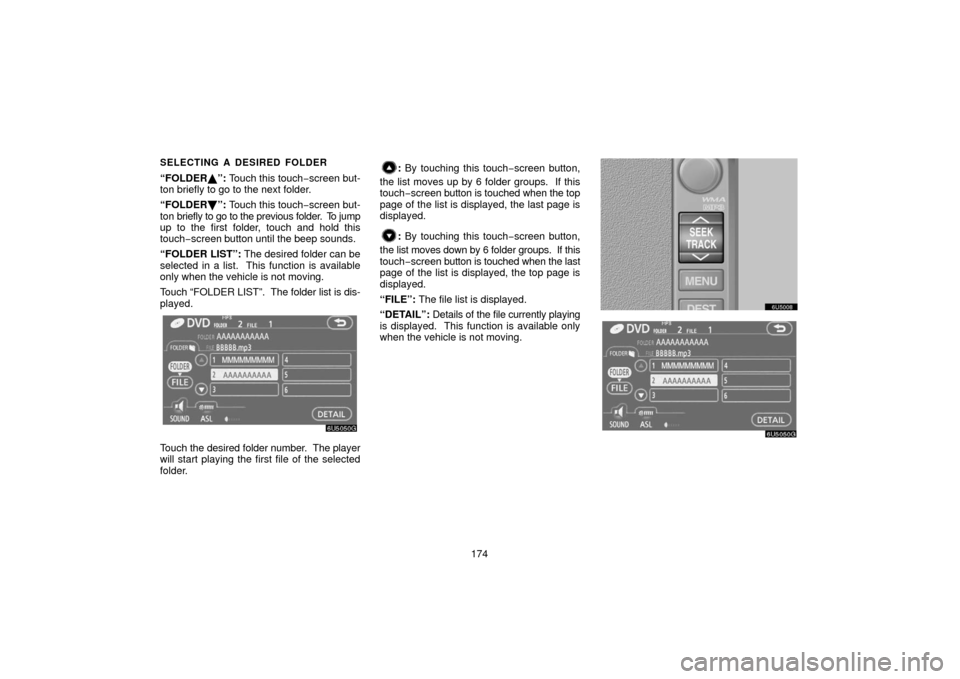

SELECTING A DESIRED FOLDER
“FOLDER”: Touch this touch−screen but-
ton briefly to go to the next folder.
“FOLDER \b”: Touch this touch−screen but-
ton briefly to go to the previous folder. To jump
up to the first folder, touch and hold this
touch−screen button until the beep sounds.
“FOLDER LIST”: The desired folder can be
selected in a list. This function is available
only when the vehicle is not moving.
Touch “FOLDER LIST”. The folder list is dis-
played.
Touch the desired folder number. The player
will start playing the first file of the selected
folder.
: By touching this touch −screen button,
the list moves up by 6 folder groups. If this
touch−screen button is touched when the top
page of the list is displayed, the last page is
displayed.
: By touching this touch −screen button,
the list moves down by 6 folder groups. If this
touch−screen button is touched when the last
page of the list is displayed, the top page is
displayed.
“FILE”: The file list is displayed.
“DETAIL”: Details of the file currently playing
is displayed. This function is available only
when the vehicle is not moving.
