light TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

4
Touch screen operation
This system is operated mainly by the touch−
screen buttons on the screen.
To prevent damage to the screen, lightly
touch the touchscreen buttons on the
screen with the finger. When a touch
screen button on the screen is touched, a
beep sounds.
Do not use objects other than the finger to
touch the screen.
INFORMATION
 If the system does not respond to a
touch on a touchscreen button,
move the finger away from the screen
and then touch it again.
 Dimmed touchscreen buttons can-
not be operated.
 Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
Under extremely cold conditions, the
map may not be displayed and the
data input by a user may be deleted.
Also, the touchscreen buttons may
be harder than usual to depress.Inputting letters and
numbers/list screen operation
When searching for an address or a name, or
entering a memo, letters and numbers can be
input via the touch screen.
INFORMATION
Key layout can be changed. (See “ In-
put key layout” on page 82.)

67
Volume
Voice guidance can be used when approach-
ing a destination.
The volume of the voice or turn off voice guid-
ance can be adjusted.
1. Push the “MENU” button.
2. Touch “Volume”.
To adjust the volume, select the desired level
by touching the appropriate number.
If voice guidance is unneeded, touch “OFF”.
The selected item is highlighted.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: By turning
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the button. The indicator will be
highlighted.
User selection
The system can memorize the following set-
tings for up to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Road preference
Maintenance notification

81
3. Touch the items to be set.
4. Touch “OK”.
The previous screen will be displayed.
INFORMATION
To reset all setup items, touch “Default”.
Distance unit
Distance unit can be changed.
1. Touch “Setup” on the “Menu” screen.
2. Touch “km” or “miles” of “Distance” to
choose the distance unit.
The selected button is highlighted.
3. Touch “OK”.
INFORMATION
This function is available only in English
or Spanish. To switch language, see
“Select language” on page 149.
Estimated travel time
The speed that is used for the calculation of
the estimated travel time and the estimated
arrival time can be set.
1. Touch “Setup” on the “Menu” screen.
2. Touch “Set Speed” of the “Estimated
Travel Time”.

83
LAYOUT TYPE

“ABC” type
“QWE” type
The selected button is highlighted.
3. Touch “OK”.
Time zone
Time zone can be changed.
1. Touch “Setup” on the “Menu” screen.
2. Touch “Change” of “Time Zone”.
The “Adjust Time Zone” screen will be dis-
played on the display.
3. Touch the desired time zone.
The selected button is highlighted.
“Daylight Saving Time”: Daylight saving
time can be set or cancelled.
To set daylight saving time, touch “ON” , and
to cancel it, touch “OFF” .
4. Touch “OK”.

85
3. Touch the category button to be
changed.
4. Touch the category button to be dis-
played on the “Display POI Icons” top
screen.
5. Touch “OK”.
Display of building shape
When the “Display Building Shapes” feature
is turned on, the system will display the build-
ing shape on the map screen using a scale of
150 feet (50 m) to 300 feet (100 m).
To turn the “Display Building Shapes” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
2. Touch “ON” of “Display Building
Shapes”.
The selected button is highlighted.
3. Touch “OK”.
Notifying traffic restriction
When the “Traffic Restrict. Notification” fea-
ture is turned on, the system notifies you of
traffic or seasonal restrictions.
To turn the “Traffic Restrict. Notification” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
2. Touch “ON” of “Traffic Restrict. Notifi-
cation”.
The selected button is highlighted.
3. Touch “OK”.

86
Voice recognition guidance
When the “Voice Recognition Guidance” fea-
ture is turned on, the voice recognition guid-
ance can be heard automatically.
To turn the “Voice R ecognition Guidance” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
2. Touch “ON” of “Voice Recognition
Guidance”.
The selected button is highlighted.
3. Touch “OK”.
Voice guidance in all modes
When the “Voice Guidance in All Modes” fea-
ture is turned on, the voice guidance in all
modes can be heard.
When the “Voice Guidance in All Modes” fea-
ture is turned off, voice guidance cannot be
heard when using the audio system.
To turn the “Voice Guidance in All Modes” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
2. Touch “ON” of “Voice Guidance in All
Modes”.
The selected button is highlighted.
3. Touch “OK”.
Auto voice guidance
When the “Auto Voice Guidance” feature is
turned on, the voice guidance can be heard
automatically.
When the “Auto Voice Guidance” feature is
turned off, the voice guidance can be heard
only if the “MAP/VOICE” button is pushed.
To turn the “Auto Voice Guidance” mode on:
1. Touch “Setup” on the “Menu” screen.
Then touch
twice to display page 3 of the
“Setup” screen.
2. Touch “ON” of “Auto V oice Guidance”.
The selected button is highlighted.
3. Touch “OK”.

87
Popup message
When the “Pop−up Message” is turned on,
the Pop− up message will be displayed.
To turn the “Pop− up Message” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
twice to display page 3 of the
“Setup” screen.
2. Touch “ON” of “Popup Message”.
The selected button is highlighted.
3. Touch “OK”. When
the “Pop− up Message” is turned off, fol-
lowing messages are not displayed.
This message appears when the system is in
the POI mode and the map scale is 1 mile (1.6
km) or greater.
The message appears when the map is
switched to the dual map screen mode.
Current position/tire change calibra-
tion
The current vehicle position mark can be ad-
justed manually. Miscalculation of the dis-
tance caused by tire replacement can also be
adjusted.
1. Touch “Setup” on the “Menu” screen.
Then touch
twice to display page 3 of the
“Setup” screen.
2. Touch “Adjust” of “Calibration”.

95
To edit “Phone #” (telephone number)
1. Touch “Phone #” on the “Edit Dealer”
screen.
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
Calendar with memo —
It is possible to enter memos for particular
dates on the calendar. The system informs
you of the memo entry when the system is
turned on. (See page 3 .) Memos can also be
used for route guidance if the memo has been
registered with location information.
1. Push the “INFO” button.
2. Touch “Calendar”.
On this screen, the current date is highlighted
in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month calen-
dar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 98.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.

146

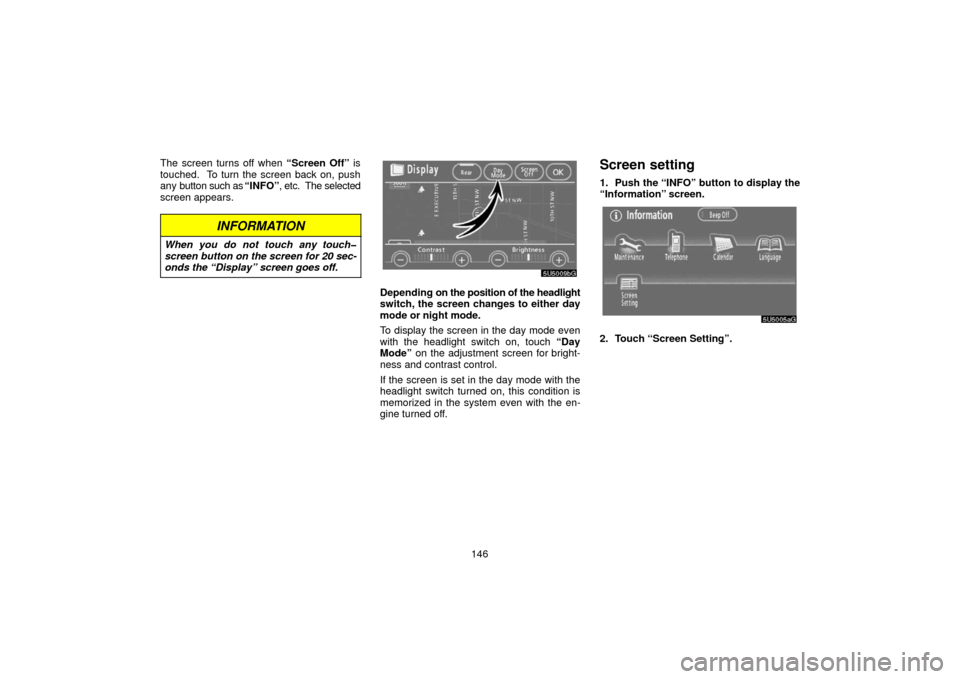

The screen turns off when
“Screen Off” is
touched. To turn the screen back on, push
any button such as “INFO”, etc. The selected
screen appears.
INFORMATION
When you do not touch any touch
screen button on the screen for 20 sec-
onds the “Display” screen goes off.
Depending on the position of the headlight
switch, the screen changes to either day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch “Day
Mode” on the adjustment screen for bright-
ness and contrast control.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.
Screen setting
1. Push the “INFO” button to display the
“Information” screen.
2. Touch “Screen Setting”.

149
Beep setting
You can set a beep sound off.
Touch “Beep Off”. “Beep Off” is highlighted.
To set the beep sound on, touch “Beep Off”
again.
Select language
The language of the touchscreen but-
tons, popup messages and the voice
guidance can be changed.
1. Push the “INFO” button.
2. Touch “Language”.
3. Touch “English”, “Français” or “Es-
pañol” to select a language.
4. Touch “I Agree”.
The language is changed and the screen re-
turns to the map display.
