phone TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

vii
7“Map”
A destination can be selected simply by
touching the location on the displayed map.
40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8“Intersection”
The names of two intersecting streets can be
entered. This is helpful if only the general vi-
cinity, not the specific address, is known. 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Freeway Ent./Exit”
The name of a freeway (interstate) entrance
or exit can be entered. 41 . . . . . . . . . . . . . . .
10“?”
Function help for the “Destination” screen
can be viewed on this screen. 8 . . . . . . . . .
11“Change”
To change the search area, touch this
touch−screen button. 24
. . . . . . . . . . . . . . . .
12Quick access touchscreen buttons
One of 5 preset destinations can be selected
by touching the screen directly. To use this
function, it is necessary to set the “Quick ac-
cess” for each memory point. (To register a
“Quick Access”, see “ — Editing memory
points” on page 71.) 27 . . . . . . . . . . . . . . . . .
13Home touchscreen button
A personal home address can be selected
without entering the address each time. To
use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see “ — Registering home” on page
75.) 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Phone #”
A destination can be entered by the tele-
phone number. 42 . . . . . . . . . . . . . . . . . . . . .
15“Coordinates”
A destination can be set by using latitude
and longitude as coordinates. 42 . . . . . . . .

11
The registered point is shown by on the
map.
To change the icon or name, etc., see “ —
Editing memory points” on page 71.
Up to 106 memory points can be registered.
If there is an attempt to register more than
106, a message appears for confirmation.
To see information about the icon
where the cursor is set
To display information about an icon, set the
cursor on it. POI INFORMATION
When the cursor is set on a POI icon, the
name
and “Info.” are displayed on the top of
the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.

12
If there is already a set destination,
“Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To register this POI as a memory point, touch
“Mark” . (See page 70.)
If
is touched, the registered tele-
phone number can be called.
INFORMATION
The desired Point of Interest can be dis-
played on the map screen. (See “ — Dis-
play POI icons” on page 58.)
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed on
the top of the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination. If there is already a set destination,
“Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To edit a memory point, touch “Edit” . (See “
— Editing memory points” on page 71.)
To delete a memory point, touch “Delete”.
If
is touched, the registered tele-
phone number can be called.

13
DESTINATION INFORMATION
When the cursor is set on a destination icon,
the name
and “Info.” are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
To delete a destination, touch “Delete” .
If
is touched, the registered tele-
phone number can be called.
— Switching the screens
Any one of the screen configurations can be
selected.
1. Touch this touchscreen but ton to dis-
play the following screen.
2. To select the desired screen configura-
tion, touch one of the following touch
screen buttons.

22
8. Touch “Enter”.
Registration of home is complete and the
“Memory Point” screen is displayed.Registered “Home” information will be
displayed.
The icon, quick access, name, location, and
phone number can be changed. (See “ —
Editing memory points” on page 71.)

23
DESTINATION SEARCH
Destination search
Destination search24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Selecting the search area 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Destination search by Home 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Destination search by Quick access 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Address” 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Destination search by “POI Name” 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI Category” 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Memory” 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Destination search by “Previous” 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Destination search by “Intersection” 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit” 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #” 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

SECTION II

42
4. Touch the touchscreen button of the
desired entrance or exit name.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route guid-
ance” on page 43.)
“Input Name”: An applicable list is displayed
by touching this touch− screen button and in-
putting the name.

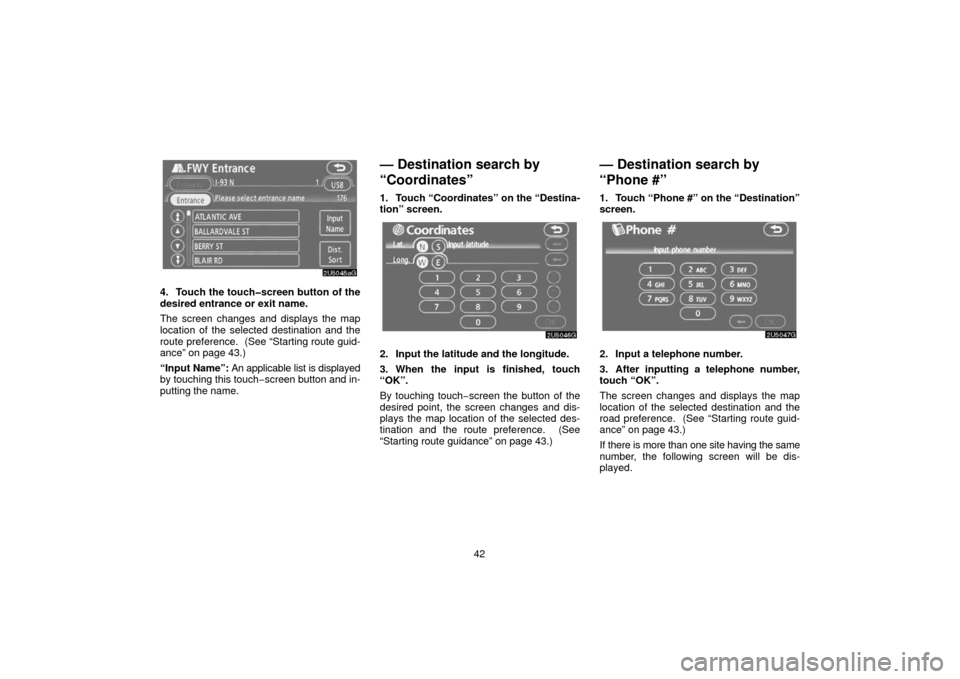

— Destination search by
“Coordinates”
1. Touch “Coordinates” on the “Destina-
tion” screen.
2. Input the latitude and the longitude.
3. When the input is finished, touch
“OK”.
By touching touch −screen the button of the
desired point, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 43.)
— Destination search by
“Phone #”
1. Touch “Phone #” on the “Destination”
screen.
2. Input a telephone number.
3. After inputting a telephone number,
touch “OK”.
The screen changes and displays the map
location of the selected destination and the
road preference. (See “Starting route guid-
ance” on page 43.)
If there is more than one site having the same
number, the following screen will be dis-
played.

43
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers with different area codes
will be displayed.
 To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 75.)

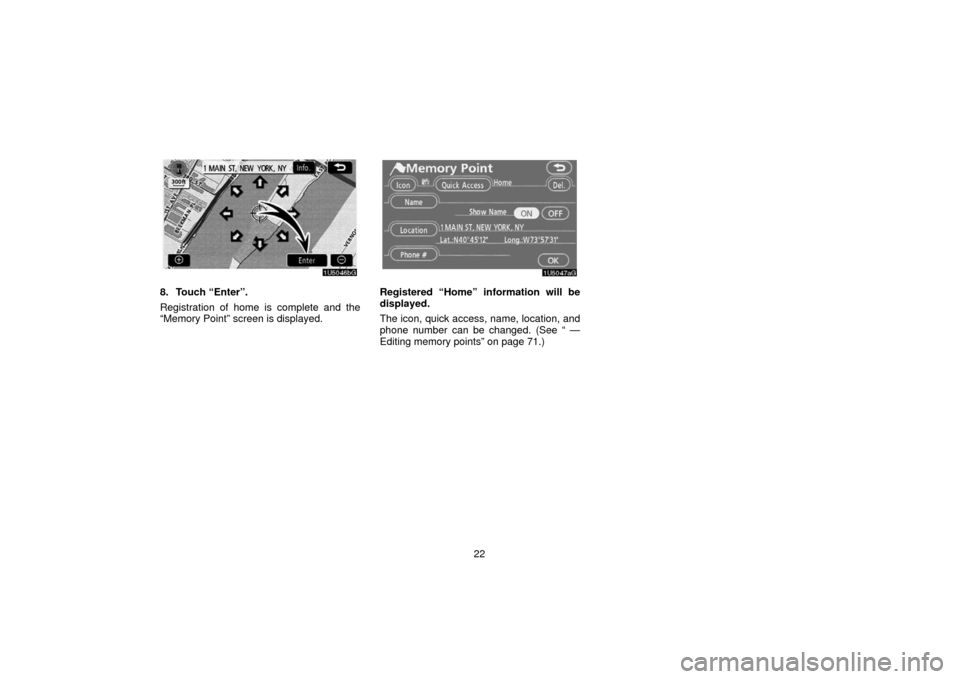

Starting route guidance
After inputting the destination, the screen
changes and displays the map location of the
selected destination and the route prefer-
ence.
1. When an arrow facing the desired
point is touched, the map scrolls in that di-
rection.
Releasing the finger from the arrow will stop
the scrolling. 2. Touch “Enter”.
The system starts route search and displays
recommended routes.
If there is already a set destination,
“Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
“Route Preference”: To change the route
preference. (See page 45.)
“Info.”: If this touch−screen button is dis-
played on the top of the screen, touch the
switch to view items such as name, address,
and phone number.

71
3. Touch “OK”.
To edit registered information, see “ — Editing
memory points” on page 71.
INFORMATION
Up to 106 memory points can be regis-
tered.

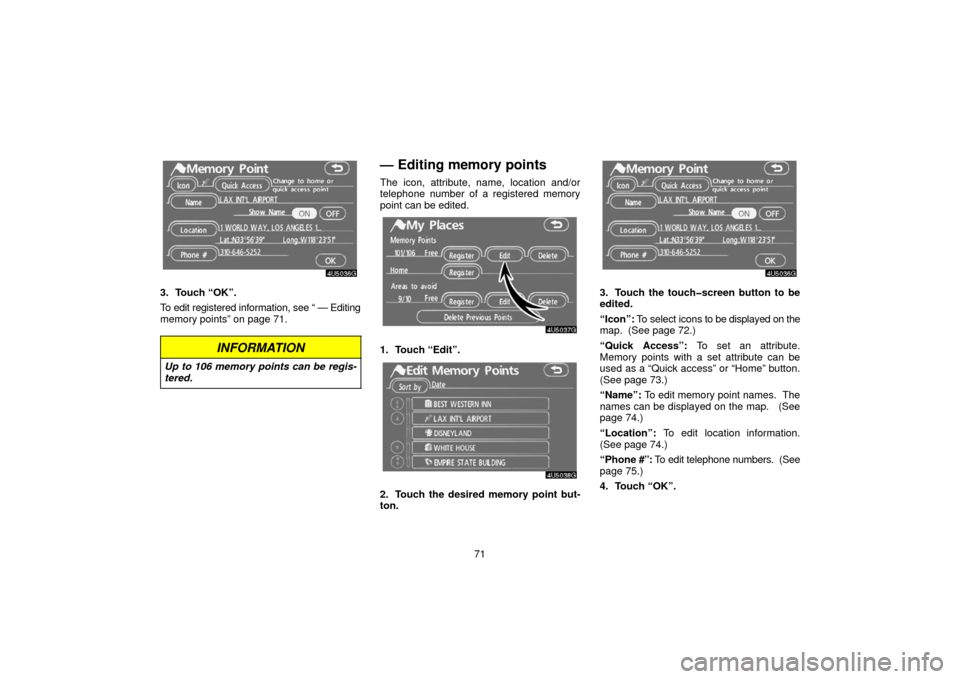

— Editing memory points
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Touch “Edit”.
2. Touch the desired memory point but-
ton.
3. Touch the touchscreen button to be
edited.
“Icon”: To select icons to be displayed on the
map. (See page 72.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” button.
(See page 73.)
“Name”: To edit memory point names. The
names can be displayed on the map. (See
page 74.)
“Location”: To edit location information.
(See page 74.)
“Phone #”: To edit telephone numbers. (See
page 75.)
4. Touch “OK”.

75

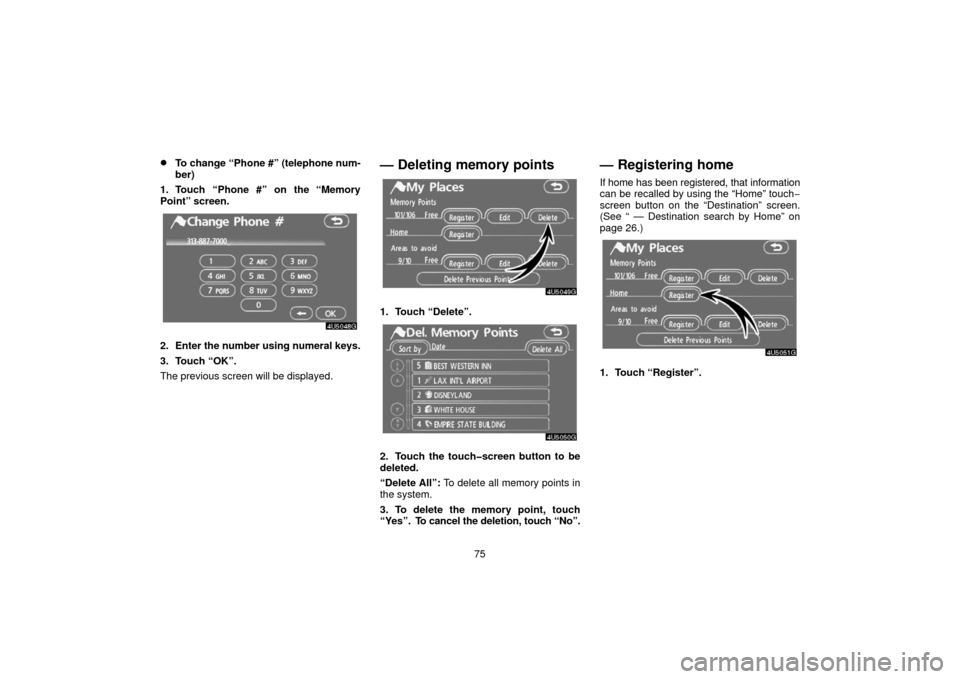

To change “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Memory
Point” screen.
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
— Deleting memory points
1. Touch “Delete”.
2. Touch the touchscreen button to be
deleted.
“Delete All”: To delete all memory points in
the system.
3. To delete the memory point, touch
“Yes”. To cancel the deletion, touch “No”.
— Registering home
If home has been registered, that information
can be recalled by using the “Home” touch −
screen button on the “Destination” screen.
(See “ — Destination search by Home” on
page 26.)
1. Touch “Register”.
