135
RS02018
4. Input the new code.
5U5242G
5. Touch “YES”.
Phone Book Lock
When you set the phone book lock, you
can have the following functions locked.
Display of the phone book screen and
transferring, registering, editing, deleting
the phone book data.
Display of speed dial screen, registering,
deleting the speed dial and speed dialing.
Display of the other party’s name for calls
being received or made.
Display of dialed numbers screen and
received calls screen, deleting dialed
numbers and received numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driving.
5U5243G

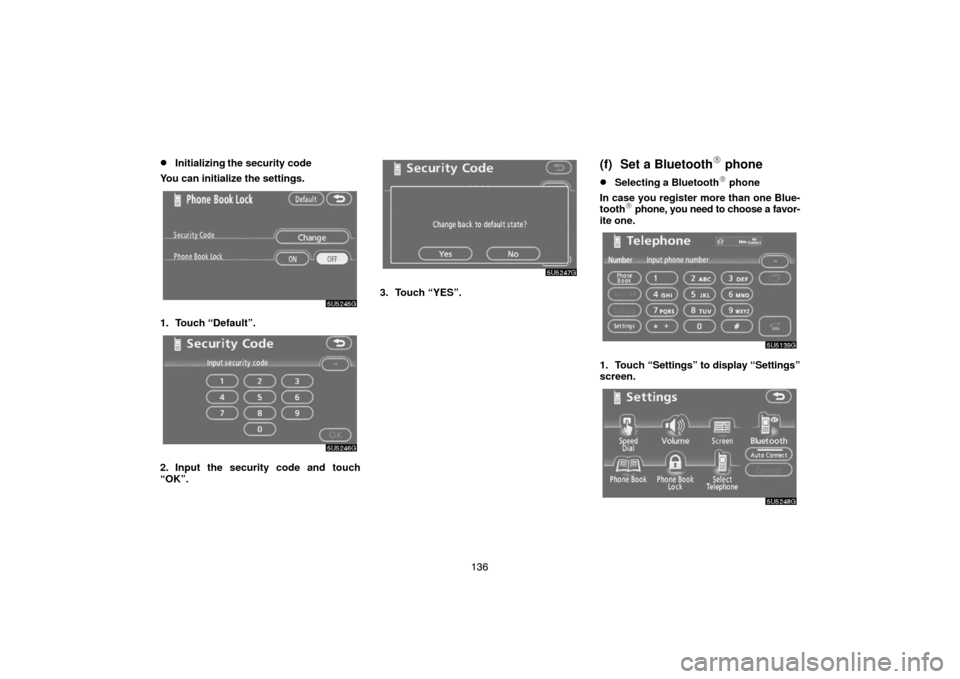

1. Touch “On”.
5U5244G
2. Input the security code and touch
“OK”.

136
Initializing the security code
You can initialize the settings.
5U5245G
1. Touch “Default”.
5U5246G
2. Input the security code and touch
“OK”.
5U5247G
3. Touch “YES”.
(f) Set a Bluetooth phone
Selecting a Bluetooth phone
In case you register more than one Blue-
tooth
 phone, you need to choose a favor-
ite one.
5U5139G
1. Touch “Settings” to display “Settings”
screen.
5U5248G

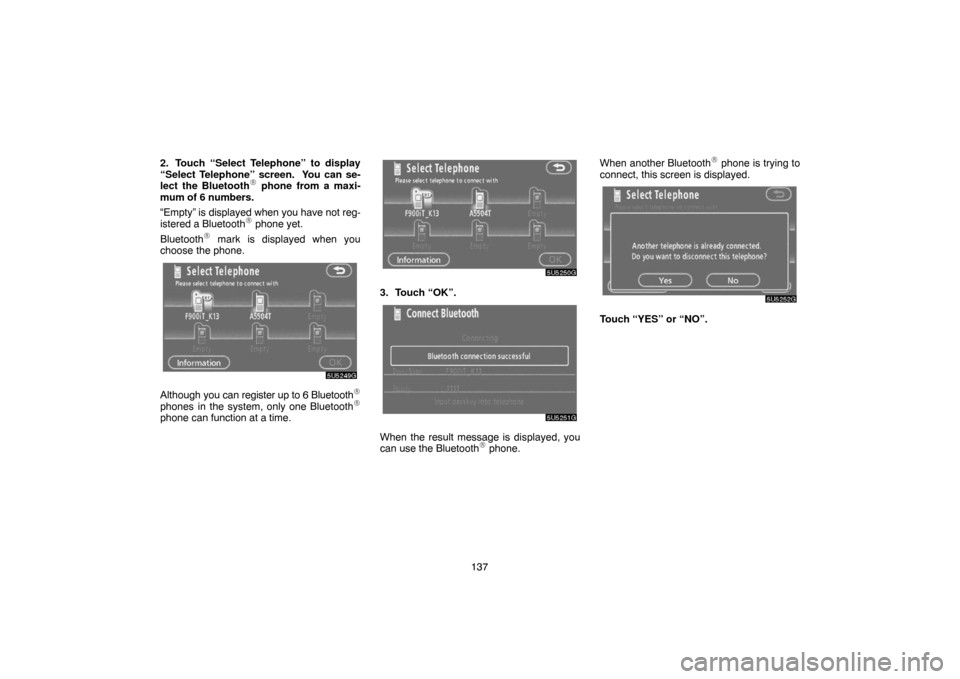

137 2. Touch “Select Telephone” to display
“Select Telephone” screen. You can se-
lect the Bluetooth
 phone from a maxi-
mum of 6 numbers.
“Empty” is displayed when you have not reg-
istered a Bluetooth
 phone yet.
Bluetooth
 mark is displayed when you
choose the phone.
5U5249G
Although you can register up to 6 Bluetooth
phones in the system, only one Bluetooth
phone can function at a time.
5U5250G
3. Touch “OK”.
5U5251G
When the result message is displayed, you
can use the Bluetooth phone.When another Bluetooth
 phone is trying to
connect, this screen is displayed.
5U5252G
Touch “YES” or “NO”.

138
Displaying Bluetooth information
You can see or set the information of the
Bluetooth
 phone on the system.
Device Name The name of Bluetooth
. . . .
phone which is dis-
played on the screen.
You can change it into a
desired name.
Bluetooth
 Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You cannot
change it.
5U5253G
1. Select the desired phone and touch
“Information”.
5U5254G
2. Touch “Change”.
5U5255G
3. When you complete the setting, touch
.
Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
5U5256G
1. Touch “Change”.
5U5257G
2. Use the software keyboard to input the
Device name.

139
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth
 information on the system.
The information displays the following items.
Device Name The name in the Blue-. . . .
tooth
 network. You can
change it.
Passkey The password when you . . . . . . . . .
register your cellular
phone in the system. You
can change it into the fig-
ure of 4−8 digits.
Bluetooth
 Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You can not
change it. If you have
registered two Blue-
tooth
 phones with the
same Device Name or
Passkey and you cannot
distinguish one from the
other, refer to it.When you change the Device Name or
Passkey, do the followings.
5U5258G
1. Touch “Bluetooth∗”.
5U5259G
2. Touch “Change” of “Device Name” or
“Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5455G
3. Use the software keyboard to input the
Device Name.
You can input up to 20 characters.
5U5456G
4. Input a Passkey with 4 8 digits.
When you touch , the inputted number is
deleted.

141
5U5267G
3. Touch “YES”.
Displaying the information of the Blue-
tooth phone you delete
You can display the information of the
Bluetooth
 phone before you delete it and
you can make sure whether the telephone
you delete is correct or not.
5U5268G
1. Select the telephone you want to dis-
play the information about.
5U5239G
2. When you complete confirming it,
touch
.
Speech command system
The speech command system enables
you to operate the navigation system by
giving a command.
5U5003
1. Push the speech command switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.

142
5U5287G

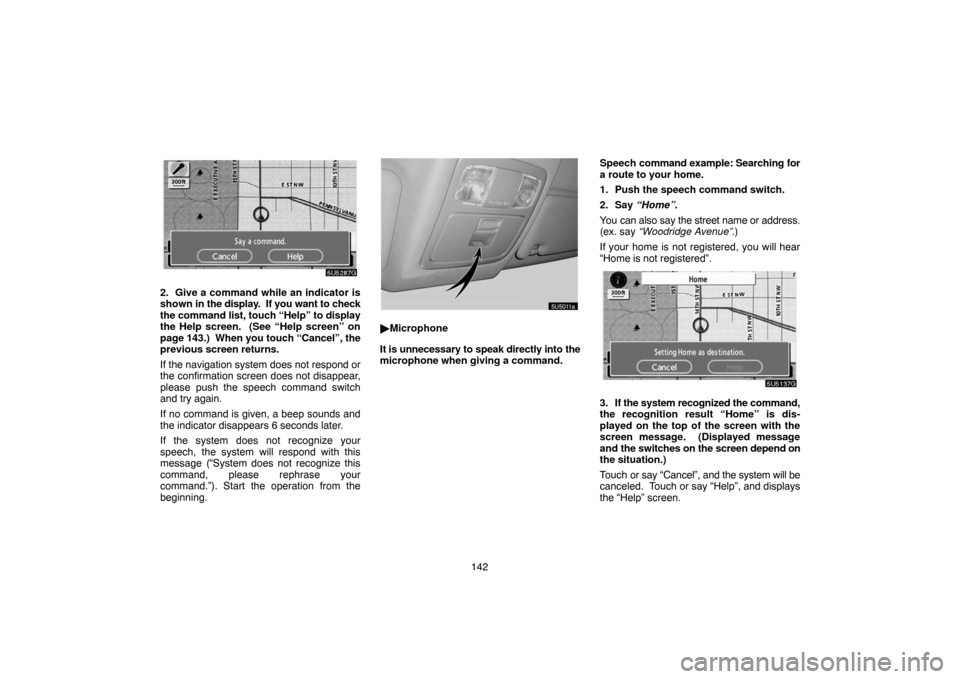

2. Give a command while an indicator is
shown in the display. If you want to check
the command list, touch “Help” to display
the Help screen. (See “Help screen” on
page 143.) When you touch “Cancel”, the
previous screen returns.
If the navigation system does not respond or
the confirmation screen does not disappear,
please push the speech command switch
and try again.
If no command is given, a beep sounds and
the indicator disappears 6 seconds later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, please rephrase your
command.”). Start the operation from the
beginning.
5U5011a
Microphone
It is unnecessary to speak directly into the
microphone when giving a command.Speech command example: Searching for
a route to your home.
1. Push the speech command switch.
2. Say “Home”.
You can also say the street name or address.
(ex. say “Woodridge Avenue”.)
If your home is not registered, you will hear
“Home is not registered”.5U5137G
3. If the system recognized the command,
the recognition result “Home” is dis-
played on the top of the screen with the
screen message. (Displayed message
and the switches on the screen depend on
the situation.)
Touch or say “Cancel”, and the system will be
canceled. Touch or say “Help”, and displays
the “Help” screen.

143
5U5138G
4. Touch “Enter” or say “Enter
destination”, and the system starts
searching for a route to your home. (If the
destination is already registered, “Add” or
“Replace” is displayed on the screen.)
Touch or say “Cancel”, and the search will be
canceled.
When you search the destination by “POI
Name”, this screen is displayed.
5U5288G
Touch “Enter” or say “Enter destination”.When you touch “Show List”, you can
search another spot in its category.
INFORMATION
In the following conditions, the system
may not recognize the command proper-
ly.
The command is not correct or clear.
There are some noises such as wind
noise, etc.
Help screen
This system has a function which displays
the voice recognition help screen. You
can see the command list and operating
guide on it.
(a) Command List
5U5115G
1. Touch the “Command List” tab on the
upper side of the screen and the touch
screen buttons on the right side of the
screen to select the desired category.
2. You can scroll through the list of the
command list by touching “
” or “”.
Touch “OK” after you check it.

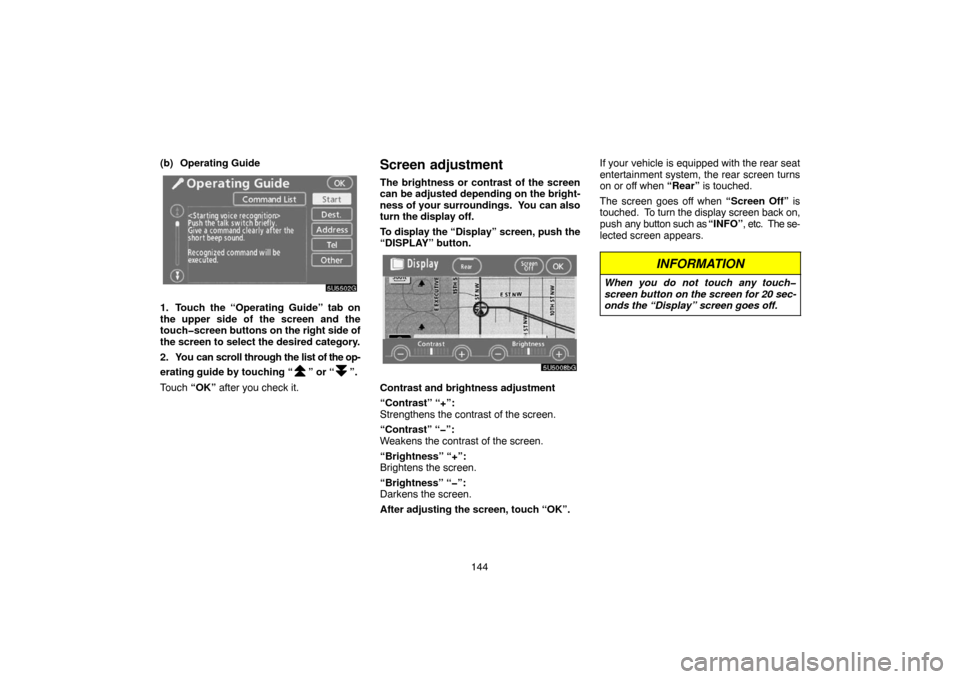

144 (b) Operating Guide
5U5502G
1. Touch the “Operating Guide” tab on
the upper side of the screen and the
touchscreen buttons on the right side of
the screen to select the desired category.
2. You can scroll through the list of the op-
erating guide by touching “
” or “”.
Touch “OK” after you check it.
Screen adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen, push the
“DISPLAY” button.
5U5008bG
Contrast and brightness adjustment
“Contrast” “+”:
Strengthens the contrast of the screen.
“Contrast” “”:
Weakens the contrast of the screen.
“Brightness” “+”:
Brightens the screen.
“Brightness” “”:
Darkens the screen.
After adjusting the screen, touch “OK”.If your vehicle is equipped with the rear seat
entertainment system, the rear screen turns
on or off when “Rear” is touched.
The screen goes off when “Screen Off” is
touched. To turn the display screen back on,
push any button such as “INFO”, etc. The se-
lected screen appears.
INFORMATION
When you do not touch any touch
screen button on the screen for 20 sec-
onds the “Display” screen goes off.

145
5U5010bG

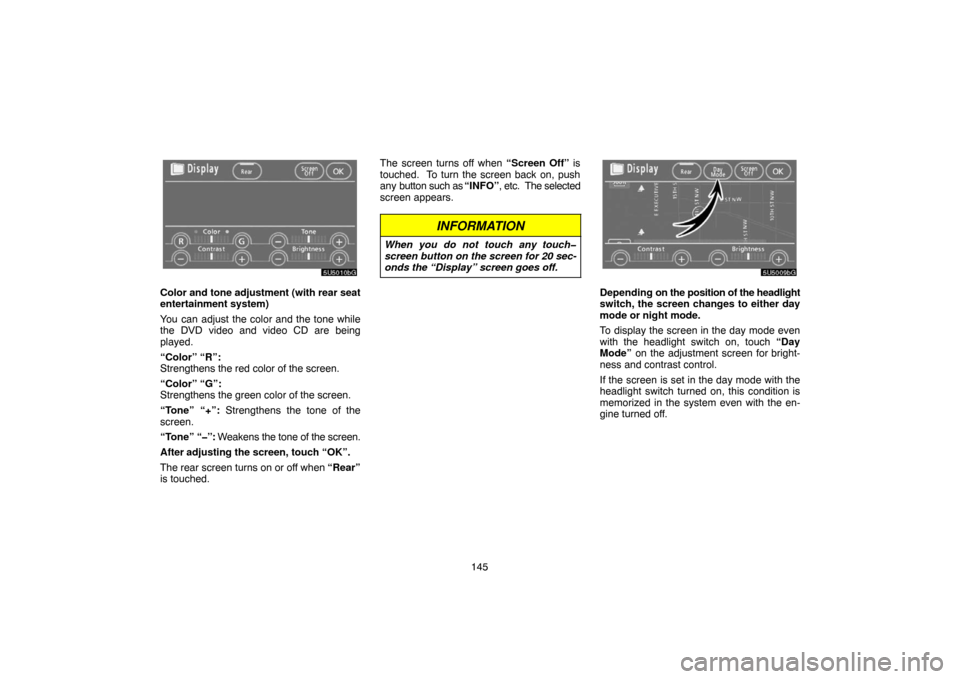

Color and tone adjustment (with rear seat
entertainment system)
You can adjust the color and the tone while
the DVD video and video CD are being
played.
“Color” “R”:
Strengthens the red color of the screen.
“Color” “G”:
Strengthens the green color of the screen.
“Tone” “+”: Strengthens the tone of the
screen.
“Tone” “”: Weakens the tone of the screen.
After adjusting the screen, touch “OK”.
The rear screen turns on or off when “Rear”
is touched.The screen turns off when “Screen Off” is
touched. To turn the screen back on, push
any button such as “INFO”, etc. The selected
screen appears.
INFORMATION
When you do not touch any touch
screen button on the screen for 20 sec-
onds the “Display” screen goes off.
5U5009bG
Depending on the position of the headlight
switch, the screen changes to either day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch “Day
Mode” on the adjustment screen for bright-
ness and contrast control.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.
