phone TOYOTA 4RUNNER 2007 N210 / 4.G Navigation Manual

121
Receiving Call Display
You can select the method of the receiving
call display.
5U5179G
Touch “Full” or “Icon”.
Full mode When a call is received, the . . . . .
Hands−free screen is
displayed and you can
operate it on the screen.
Icon mode The message is displayed. . . . .
on the upper side of the
screen. You can only
operate the steering
switch.
Auto answer
When a call is received, the display auto-
matically changes to the talking screen
and you can start to talk on the phone
(without touching any switch) after the
preset time.
5U5180G
Touch “On” of “Auto Answer” and “” or
“+” to adjust the waiting time of auto an-
swer within 1 60 seconds.
The Bluetooth connection status at
startup
5U5309G
When the ignition switch is set at ACC or
ON and the Bluetooth is automatically
connected, the connection check is dis-
played.
5U5180G
Touch “On” or “Off” of “Show Bluetooth∗
connection status at start up”.
∗: Bluetooth is a registered trademark of Blue-
tooth SIG. Inc.

122
Initializing the settings
You can initialize the settings.
5U5180G
Touch “Default”.
5U5181G
Touch “YES”.(v) Setting the phone book
You can register phone numbers in the
phone book.
5U5182G
Touch “Phone Book” to display the
“Phone Book Management” screen.
5U5183G
You can do the detail settings of phone
book.
Transferring a telephone number
You can transfer the telephone numbers in
your Bluetooth
 phone to the system. Up
to 1000 person’s data (up to 2 numbers a
person) can be registered in the phone
book.
Transfer it while the engine is running.
5U5184G
1. Touch “Transfer Data” to display
“Select Group” screen.

123
5U5185G
2. Select the group you want to transfer
to.
5U5186G
3. Touch “Overwrite” or “Add to”.
5U5187G
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel”. If the transferring
is interrupted on the way, the phone book data
transferred until then can be memorized in the
system.
5U5188G
5. When this screen is displayed, the
transfer is completed.
5U5189G
When this screen is displayed, try the
transfer operation again.

124
Registering the phone book data
You can register the phone book data.
5U5190G
1. Touch “Register” of “Phone Book”.
5U5191G
2. Touch the desired touchscreen but-
ton to edit the phone book.
5U5192G
3. When you complete the edit, touch
“OK”.
Editing the name
When you don’t input the name, the num-
ber is displayed.
5U5193G
1. Touch “Name”.
5U5194G
2. Use the software keyboard to input the
name.

125
Editing the phone number
You can register the phone number in
“TEL1” and “TEL 2” separately. Up to 2
numbers a person can be registered.
5U5195G
1. Touch “TEL 1” or “TEL 2”.
5U5196G
2. Input the number and touch “OK”.
5U5197G
3. Select the desired icon.
Selecting the group
You can set a group for a contact (for ex-
ample: “Family”, “Friends”, “Office”...). It
will then be easier for you to find this con-
tact when needed, by using the group dis-
play.
You can select “No group” or “Group 01”
to “Group 19”.
“No group” is displayed if you don’t set the
group.
5U5198G
1. Touch “Group”.

126
5U5199G
2. Select the desired group.
Setting the voice recognition
You can set the voice recognition. Up to 20
numbers can be registered for the voice
recognition.
5U5200G
1. Touch “Voice Rec.”.
RS02016
2. Select the phone number and touch
“REC” to record a voicetag.
RS02017
3. Touch “PLAY” to play the voicetag.
If you want to delete it, touch “Delete” and
“OK”.

127

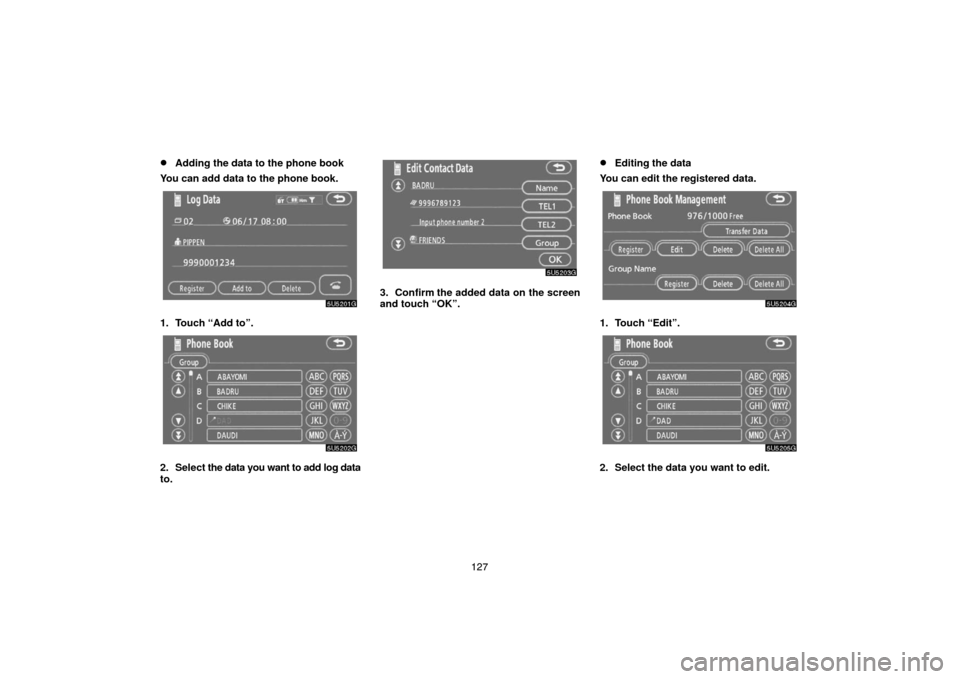

Adding the data to the phone book
You can add data to the phone book.
5U5201G
1. Touch “Add to”.
5U5202G
2. Select the data you want to add log data
to.
5U5203G
3. Confirm the added data on the screen
and touch “OK”.
Editing the data
You can edit the registered data.
5U5204G
1. Touch “Edit”.
5U5205G
2. Select the data you want to edit.

128

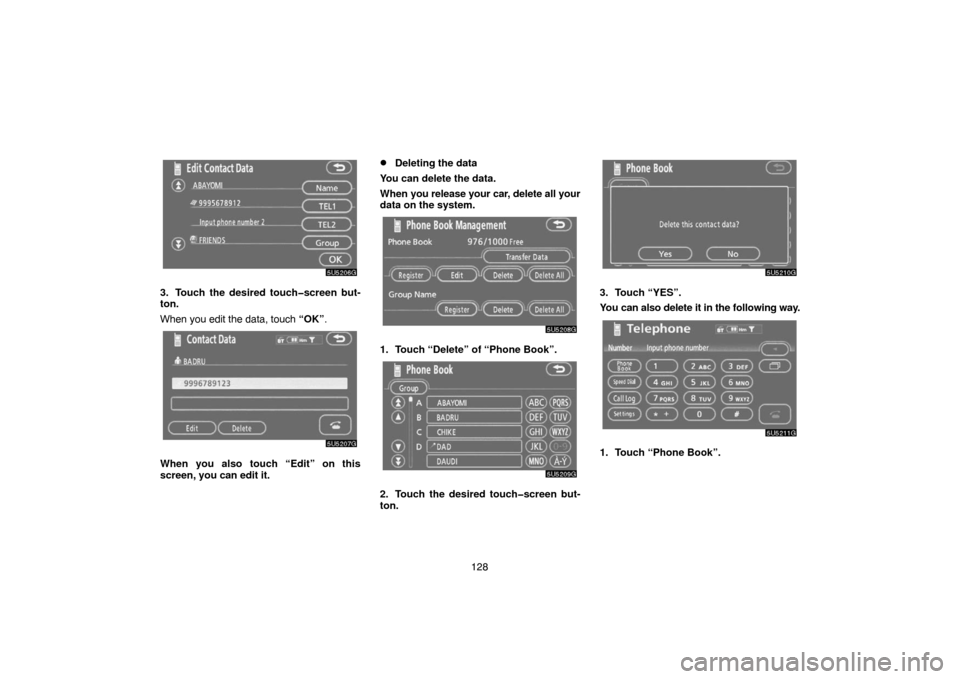

5U5206G
3. Touch the desired touchscreen but-
ton.
When you edit the data, touch “OK”.
5U5207G
When you also touch “Edit” on this
screen, you can edit it.
Deleting the data
You can delete the data.
When you release your car, delete all your
data on the system.
5U5208G
1. Touch “Delete” of “Phone Book”.
5U5209G
2. Touch the desired touchscreen but-
ton.
5U5210G
3. Touch “YES”.
You can also delete it in the following way.
5U5211G

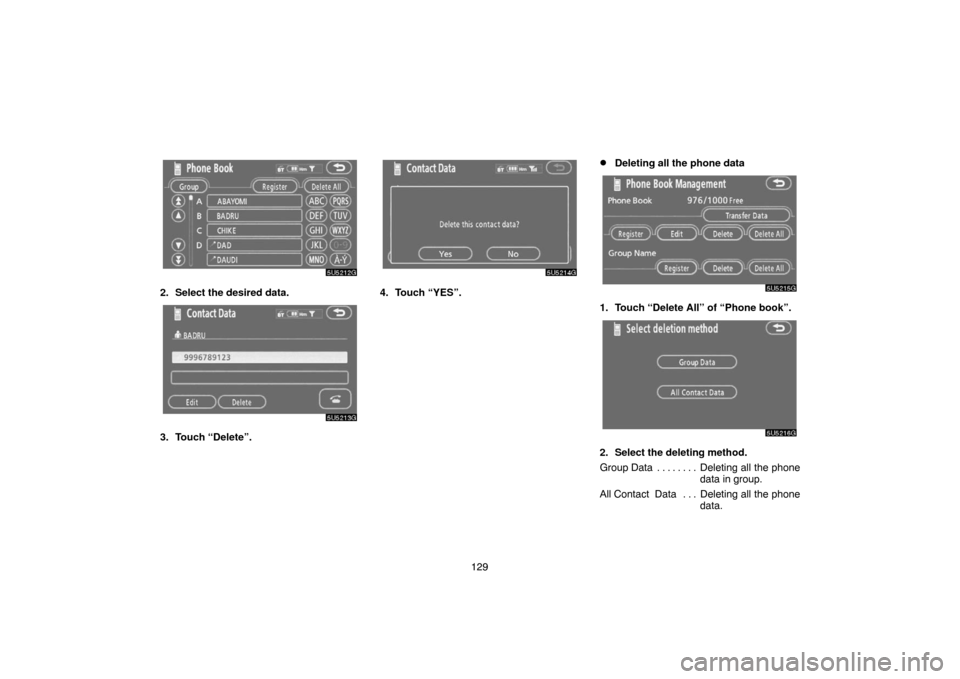

1. Touch “Phone Book”.

129
5U5212G
2. Select the desired data.
5U5213G
3. Touch “Delete”.
5U5214G
4. Touch “YES”.
Deleting all the phone data
5U5215G
1. Touch “Delete All” of “Phone book”.
5U5216G
2. Select the deleting method.
Group Data Deleting all the phone. . . . . . . .
data in group.
All Contact Data Deleting all the phone. . .
data.

130 3. When you select “Group Data”, the
“Select Group” screen is displayed.
5U5217G
4. Select the desired group.
5U5218G
5. Touch “YES”.You can also delete it in the following way.
5U5219G
1. Touch “Phone Book”.
5U5220G
2. Touch “Delete All”.
5U5221G
3. Touch “YES”.
