99
RS02014
3. To delete and/or edit the memo, touch
the desired memo button.
“Delete All”: To delete all the displayed me-
mos.
A message will be displayed.
4. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified peri-
od of time
1. Touch “Period” on the “Memo Search”
screen.
RS02015
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through De-
cember 31, 2024 can be set for searching.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
Handsfree system
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports Bluetooth
.
Bluetooth is a wireless data system by
which you can call without your cellular phone
being connected with a cable or placed on a
cradle.
If your cellular phone does not support Blue-
tooth
, this system can not function.
CAUTION
While you are driving, do not use a cel-
lular phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.

101
5U5135G
1Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection to
Bluetooth
.
“Yellow” indicates a bad connection to Blue-
tooth
, resulting in possible deterioration of
voice quality.
: no connection to Bluetooth.
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is con-
necting or the phone book data is being trans-
ferred.
The amount left does not always correspond
with the one of your cellular phone. This sys-
tem doesn’t have a charging function.
3Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
INFORMATION
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth

phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth
 connection may turn yellow
and the system may not function when
you use the Bluetooth
 phone in the fol-
lowing conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or is covered
with metal materials.
Leave the Bluetooth
 phone on the place
where “Blue” indication is displayed.
Bluetooth is a registered trademark of Blue-
tooth SIG. Inc.

102 When you release your car:
A lot of personal data is registered when
you use the Handsfree system. When
you release your car, initialize your data.
If you initialize it, the former state will never
come back again. Pay much attention when
initializing the data.
You can initialize the following data in the sys-
tem.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code

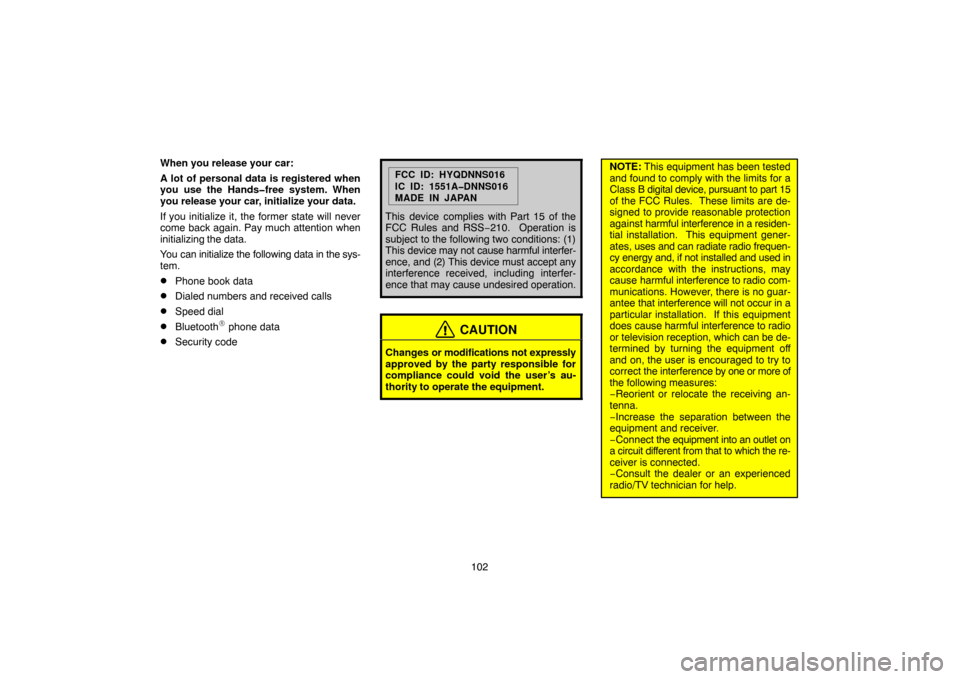

FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS−210. Operation is
subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference received, including interfer-
ence that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s au-
thority to operate the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part 15
of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a residen-
tial installation. This equipment gener-
ates, uses and can radiate radio frequen-
cy energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio com-
munications. However, there is no guar-
antee that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be de-
termined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet on
a circuit different from that to which the re-
ceiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.

103
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC radi-
ation exposure limits set forth for uncon-
trolled equipment and meets the FCC ra-
dio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equip-
ment has very low levels of RF energy
that it deemed to comply without maxi-
mum permissive exposure evaluation
(MPE). But it is desirable that it should be
installed and operated with at least 20 cm
and more between the radiator and per-
son’s body (excluding extremities:
hands, wrists, feet and legs).
Colocation: This transmitter must not
be co−located or operated in conjunction
with any other antenna or transmitter.(a) Enter a Bluetooth phone
To use the handsfree system, you need
to enter your phone into the system. Once
you have registered it, you can make a
handsfree call.
1. Push the “INFO” button to display the
“Information” screen.
5U5112G
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push the
switch of the steer-
ing wheel to display this screen when the ve-
hicle is stopped.
5U5139G
3. Touch “Settings” to display “Settings”
screen.
5U5140G
4. Touch “Bluetooth∗” to display the
“Bluetooth Settings” screen.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

104
5U5141G
5. Touch “Register” to connect your cel-
lular phone to the system.
5U5142G
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
5U5143G
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case of
using the same one.
5U5144G
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
(i) Automatically
5U5145G
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth
 phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.

105
5U5309G

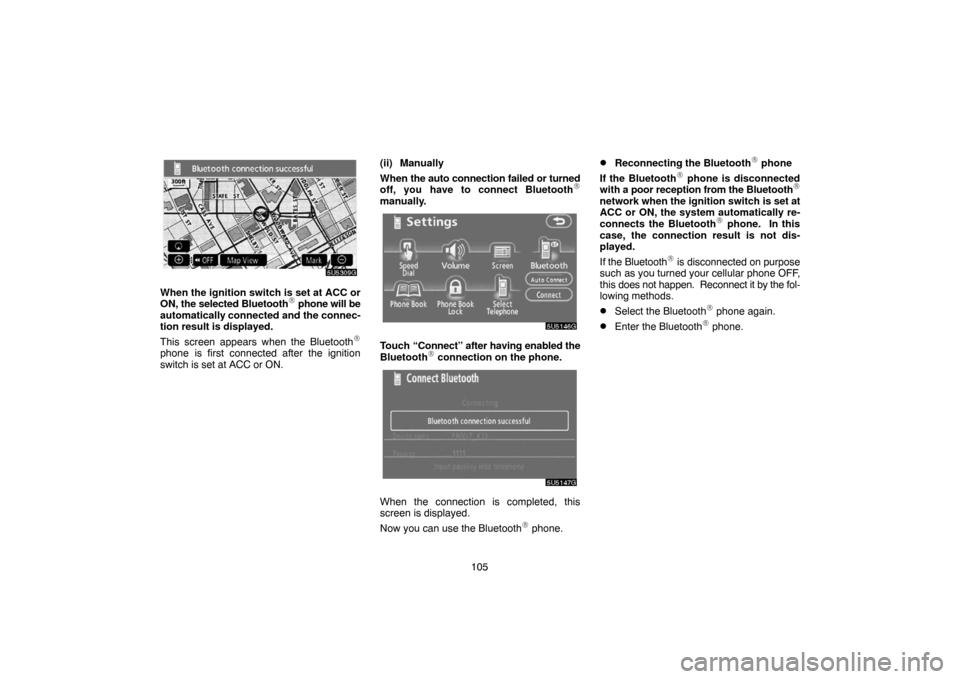

When the ignition switch is set at ACC or
ON, the selected Bluetooth phone will be
automatically connected and the connec-
tion result is displayed.
This screen appears when the Bluetooth

phone is first connected after the ignition
switch is set at ACC or ON.(ii) Manually
When the auto connection failed or turned
off, you have to connect Bluetooth

manually.
5U5146G
Touch “Connect” after having enabled the
Bluetooth connection on the phone.
5U5147G
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth
 phone.
Reconnecting the Bluetooth phone
If the Bluetooth
 phone is disconnected
with a poor reception from the Bluetooth
network when the ignition switch is set at
ACC or ON, the system automatically re-
connects the Bluetooth
 phone. In this
case, the connection result is not dis-
played.
If the Bluetooth
 is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

106
(b) Call on the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
5U5149G
Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
Touch
or push the switch of the steer-
ing wheel.(ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
5U5150G
Touch the desired key to input the tele-
phone number.
1. Touch “Phone Book” to display
“Phone Book” screen.
5U5151G
2. Select the desired number from the list.
5U5152G
Touch or push the switch of the steer-
ing wheel.

11 2
(c) Receive on the Bluetooth
phone
5U5160G
When a call is received, this screen is dis-
played with a sound. Touch
or push
the
switch of the steering wheel to talk
on the phone.
To hang up the phone:
Touch
or push the switch of the
steering wheel again.
To refuse to receive the call:
Touch
and hold it.
To adjust the volume of received call:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed correctly
depending on the cellular phone which you
have.
(d) Talk on the Bluetooth phone
5U5161G
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call
Touch “Transfer Call”.You cannot change from Hands−free call to
cellular phone call while driving.
When you change from cellular phone call to
Hands−free call, the Hands−free screen will
be displayed and you can operate it on the
screen.
Transferring method and behavior are differ-
ent depending on the cellular phone which
you have.
For the operation of the phone, see the manu-
al that comes with your cellular phone.

11 4

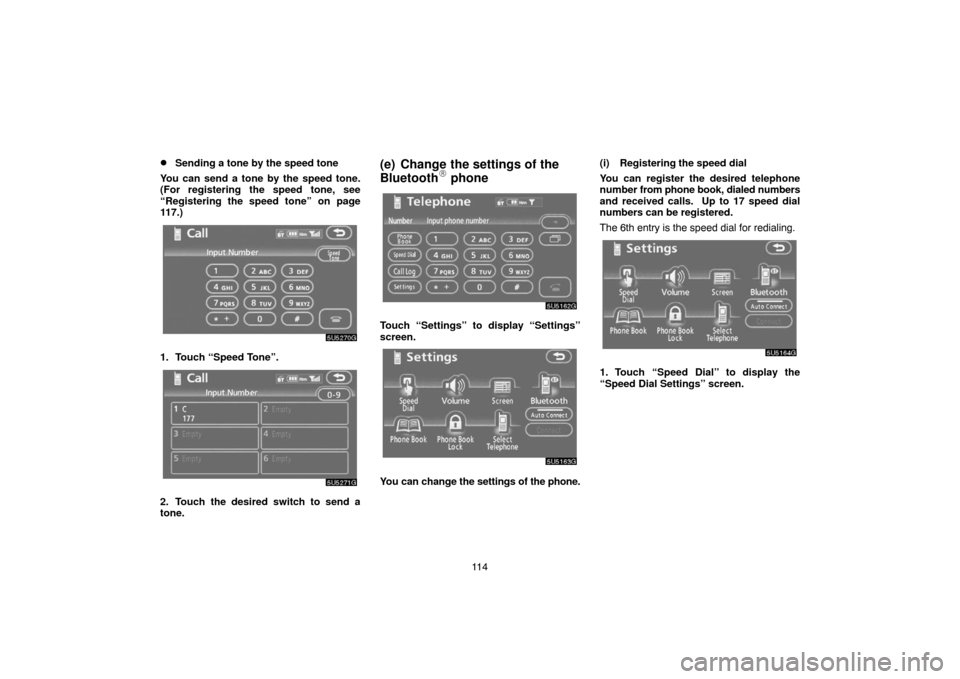

Sending a tone by the speed tone
You can send a tone by the speed tone.
(For registering the speed tone, see
“Registering the speed tone” on page
117.)
5U5270G
1. Touch “Speed Tone”.
5U5271G
2. Touch the desired switch to send a
tone.
(e) Change the settings of the
Bluetooth phone
5U5162G
Touch “Settings” to display “Settings”
screen.
5U5163G
You can change the settings of the phone.(i) Registering the speed dial
You can register the desired telephone
number from phone book, dialed numbers
and received calls. Up to 17 speed dial
numbers can be registered.
The 6th entry is the speed dial for redialing.
5U5164G
1. Touch “Speed Dial” to display the
“Speed Dial Settings” screen.

121

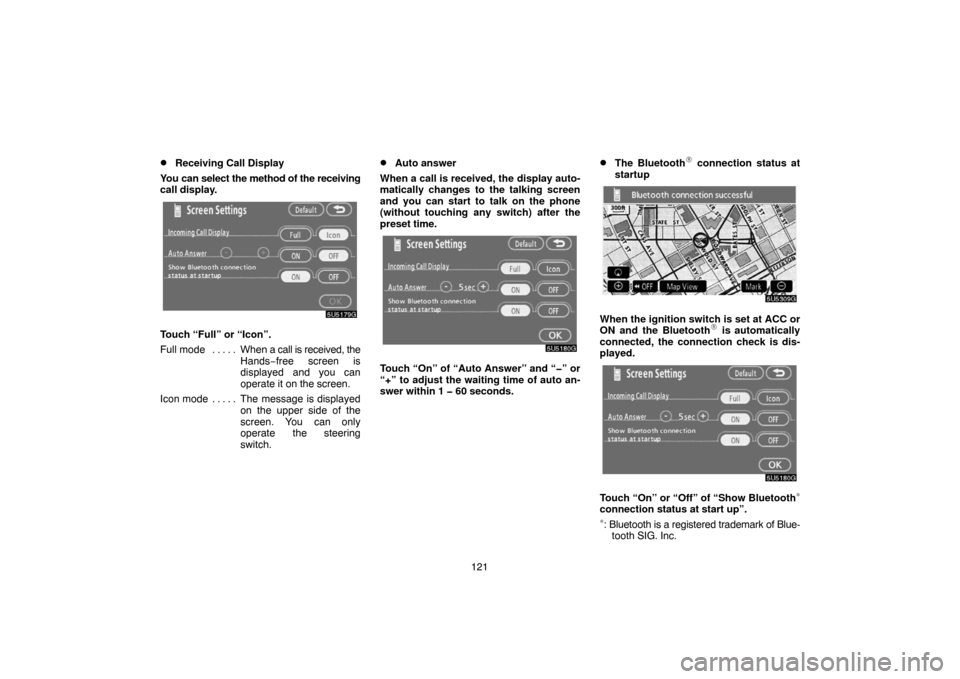

Receiving Call Display
You can select the method of the receiving
call display.
5U5179G
Touch “Full” or “Icon”.
Full mode When a call is received, the . . . . .
Hands−free screen is
displayed and you can
operate it on the screen.
Icon mode The message is displayed. . . . .
on the upper side of the
screen. You can only
operate the steering
switch.
Auto answer
When a call is received, the display auto-
matically changes to the talking screen
and you can start to talk on the phone
(without touching any switch) after the
preset time.
5U5180G
Touch “On” of “Auto Answer” and “” or
“+” to adjust the waiting time of auto an-
swer within 1 60 seconds.
The Bluetooth connection status at
startup
5U5309G
When the ignition switch is set at ACC or
ON and the Bluetooth is automatically
connected, the connection check is dis-
played.
5U5180G
Touch “On” or “Off” of “Show Bluetooth∗
connection status at start up”.
∗: Bluetooth is a registered trademark of Blue-
tooth SIG. Inc.
