seats TOYOTA 4RUNNER 2007 N210 / 4.G User Guide

542007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13201
TUMBLING SECOND SEATS
Lower the head restraints to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting le-
ver, then swing the whole seat up and
forward until they are locked.
Tumbling the second seats will enlarge the
floor space for third seat entry. It will also
enlarge the luggage compartment when
the third seats are not used. See
“—Stowage precautions” on page 351 in
Section 2 for precautions when loading
luggage.
CY13202
WHEN RETURNING SECOND SEATS
Push the knob to unlock the seat,
swing the whole seat down and swing
the seatback up.
CY13203
If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way.1. Push in the lower front edge of the seatback to slacken the seat belt.
2. Let the seat belt retract a little.

552007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
When tumbling seats or returning
seats to their original positions, ob-
serve the following to prevent death
or serious injury:
Do not tumble or return the seat
while the vehicle is moving.
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
Be careful not to get your hands or
feet pinched in the seat.
To prevent death or serious injury in
a collision or sudden stop:
Do not sit on or place anything on
the folded seatback or tumbled seat
while driving.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
CY13248
BEFORE FOLDING UP THIRD SEATS
1. Stow the third seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you fold up the third seats.
NOTICE
The seat belt buckles must be stowed
before you fold up the third seats.
—Folding up third seats

562007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13230
2. Make sure the shoulder belt passesthrough the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
CY13206
FOLDING UP THIRD SEATS 1. Lower the head restraint to the low- est position. Fold down the seatback
while pushing the seatback angle ad-
justing lever.
Folding up the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 351 in Section 2 for
precautions when loading luggage.
CY13207
2. Unlock the seat leg by pulling the handle behind the seat, and swing
the whole seat up and sideward.

572007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13255
3. Stow the seat leg in the back of theseat cushion. Take the holding strap
out of its holder, and attach the
strap to the assist grip. Tighten the
strap by pulling the end and fix it
with Velcro.
CAUTION
When folding up the third seats, fix
the seats securely by adjusting the
length of the holding strap. Failure to
do so may cause an unexpected inju-
ry in the event of emergency braking
or collision.
CY13256
4. Remove the seat anchor covers fromthe back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
CY13257
When returning the third seat to its origi-
nal position, stow the holding strap in the
holder in the direction shown above. Then
do the above procedures in the reverse
order.

582007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
When folding up seats or returning
seats to their original positions, ob-
serve the following to prevent death
or serious injury:
Do not fold up or return the seat
while the vehicle is moving.
Be careful not to hit the seat
against a person or drop it on your-
self.
To prevent death or serious injury in
a collision or s udden stop:
Do not sit on or place anything on
the folded seatback while driving.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
CY13248
BEFORE REMOVING THIRD SEATS
1. Stow the third seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you remove the third seats.
NOTICE
The seat belt buckles must be stowed
before you remove the third seats.
CY13230
2. Make sure the shoulder belt passes through the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
—Removing third seats

592007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13206
REMOVING THIRD SEATS1. Lower the head restraint to the low- est position. Fold down the seatback
while pushing the seatback angle ad-
justing lever.
CY13210
2. Unlock the seat leg by pulling thehandle behind the seat, and lift the
whole seat up. Retract the seat leg
into the back of the seat cushion.
Then, place the seat on the floor.
CY13211
3. Remove the cover and push the seatlock release lever outward to unlock
the seat lock, then pull up the whole
seat and remove it. After removing
the seat, reinstall the cover.
Removing the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 351 in Section 2 for
precautions when loading luggage.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.

602007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13258
4. Remove the seat anchor covers fromthe back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
CY13212
REINSTALLING THIRD SEATS
1. Remove the seat anchor covers from the floor and install them in the
back of the seat cushion. Hold the
seat and engage the seat striker to
the seat lock, then place the seat on
the floor. Press down the seatback
to securely lock the seat to the
body.

622007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13109
Front seats
CY13110
Rear seats—vehicles without third seats
CY13238
Second seats—vehicles with third seats
CY13239
Third seats
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraints—You can also move
the head restraint forward or backward. If
such adjustment is desired, pull or push
the base of the head restraint.
Rear head restraints (vehicles without
third seats) and a second center head
restraint (vehicles with third seats)—When
an occupant sits on the rear seat (ve-
hicles without third seats) or second cen-
ter seat (vehicles with third seats), always
pull up the rear head restraint to the lock
position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
Head restraints

642007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the system off
when the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 96 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat belts—
—Seat belt precautions

652007 4Runner from Aug. ’06 Prod. (OM35866U)
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific

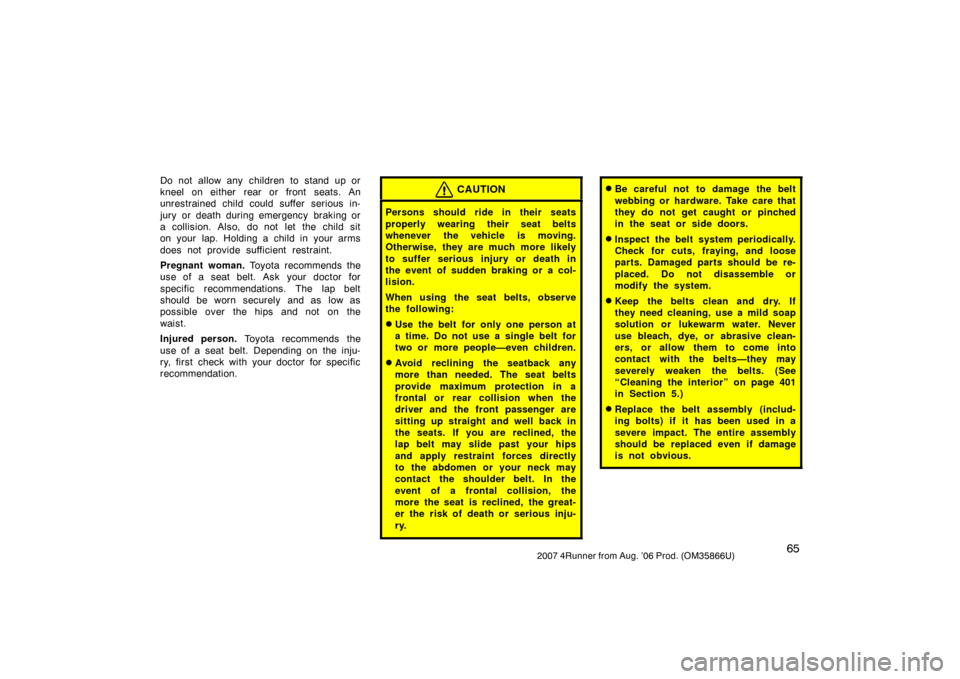

recommendation.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious injury or death in
the event of sudden braking or a col-
lision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal co llision, the
more the seat is reclined, the great-
er the risk of death or serious inju-
ry.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 401
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
