TOYOTA 4RUNNER 2007 N210 / 4.G Owners Manual

3112007 4Runner from Aug. ’06 Prod. (OM35866U)
6. Test the operation of the HomeLink\b by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
\b button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
\b buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
\b”.
(b) Operating the HomeLink
\b
To operate the HomeLink\b, press the
appropriate HomeLink\b button to activate
the programmed device. The HomeLink\b
indicator light should come on. The
HomeLink\b continues to send the signal
for up to 20 seconds as long as the
button is pressed.
CY19133
(c) Erasing the entire HomeLink\b
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink
\b
memory. For additional programming assistance
with your HomeLink
\b Universal
Transceiver call the:
The Toyota Customer Experience
Center at 1 −800− 331−4331 (U.S.A.)
Toyota Canada Customer Interaction
Centre at 1 −888− 869−6828 (Canada)
Refer to HomeLink
\b on the internet at:
WWW.HOMELINK.COM

3122007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
When programming the HomeLink\b
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink\b Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
This device complies with Part 15 of the
FCC Rules and with RSS −210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
device.To use the auxiliary bo xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A—As this holder is designed
for holding a light object such as
eyeglasses, do not place any heavy
objects in them. Heavy objects may
cause the holder to open and the
contents to fly out resulting in inju-
ries.
NOTICE
Type A—During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Auxiliary boxes—

3132007 4Runner from Aug. ’06 Prod. (OM35866U)

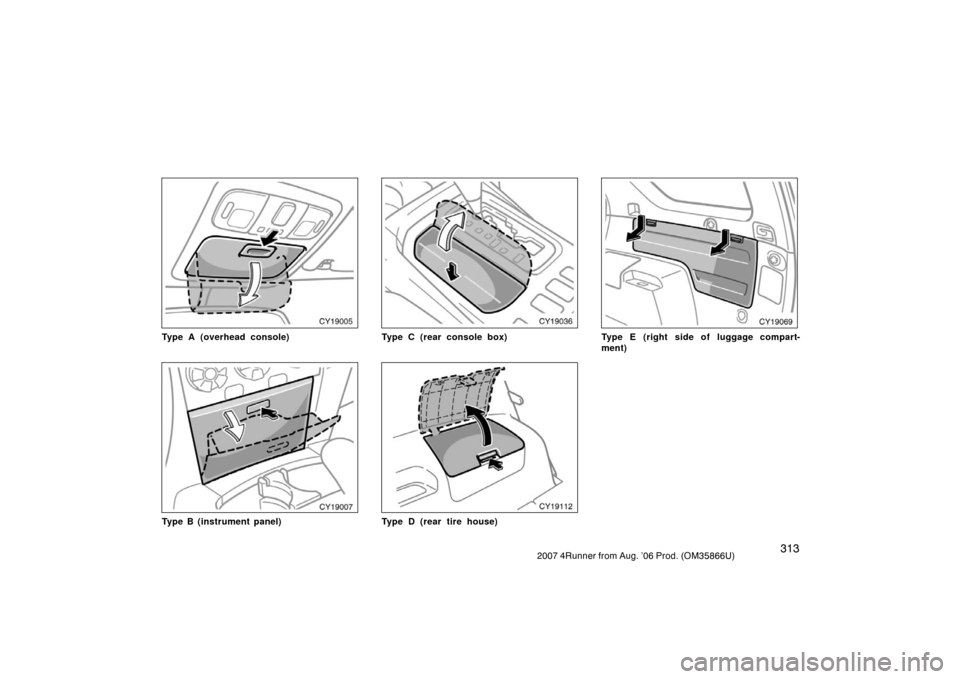

CY19005
Type A (overhead console)
CY19007
Type B (instrument panel)
CY19036
Type C (rear console box)
CY19112
Type D (rear tire house)
CY19069
Type E (right side of luggage compart-
ment)

3142007 4Runner from Aug. ’06 Prod. (OM35866U)

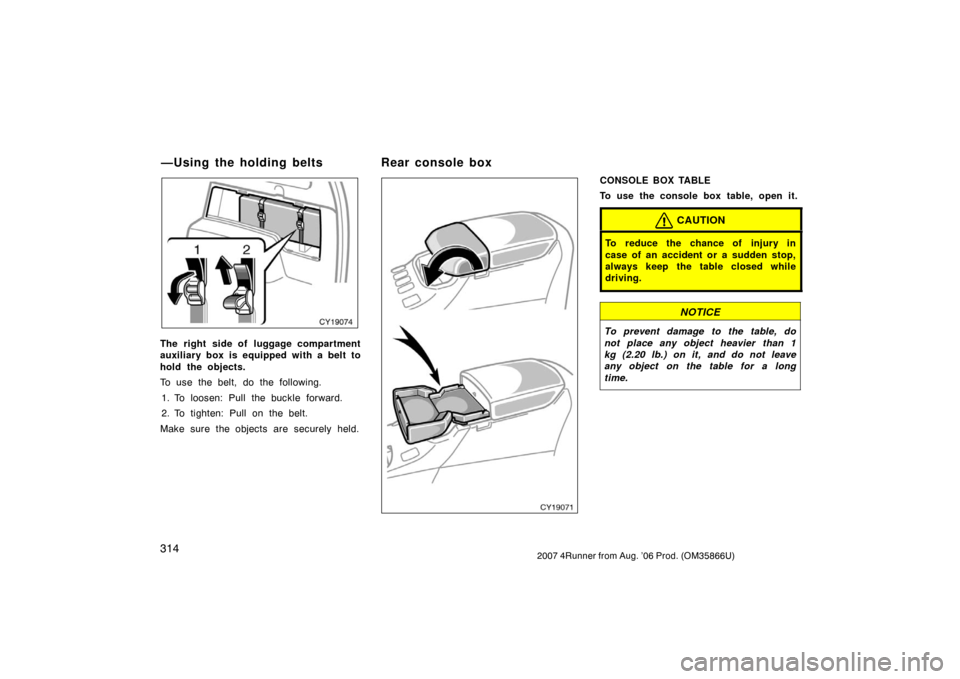

CY19074
The right side of luggage compartment
auxiliary box is equipped with a belt to
hold the objects.
To use the belt, do the following.1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Make sure the objects are securely held.CY19071
CONSOLE BOX TABLE
To use the console box table, open it.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the table closed while
driving.
NOTICE
To prevent damage to the table, do
not place any object heavier than 1
kg (2.20 lb.) on it, and do not leave
any object on the table for a long
time.
—Using the holding belts Rear console box

3152007 4Runner from Aug. ’06 Prod. (OM35866U)

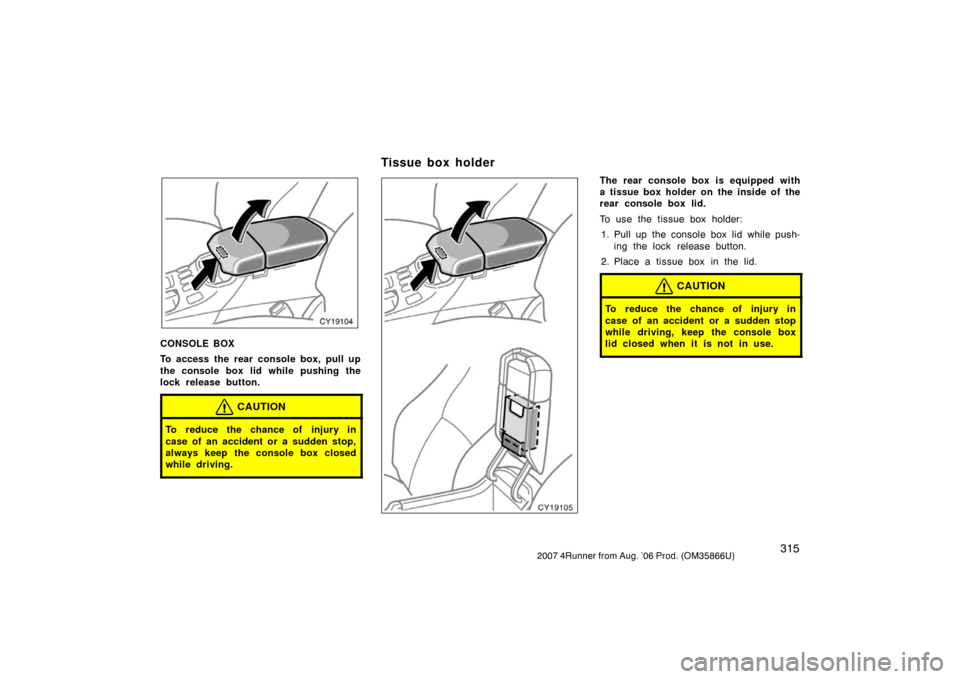

CY19104
CONSOLE BOX
To access the rear console box, pull up
the console box lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
CY19105
The rear console box is equipped with
a tissue box holder on the inside of the
rear console box lid.
To use the tissue box holder:1. Pull up the console box lid while push- ing the lock release button.
2. Place a tissue box in the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the console box
lid closed when it is not in use.
Tissue box holder

3162007 4Runner from Aug. ’06 Prod. (OM35866U)

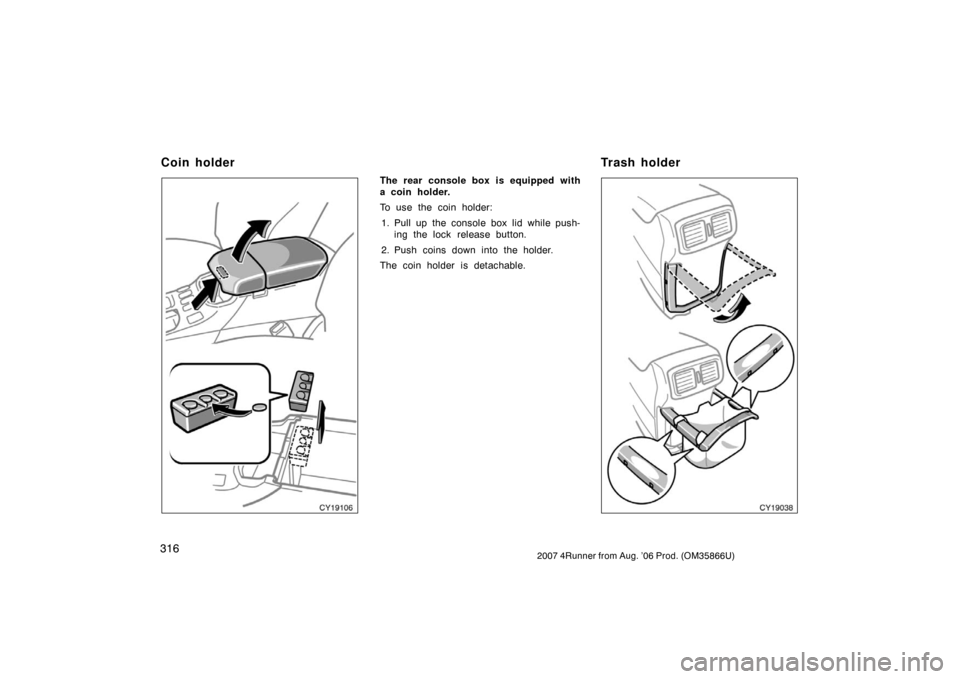

CY19106
The rear console box is equipped with
a coin holder.
To use the coin holder:1. Pull up the console box lid while push- ing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
CY19038
Coin holder Trash holder

3172007 4Runner from Aug. ’06 Prod. (OM35866U)
The trash holder is designed to use the
grocery bag as a trash bag.
To use the trash holder:1. Raise the trash holder.
2. Fit the grocery bag onto the holder by hanging its handles on the two hooks
indicated at the left and right.
The trash holder can support to 1 kg
(2.20 lb.).
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the trash holder
closed when it is not in use.

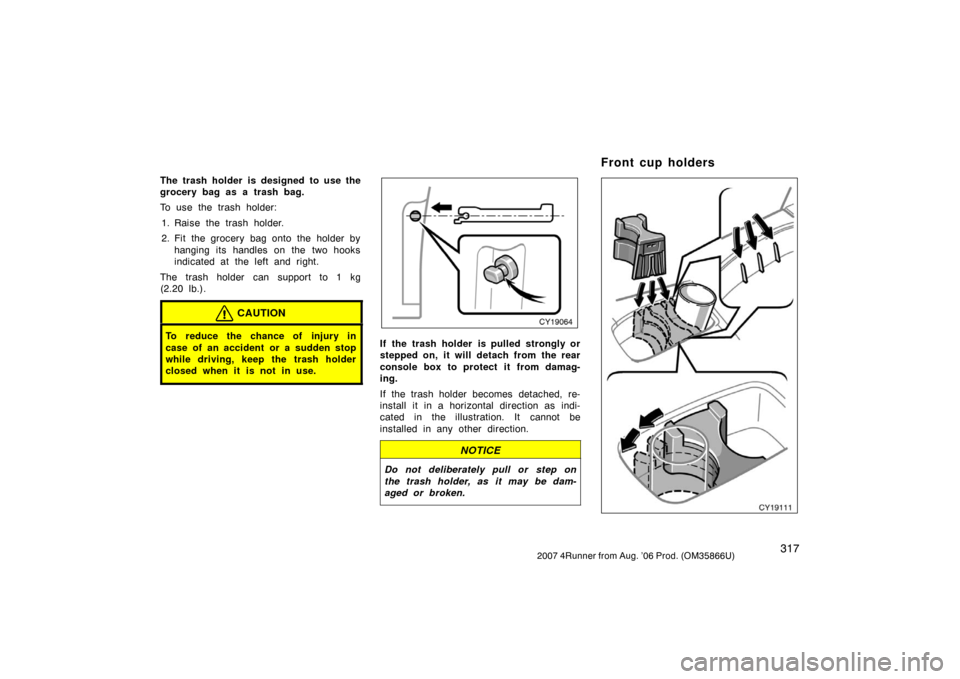

CY19064
If the trash holder is pulled strongly or
stepped on, it will detach from the rear
console box to protect it from damag-
ing.
If the trash holder becomes detached, re-
install it in a horizontal direction as indi-
cated in the illustration. It cannot be
installed in any other direction.
NOTICE
Do not deliberately pull or step on
the trash holder, as it may be dam-
aged or broken.
CY19111
Front cup holders

3182007 4Runner from Aug. ’06 Prod. (OM35866U)
The cup holders are designed for hold-
ing cups or drinkcans securely.
The cup holder can be adjustable to the
size of the cups or drinkcans by
changing the holder position and the
arm position, as shown.
With the instrument panel lights on, the
front cup holder position indicator lights
will come on.
CAUTION
Do not place anything else other than
cups or drinkcans in the cup holder,
as such items may be thrown about
in the compartment and possibly in-
jured people in the vehicle during
sudden braking or in an accident.

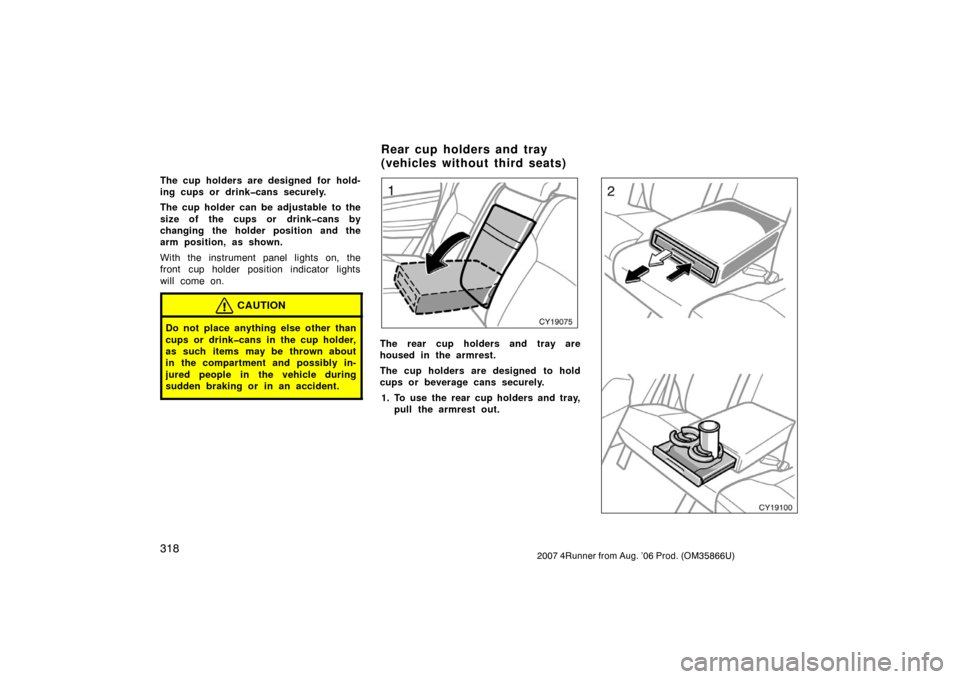

CY19075
The rear cup holders and tray are
housed in the armrest.
The cup holders are designed to hold
cups or beverage cans securely.1. To use the rear cup holders and tray, pull the armrest out.CY19100
Rear cup holders and tray
(vehicles without third seats)

3192007 4Runner from Aug. ’06 Prod. (OM35866U)
2. To use the rear cup holder, push andpull it out.

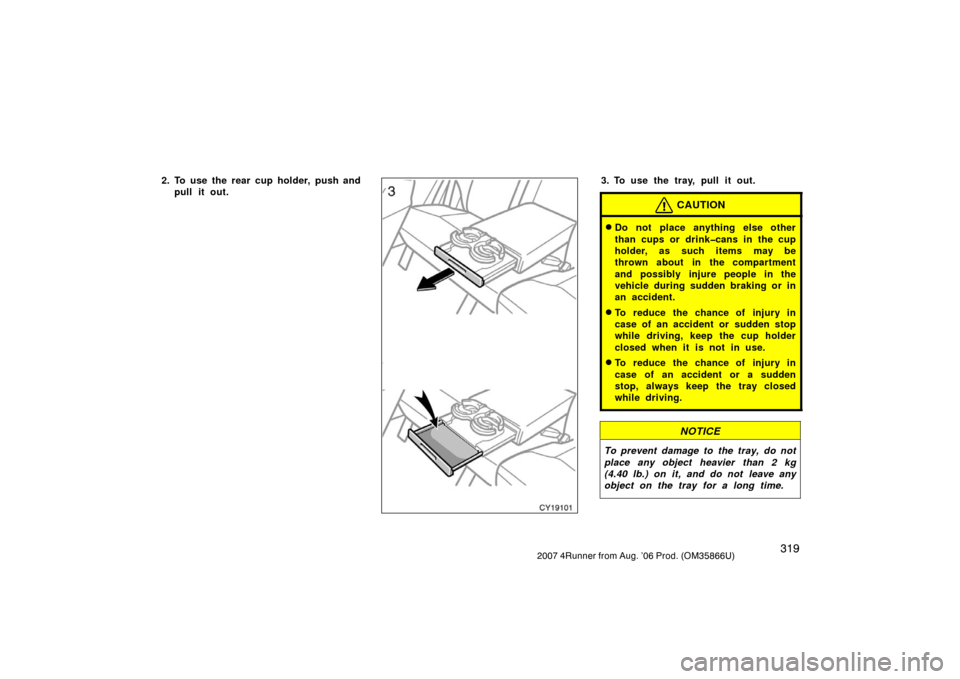

CY19101
3. To use the tray, pull it out.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the tray closed
while driving.
NOTICE
To prevent damage to the tray, do not
place any object heavier than 2 kg
(4.40 lb.) on it, and do not leave any
object on the tray for a long time.

3202007 4Runner from Aug. ’06 Prod. (OM35866U)

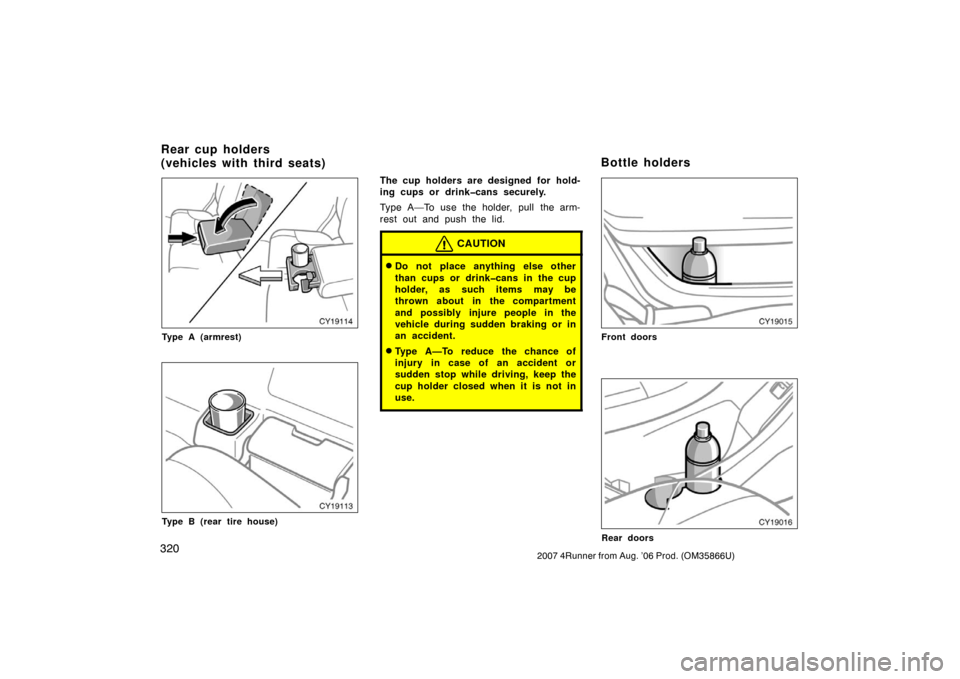

CY19114
Type A (armrest)
CY19113
Type B (rear tire house)
The cup holders are designed for hold-
ing cups or drinkcans securely.
Type A—To use the holder, pull the arm-
rest out and push the lid.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
Type A—To reduce the chance of
injury in case of an accident or
sudden stop while driving, keep the
cup holder closed when it is not in
use.
CY19015
Front doors
CY19016
Rear doors
Rear cup holders
(vehicles with third seats)Bottle holders
