TOYOTA 4RUNNER 2007 N210 / 4.G Owner's Guide

212007 4Runner from Aug. ’06 Prod. (OM35866U)
CY12088
2. Remove the discharged transmitter bat-tery by ballpoint pen.
Insert the tip of ballpoint pen at the
guide groove and lift as shown in the
above illustration.
NOTICE
Do not bend the terminals.
CY12089
3. Put in a new transmitter battery withpositive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.

222007 4Runner from Aug. ’06 Prod. (OM35866U)

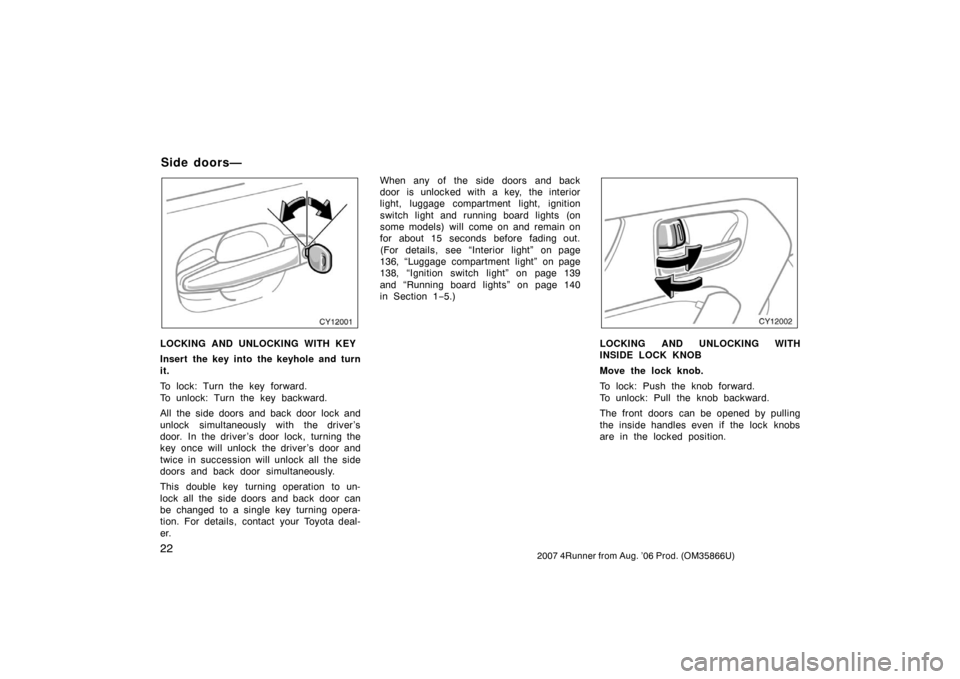

CY12001
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with the driver ’s
door. In the driver ’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock all the side
doors and back door simultaneously.
This double key turning operation to un-
lock all the side doors and back door can
be changed to a single key turning opera-
tion. For details, contact your Toyota deal-
er.When any of the side doors and back
door is unlocked with a key, the interior
light, luggage compartment light, ignition
switch light and running board lights (on
some models) will come on and remain on
for about 15 seconds before fading out.
(For details, see “Interior light” on page
136, “Luggage compartment light” on page
138, “Ignition switch light” on page 139
and “Running board lights” on page 140
in Section 1−
5.)
CY12002
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knobs
are in the locked position.
Side doors—

232007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The front doors cannot be locked if you
leave the key in the ignition switch.
CY12073
Front passenger’s sideDriver’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
If you do either of the following, no side
door or back door can be unlocked with
the power door lock switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when all the side doors and
back door are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.

242007 4Runner from Aug. ’06 Prod. (OM35866U)
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door with the key or wireless remote
control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the side
doors and back door with the power
door lock switch.
This unlocking protection with the power
door lock switch can be disabled. For de-
tails, contact your Toyota dealer.CY12004
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child −protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.

252007 4Runner from Aug. ’06 Prod. (OM35866U)
AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Locking linked with vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
You can set or cancel the automatic
door locking functions:
Be sure to apply the parking brake when
performing the following operations. To select the locking linked with the
shift position:
1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. To select the locking linked with the
vehicle speed:
1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the lock position for 5
seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
—Automatic door locking and
unlocking functions

262007 4Runner from Aug. ’06 Prod. (OM35866U)
AUTOMATIC DOOR UNLOCKING
You can select the following functions:
Unlocking linked with the shift posi-
tion
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
Unlocking linked with the ignition
switch
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the ignition switch is
turned to the “ACC” or “LOCK” posi-
tion, or the key is removed.
You can set or cancel the automatic
door unlocking functions:
Be sure to apply the parking brake when
performing the following operations. To select the unlocking linked with the
shift position:
1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. To select the unlocking linked with the
ignition switch:
1. Close all doors and turn the ignition switch to the “ON” position.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion switch to the “ON” position, press
and hold the driver’s side power door
lock switch in the unlock position for
5 seconds and then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.

272007 4Runner from Aug. ’06 Prod. (OM35866U)

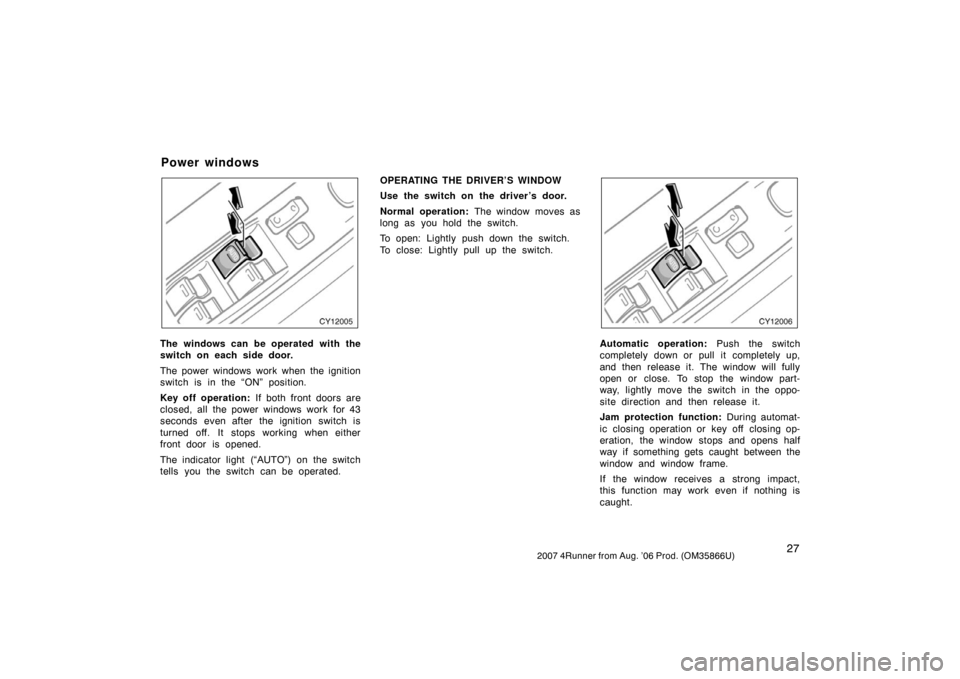

CY12005
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, all the power windows work for 43
seconds even after the ignition switch is
turned off. It stops working when either
front door is opened.
The indicator light (“AUTO”) on the switch
tells you the switch can be operated. OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation:
The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
CY12006
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
Power windows

282007 4Runner from Aug. ’06 Prod. (OM35866U)
If the battery is disconnected or run
down, the power window may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the power window.
To normalize the power window:
1. Push down the power window switch and lower the window halfway.
2. Pull up the switch until the window closes and hold the switch for a sec-
ond.
Make sure that the window opens and
closes automatically. If the power window
cannot be operated properly, have it
checked by your Toyota dealer.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

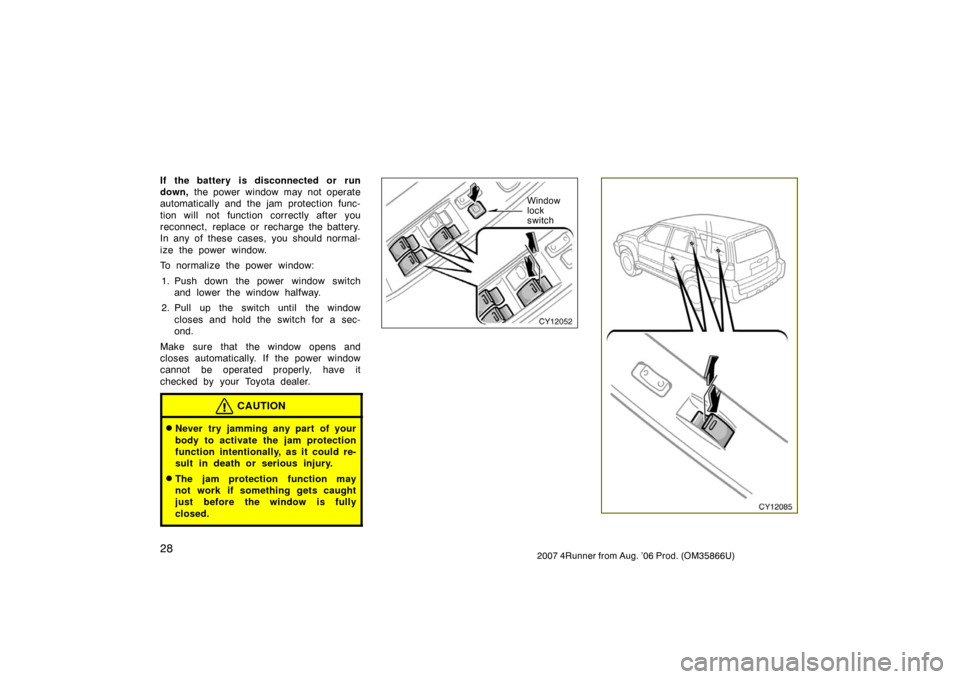

CY12052
Window
lock
switch
CY12085

292007 4Runner from Aug. ’06 Prod. (OM35866U)
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

302007 4Runner from Aug. ’06 Prod. (OM35866U)

CY12036
The back window can be operated with
the switch on the instrument panel or
the key operation in the back door key-
hole.
The power back window works when the
ignition switch is in the “ON” position.
You can open the back window when the
back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer and defogger
will not work. (See “Back window wiper
and washer” on page 141 and “Back
window and outside rear view mirror
defoggers” on page 142 in Section 1−5.) If the battery is disconnected or run
down,
the power back window may not
operate automatically and the jam protec-
tion function will not function correctly af-
ter you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize the power back window with the
power back window switch.
To normalize the power back window:
1. Push the “ ” (down) switch and lower
the window halfway.
2. Push the “ ” (up) switch until the win-
dow closes and hold the switch for a
second.
Make sure that the window opens and
closes automatically. If the power back
window cannot be operated properly, have
it checked by your Toyota dealer.
OPERATING FROM INSIDE
The ignition key must be in the “ON” posi-
tion.
Normal operation: To open or close the
back window, quickly push and release the
“  ” (down) or “ ” (up) switch. Automatic operation:
To open or close
the back window, push and hold the “ ”
(down) or “ ” (up) switch. The window
will fully open or close. To stop the win-
dow partway, push the switch on either
the “ ” (down) or “ ” (up) side briefly.
Key off operation: If both front doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either front door is opened.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Power back window
