lumbar support TOYOTA 4RUNNER 2007 N210 / 4.G Owners Manual

452007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
5. SEAT LUMBAR SUPPORTADJUSTING SWITCH (driver ’s seat
only)
Push the control switch on either side.
The amount of lumbar support will change
while the switch is pushed.

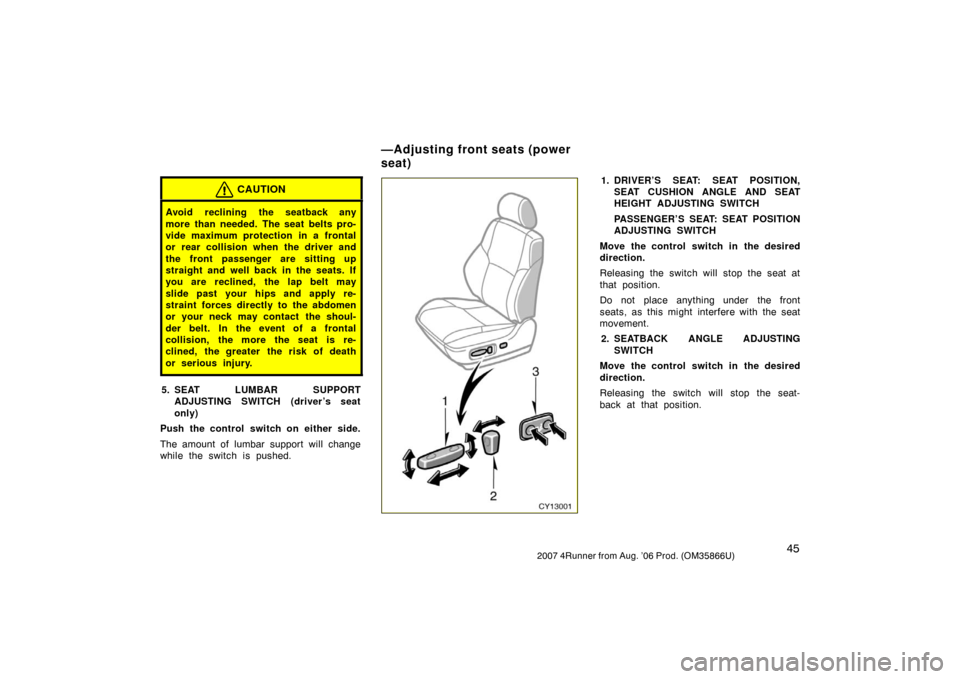

CY13001
1. DRIVER’S SEAT: SEAT POSITION, SEAT CUSHION ANGLE AND SEAT
HEIGHT ADJUSTING SWITCH
PASSENGER’S SEAT: SEAT POSITION
ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

462007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH (driver ’s seat
only)
Push the control switch on either side.
The amount of lumbar support will change
while the switch is pushed.

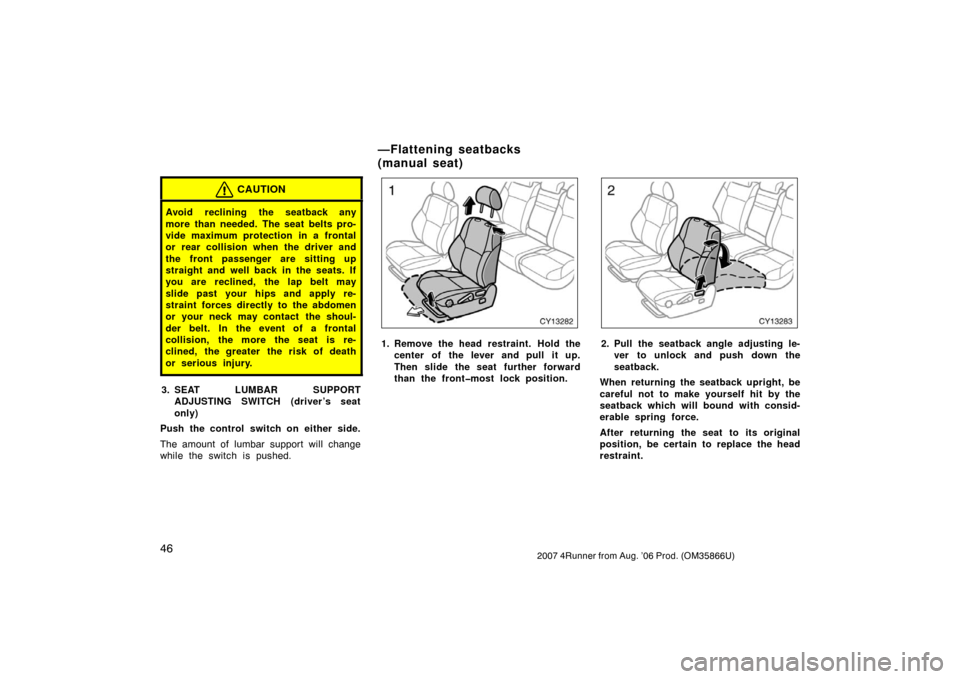

CY13282
1. Remove the head restraint. Hold the center of the lever and pull it up.
Then slide the seat further forward
than the frontmost lock position.
CY13283
2. Pull the seatback angle adjusting le-ver to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
—Flattening seatbacks
(manual seat)
