headlights TOYOTA 4RUNNER 2007 N210 / 4.G Quick Reference Guide

15

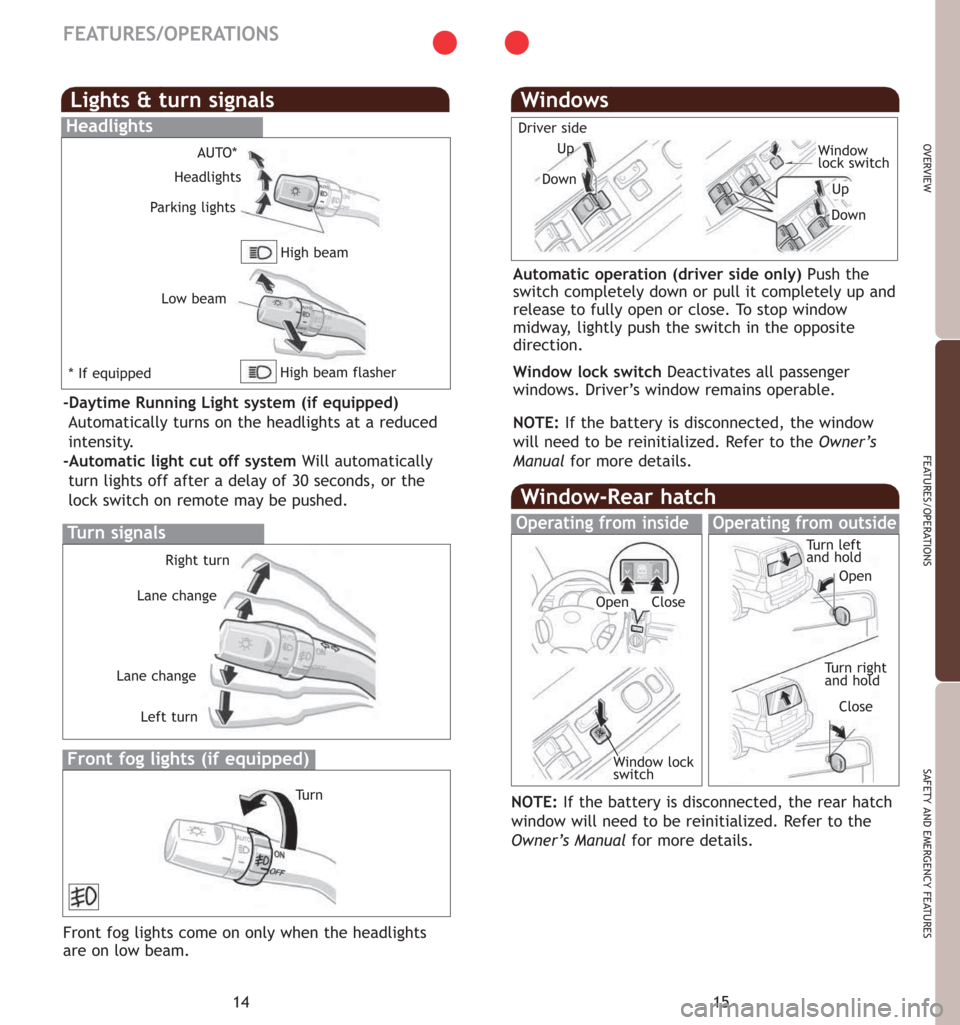

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14
FEATURES/OPERATIONS
Operating from inside
Windows
Driver side
Automatic operation (driver side only) Push the
switch completely down or pull it completely up and
release to fully open or close. To stop window
midway, lightly push the switch in the opposite
direction.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.
NOTE: If the battery is disconnected, the window
will need to be reinitialized. Refer to the
Owner’s
Manualfor more details.
Window-Rear hatch
Operating from outside
Up
Down
Window
lock switch
Window lock
switch
Tu r n left
and hold
Up
Down
Open
Open
Tu r n right
and hold
Close
Close
Lights & turn signals
Turn signals
Headlights
AUTO*
High beam flasher
*If equippedLow beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (if equipped)
Automatically turns on the headlights at a reduced
intensity.
-Automatic light cut off system Will automatically
turn lights off after a delay of 30 seconds, or the
lock switch on remote may be pushed.
Front fog lights come on only when the headlights
are on low beam.
Parking lights
High beam
Right turn
Tu r n Lane change
Lane change
Left turn
NOTE: If the battery is disconnected, the rear hatch
window will need to be reinitialized. Refer to the
Owner’s Manualfor more details.
