key TOYOTA 4RUNNER 2007 N210 / 4.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
ItemPage no.
OVERVIEWEngine maintenance 7Fuel tank door release and cap 6Hood release 7
Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry26
FEATURES/OPERATIONSAir Conditioning/Heating17Audio18-19Auto lock functions1, 28Auto LSD(Limited Slip Differential)21Automatic Transmission8Bottle holders 23Clock13Cruise control16Cup holders 22
Door locks 20Four-wheel drive9Garage door opener (HomeLink®)321Light control-Instrument panel13Lights2&turn signals14Moonroof222Parking brake11Power outlets 23Rear seat entertainment system 20Seat adjustments-Front10Seat adjustments-Rear12Seat heaters16Seats-Head restraints11Tilt and telescopic steering wheel10Windows215Window-Rear hatch215
Windshield wiper & washer13
SAFETY AND EMERGENCY FEATURESDoors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Wa r n i n g System 24
1Programmable by customer.Refer to the Owner’s
Manual for instructions and more information.
2Visit your Toyota dealer for information on
customizing this feature.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the
“Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
6cylinder (1GR-FE) engine
8 cylinder (2UZ-FE) engine
6
OVERVIEW
Fuel tank door release and capHood release
Pull upTu r n
StorePull Pull up latch
and raise
hood
NOTE:After unlocking, if a door is not opened within
30 seconds, all doors will relock for safety.
Alarm operation
Keyless entry (if equipped)
Locking operationUnlocking operation
Back window operation
Beep sound can be switched “ON” or “OFF.” Refer to
the Owner’s Manualfor more details.
Push
Push Push ONCE: Driver door
TWICE: All doors
Push and hold

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

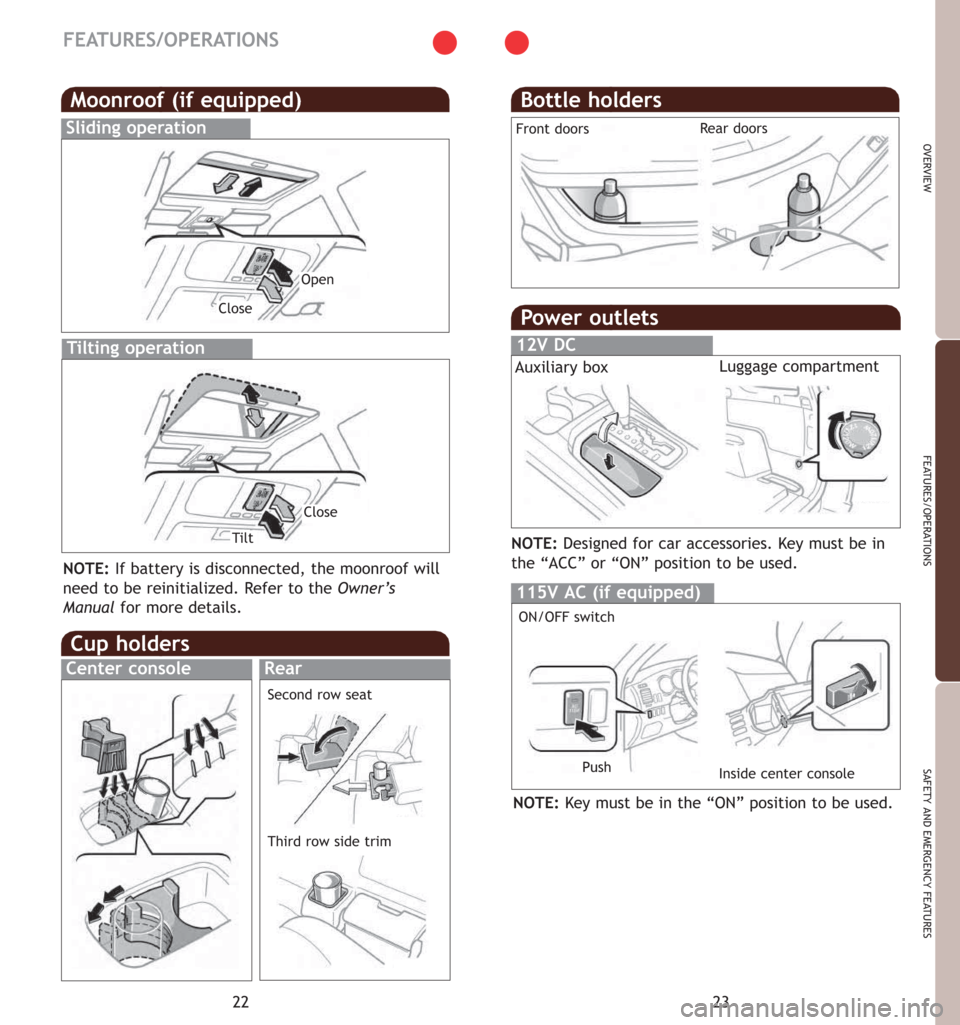

22
FEATURES/OPERATIONS
Power outlets
12V DC
115V AC (if equipped)
ON/OFF switch
Inside center console Push
Auxiliary boxLuggage compartment
Moonroof (if equipped)
Tilting operation
Sliding operation
Open
Close
Close
TiltNOTE:Designed for car accessories. Key must be in
the “ACC” or “ON” position to be used.
NOTE:Key must be in the “ON” position to be used. NOTE:If battery is disconnected, the moonroof will
need to be reinitialized. Refer to the Owner’s
Manualfor more details.
Cup holders
Center consoleRear
Second row seat
Third row side trim
Bottle holders
Front doorsRear doors
