TOYOTA 4RUNNER 2008 N210 / 4.G Owner's Manual
Manufacturer: TOYOTA, Model Year: 2008, Model line: 4RUNNER, Model: TOYOTA 4RUNNER 2008 N210 / 4.GPages: 496
Page 21 of 496
9
Slip indicator light
Turn signal indicator lightsDownhill assist control system indicator light
(four−wheel drive models)
Headlight high beam indicator light
Headlight low beam indicator light
Tail light indicator light
AUTO LSD" indicator light
Four−wheel drive indicator light∗
3
(multi−mode four−wheel drive models)
Center differential lock indicator light∗3
(four−wheel drive models) Automatic transmission indicator lights
Low speed four−wheel drive indicator light∗3
(four−wheel drive models)
Vehicle stability control system off
indicator/warning light∗1
Front fog light indicator light
Cruise control indicator light∗5
Height control OFF" indicator light∗4
Height control indicator lights
Page 22 of 496
10
∗1: For details, see Service reminder indicators and warning
buzzers" on page 149 in Section 1−6.
∗2: For details, see Roll sensing of curtain shield airbags off
switch" on page 95 in Section 1−3.
∗3: If this light flashes, see Four−wheel drive system" on page
168 in Section 1−7.
∗4: If this light flashes, see Rear height control air suspension"
on page 191 in Section 1−7.
∗5: If this light flashes, see Cruise control" on page 203 in
Section 1−7.
Page 23 of 496
11
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power back window 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Back door 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1− 2
Page 24 of 496
12
CY12049
Your vehicle is supplied with the two
kinds of keys.1. Master keys (black)These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built−in transponder chip.
2. Sub key (gray)This key does not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine. To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
CY12022
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys
Page 25 of 496
13
CY12023
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
CY12024
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
Page 26 of 496
14
CY12025
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
CY12026
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the engine switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.
CY12074
The system is automatically set when the
key is removed from the engine switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See Theft deterrent
system" on page 35 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
engine switch.
The indicator light flashes inconsistent-
ly.
Engine immobilizer system
Page 27 of 496
15
Inserting the registered key in the engine
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
The system is maintenance−free.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
CY12070
1. LOCK" switch
2. UNLOCK" switch
3. Back window open switch
4. PANIC" switch
Wireless remote control
Page 28 of 496
16
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, open the back
window or activate the PANIC" mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors, back window
or alarm, operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see Replacing
battery" on page 20.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an
accident. (See If you lose your wireless
remote control transmitter" on page 411 in
Section 4.)
CY12082
Locking operation
CY12083
Unlocking operation
Locking and unlocking
doors
Page 29 of 496
17
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the LOCK" switch. All the
side doors and back door are locked si-
multaneously. At this time one beep will
be heard, and the turn signal lights flash
once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or the back door
is not securely closed, locking cannot be
performed by the LOCK" switch and a
beep will sound continuously for 10 sec-
onds. However, if the key is in the engine
switch, a beep will not sound.
To stop the buzzer, close all the side
doors and back door securely or push the
UNLOCK" switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.
To unlock: Push the UNLOCK" switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the UNLOCK"
switch is pushed, two beeps will be heard,
and the turn signal lights flash twice.This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When the UNLOCK" switch is pressed,
the interior light, luggage compartment
light, engine switch light and running
board lights (on some models) will come
on and remain on for about 15 seconds
before fading out. (For details, see
Interior light" on page 136, Luggage
compartment light" on page 138, Engine
(ignition) switch light" on page 139 and
Running board lights" on page 140 in
Section 1−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the LOCK" or UNLOCK" switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the wireless door locking or
unlocking function
Cancelling the flash of the turn si
gnal
lights
Changing the volume of beep sound
Page 30 of 496
18

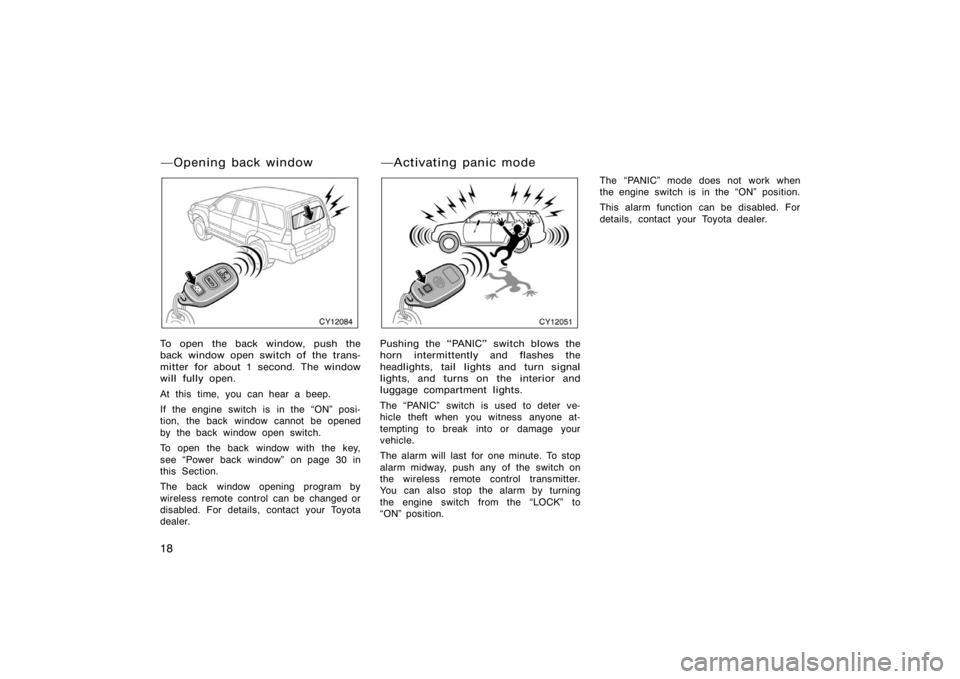

CY12084
To open the back window, push the
back window open switch of the trans-
mitter for about 1 second. The window
will fully open.
At this time, you can hear a beep.
If the engine switch is in the ON" posi-
tion, the back window cannot be opened
by the back window open switch.
To open the back window with the key,
see Power back window" on page 30 in
this Section.
The back window opening program by
wireless remote control can be changed or
disabled. For details, contact your Toyota
dealer.
CY12051
Pushing the PANIC" switch blows the
horn intermittently and flashes the
headlights, tail lights and turn signal
lights, and turns on the interior and
luggage compartment lights.
The PANIC" switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push any of the switch on
the wireless remote control transmitter.
You can also stop the alarm by turning
the engine switch from the LOCK" to
ON" position.The PANIC" mode does not work when
the engine switch is in the ON" position.
This alarm function can be disabled. For
details, contact your Toyota dealer.
Opening back window
Activating panic mode
