If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do−
it−yourself maintenance, see Parts and
tools" on page 432 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:

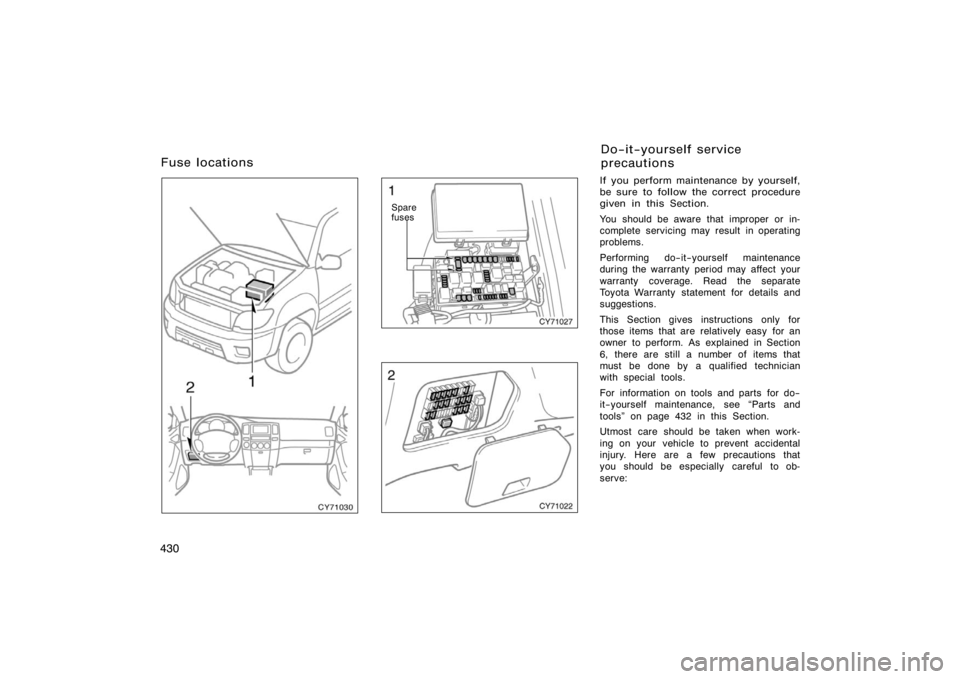

Fuse locationsDo−it−yourself service
precautions

433
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
Replacing light bulbs" on page 454 in
Section 7−3.)
Tools:
Screwdriver

449
DO−IT−YOURSELF MAINTENANCE
Electrical components
Checking battery condition450
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 451
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 452
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 453
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 454
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7− 3

452
CY73023
Ty p e A
Ty p e B
Ty p e C Good
Good
Good Blown
Blown
Blown
CY73033

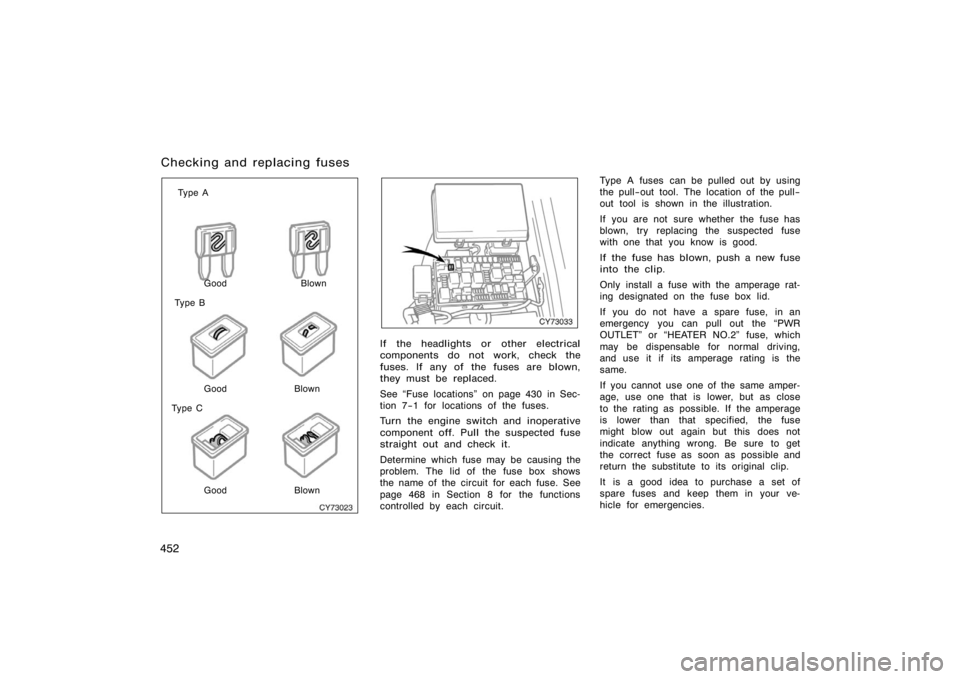

If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See Fuse locations" on page 430 in Sec-
tion 7−1 for locations of the fuses.
Turn the engine switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 468 in Section 8 for the functions
controlled by each circuit. Type A fuses can be pulled out by using
the pull−out tool. The location of the pull−
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the PWR
OUTLET" or HEATER NO.2" fuse, which
may be dispensable for normal driving,
and use it if its amperage rating is the
same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

461
SPECIFICATIONS
Dimensions and weights462
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 463
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 463
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 463
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 467
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 468
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

468
CY80013
Engine compartment
Fuses (type A)1. SPARE 10 A: Spare fuse
2. SPARE 15 A: Spare fuse
3. STOP 10 A: Stop/tail lights, high
mounted stoplight, shift lock control
system, anti−lock brake system, trac-
tion control system (two−wheel drive
models), active traction control system
(four−wheel drive models), vehicle sta-
bility control system, rear height control
air suspension, multiport fuel injection
system/s equential multiport fuel injec-
tion system, trailer brake controller,
trailer lights (tail lights)
CY80010
Instrument panel
4. AC115V INV 15 A: AC inverter
5. FR FOG 15 A: Front fog lights
6. OBD 7.5 A: On−board diagnosis sys-
tem
7. HEAD (LO RH) 10 A: Right−hand
headlight (low beam)
8. HEAD (LO LH) 10 A: Left−hand head-
light (low beam)
9. HEAD (HI RH) 10 A: Right−hand head-
light (high beam)
10. HEAD (HI LH) 10 A: Left−hand head-
light (high beam) 11. EFI NO.2 10 A:
Multiport fuel injection
system/s equential multiport fuel injec-
tion system
12. HEATER NO.2 7.5 A: Air conditioning
system
13. AIRSUS NO.2 10 A: Rear height con-
trol air suspension
14. SEAT HEATER 25 A: Seat heaters
15. DEFOG 30 A: Back window defogger,
multiport fuel injection system/sequen-
tial multiport fuel injection system
16. MIR HEATER 10 A: Outside rear view
mirror heater
17. DOME 10 A: Interior light, personal
lights, wireless remote control system,
door courtesy lights, gauge and meter,
vanity lights, instrument panel lights,
running board lights, multiplex commu-
nication system
18. RADIO NO.1 20 A: Audio system, nav-
igation system, rear seat entertainment
system
Fuses

470
43. TAIL 10 A: Tail lights, license plate
lights, parking lights, instrument panel
light control, multiport fuel injection
system/s equential multiport fuel injec-
tion system, instrument panel lights,
meter and gauge, glove box light
44. ACC 7.5 A: Power outlets, outside rear
view mirrors, audio system, navigation
system, shift lock control system, in-
strument panel lights, rear seat enter-
tainment system
45. CIG 10 A: No circuit
Fuses (type B)
46. A/PUMP 50 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
47. AIRSUS 50 A: Rear height control air
suspension
48. AM1 50 A: All components in ACC",
CIG", IG1", ECU−IG", FR WIP−
WSH", RR−WSH", 4WD", and STA"
fuses
49. TOWING BRK 30 A: Trailer brake con-
troller
50. J/B 50 A: All components in PWR
OUTLET", D P/SEAT", P P/SEAT",
POWER", TAIL" and SECU/HORN"
fuses 51. BATT CHG 30 A:
Trailer sub battery
52. TOWING 40 A: Trailer lights (tail
lights)
53. ABS MTR 40 A: Anti−lock brake sys-
tem, traction control system (two−wheel
drive models), active traction control
system (four−w heel drive models), ve-
hicle stability control system
54. AM2 30 A: Starter system, IGN",
GAUGE", STA NO.2" and SRS" fuses
55. ABS SOL 30 A: Anti−lock brake sys-
tem, traction control system (two−wheel
drive models), active traction control
system (four−w heel drive models), ve-
hicle stability control system
56. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
57. ALT 140 A: All components in
A/PUMP", AIRSUS", AM1", TOWING
BRK", J/B", BATT CHG", TOWING",
TAIL", STOP", AC 115V INV", FR
FOG", OBD", DEFOG" and MIR
HEATER" fuses
58. HEATER 60 A: Air conditioning system

476 A
AUTO LSD" system180
. . . . . . . . . . . . . . . . . .
