2008 4Runner Scheduled Maintenance Guide
In addition to the maintenance items indicated for each mileage/month interval, you should
perform certain inspections daily when you drive off-road. Whenever you take your vehicle
off-road through deep sand, mud or water, perform these inspections every day:
•Check ball joints and dust covers
•Check brake lines and hoses
•Check brake pads/discs
•Check differential oil
•Check drive shaft boots
•Check engine air filter
•Check nuts and bolts on chassis
•Check steering linkage and boots
•Check transfer case oil (4WD models)
•Check transmission fluid or oil
•Lubricate propeller shaft (4WD models)
OFF-ROAD DAILY MAINTENANCE
05

2008 4Runner Scheduled Maintenance Guide
60,000 Miles or 72 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs5
Rotate tiresVisually inspect brake linings/drums and brake pads/discs6
Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Charcoal canister
7
__ Drive belts8
__ Drive shaft boots (4WD)
__ Engine coolant3
__ Engine valve clearance9
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis
Driving while towing:
Replace automatic transmission fluidReplace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
13
1Reset the oil replacement reminder light (
MAINT REQD
) or the message
OIL MAINTENANCE REQUIRED
on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to
Engine Coolant
in the
Explanation of Maintenance Items
section in the back of this guide for more information.4Includes operating on roads which road salt has been applied.51GR-FE engine. Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.6Inspect thickness measurement and disc runout.72UZ-FE engine. For vehicles registered in California, Massachusetts and New York States only.8Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.9Check for tappet noise and engine vibration and adjust if necessary.

2008 4Runner Scheduled Maintenance Guide

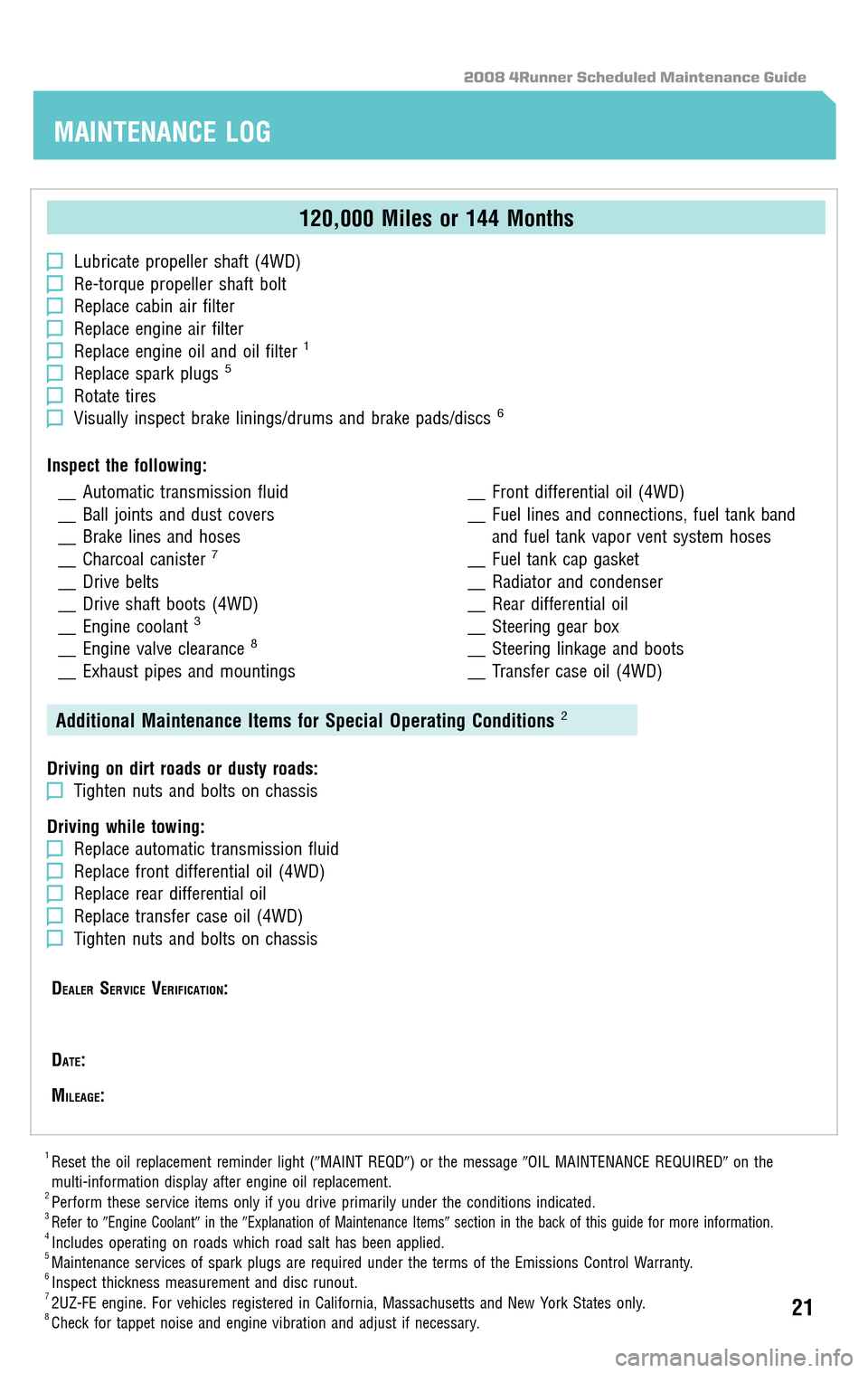

120,000 Miles or 144 Months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs5
Rotate tiresVisually inspect brake linings/drums and brake pads/discs6
Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Charcoal canister
7
__ Drive belts
__ Drive shaft boots (4WD)
__ Engine coolant
3
__ Engine valve clearance8
__ Exhaust pipes and mountings__ Front differential oil (4WD)
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis
Driving while towing:
Replace automatic transmission fluidReplace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Tighten nuts and bolts on chassis
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
21
1Reset the oil replacement reminder light (
MAINT REQD
) or the message
OIL MAINTENANCE REQUIRED
on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to
Engine Coolant
in the
Explanation of Maintenance Items
section in the back of this guide for more information.4Includes operating on roads which road salt has been applied.5Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.6Inspect thickness measurement and disc runout.72UZ-FE engine. For vehicles registered in California, Massachusetts and New York States only.8Check for tappet noise and engine vibration and adjust if necessary.

2008 4Runner Scheduled Maintenance Guide

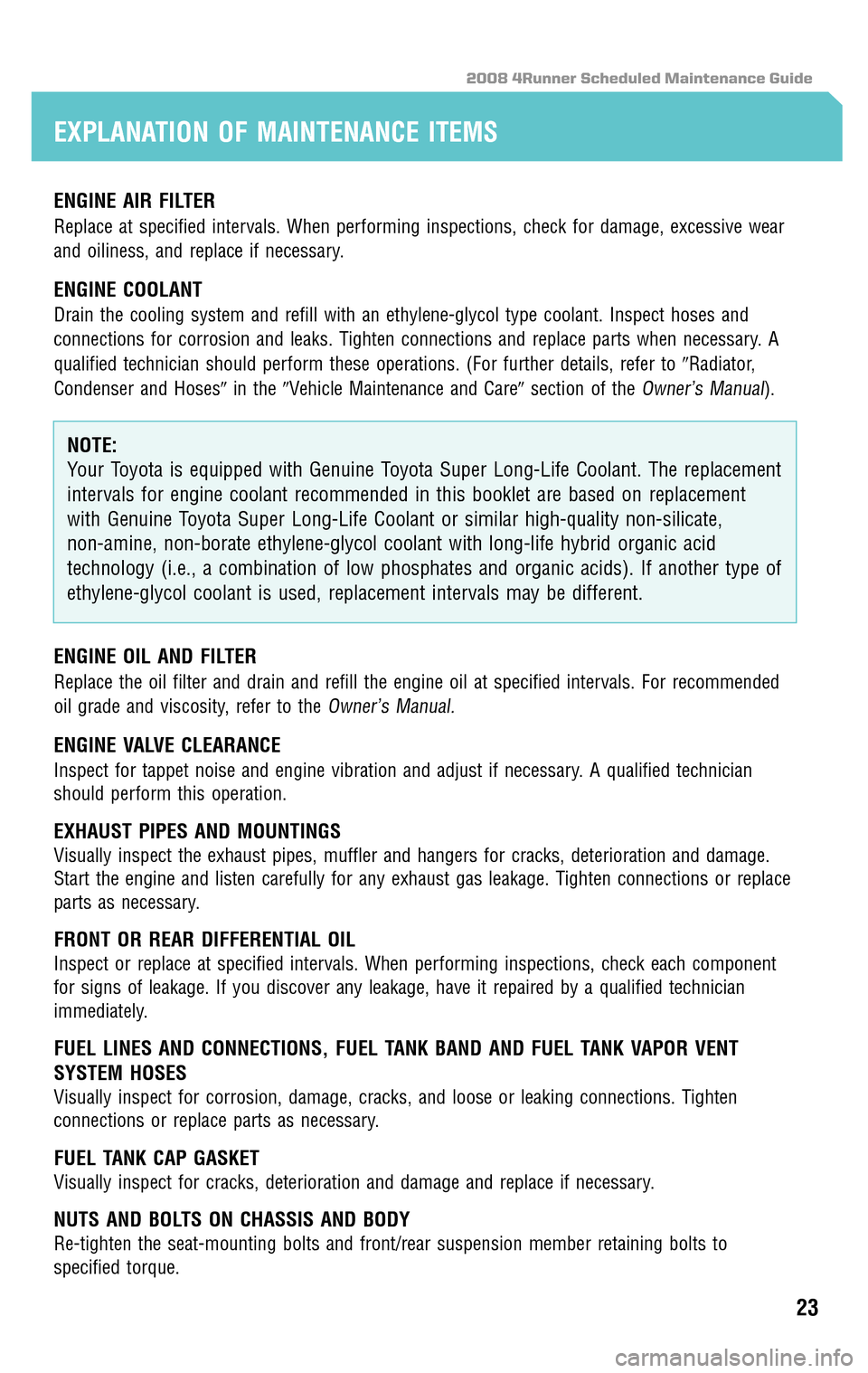

ENGINE AIR FILTER
Replace at specified intervals. When performing inspections, check for damage, excessive wear
and oiliness, and replace if necessary.
ENGINE COOLANT
Drain the cooling system and refill with an ethylene-glycol type coolant. Inspect hoses and
connections for corrosion and leaks. Tighten connections and replace parts when necessary. A
qualified technician should perform these operations. (For further details, refer to
Radiator,
Condenser and Hoses
in the
Vehicle Maintenance and Care
section of the
Owner’s Manual).
NOTE:
Your Toyota is equipped with Genuine Toyota Super Long-Life Coolant. The replacement
intervals for engine coolant recommended in this booklet are based on replacement
with Genuine Toyota Super Long-Life Coolant or similar high-quality non-silicate,
non-amine, non-borate ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e., a combination of low phosphates and organic acids). If another type of
ethylene-glycol coolant is used, replacement intervals may be different.
ENGINE OIL AND FILTER
Replace the oil filter and drain and refill the engine oil at specified intervals. For recommended
oil grade and viscosity, refer to the
Owner’s Manual.
ENGINE VALVE CLEARANCE
Inspect for tappet noise and engine vibration and adjust if necessary. A qualified technician
should perform this operation.
EXHAUST PIPES AND MOUNTINGS
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration and damage.
Start the engine and listen carefully for any exhaust gas leakage. Tighten connections or replace
parts as necessary.
FRONT OR REAR DIFFERENTIAL OIL
Inspect or replace at specified intervals. When performing inspections, check each component
for signs of leakage. If you discover any leakage, have it repaired by a qualified technician
immediately.
FUEL LINES AND CONNECTIONS, FUEL TANK BAND AND FUEL TANK VAPOR VENT
SYSTEM HOSES
Visually inspect for corrosion, damage, cracks, and loose or leaking connections. Tighten
connections or replace parts as necessary.
FUEL TANK CAP GASKET
Visually inspect for cracks, deterioration and damage and replace if necessary.
NUTS AND BOLTS ON CHASSIS AND BODY
Re-tighten the seat-mounting bolts and front/rear suspension member retaining bolts to
specified torque.
EXPLANATION OF MAINTENANCE ITEMS
23
