TOYOTA 4RUNNER 2010 N280 / 5.G Owners Manual

660 Alphabetical index
4RUNNER_U
Turn signal lightsReplacing light bulbs ............. 541
Switch.................................... 179
Wattage .................................622
Valet key .....................................30
Vanity lights Vanity lights ...........................430
Wattage .................................622
Vanity mirrors...........................430
Vehicle identification number ...................................611
Vehicle stability control...........253
VSC............................................ 253
Warning buzzers Brake system ........................565
Key reminder .........................572
Open door ............................ 567
Open moon roof reminder ..... 572
Seat belt reminder .................568
Warning lights Anti-lock brake system .......... 567
Automatic transmission
fluid temperature ................. 568
Brake system ........................565
Charging system .... ...............566
Engine oil pressure ............... 566
Engine oil replacement.......... 569
KDSS .................................... 567
Low fuel level ........................568
Low washer fluid ...................568
Malfunction indicator lamp ....566
Open door ............................. 567
Power steering ......................567
Pretensioners ........................566
Seat belt reminder .................568
Smart key system... ............... 570
SRS airbags .......................... 566
Tire pressure .........................568
Unengaged “Park” .................567 Washer
Checking ............................... 512
Preparing and checking before winter ....................... 275
Switch ........................... 205, 207
Washing and waxing ............... 478
Weight
Cargo capacity ...................... 267
Load limits ............................. 273
Weight ................................... 610
Wheels ...................................... 524
Window glasses .................. 91, 94
Window lock switch................... 91
Windows Power back window ................ 94
Power windows ....................... 91
Rear window defogger .......... 310
Washer.......................... 205, 207
Windshield wiper de-icer ........ 312
Windshield wipers ................... 205
Wireless remote control key Replacing the battery ............ 528
Wireless remote control key.... 47
WMA disc.................................. 333
V
W

661
4RUNNER_U

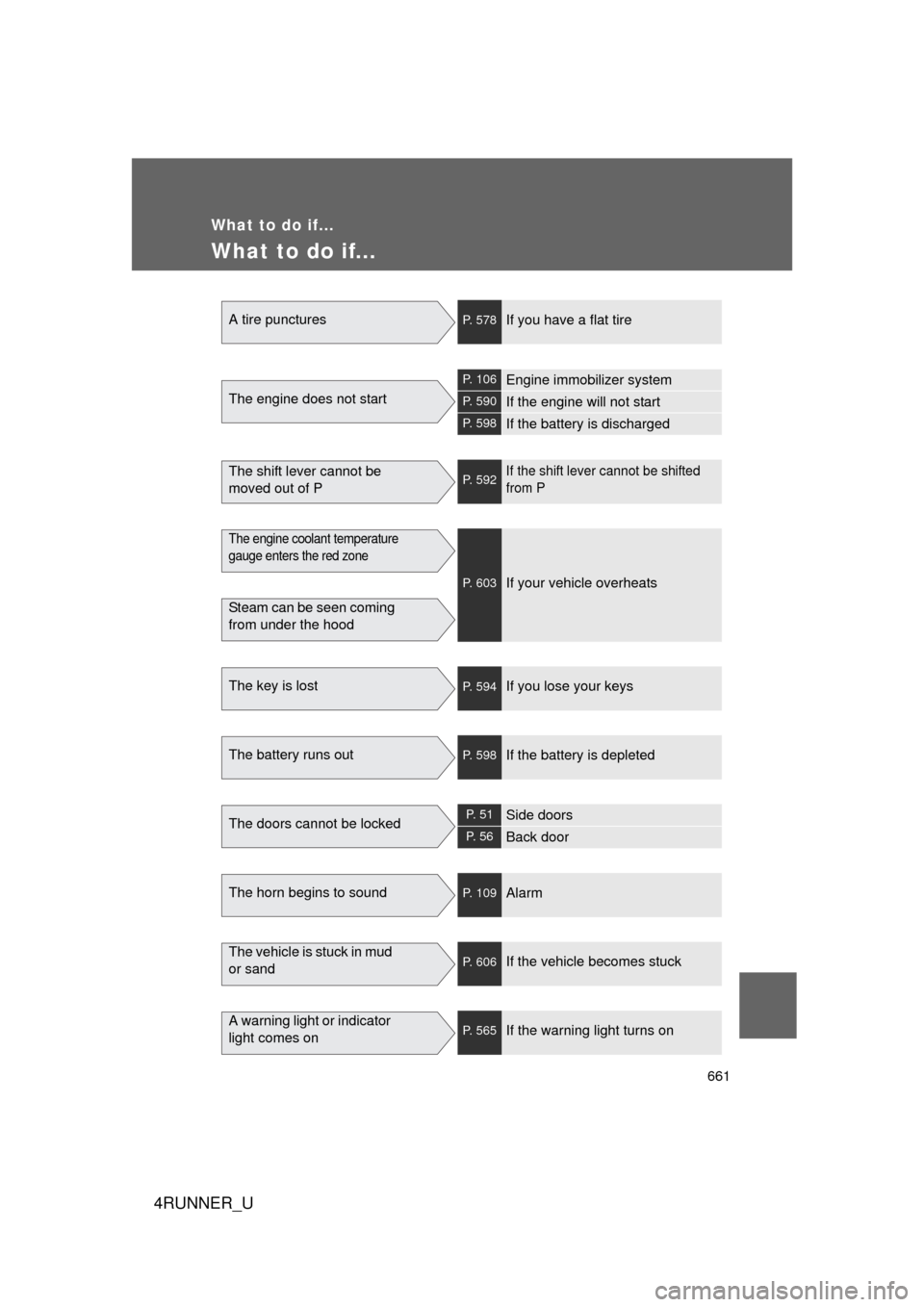

What to do if...
What to do if...
A tire puncturesP. 578If you have a flat tire
The engine does not start
P. 106Engine immobilizer system
P. 590If the engine will not start
P. 598If the battery is discharged
The shift lever cannot be
moved out of PP. 592If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 603If your vehicle overheats
The key is lostP. 594If you lose your keys
The battery runs outP. 598If the battery is depleted
The doors cannot be lockedP. 5 1Side doors
P. 5 6Back door
The horn begins to soundP. 109Alarm
The vehicle is stuck in mud
or sandP. 606If the vehicle becomes stuck
A warning light or indicator
light comes onP. 565If the warning light turns on

662 What to do if...
4RUNNER_U
Vehicles with non-Optitron type meters
Vehicles with Optitron type meters
CTHPIAS082

663
What to do if...
4RUNNER_U
■
Warning lights
P. 567
or
P. 567
or
P. 5 6 5P. 568
P. 5 6 6P. 568
P. 5 6 6P. 568
P. 5 6 6P. 569
P. 5 6 6P. 568
P. 5 6 7P. 568
P. 568
or
P. 5 6 7P. 570
P. 5 6 7P. 567
Brake system warning
lightUnengaged “Park”
warning light
Power steering warning
light
Low fuel level warning
light
Charging system warn-
ing lightDriver’s seat belt
reminder light
Low engine oil pressure
warning lightFront passenger’s seat belt
reminder light
Malfunction indicator
lampMaintenance required
reminder light
SRS warning lightLow washer fluid warn-
ing light
Open door warning lightAutomatic transmission fluid temper-
ature warning light
ABS warning lightTire pressure warning
light
Smart key system warn-
ing light
Slip indicatorKDSS warning light

664
4RUNNER_U
GAS STATION INFORMATION
CTHPIAS030
Auxiliary catch leverP. 4 9 4Fuel filler doorP. 102
Hood lock release lever
P. 494
Tire inflation pressure
P. 621
Fuel tank capacity23.0 gal. (87.0 L, 19.1 Imp. gal.)
Fuel typeUnleaded gasoline only P. 613
Cold tire inflation
pressureP. 6 2 1
Engine oil capacity
drain and refill
(Reference)
With filter
Without filter
2.7 L 4-cylinder (2TR-FE) engine
6.1 qt. (5.8 L, 5.1 Imp. qt.)
4.0 L V6 (1GR-FE) engine
6.6 qt. (6.2 L, 5.5 Imp. qt.)
2.7 L 4-cylinder (2TR-FE) engine
5.4 qt. (5.1 L, 4.5 Imp. qt.)
4.0 L V6 (1GR-FE) engine
6.0 qt. (5.7 L, 5.0 Imp. qt.)
Engine oil type“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 614
Recommended oil viscosity: SAE 0W-20
