Page 11 of 26

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Automatic Transmission
* The engine/“ENGINE START STOP” switch must be “ON” and the brake
pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
P
R
N
D
“S” mode
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “ENGINE START STOP” switch or engine switch OFF.
Refer to theOwner’s Manualfor more details.
Parking brake
Set: Depress
Release: Depress again
BRAKEBRAKE
Page 12 of 26
10

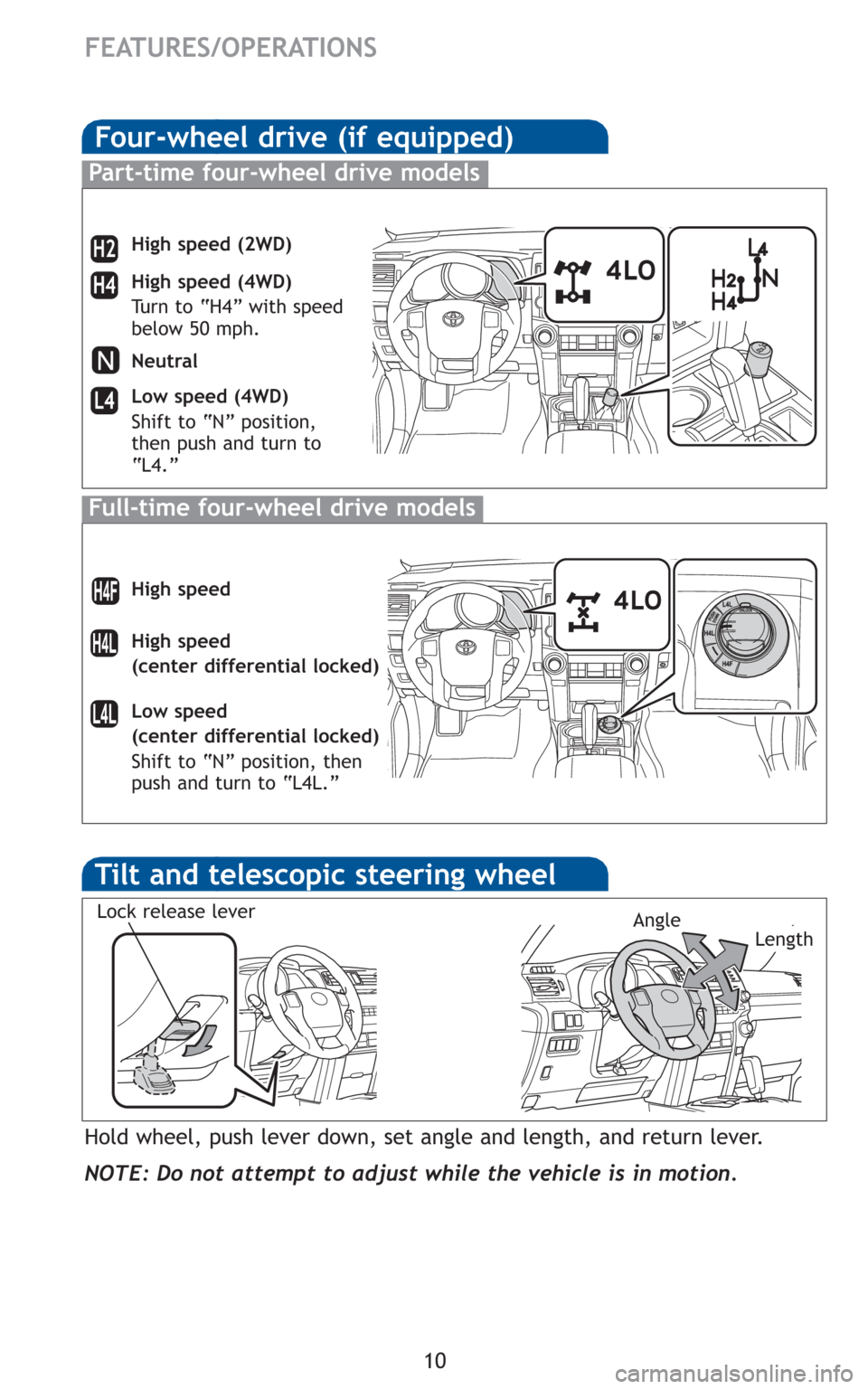

Four-wheel drive (if equipped)
H2
Full-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Turn to “H4” with speed
below 50 mph.
Low speed (4WD)
Shift to “N” position,
then push and turn to
“L4.”
High speed
(center differential locked)
Low speed
(center differential locked)
Shift to “N” position, then
push and turn to “L4L.”
H4L
L4L
Part-time four-wheel drive models
Neutral
High speed
H4F
FEATURES/OPERATIONS
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Length Angle
Page 13 of 26
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

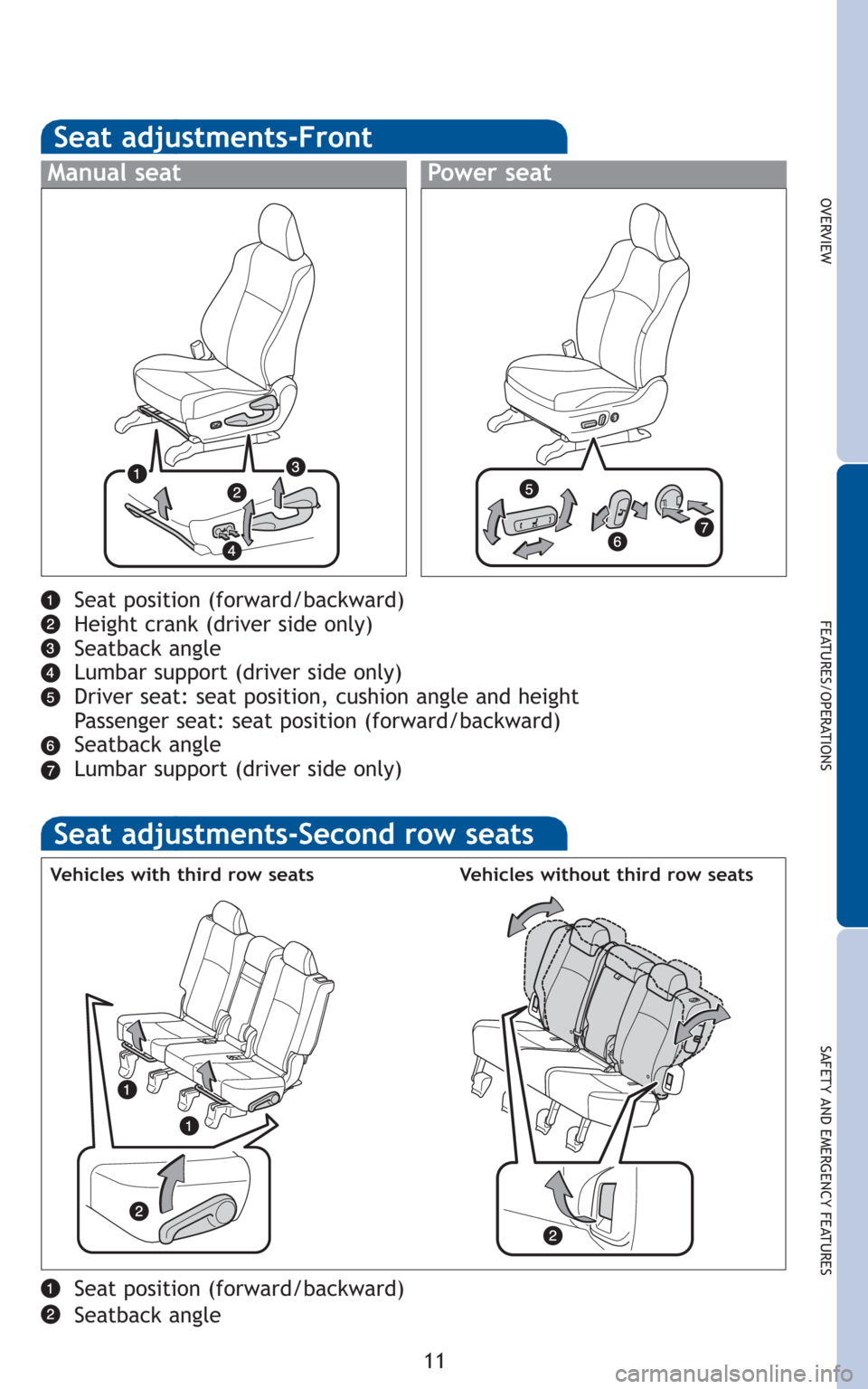

Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)
Driver seat: seat position, cushion angle and height
Passenger seat: seat position (forward/backward)
Seatback angle
Lumbar support (driver side only)
Seat adjustments-Front
Manual seatPower seat
Seat adjustments-Second row seats
Seat position (forward/backward)
Seatback angle
Vehicles with third row seatsVehicles without third row seats
Page 14 of 26
12
FEATURES/OPERATIONS
(1) Push(2) Lower
(4) Pull up
Seats-Folding down second row seats
(3) Stow
(6) Fold down(5) Push down
(1) Push(2) Lower
(3) Stow
(5) Fold down
(4) Pull up
Without third row seats
With third row seats
Page 15 of 26
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seats-Stowing third row seats
(if equipped)
(1) Stow(2) Pull up
(3) Pull up(4) Pull up
(5) Fold down
(1) Stow(2) Pull up(3) Pull up
(4) Fold down
From inside
From outside
Seats-Returning third row seats
(if equipped)
(1) Raise(2) Pull(3) Raise
Seats-Head restraints
Front and second rowThird row
Lock release button
Page 16 of 26
14
FEATURES/OPERATIONS
Clock
H-Hour set
M-Minute set
Windows
Driver side
Automatic operationPush the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Window lock switch
Moonroof (if equipped)
Sliding operationTilting operation
Open
CloseClose
Tilt
Push once to open/close completely.
To stop partway, press switch lightly.
Page 17 of 26
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Light control-Instrument panel
Operating from inside
Window-Back window
Operating from outside
Window lock switch
OpenClose
Turn and hold
CloseOpen
With Smart Key system
Without Smart Key system
Close
Open
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD (2WD) functions.
Refer to Section 2-4 of theOwner’s Manualfor more information.
VSC OFF
VSC OFF button
Brightness control
+
-
Page 18 of 26
16
FEATURES/OPERATIONS
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Tu r n Lane change
Lane change
Left turn
Lights & turn signals
Headlights
High beam flasher Low beamHeadlights
Parking lights
High beam
Headlights
Parking lights
DRL ON
Auto
DRL OFF
Ty p e BTy p e A
-Automatic light cut off systemWill automatically turn lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
DRL OFF
Page 19 of 26
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield wipers & washers
Rear
Front
Interval wipe
Slow
Fast
Pull to wash and wipe Adjust frequency*
Wash and wipe
Wipe
Interval wipe
Wash and wipe
NOTE:Rear wiper and washer operate only when back window is fully
closed.* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Single wipe
Cruise control (if equipped)
Refer to theOwner’s Manualfor more details.
Turning system ON/OFFFunctions
System ON/OFF
Resume/Increase speed
Set/Decrease speed
Cancel
Page 20 of 26
18
Air Conditioning/Heating
FEATURES/OPERATIONS
Temperature selector (driver side)
Fan speed
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Temperature selector (front passenger side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Rear window and outside rear view mirror defoggers
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging. “ ” mode uses fresh air only.
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Automatic Air Conditioning
Seat heaters (if equipped)
Driver’s seat
Front passenger’s seat
