mirror TOYOTA 4RUNNER 2010 N280 / 5.G Quick Reference Guide

Power rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator
1
Tilt and telescopic steering lock release
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch
120V AC Power outlet ON/OFF switch
1
Windshield wiper de-icer switch1
Headlight, turn signal and front fog light1control
Wiper and washer controls
Accessory meter/Outside temperature display
Emergency flasher switch
Audio system
1or navigation system2
Back window and outside rearview mirror defoggers switch
Front passenger seat belt reminder light
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
1
12V DC Power outlet
2
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Without Smart Key system
With Smart Key systemManual Air

18

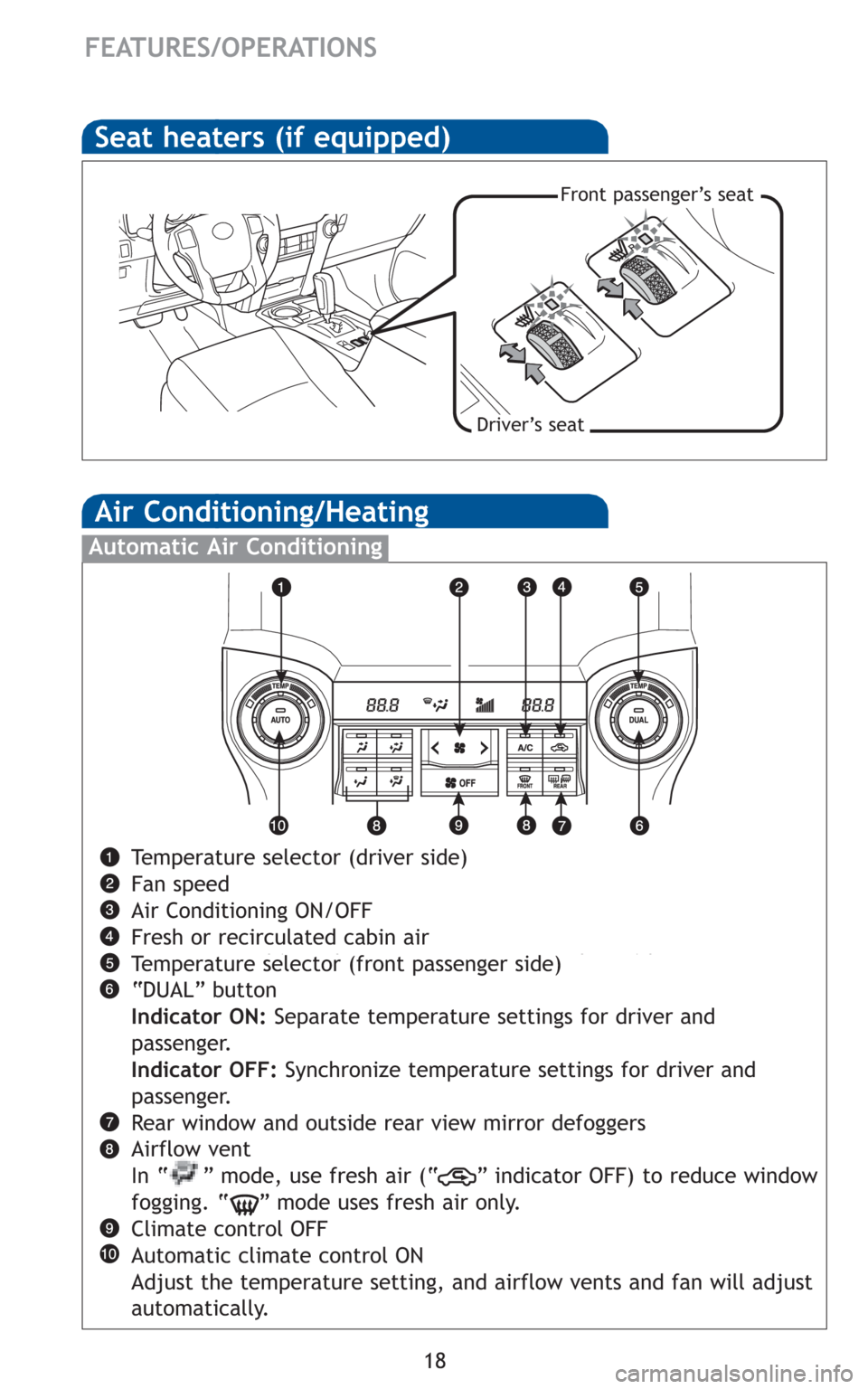

Air Conditioning/Heating
FEATURES/OPERATIONS
Temperature selector (driver side)
Fan speed
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Temperature selector (front passenger side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Rear window and outside rear view mirror defoggers
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging. “ ” mode uses fresh air only.
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Automatic Air Conditioning
Seat heaters (if equipped)
Driver’s seat
Front passenger’s seat

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Manual Air Conditioning
Fan speed
Fresh or recirculated cabin air
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Rear window and outside rear view mirror defoggers
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Temperature selector
Air Conditioning ON/OFF
Garage door openers manufactured under license from HomeLink®*canbe
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to theOwner’s Manualfor more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
