window TOYOTA 4RUNNER 2010 N280 / 5.G Quick Reference Guide

1
Engine maintenance8Fuel tank door and cap 6Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry16Smart Key system17
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions1,29Automatic Transmission 9
Bluetooth®audio 23Clock 14Cruise control 17Four-wheel drive 10Garage door opener (HomeLink®)319iPod®/USB/AUX audio jack 21Light control-Instrument panel15Lights1& turn signals 16Moonroof114Parking brake 9Power outlets-12V DC 23Power outlets-120V AC 22Seat adjustments-Front 11Seat adjustments-Second row seats 11Seat heaters18Seats-Folding down second row seats 12Seats-Head restraints 13Seats-Returning third row seats 13Seats-Stowing third row seats 13Telephone controls (Bluetooth®)22Tilt and telescopic steering wheel 10VSC OFF button 15Windows114Window-Back window115
Windshield wipers & washers17
Door locks24Doors-Child safety locks 25Seat belts 24Seat belts-Shoulder belt anchor 24Sparetire&tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

Power rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator
1
Tilt and telescopic steering lock release
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch
120V AC Power outlet ON/OFF switch
1
Windshield wiper de-icer switch1
Headlight, turn signal and front fog light1control
Wiper and washer controls
Accessory meter/Outside temperature display
Emergency flasher switch
Audio system
1or navigation system2
Back window and outside rearview mirror defoggers switch
Front passenger seat belt reminder light
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
1
12V DC Power outlet
2
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Without Smart Key system
With Smart Key systemManual Air

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
USB adapter1
AUX adapter
Four-wheel drive selector1
Hood release
Steering wheel audio controls1,2
Voice command button1,2
Telephone switches1,2
Ignition switch (standard key)/“ENGINE START STOP” button (Smart Key)1
Party mode switch
Cruise control1
Seat heater switch1
120V AC Power outlet1
Power back window switch
1If equipped2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”
Conditioning
Automatic Air Conditioning2WD models
Part-time 4WD models
Full-time 4WD models

8 Windshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Hood release
PullPull up latch and
raise hood
OVERVIEW

14
FEATURES/OPERATIONS
Clock
H-Hour set
M-Minute set
Windows
Driver side
Automatic operationPush the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Window lock switch
Moonroof (if equipped)
Sliding operationTilting operation
Open
CloseClose
Tilt
Push once to open/close completely.
To stop partway, press switch lightly.

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Light control-Instrument panel
Operating from inside
Window-Back window
Operating from outside
Window lock switch
OpenClose
Turn and hold
CloseOpen
With Smart Key system
Without Smart Key system
Close
Open
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD (2WD) functions.
Refer to Section 2-4 of theOwner’s Manualfor more information.
VSC OFF
VSC OFF button
Brightness control
+
-

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

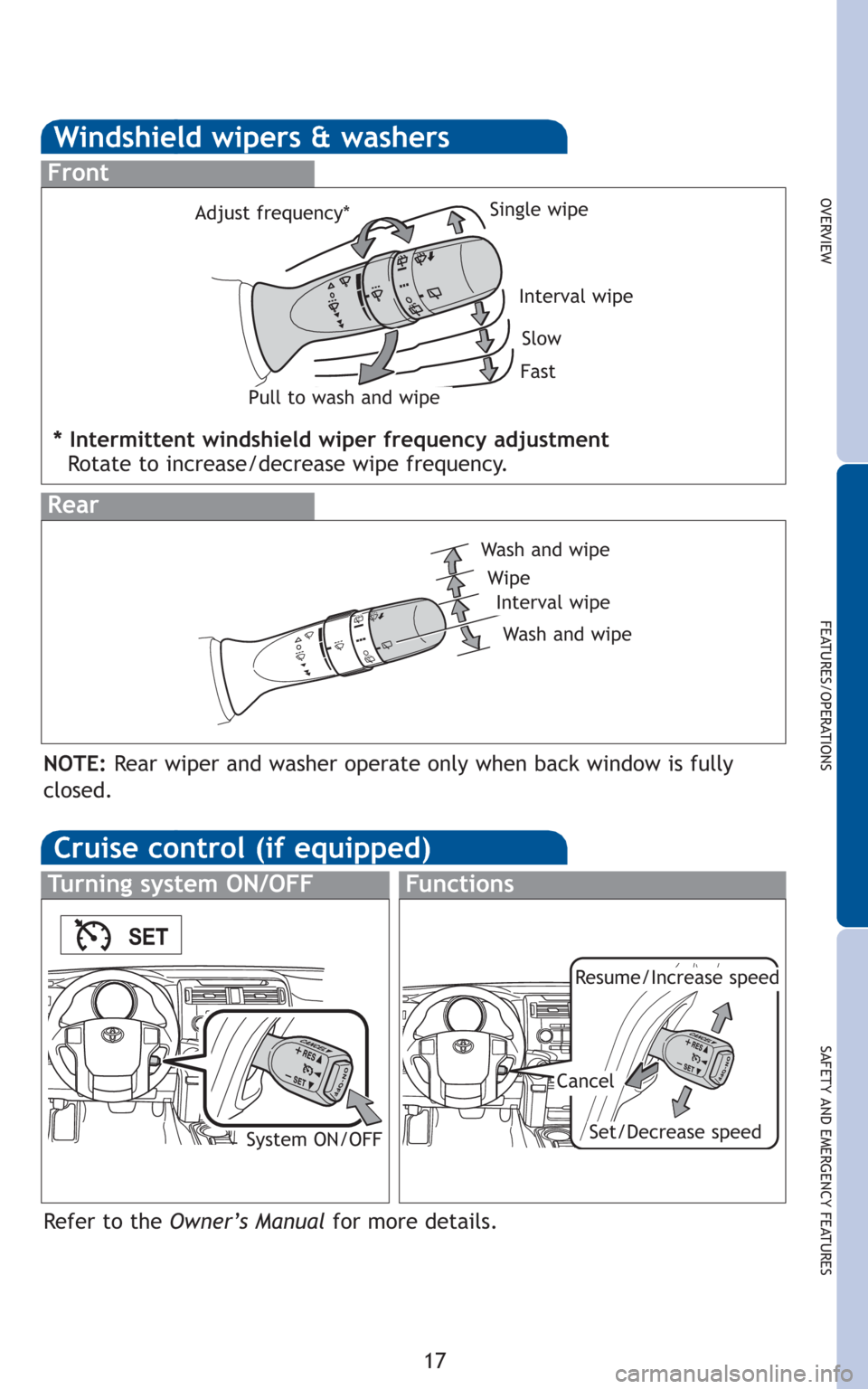

Windshield wipers & washers
Rear
Front
Interval wipe
Slow
Fast
Pull to wash and wipe Adjust frequency*
Wash and wipe
Wipe
Interval wipe
Wash and wipe
NOTE:Rear wiper and washer operate only when back window is fully
closed.* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Single wipe
Cruise control (if equipped)
Refer to theOwner’s Manualfor more details.
Turning system ON/OFFFunctions
System ON/OFF
Resume/Increase speed
Set/Decrease speed
Cancel

18
Air Conditioning/Heating
FEATURES/OPERATIONS
Temperature selector (driver side)
Fan speed
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Temperature selector (front passenger side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Rear window and outside rear view mirror defoggers
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging. “ ” mode uses fresh air only.
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Automatic Air Conditioning
Seat heaters (if equipped)
Driver’s seat
Front passenger’s seat

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Manual Air Conditioning
Fan speed
Fresh or recirculated cabin air
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Rear window and outside rear view mirror defoggers
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Temperature selector
Air Conditioning ON/OFF
Garage door openers manufactured under license from HomeLink®*canbe
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to theOwner’s Manualfor more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
