OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Temperature selector (driver side)
Fan speed
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Temperature selector (front passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and passenger.
Indicator OFF: Synchronize temperature settings for driver and passenger.
Rear window and outside rearview mirror defoggers
Airflow vent
In “ ” mode, use fresh air (“
” indicator OFF) to reduce window fogging.
“
” mode uses fresh air only.
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Manual Air Conditioning
Fan speed
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window
fogging. “
” mode uses fresh air only.
Rear window and outside rearview mirror defoggers
For maximum cooling. Air intake will automatically be set to recirculate.
Temperature selector
Air Conditioning ON/OFF
Garage door opener (HomeLink®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Automatic running boards
(if equipped)
The automatic running boards are linked to side door operation. When a side door
is opened or closed, the board on the same side extends or retracts.
ON/OFF switch
ON
OFF
126892_20134Runner.indd 198/6/12 10:41 PM

20
CD player
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one
disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or “TUNE .
SCROLL.”
To select a folder (MP3/WMA only) Push either side of “TYPE.
FOLDER.”

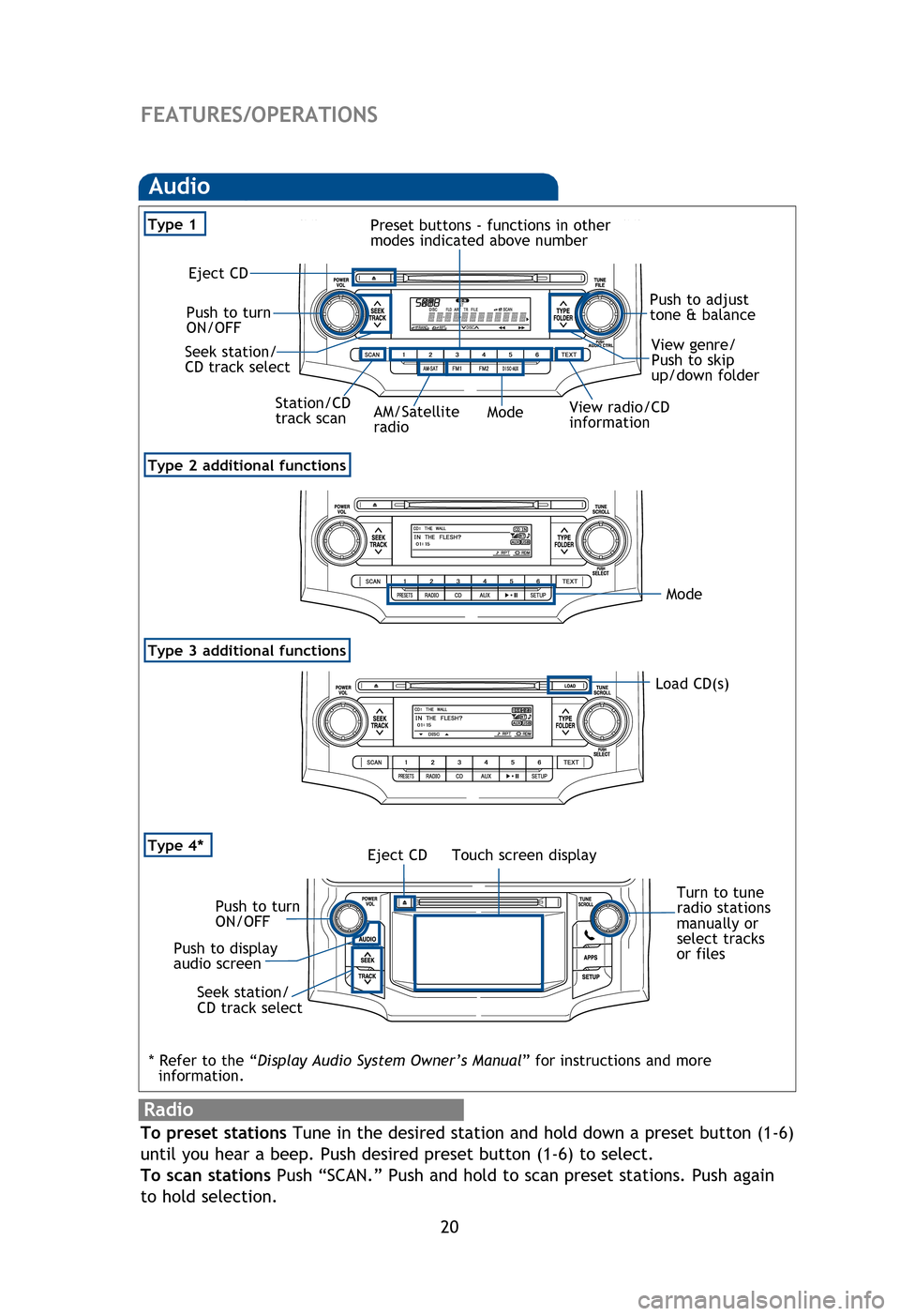

Audio
View radio/CD
information
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
View genre/
Push to skip
up/down folder
Seek station/
CD track select
Station/CD
track scan Mode
Preset buttons - functions in other
modes indicated above number
Type 1
Load CD(s)
“
”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
system OFF.>
Steering wheel controls (if equipped)
Radio
To preset stations Tune in the desired station and hold down a preset button (1-6)
until you hear a beep. Push desired preset button (1-6) to select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again
to hold selection.
FEATURES/OPERATIONS
Mode
Type 3 additional functions
Type 2 additional functions
AM/Satellite
radio
iPod®/USB portBy connecting a USB-compatible portable audio device or USB memory to the
USB/AUX port, you can listen to music from the portable audio device or USB
memory through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode. Party mode increases audio amplification in back door speakers, optimizing audio
performance outside vehicle when rear hatch is open.
Party mode switch
iPod®/USB/AUX
iPod®/USB (if equipped)/AUX port
Type 4*Touch screen display
Push to display
audio screen Push to turn
ON/OFF
Eject CD
Turn to tune
radio stations
manually or
select tracks
or files
Seek station/
CD track select
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
126892_20134Runner.indd 208/6/12 10:41 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
CD player
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one
disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE .
FILE” or “TUNE .
SCROLL.”
To select a folder (MP3/WMA only) Push either side of “TYPE .
FOLDER.”
Push to adjust
tone & balance
View genre/
Push to skip
up/down folder
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
system OFF.>>
Steering wheel controls (if equipped)
To preset stations Tune in the desired station and hold down a preset button (1-6)
until you hear a beep. Push desired preset button (1-6) to select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again
to hold selection.
FEATURES/OPERATIONS
Volume control
iPod®/USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB/AUX port, you can listen to music from the portable audio device or USB
memory through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode. Party mode increases audio amplification in back door speakers, optimizing audio
performance outside vehicle when rear hatch is open.
Party mode switch
iPod®/USB/AUXAUX
iPod®/USB (if equipped)/AUX port Turn to tune
radio stations
manually or
select tracks
or files
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
OFF
ON
126892_20134Runner.indd 218/6/12 10:41 PM

22
FEATURES/OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and
the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual , for more details.

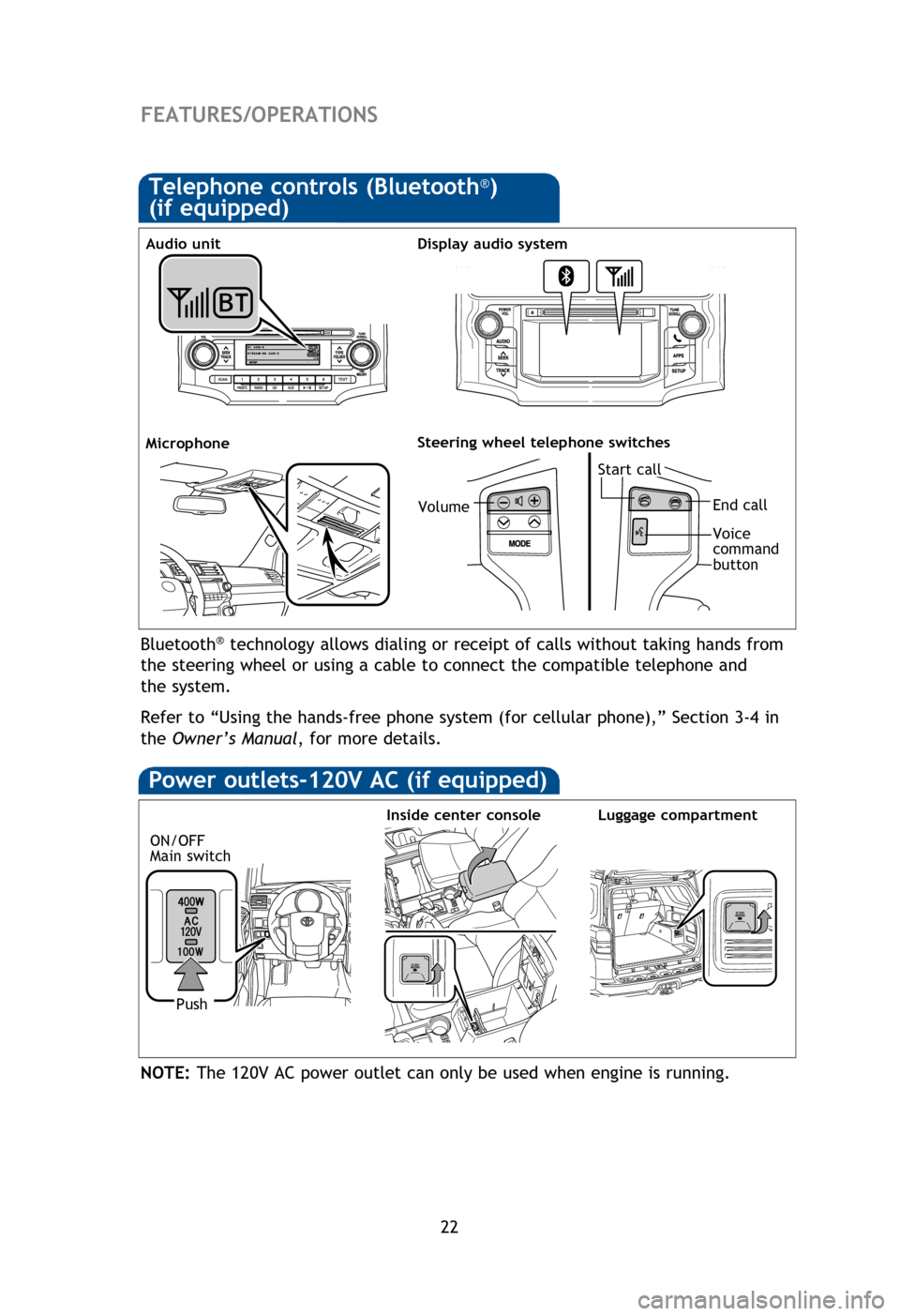

Telephone controls (Bluetooth®)
(if equipped)
Microphone
Audio unit
Steering wheel telephone switches
End call
Voice
command
button
Start call
The Bluetooth® audio system enables you to enjoy music played on a portable
digital audio player from the vehicle speaker via wireless communication.
Refer to “Bluetooth
® audio system,” Section 3-3 in the Owner’s Manual , for
more details.
Microphone Audio unit
Bluetooth® audio (if equipped)
NOTE: Designed for car accessories. Ignition switch/“ENGINE START STOP” switch
must be in the “ACC” or “ON” position to be used.
Power outlets-12V DC
Center panel
Luggage compartment
(with the 120V AC outlet)
NOTE: The 120V AC power outlet can only be used when engine is running.
Power outlets-120V AC (if equipped)
ON/OFF
Main switch
Inside center console
Push
Luggage compartment
Volume
Display audio system
126892_20134Runner.indd 228/6/12 10:41 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
FEATURES/OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and
the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual , for more details.
End call
Voice
command
button
The Bluetooth® audio system enables you to enjoy music played on a portable
digital audio player from the vehicle speaker via wireless communication.
Refer to “Bluetooth
® audio system,” Section 3-3 in the Owner’s Manual , for
more details.
Microphone Audio unitSteering wheel audio switches
Selects a track
and album
Turns the power
on, selects an
audio source
Volume

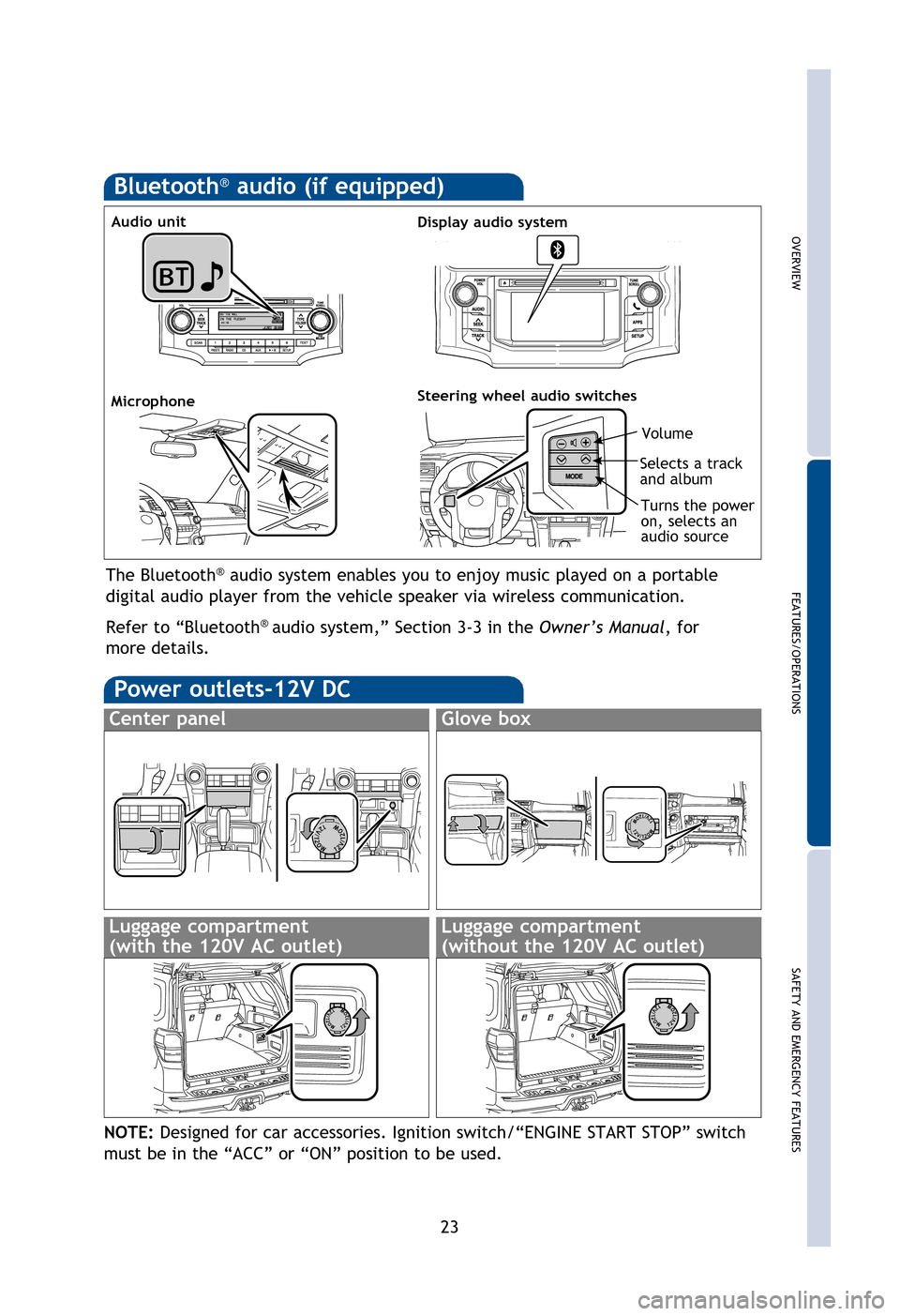

Bluetooth® audio (if equipped)
NOTE: Designed for car accessories. Ignition switch/“ENGINE START STOP” switch
must be in the “ACC” or “ON” position to be used.
Power outlets-12V DC
Center panel
Luggage compartment
(with the 120V AC outlet)
Glove box
Luggage compartment
(without the 120V AC outlet)
NOTE: The 120V AC power outlet can only be used when engine is running.
Luggage compartment
Display audio system
126892_20134Runner.indd 238/6/12 10:41 PM

24
SAFETY AND EMERGENCY FEATURES
If tire pressure becomes critically low on any of the tires, “” indicator light
will come on. Correctly adjusting tire inflation will turn off the light after a
few minutes. If the light does not turn off, have the system checked by your
Toyota dealer.
Refer to the Owner’s Manual for more details.

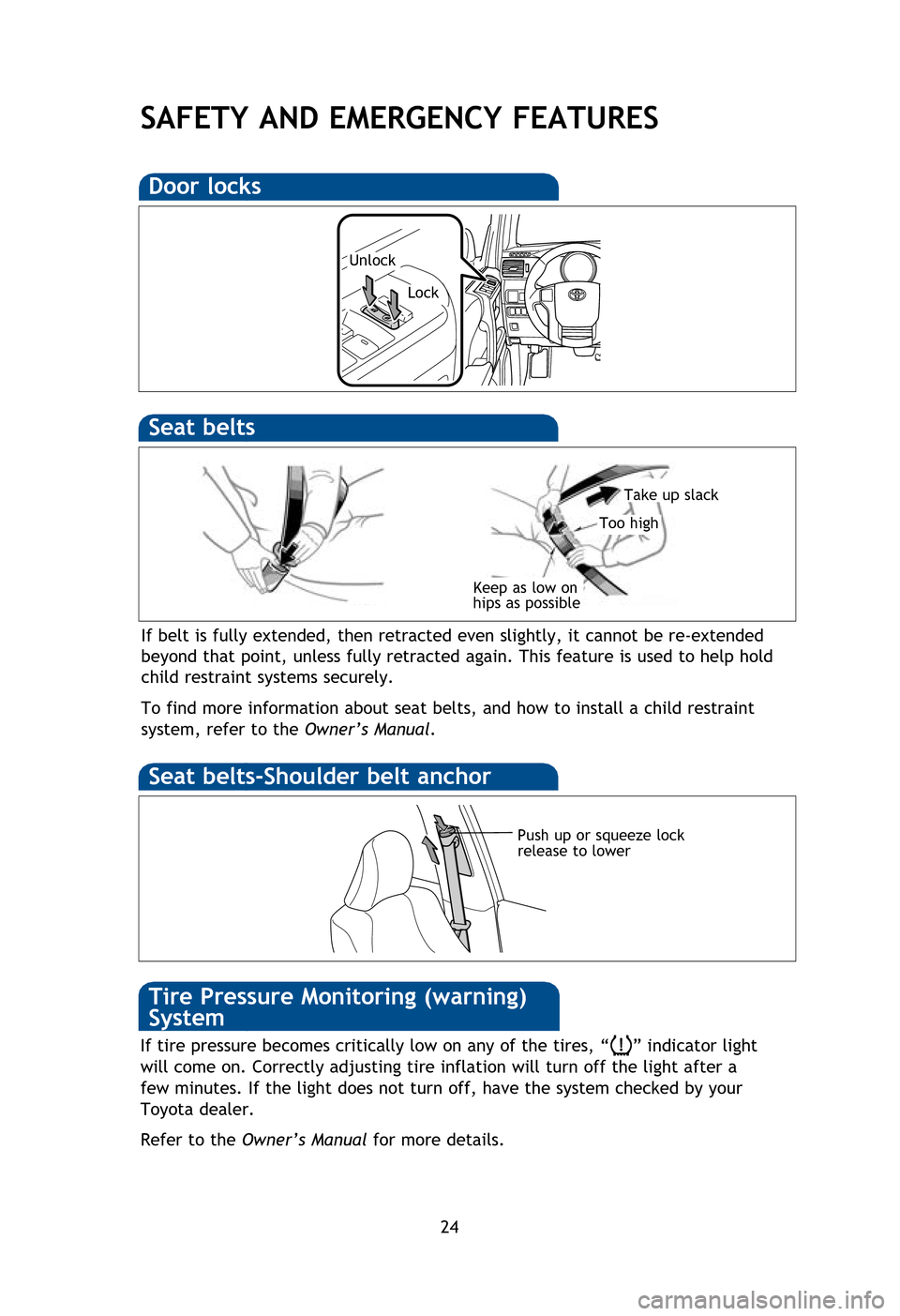

Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Moving the lever downward will allow the door to be opened only from the outside.
Doors-Child safety locks
Rear door
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Tire Pressure Monitoring (warning)
System

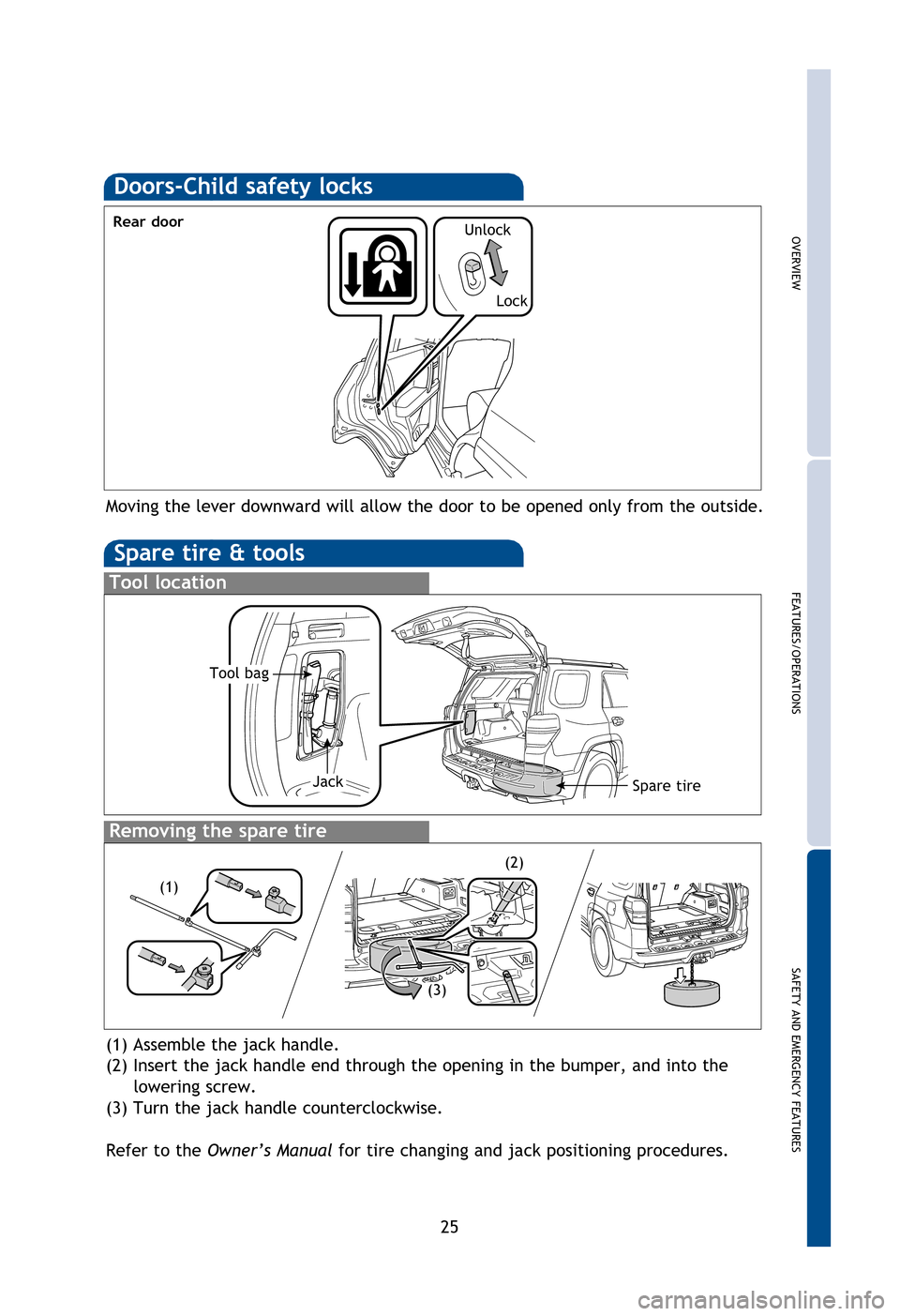

Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end through the opening in the bumper, and into the
lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Door locks
Unlock
Lock
126892_20134Runner.indd 248/6/12 10:41 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
SAFETY AND EMERGENCY FEATURES
If tire pressure becomes critically low on any of the tires, “” indicator light
will come on. Correctly adjusting tire inflation will turn off the light after a
few minutes. If the light does not turn off, have the system checked by your
Toyota dealer.
Refer to the Owner’s Manual for more details.
Moving the lever downward will allow the door to be opened only from the outside.
Doors-Child safety locks
Rear door
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end through the opening in the bumper, and into the
lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
(1)
(2)
(3)
Tool bag
JackSpare tire
Unlock
Lock
126892_20134Runner.indd 258/6/12 10:41 PM

26
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.

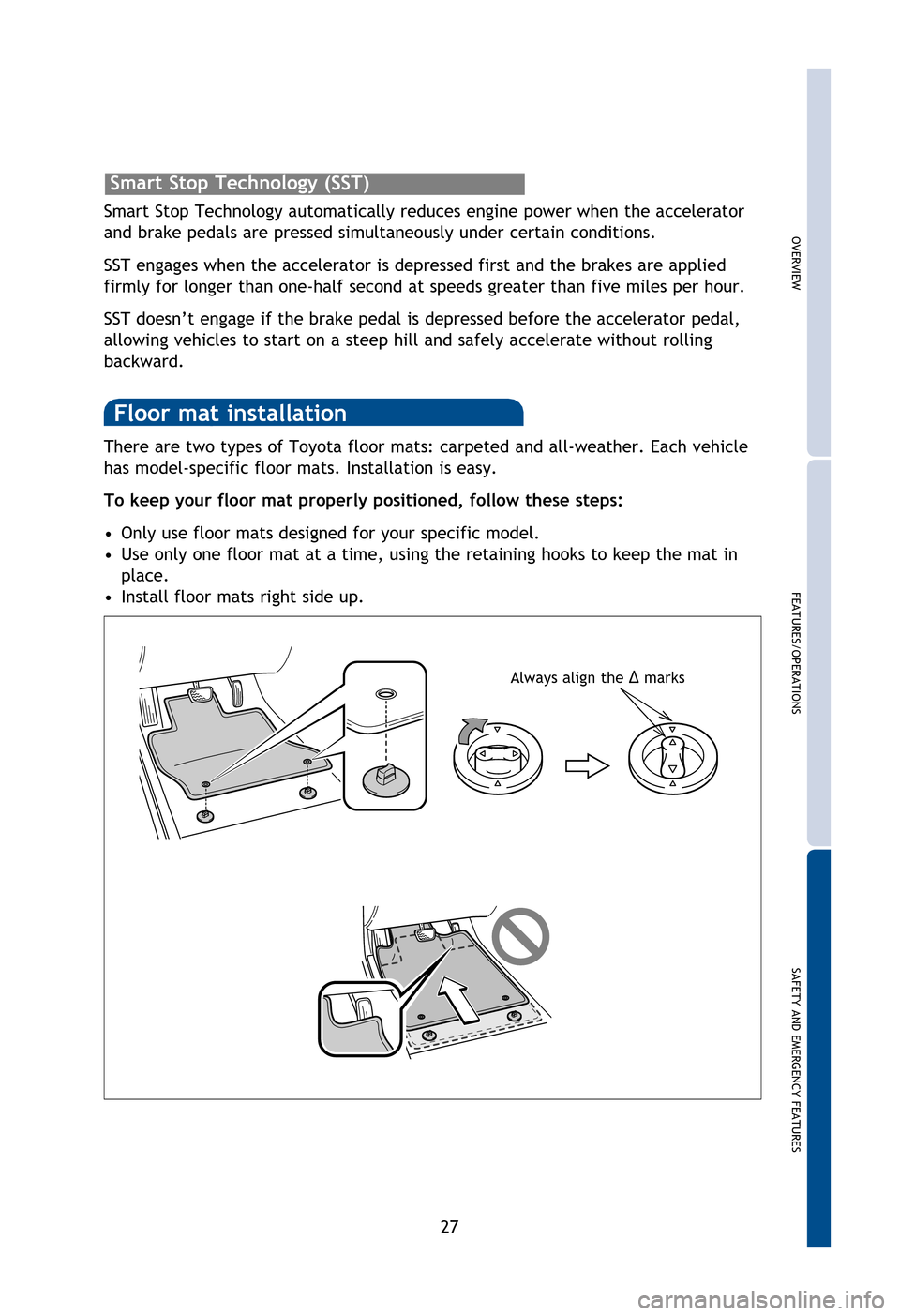

Floor mat installation
SAFETY AND EMERGENCY FEATURES
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
126892_20134Runner.indd 268/6/12 10:42 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
•
Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Floor mat installation
SAFETY AND EMERGENCY FEATURES
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
Always align the Δ marks
126892_20134Runner.indd 278/6/12 10:42 PM

28
NOTES
126892_20134Runner.indd 288/6/12 10:42 PM
