height TOYOTA 4RUNNER 2013 N280 / 5.G Quick Reference Guide

10

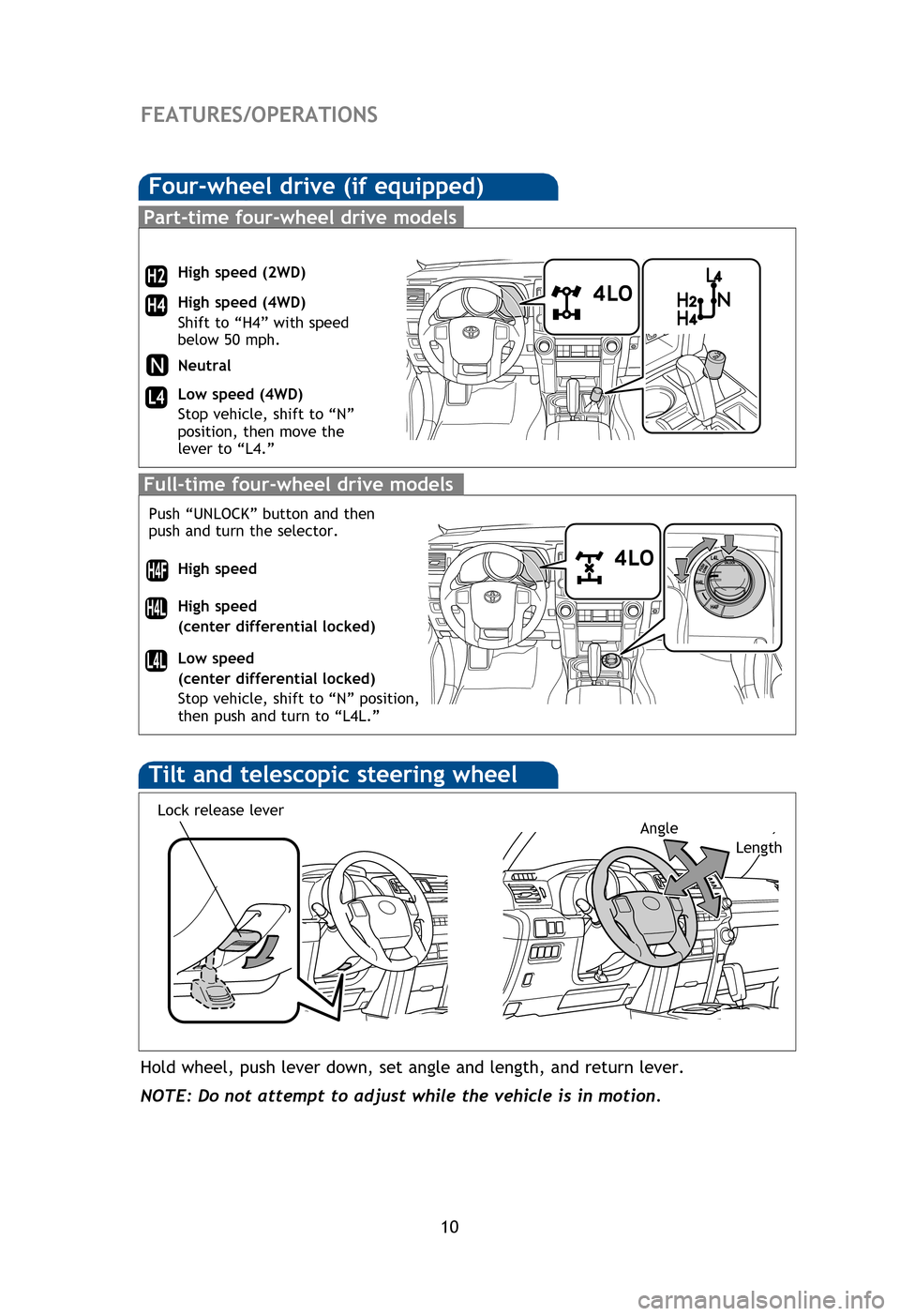

Four-wheel drive (if equipped)
H2
Full-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed
below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N”
position, then move the
lever to “L4.”
High speed
(center differential locked)
Low speed
(center differential locked)
Stop vehicle, shift to “N” position,
then push and turn to “L4L.”
Push “UNLOCK” button and then
push and turn the selector.
H4L
L4L
Part-time four-wheel drive models
Neutral
High speed
H4F
FEATURES/OPERATIONS
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Angle
Lock release lever
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)
Driver seat: seat position, cushion angle and height
Passenger seat: seat position (forward/backward)
Seatback angle
Lumbar support (driver side only)

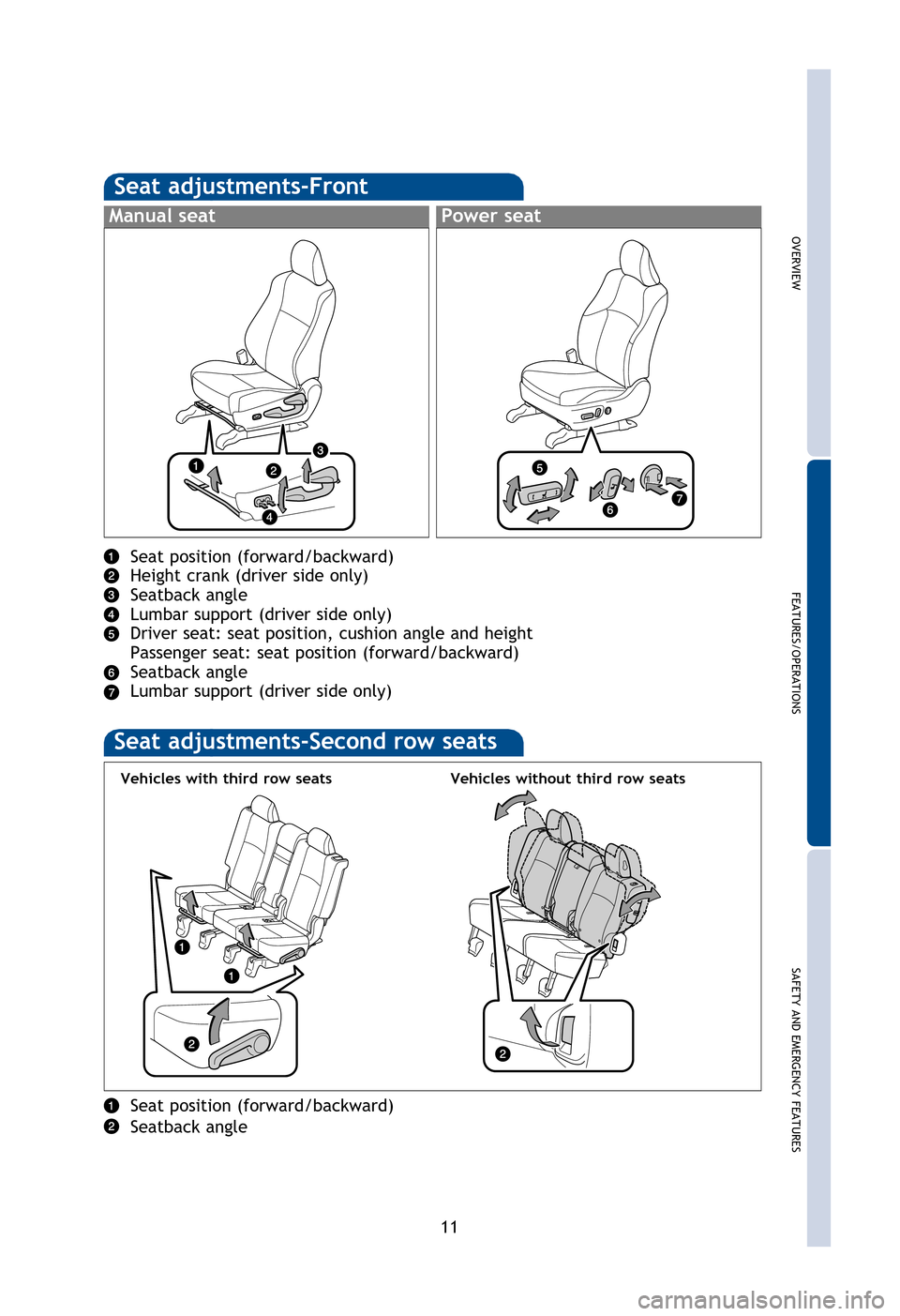

Seat adjustments-Front
Manual seat
Seat adjustments-Second row seats
Seat position (forward/backward)
Seatback angle
Vehicles with third row seats
126892_20134Runner.indd 108/6/12 10:41 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)
Driver seat: seat position, cushion angle and height
Passenger seat: seat position (forward/backward)
Seatback angle
Lumbar support (driver side only)
Seat adjustments-Front
Manual seatPower seat
Seat adjustments-Second row seats
Seat position (forward/backward)
Seatback angle
Vehicles with third row seatsVehicles without third row seats
126892_20134Runner.indd 118/6/12 10:41 PM
