tire type TOYOTA 4RUNNER 2016 N280 / 5.G Owners Manual

2704-6. Driving tips
4RUNNER (U)_(OM35B23U)
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
(0.20 in. [5 mm] in diameter)
Cross chain
(0.20 in. [5 mm] in diameter)
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires only. Do not install tire chains on the front
tires.
●Install tire chains on rear tires as tightly as possible. Retighten chains after
driving 1/4  1/2 mile (0.5  1.0 km).
●Install tire chains following the instructions provided with the tire chains.
Selecting tire chains
1
2
Regulations on the use of tire chains

2714-6. Driving tips
4
Driving
4RUNNER (U)_(OM35B23U)
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
●Use snow tires on all, not just some wheels.
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
●Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

3686-3. Do-it-yourself maintenance
4RUNNER (U)_(OM35B23U)■
Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation
pressure checks. Make sure to check tire inflation pressure as part of
your routine of daily vehicle checks.
■Maximum load of tire
Check that the number given by dividing the maximum load by 1.10 of the
replacement tire is greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle, whichever is greater.
■Tire types
●Summer tires
Summer tires are high-speed performance tires best suited to highway
driving under dry conditions. Since summer tires do not have the same
traction performance as snow tires, summer tires are inadequate for
driving on snow-covered or icy roads. For driving on snow-covered
roads or icy roads, the use of snow tires is recommended. When install-
ing snow tires, be sure to replace all four tires.
●All season tires
All season tires are designed to provide better traction in snow and to
be adequate for driving in most winter conditions as well as for use
year-round. All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose snow. Also, all
season tires fall short in acceleration and handling performance com-
pared with summer tires in highway driving.
●Snow tires
For driving on snow-covered roads or icy roads, we recommend using
snow tires. If you need snow tires, select tires of the same size, con-
struction and load capacity as the originally installed tires. Since your
vehicle has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires without
first checking local regulations for possible restrictions. Snow tires
should be installed on all wheels. (P. 268) For the GAWR, see the Certification
Label. For the maximum load of the tire,
see the load limit at maximum cold tire
inflation pressure mentioned on the
sidewall of the tire. (P. 473)

3746-3. Do-it-yourself maintenance
4RUNNER (U)_(OM35B23U)
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at your Toyota dealer.
*:Conventionally referred to as “offset”.
Toyota does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
●Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
●When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
●Be careful not to damage the aluminum wheels when using tire
chains.
●Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
Wheels
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions

4197-2. Steps to take in an emergency
7
When trouble arises
4RUNNER (U)_(OM35B23U)■
If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters
are used
●If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or
higher
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are
nearby
●If a radio set at a similar frequency is in use in the vehicle
●If a window tint that affects the radio wave signals is installed
●If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings
●If non-genuine Toyota wheels are used (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
●If tire chains are used
●Vehicles with P245/60R20 tires: If the spare tire is in a location subject
to poor radio wave signal reception
●Vehicles with P245/60R20 tires: If a large metallic object which can
interfere with signal reception is put in the luggage compartment
■If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch is turned on, have it checked by your
Toyota dealer.
■Customization that can be configured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 485) However, Toyota recommends that the seat
belt reminder buzzer be operational to alert the driver and front passenger
when seat belts are not fastened.

4688-1. Specifications
4RUNNER (U)_(OM35B23U)

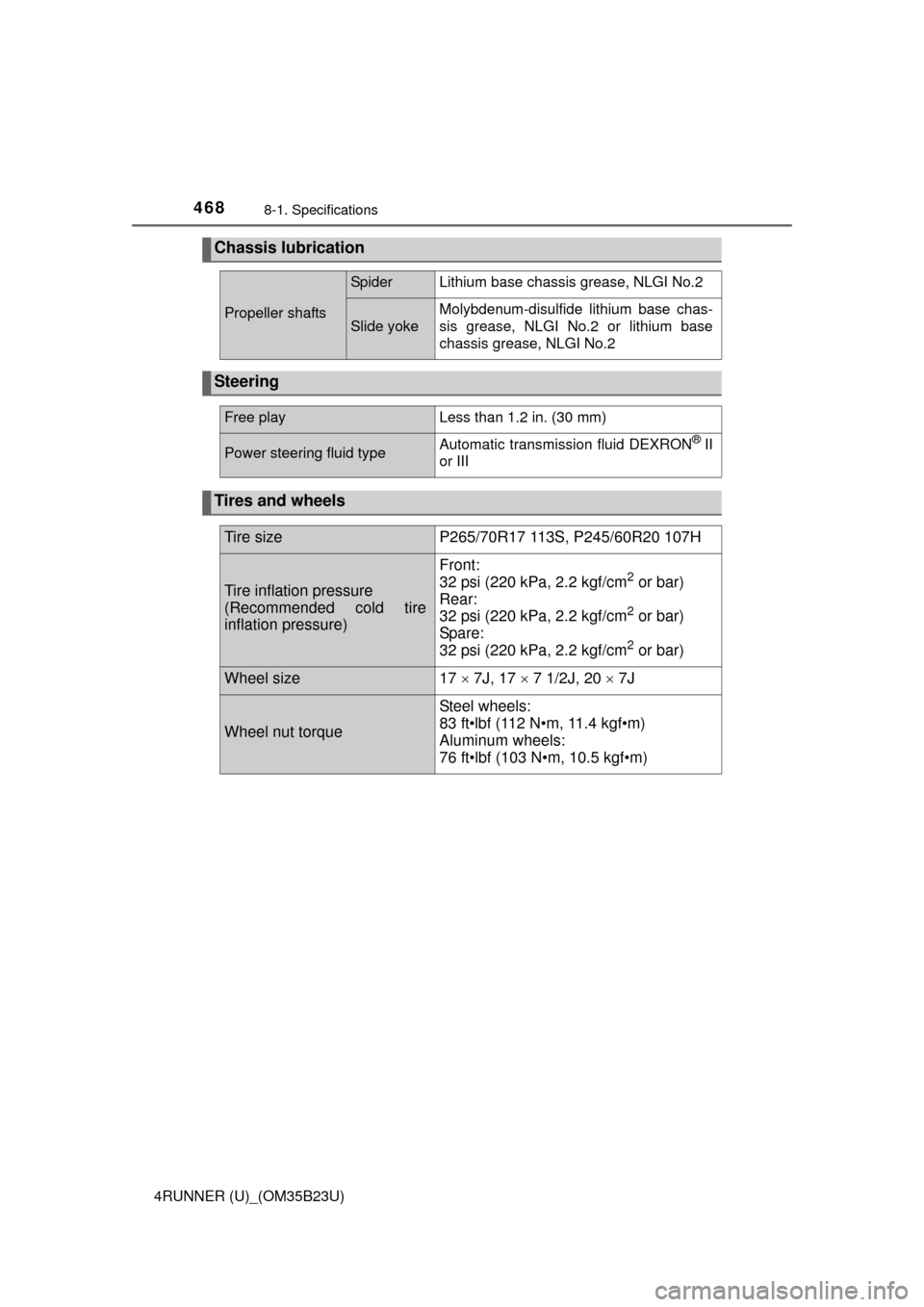

Chassis lubrication
Propeller shafts
SpiderLithium base chassis grease, NLGI No.2
Slide yoke
Molybdenum-disulfide lithium base chas-
sis grease, NLGI No.2 or lithium base
chassis grease, NLGI No.2
Steering
Free playLess than 1.2 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III
Tires and wheels
Tire sizeP265/70R17 113S, P245/60R20 107H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size17  7J, 17  7 1/2J, 20  7J
Wheel nut torque
Steel wheels:
83 ft•lbf (112 N•m, 11.4 kgf•m)
Aluminum wheels:
76 ft•lbf (103 N•m, 10.5 kgf•m)

4748-1. Specifications
4RUNNER (U)_(OM35B23U)
Load limit at maximum cold tire inflation pressure (P. 479)
Maximum cold tire inflation pressure (P. 479)
This means the pressure to which a tire may be inflated.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*:The DOT symbol certifies that the tire conforms to applicable Federal
Motor Vehicle Safety Standards.
Typical DOT and Tire Identification Number (TIN)
7
8
9
10
1
2
3
4
5
6
7

4808-1. Specifications
4RUNNER (U)_(OM35B23U)

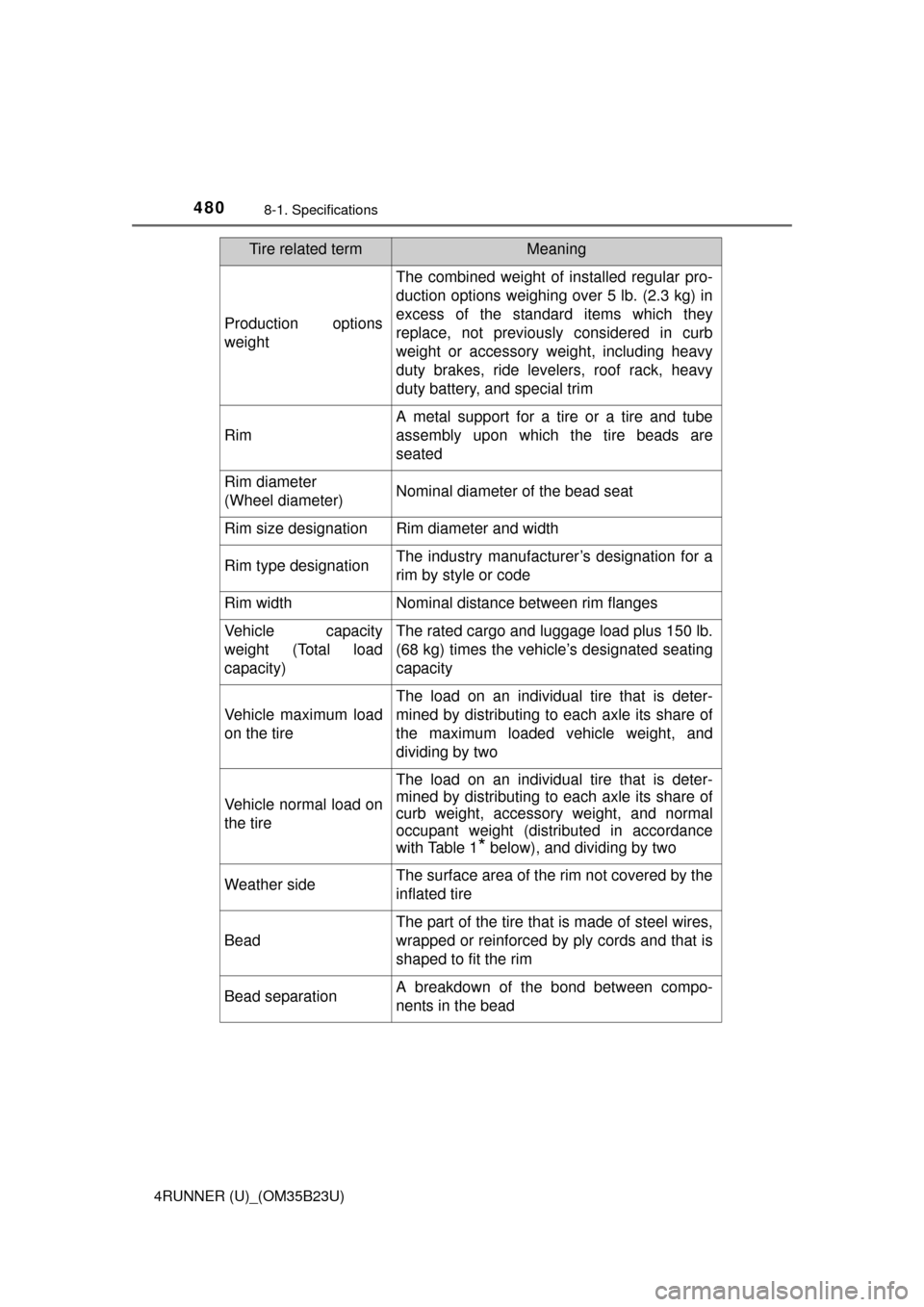

Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between compo-
nents in the bead
Tire related termMeaning

518Alphabetical index
4RUNNER (U)_(OM35B23U)
Flat tire...................................... 429
Floor mats .................................. 26
Fluid
Automatic transmission......... 467
Brake .................................... 467
Power steering ...................... 468
Washer ................................. 363
Fog lights ................................. 210
Replacing light bulbs............. 385
Switch ................................... 210
Wattage ................................ 469
Four-wheel drive
system ............................ 231, 235
Front passenger occupant
classification system .............. 46
Front personal lights ............... 294
Front seats ............................... 119
Adjustment ............................ 119
Cleaning................................ 337
Correct driving posture ........... 28
Driving position memory ....... 132
Head restraints ..................... 136
Seat heaters ......................... 291
Seat position memory ........... 132
Seat ventilators ..................... 291
Front side marker lights.......... 204
Light switch ........................... 204
Replacing light bulbs............. 392
Wattage ................................ 469Front turn signal lights ........... 202
Replacing light bulbs ............ 390
Turn signal lever ................... 202
Wattage ................................ 469
Fuel ........................................... 218
Capacity................................ 460
Fuel gauge.............................. 81
Fuel pump shut off system ... 412
Information............................ 470
Refueling .............................. 218
Type.............................. 218, 460
Warning light......................... 415
Fuel filler door ......................... 218
Refueling .............................. 218
Fuel pump shut off system..... 412
Fuses ........................................ 382
Garage door opener ................ 320
Gauges ....................................... 81
Glove box ................................. 297
Grocery bag hooks.................. 306
F
G

522Alphabetical index
4RUNNER (U)_(OM35B23U)
Parking brake ........................... 203
Operation .............................. 203
Parking brake engaged
warning buzzer ................... 413
Parking lights ........................... 204
Light switch ........................... 204
Replacing light bulbs............. 390
Wattage ................................ 469
Pen holder ................................ 301
Personal lights ......................... 294
Power back window ................ 148
Jam protection function......... 150
Operation .............................. 148
Power outlets ................... 311, 316
Power steering
Fluid ...................................... 359
Warning light ......................... 415
Power windows........................ 145
Door lock linked
window operation ............... 146
Jam protection function......... 146
Operation .............................. 145
Window lock switch............... 145Radiator .................................... 356
Rear differential lock
system.................................... 243
Rear seats
Adjustment............................ 122
Folding down ........ 124, 126, 128
Rear step bumper .................... 115
Rear turn signal lights ............ 202
Replacing light bulbs ............ 396
Turn signal lever ................... 202
Wattage ................................ 469
Rear view mirror
Inside rear view mirror .......... 141
Outside rear view mirrors ..... 143
Rear view monitor system
*
Rear window ............................ 148
Rear window
defoggers....................... 280, 286
Rear window wiper .................. 215
Refueling .................................. 218
Capacity................................ 460
Fuel types ............................. 460
Opening the fuel tank cap..... 220
Replacing
Fuses .................................... 382
Key battery ........................... 379
Light bulbs ............................ 385
Tires...................................... 429
Reporting safety defects
for U.S. owners...................... 494
Resetting the message
indicating maintenance
is required.............................. 341
Roof luggage carrier ............... 168
PR
