rear view mirror TOYOTA 4RUNNER 2016 N280 / 5.G Quick Reference Guide

2 Steering wheel audio controls
2
Voice command button2
Telephone switches2
Cruise control
“DISP” switch
Back window and outside rearview mirror defogger switch
VSC off switch
Active traction control switch
1
Downhill Assist Control system (DAC) switch1
Rear differential lock switch1
Multi-terrain Select switch1
Crawl Control switch1
Headlight, turn signal and front fog light controls
Wiper and washer controls
Emergency flasher switch
Accessory meter
1/Outside temperature display
Audio system2/navigation system2
AUX/USB port2
Seat heater1/ventilator switches1
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Manual Air Conditioning
Automatic Air

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Overhead console instrument panel
Power outlet
Front-wheel drive control lever1
Front-wheel drive control switch1/Four-wheel drive control switch1
“ENGINE START STOP” button (Smart Key)1
Ignition switch (standard key)1
Tilt and telescopic steering lock release
Hood release
Power outside rearview mirror controls






Instrument panel light control
Intuitive parking assist switch and indicator
1
Power outlet main switch1
Automatic running boards switch1
Windshield wiper de-icer switch1
Seat heater switch1
Power back window switch
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”
ConditioningType A Type B
Part-time 4WD
Part-time 4WD/full-time 4WD

18
FEATURES/OPERATIONS

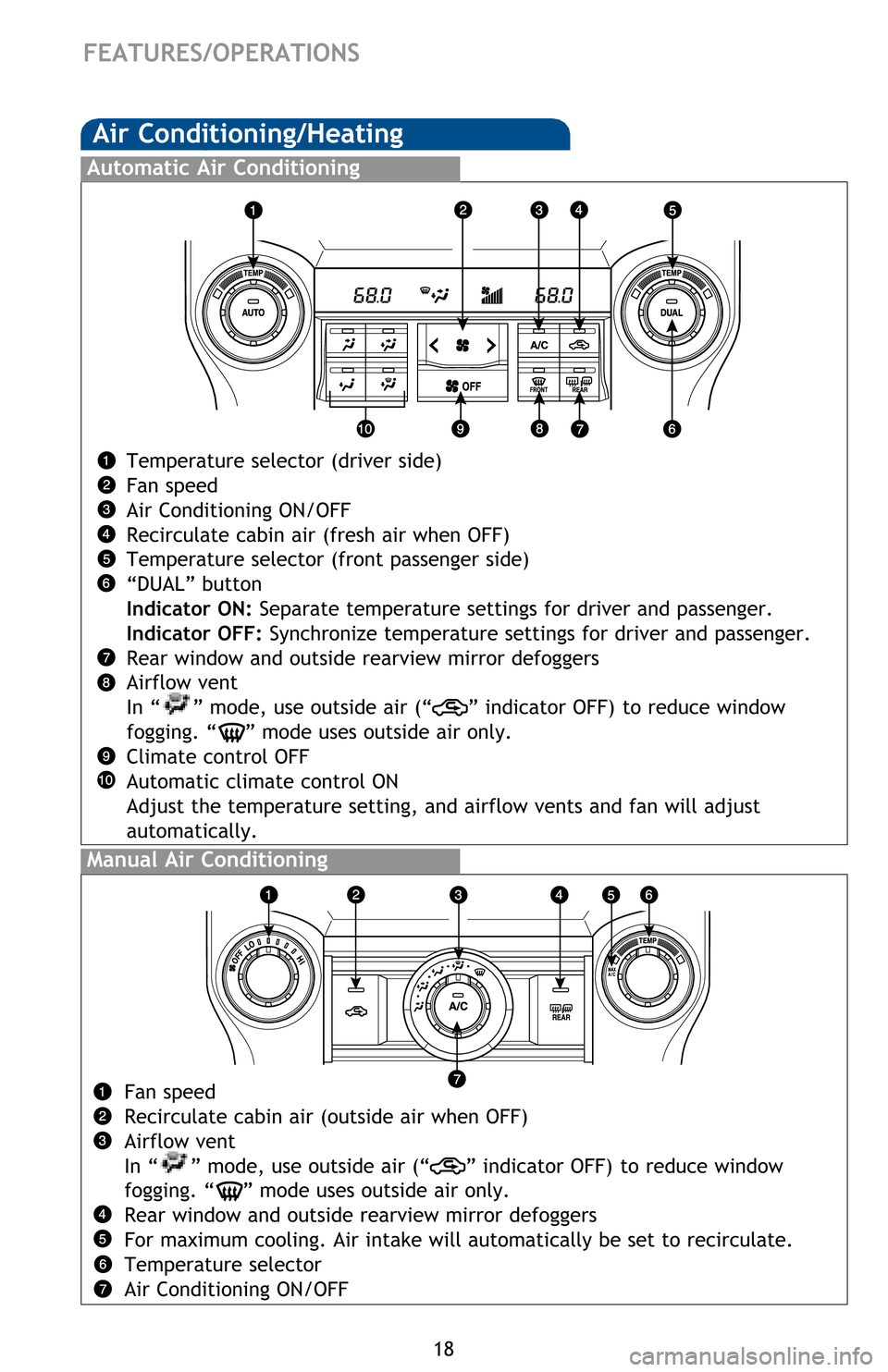

Air Conditioning/Heating
Temperature selector (driver side)
Fan speed
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Temperature selector (front passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and passenger.
Indicator OFF: Synchronize temperature settings for driver and passenger.
Rear window and outside rearview mirror defoggers
Airflow vent
In “
” mode, use outside air (“” indicator OFF) to reduce window
fogging. “
” mode uses outside air only.
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Automatic Air Conditioning
Manual Air Conditioning
Fan speed
Recirculate cabin air (outside air when OFF)
Airflow vent
In “
” mode, use outside air (“” indicator OFF) to reduce window
fogging. “
” mode uses outside air only.
Rear window and outside rearview mirror defoggers
For maximum cooling. Air intake will automatically be set to recirculate.
Temperature selector
Air Conditioning ON/OFF
