5047-2. Steps to take in an emergency
4RUNNER (U)
WARNING
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing t ires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack poi nt.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle w hile someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Vehicles with Automatic running boards
●Observe the following precautions. Failure to do so may result in seri-
ous injury:
• When jacking up the vehicle, always turn the Automatic running boards switch off.
• When jacking up the vehicle, do not use an Automatic running b oard
as a jack point. The Automatic running board may break, causing
injuries.
Take particular care when lowering the vehicle to ensure that n o one
working on or near the vehicle may be injured.
■Using the jack handle
Tighten all the jack handle bol ts securely using a Phillips-head screw-
driver, to prevent the extension parts from coming apart unexpe c t e d l y.

5217-2. Steps to take in an emergency
7
When trouble arises
4RUNNER (U)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart key system is
deactivated in customization set-
ting, the engine switch will turn to
ACCESSORY mode.
Firmly depress the brake pedal and check that is displayed
on the multi-information display.
Press the engine switch shortly and firmly.
In the event that the engine still cannot be started, contact your Toyota
dealer.
■ Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommende d that the
electronic key battery be replaced immediately when the battery is depleted.
( P. 456)
■ Changing engine switch modes
Within 10 seconds of the buzzer sounding, release the brake ped al and press
the engine switch.
The engine does not start and modes will be changed each time t he switch is
pressed.( P. 2 1 1 )
■ When the electronic key does not work properly
●Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features: P. 557)
● Check if battery-saving mode is set. If it is set, cancel the f unction.
( P. 122)

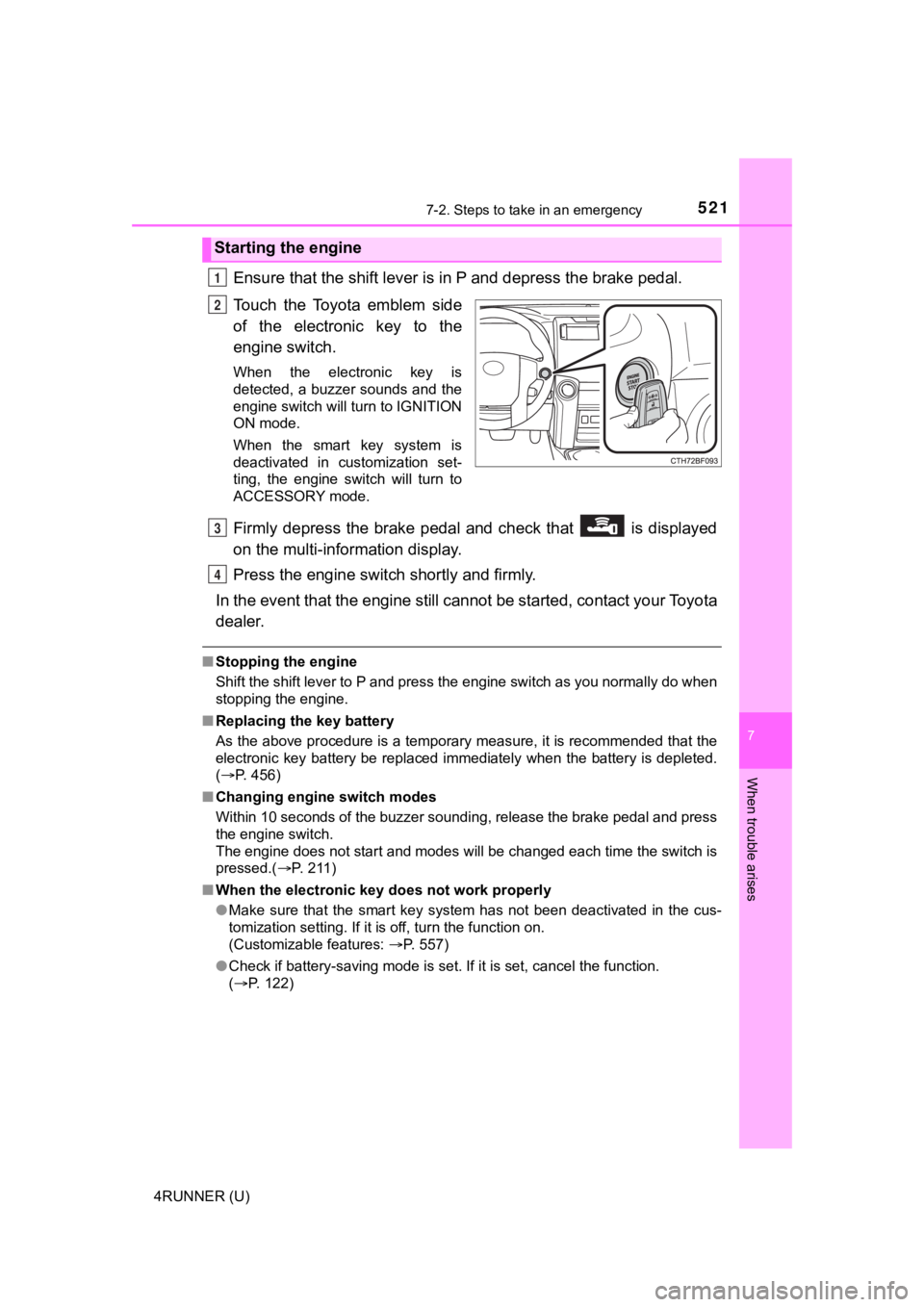

Starting the engine
1
2
3
4

5287-2. Steps to take in an emergency
4RUNNER (U)
Add engine coolant if neces-
sary. (P. 422)
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the engine to check that the radiator cooling fan operate and
to check for coolant leaks from the radiator or hoses.
If the fan are not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan are operating:
Have the vehicle inspected at the neare st Toyota dealer.
5
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the ho od until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts.
6
7
●Do not loosen the radiator cap and the
coolant reservoir cap while the engine
and radiator are hot.
High temperature steam or coolant
could spray out.

5358-1. Specifications
8
Vehicle specifications
4RUNNER (U)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat -
isfy the following grade and viscosity.
Oil grade: ILSAC GF-6A multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is expl ained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the vi scosity characteristic of the oil
when the oil is at high temperature. An oil with a higher visco sity
(one with a higher value) may be better suited if the vehicle i s
operated at high speeds, or un der extreme load conditions.
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
Without filter6.6 qt. (6.2 L, 5.5 Imp. qt.)
6.0 qt. (5.7 L, 5.0 Imp. qt.)
Outside temperature

5378-1. Specifications
8
Vehicle specifications
4RUNNER (U)
*: Voltage checked 20 minutes after the engine and all the lights are turned
off.
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Ge ar oil LF” at
the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent of matching quality to satisfy the above specific ation. Please
contact your Toyota dealer for further details.
Electrical system
Battery
Open voltage* at
68 F (20 C):12.3 V or higher
If the voltage is lower than the standard
value, charge the battery.
Charging rates5 A max.
Transfer (4WD models)
Oil capacity
Part-time 4WD models
1.1 qt. (1.0 L, 0.9 Imp. qt.)
Full-time 4WD models
1.5 qt. (1.4 L, 1.2 Imp. qt.)
Oil type*Toyota Genuine Transfer gear oil LF or
equivalent
Recommended oil viscositySAE 75W

586
4RUNNER (U)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine mechanical keys
can be made by your Toyota dealer. ( P. 107)
●If you lose your keys or electronic keys, the risk of vehicle t heft increases
significantly. Contact your Toyota dealer immediately. ( P. 109)
●Is the key battery weak or depleted? (P. 455)
●Vehicles with a smart key system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 2 1 1 )
●Vehicles with a smart key system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of t he radio
wave. ( P. 123)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( P. 114)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

589What to do if... (Troubleshooting)
4RUNNER (U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 489)
●The brake system warning light is on
Is the parking brake released? ( P. 222)
●The open door warning indicator is on
Are all the doors closed? (P. 110, 130)
Depending on the situation, other types of warning buzzer may a lso sound.
( P. 486, 497)

●Did anyone inside the vehicle open a door during setting the al arm?
The sensor detects it and the alarm sounds. ( P. 80)
To stop the alarm, turn the engine switch to IGNITION ON mode ( vehicles
with a smart key system) or start the engine.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display.
●When a warning light turns on, refer to P. 486.
●When a warning light turns on or a warning message or indicator is dis-
played, refer to P. 486, 497.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds w hen leaving the vehicle
(vehicles with a smart key system)
A warning light turns on or a warning message is displayed

594Alphabetical index
4RUNNER (U)
Driving ...................................... 174Break-in tips .......................... 176
Correct driving posture ........... 30
Driving assist systems .......... 333
Off-road precautions ............. 346
Procedures ........................... 174
Winter drive tips .................... 342
Dynamic radar cruise
control .................................... 268
Eco Driving Indicator .............. 100
EDR (Event data recorder) ........ 10
Electronic key .......................... 104 Battery-saving function ......... 122
If the electronic key does not operate properly ................. 520
Replacing the battery ............ 455
Emergency, in case of
If the electronic key does not operate
properly .............................. 520
If the engine will not start ...... 517
If the vehicle battery is discharged .......................... 523
If the warning buzzer sounds ................................ 486
If the warning light turns on ....................................... 486
If a warning message is displayed......................... 497
If the vehicle is submerged
or water on the road is
rising ................................... 477
If you cannot operate
back door opener ............... 519
If you have a flat tire ............. 502
If you think something is wrong .............................. 484
If your vehicle becomes stuck ................................... 530
If your vehicle has to be stopped in an emergency ... 475 If your vehicle needs
to be towed......................... 478
If your vehicle overheats....... 527
Emergency flashers ................ 474
Engine ACCESSORY mode ............. 211
Compartment ........................ 421
Engine switch ............... 207, 210
Hood ..................................... 420
How to start the engine ........................ 207, 210
Identification number ............ 533
If the engine will not start ...... 517
Ignition switch (engine switch) ........... 207, 210
Overheating .......................... 527
Engine coolant......................... 425
Capacity................................ 536
Checking............................... 425
Preparing and checking before winter ...................... 342
Engine coolant temperature gauge ....................................... 90
Engine immobilizer system ...... 78
Engine oil ................................. 423 Capacity................................ 535
Checking............................... 423
Preparing and checking before winter ...................... 342
Engine switch .................. 207, 210
Event data recorder (EDR)........ 10
Flat tire ..................................... 502
Floor mats .................................. 28
Fluid
Automatic transmission ........ 539
Brake .................................... 539
Power steering...................... 540
Washer ................................. 433
E
F

603Alphabetical index
4RUNNER (U)
Warning buzzersBrake system ....... ................. 486
Downshifting ......................... 219
Intuitive parking assist .......... 288
Key reminder ................ 208, 492
Lane departure alert function ............................... 261
Open door ............................. 488
Open moon roof reminder..... 492
Pre-collision warning............. 250
Seat belt reminder ................ 489
Warning lights............................ 85 ABS....................................... 487
Automatic running boards
indicator light ...................... 488
Brake override system .......... 489
Brake system ....... ................. 486
Center differential lock indicator light ...................... 488
Charging system ................... 486
Drive-Start Control ................ 489
Four-wheel drive indicator light ...................... 488
KDSS .................................... 488
LDA indicator ........................ 490
Low engine oil pressure ........ 486
Low fuel level ........................ 489
Low speed four-wheel drive indicator light ...................... 488
Malfunction indicator lamp .... 487
Master warning light...... 490, 497
Multi-terrain Select indicator light ...................... 488
Open door ............................. 488
PCS ...................................... 490
Power steering ...................... 488
Rear differential lock indicator light ...................... 487
Seat belt reminder light ......... 489 Slip indicator ......................... 487
SRS ...................................... 487
Tire pressure ........................ 490
Unengaged “Park” ................ 488
Warning messages.................. 497
Washer ..................................... 234
Checking............................... 433
Preparing and checking before winter ...................... 342
Switch ........................... 234, 237
Washing and waxing ............... 404
Weight
Cargo capacity...................... 189
Load limits ............................ 189
Weight .................................. 532
Wheels ...................................... 451 Replacing wheels ................. 451
Size....................................... 540
Window glasses ...................... 161
Window lock switch ................ 161
Windows................................... 161 Power back window .............. 165
Power windows..................... 161
Rear window defogger ..................... 354, 361
Washer ......................... 234, 237
Windshield wiper
de-icer ............................ 354, 362
Windshield wipers ........... 234, 237 Intermittent wiper .................. 234
Winter driving tips ................... 342
Wireless remote control key .......................................... 105
Locking/Unlocking ................ 110
Replacing the battery............ 455
W
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
