Page 421 of 616

4216-3. Do-it-yourself maintenance
6
Maintenance and care
4RUNNER (U)

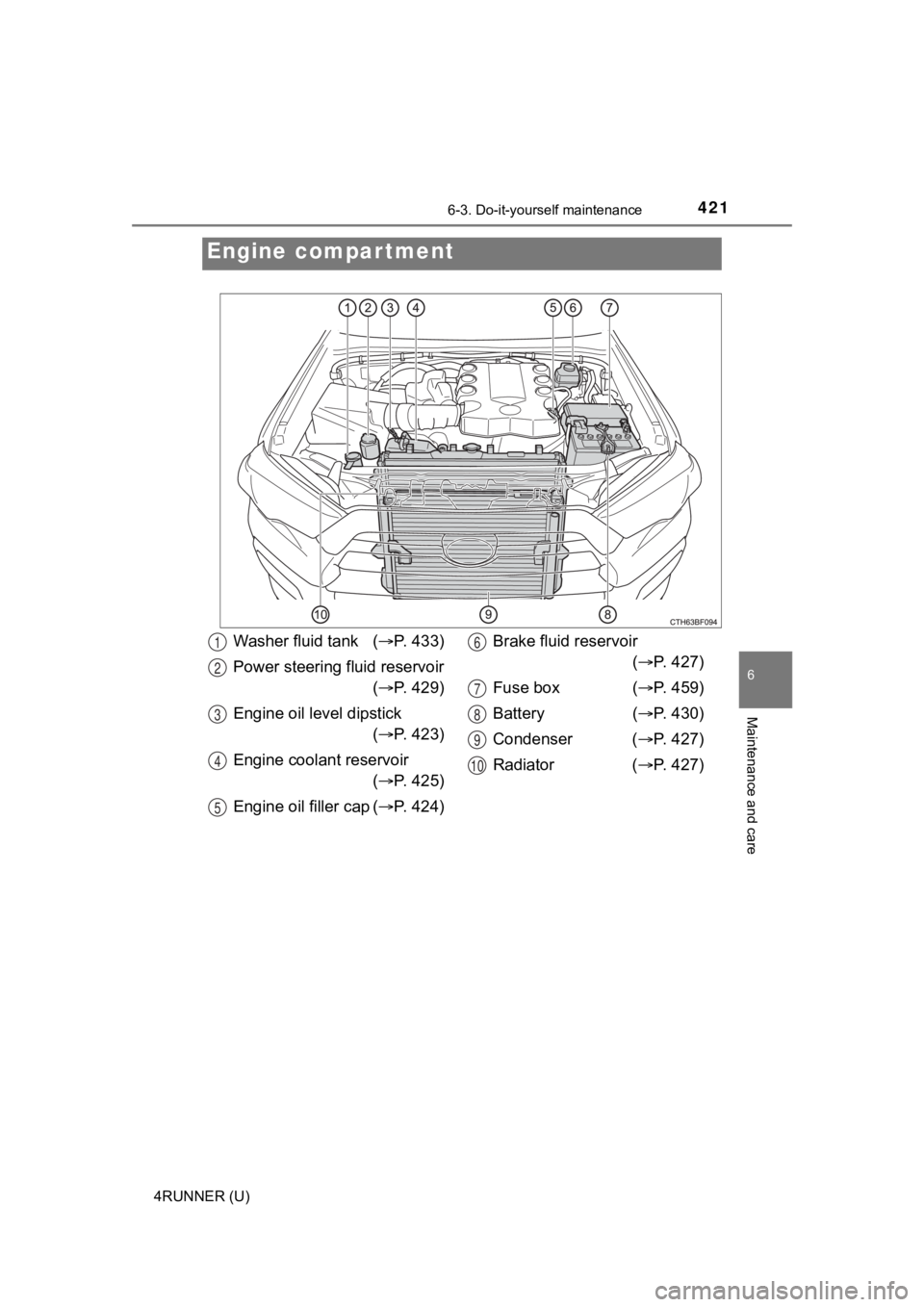

Engine compartment
Washer fluid tank (P. 433)
Power steering fluid reservoir ( P. 429)
Engine oil level dipstick ( P. 423)
Engine coolant reservoir ( P. 425)
Engine oil filler cap ( P. 424)Brake fluid reservoir
( P. 427)
Fuse box ( P. 459)
Battery ( P. 430)
Condenser ( P. 427)
Radiator ( P. 427)1
2
3
4
5
6
7
8
9
10
Page 459 of 616

4596-3. Do-it-yourself maintenance
6
Maintenance and care
4RUNNER (U)

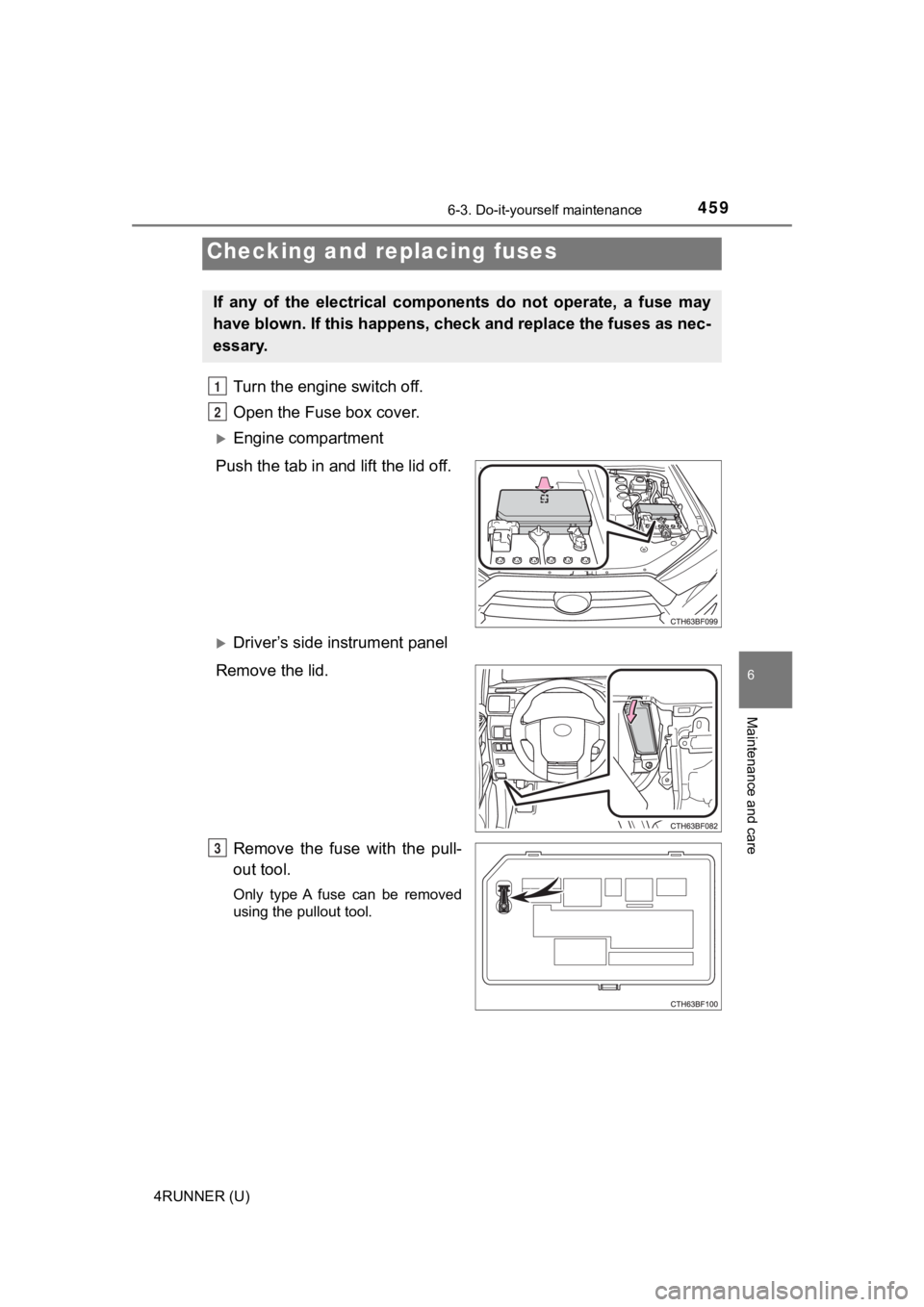

Turn the engine switch off.
Open the Fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, che ck and replace the fuses as nec-
essary.
1
2
3
Page 460 of 616

4606-3. Do-it-yourself maintenance
4RUNNER (U)

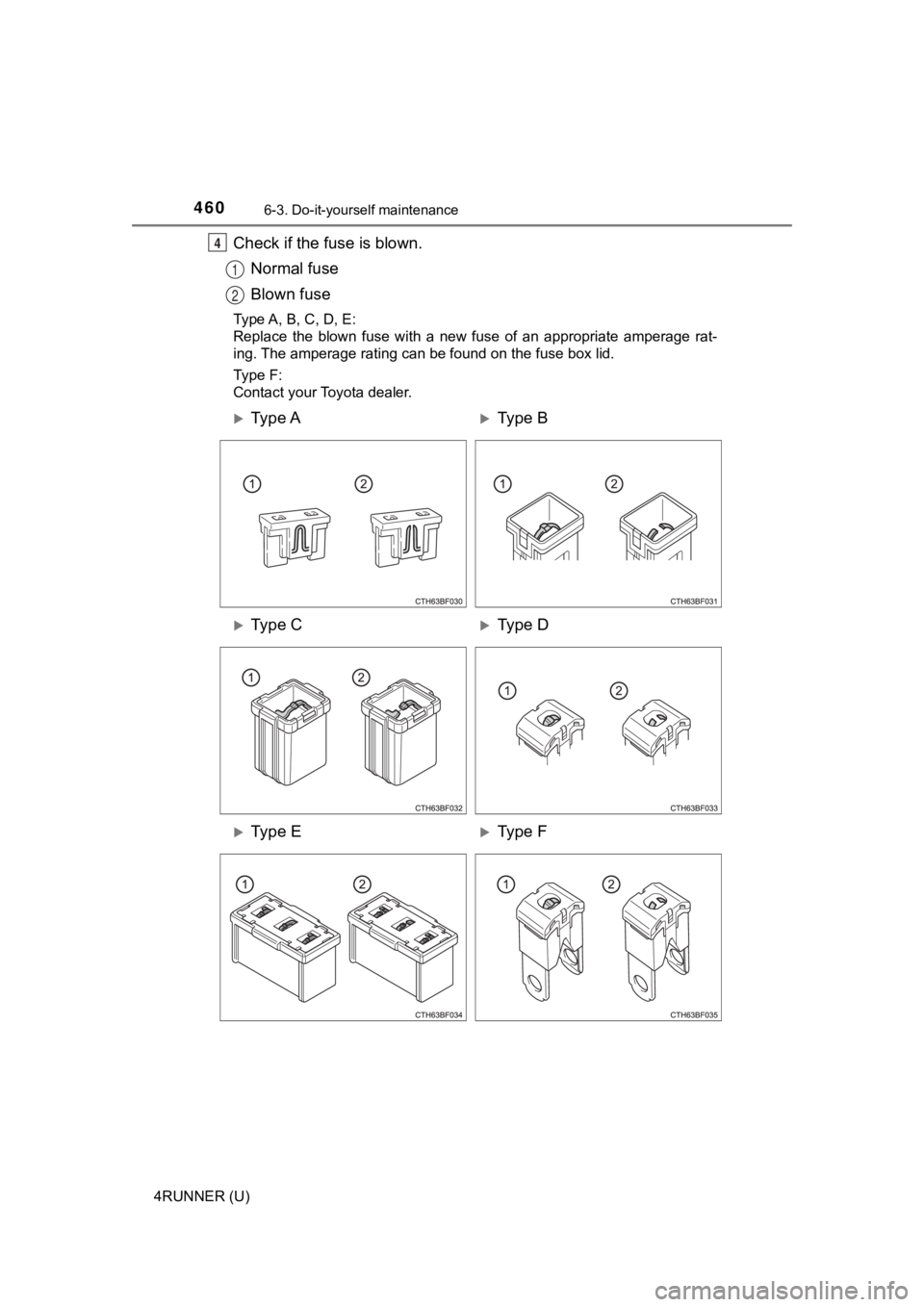

Check if the fuse is blown.Normal fuse
Blown fuse
Type A, B, C, D, E:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type F:
Contact your Toyota dealer.
4
1
2
Ty p e AType B
Ty p e CType D
Ty p e EType F
Page 461 of 616

4616-3. Do-it-yourself maintenance
6
Maintenance and care
4RUNNER (U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 462)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.
Page 595 of 616

595Alphabetical index
4RUNNER (U)
Fog lights ................................. 232Replacing light bulbs............. 462
Switch ................................... 232
Wattage ................................ 541
Four-wheel drive
system ............................ 305, 309
Front passenger occupant classification system .............. 48
Front personal lights ............... 370
Front seats ............................... 135 Adjustment ............................ 135
Cleaning................................ 408
Correct driving posture ........... 30
Driving position memory ....... 148
Head restraints ..................... 152
Seat heaters ......................... 367
Seat position memory ........... 148
Seat ventilators ..................... 367
Front side marker lights.......... 223 Light switch ........................... 223
Replacing light bulbs............. 467
Wattage ................................ 541
Front turn signal lights ........... 221
Replacing light bulbs............. 465
Turn signal lever ................... 221
Wattage ................................ 541
Fuel ........................................... 240
Capacity ................................ 534
Fuel gauge .............................. 90
Fuel pump shut off system.... 485
Information ............................ 542
Refueling............................... 240
Type .............................. 240, 534
Warning light ......................... 489
Fuel filler door.......................... 240 Refueling............................... 240
Fuel pump shut off system ..... 485
Fuses ........................................ 459 Garage door opener ................ 396
Gauges ....................................... 90
Glove box ................................. 373
Grocery bag hooks.................. 382
Head restraints ........................ 152
Headlights ................................ 223
Automatic High Beam
system .......... ...................... 228
Light switch ........................... 223
Replacing light bulbs .... 464, 472
Wattage ................................ 541
Heaters Air conditioning
system ....... ................. 352, 359
Outside rear view mirrors ....................... 354, 361
Seat heaters ......................... 367
Hill-start assist control ........... 334
Hood ......................................... 420
Hooks Cargo hooks ......................... 379
Cargo net hooks ................... 380
Grocery bag hooks ............... 382
Retaining hooks (floor mat) .... 28
Horn .......................................... 155G
