TOYOTA 86 2018 Owners Manual

5
When trouble arises
451
5-2. Steps to take in an emergency
WARNING
■
To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the ho od until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● Keep hands and clothing (especially a tie, a scarf or a muffler ) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap and the coolant reservoir cap wh ile the
engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■ When adding engine coolant
Wait until the engine has cooled down before adding engine cool ant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage t o the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sa nd or dust
etc.).
● Do not use any coolant additives.

452
5-2. Steps to take in an emergency

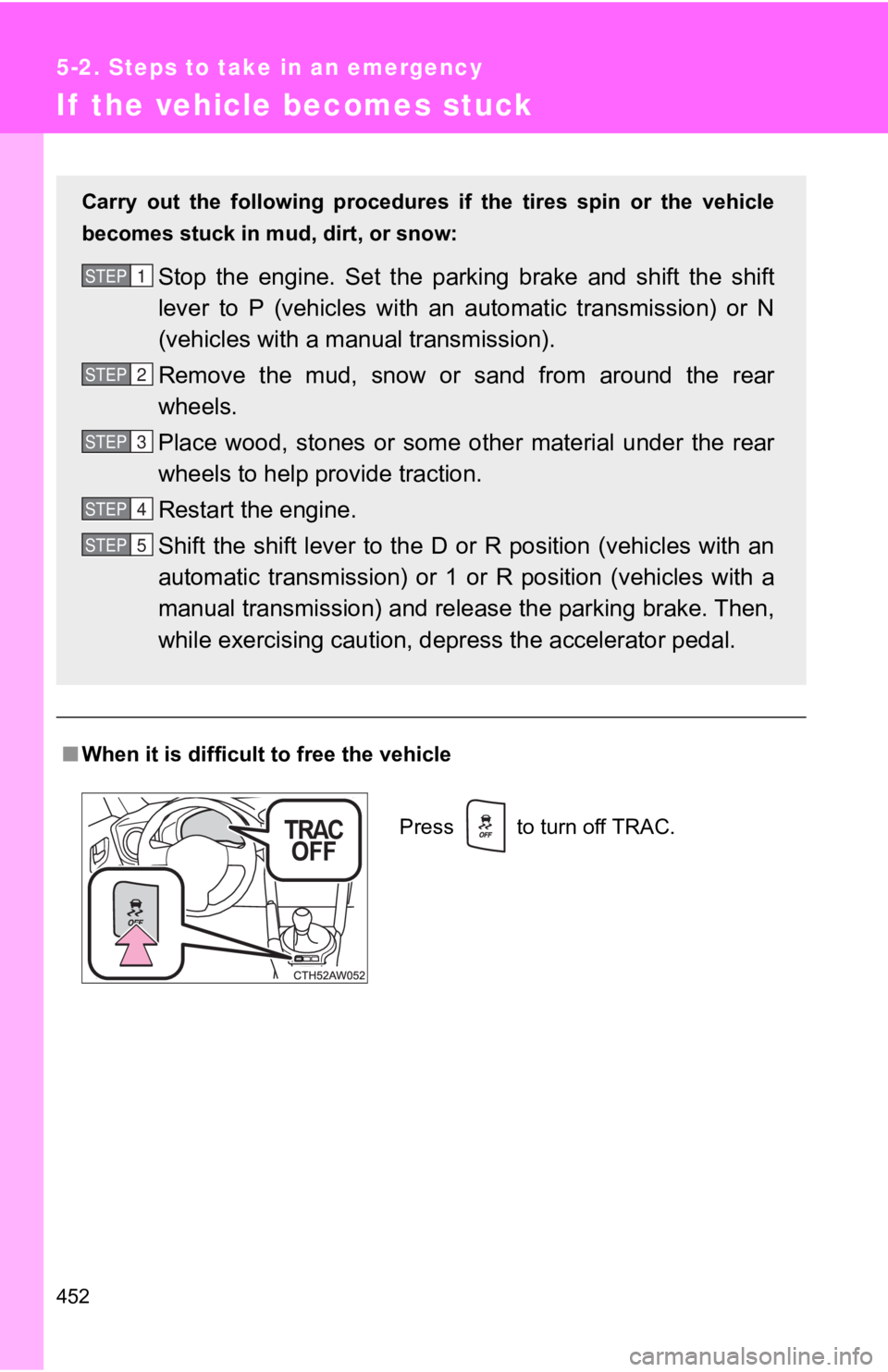

If the vehicle becomes stuck
■When it is difficult to free the vehicle
Carry out the following procedur es if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow:
Stop the engine. Set the parki ng brake and shift the shift
lever to P (vehicles with an automatic transmission) or N
(vehicles with a manual transmission).
Remove the mud, snow or sand from around the rear
wheels.
Place wood, stones or some other material under the rear
wheels to help provide traction.
Restart the engine.
Shift the shift lever to the D or R position (vehicles with an
automatic transmission) or 1 or R position (vehicles with a
manual transmission) and release the parking brake. Then,
while exercising caution, depr ess the accelerator pedal.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Press to turn off TRAC.

5
When trouble arises
453
5-2. Steps to take in an emergency
WARNING
■
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, ma ke sure the sur-
rounding area is clear to avoid striking other vehicles, object s or people. The
vehicle may also lunge forward or lunge back suddenly as it bec omes free.
Use extreme caution.
■ When shifting the shift lever
For vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle t hat may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the trans mission and other components
● Avoid spinning the rear wheels and depressing the accelerator p edal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

454
5-2. Steps to take in an emergency

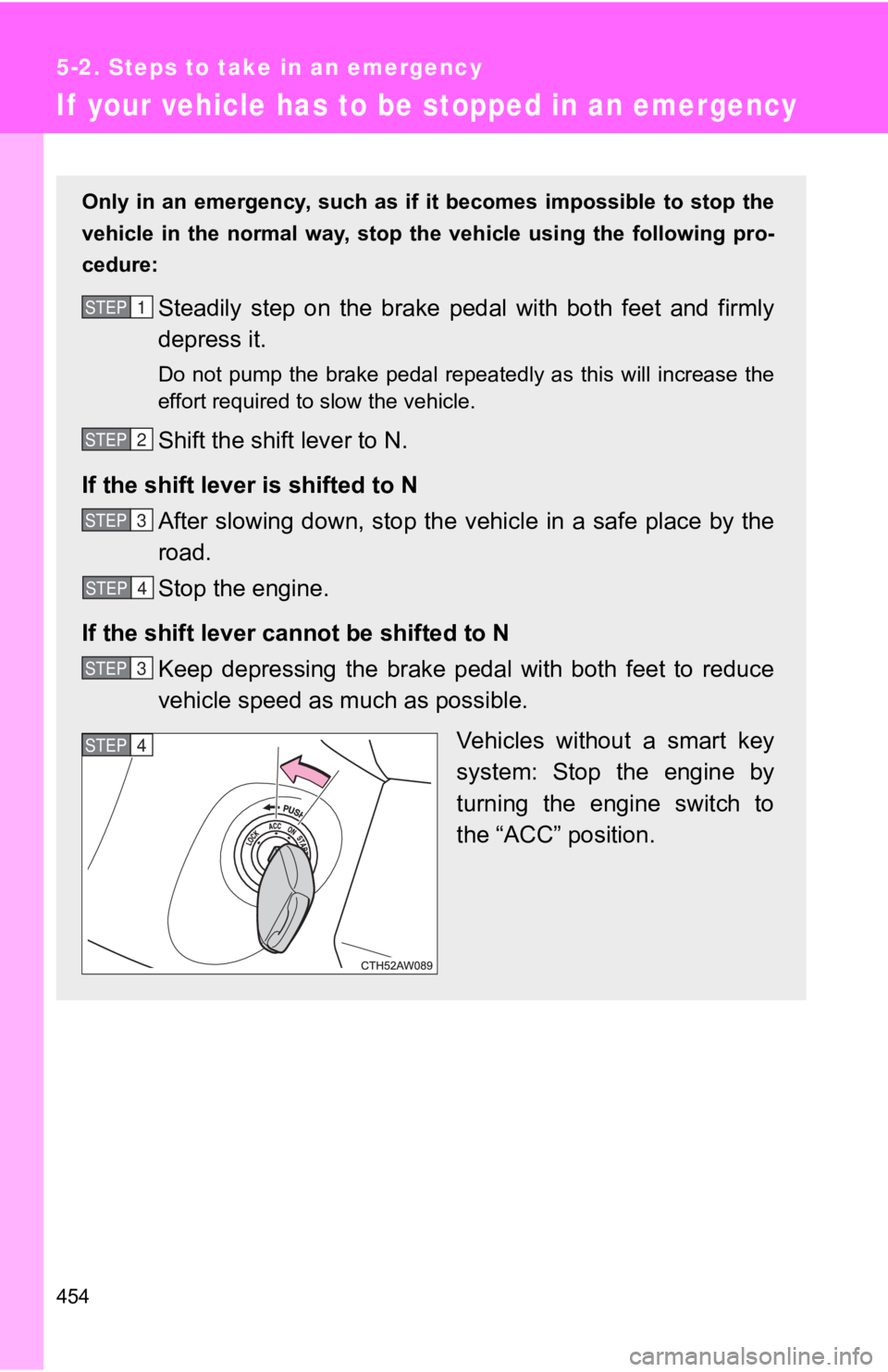

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase th e
effort required to slow the vehicle.
Shift the shif t lever to N.
If the shift lever is shifted to N After slowing down, stop the ve hicle in a safe place by the
road.
Stop the engine.
If the shift l ever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as m uch as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to
the “ACC” position.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4

5
When trouble arises
455
5-2. Steps to take in an emergency
WARNING
■
If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, ma king the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the “ENGINE START
STOP” switch for 2 consecu-
tive seconds or more, or press
it briefly 3 times or more in
succession.
Stop the vehicle in a s afe place by the road.
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP 4
STEP 5

456 5-2. Steps to take in an emergency

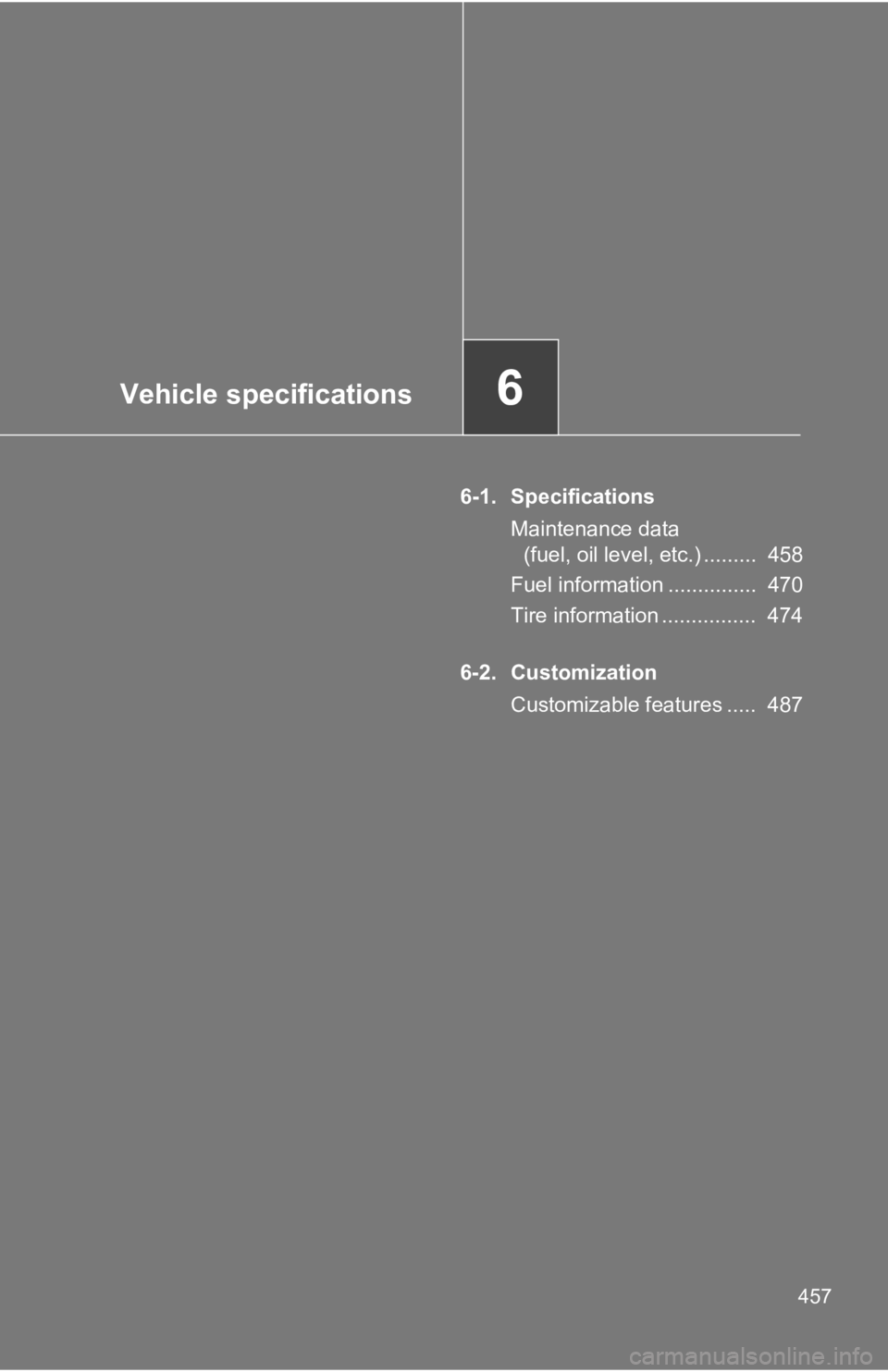

Vehicle specifications6
457
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 458
Fuel information ............... 470
Tire information ................ 474
6-2. Customization Customizable features ..... 487

458
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length166.7 in. (4235 mm)
Overall width69.9 in. (1775 mm)
Overall height*52.0 in. (1320 mm)
Wheelbase101.2 in. (2570 mm)
TreadFront 59.8 in. (1520 mm)
Rear 60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage) Details are described on the tire and load-
ing information label. (
P. 353)

459
6-1. Specifications
6
Vehicle specifications
Vehicle identification
■ Vehicle identification number
The vehicle identification num ber (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registeri ng the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is located on the
top left of the body panel.
This number is also on the Certi-
fication Label.

460 6-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
