Page 34 of 532
34 1-2. Opening, closing and locking the doors and trunk
■When the vehicle is not dri ven for extended periods
● To prevent theft of the vehicle, do not leave the electronic ke y within 6 ft.
(2 m) of the vehicle.
● The smart key system can be deactivated in advance. ( P. 487)
■ Alarm
Using the smart key system to lock the doors will set the alarm system.
( P. 82)
■ To operate the system properly
●Make sure to carry the electronic key when operating the system . Do not
get the electronic key too close to the vehicle when operating the system
from the outside of the vehicle.
Depending on the position and holding condition of the electron ic key, the
key may not be detected correctly and the system may not operat e prop-
erly. (The alarm may go off accidentally, or the door lock prev ention func-
tion may not operate.)
● Do not leave the electronic key inside the trunk.
The key confinement prevention function may not operate, depend ing on
the location of the key (close to a spare tire, the inside edge of the trunk),
conditions (inside a metal bag, close to metallic objects) and the radio
waves in the surrounding area. ( P. 48)
■ If the smart key system does not operate properly
●Locking and unlocking the doors, unlocking the trunk: Use the m echani-
cal key. ( P. 440)
● Starting the engine: P. 441
Page 345 of 532
345
4-3. Do-it-yourself maintenance
4
Maintenance and care

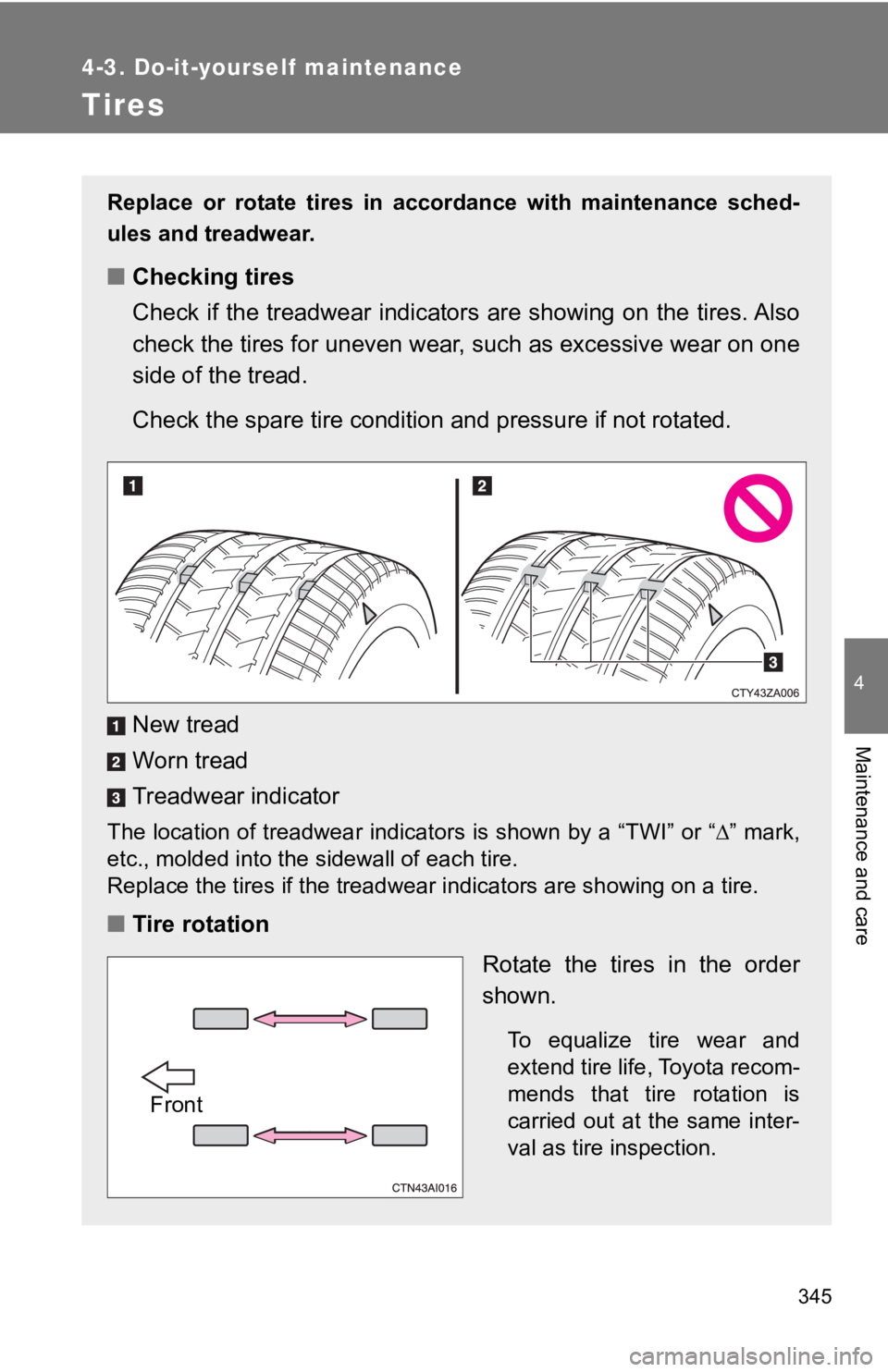

Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
■Checking tires
Check if the treadwear indicators are showing on the tires. Als o
check the tires for uneven wear, such as excessive wear on one
side of the tread.
Check the spare tire condition and pressure if not rotated.
New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is shown by a “TWI” or “ ” mark,
etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
■Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and
extend tire life, Toyota recom-
mends that tire rotation is
carried out at the same inter-
val as tire inspection.
Front
Page 424 of 532
424
5-2. Steps to take in an emergency

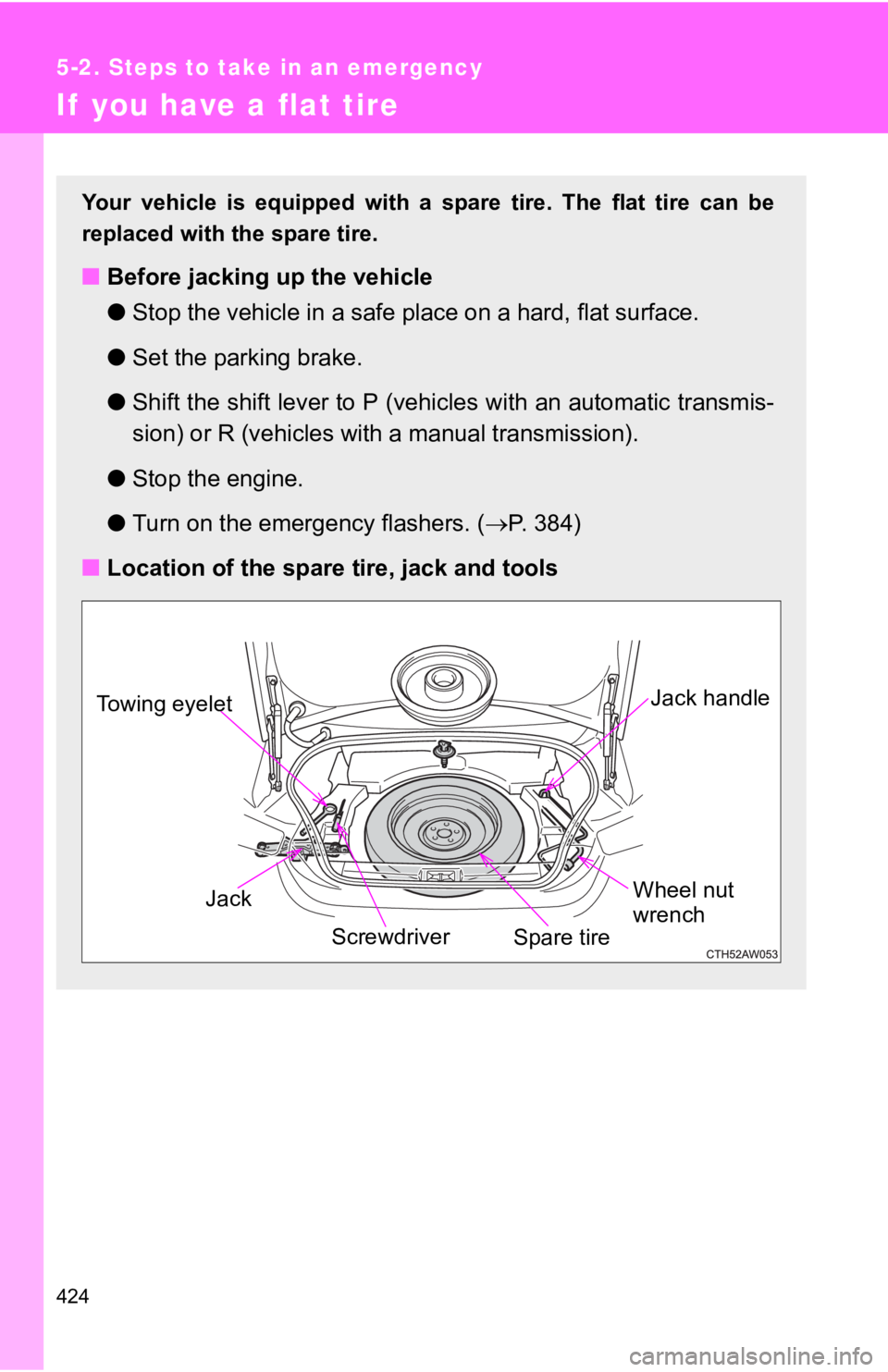

If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■ Before jacking up the vehicle
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (vehicles with an automatic transmis-
sion) or R (vehicles with a manual transmission).
● Stop the engine.
● Turn on the emergency flashers. ( P. 3 8 4 )
■ Location of the spare t ire, jack and tools
Jack Jack handle
Spare tire
Towing eyelet
Screwdriver Wheel nut
wrench
Page 474 of 532
474
6-1. Specifications

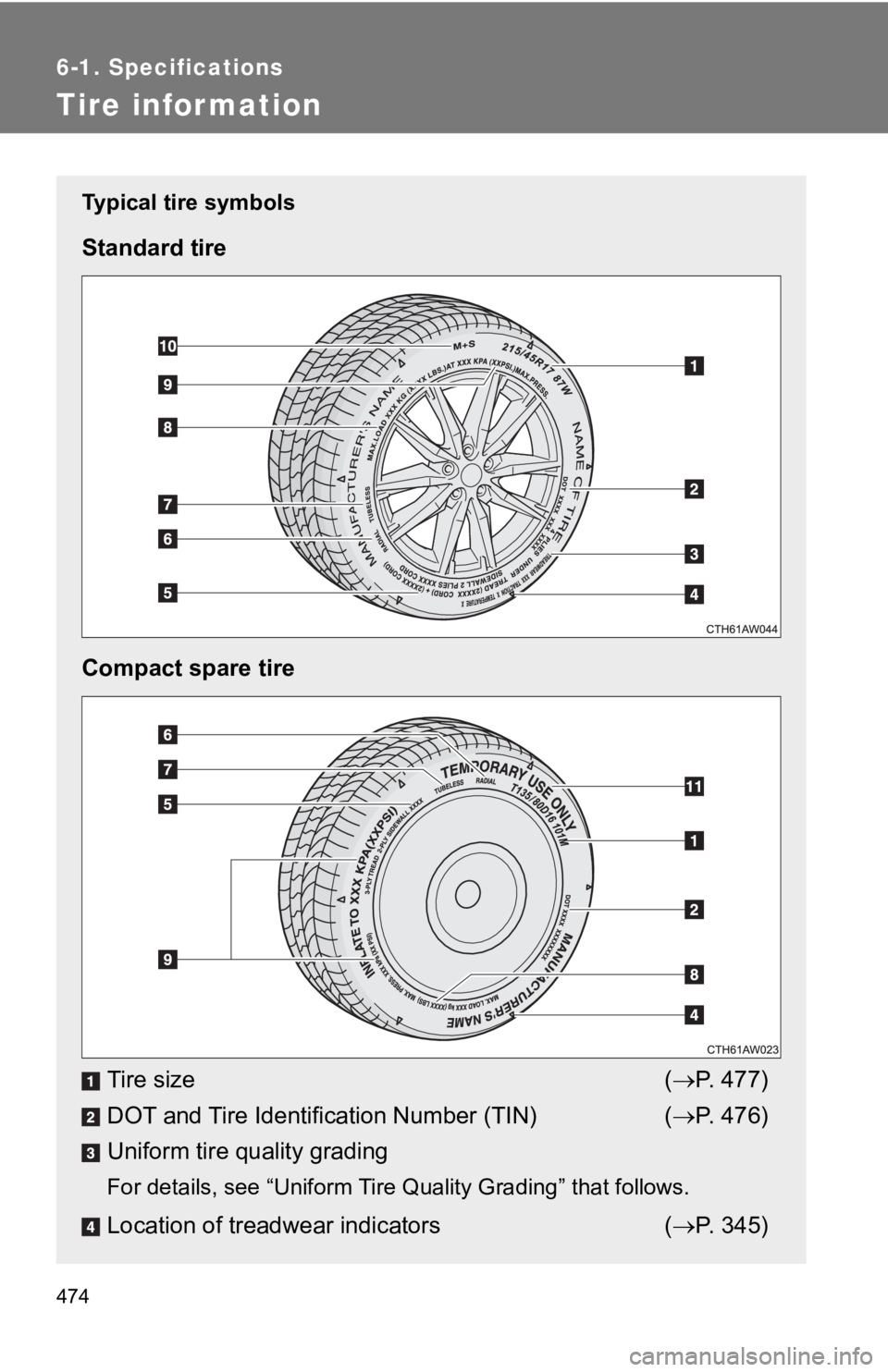

Tire infor mation
Typical tire symbols
Standard tire
Compact spare tireTire size ( P. 4 7 7 )
DOT and Tire Identification Number (TIN) ( P. 4 7 6 )
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Location of treadw ear indicators ( P. 3 4 5 )
Page 527 of 532
527
Alphabetical index
Spare tire
Inflation pressure .................. 468
Storage location ................... 424
Spark plug................................ 464
Specifications .......................... 458
Speedometer ........................... 191
Steering Column lock release ............... 67
Steering wheel Adjustment ............................. 67
Audio switches ..................... 287
Meter control switches.......... 208
Storage feature ........................ 291
Stuck If your vehicle becomes stuck................................... 452
Sun visors ................................ 296
Switch
Audio remote control switches ............................. 287
“DISP” switch........................ 203
Driving pattern selector switch ................................. 180
Emergency flasher switch .... 384
Engine switch .............. 166, 175
Fog light switch..................... 228
Hazard light switch ............... 384
Ignition switch ............... 166, 175
“km/h MPH” switch ............... 191
Light switches ....................... 222
Meter control switches.......... 208
“ODO/TRIP” switch....... 202, 208
Power door lock switch ................................... 43
Power window switch ............. 72
“TRACK” switch .................... 247
Transmission shift switches ..................... 181, 183
VSC/TRAC off switch ......................... 246, 247
Window lock switch ................ 72
Wiper and washer
switch ................................. 229 Tachometer
Tachometer ...........................191
Tail lights Switch....................................222
Theft deterrent system
Alarm .......................................82
Engine immobilizer system .....79
Theft prevention labels..............86
Tire inflation pressure .............468
Tire information Glossary ................................480
Size .......................................477
Tire identification number ......476
Uniform tire quality
grading ................................478
Tires Chains ...................................263
Checking ...............................345
Compact spare tire ................424
If you have a flat tire ..............424
Inflation pressure...................353
Inflation pressure sensor .......345
Information ............................474
Replacing ..............................424
Rotating tires .........................345
Size .......................................468
Snow tires .............................261
Spare tire...............................424
Tire pressure warning
system ................................399
Tools .........................................424
Towing Dinghy towing........................266
Emergency towing.................385
TRAC .........................................245
“TRACK” mode ......... ...............247
Traction control........................245T
