TOYOTA 86 2019 Owners Manual

2612-5. Driving information
2
When driving
Winter driving tips Carry out the necessary preparatio ns and inspections before dri ving
the vehicle in winter. Always drive the vehicle in a manner app ropri-
ate to the prevailing weather conditions.
■ Pre-winter preparations
● Use fluids that are appropriate t o the prevailing outside tem-
peratures.
• Engine oil
• Washer fluid
● Have a service technician inspec t the condition of the battery.
● Have the vehicle fitted with four snow tires.
Make sure to install 4 tires that are of the specified size, an d that
all 4 tires are the same size, same maker, same brand and tread
pattern.
■ Before driving the vehicle
Perform the following accordi ng to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of th e windshield.
● Check for and remove any excess ice or snow that may have
accumulated on the exterior lig hts, vehicle's roof, chassis,
around the tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes
before getting in the vehicle.

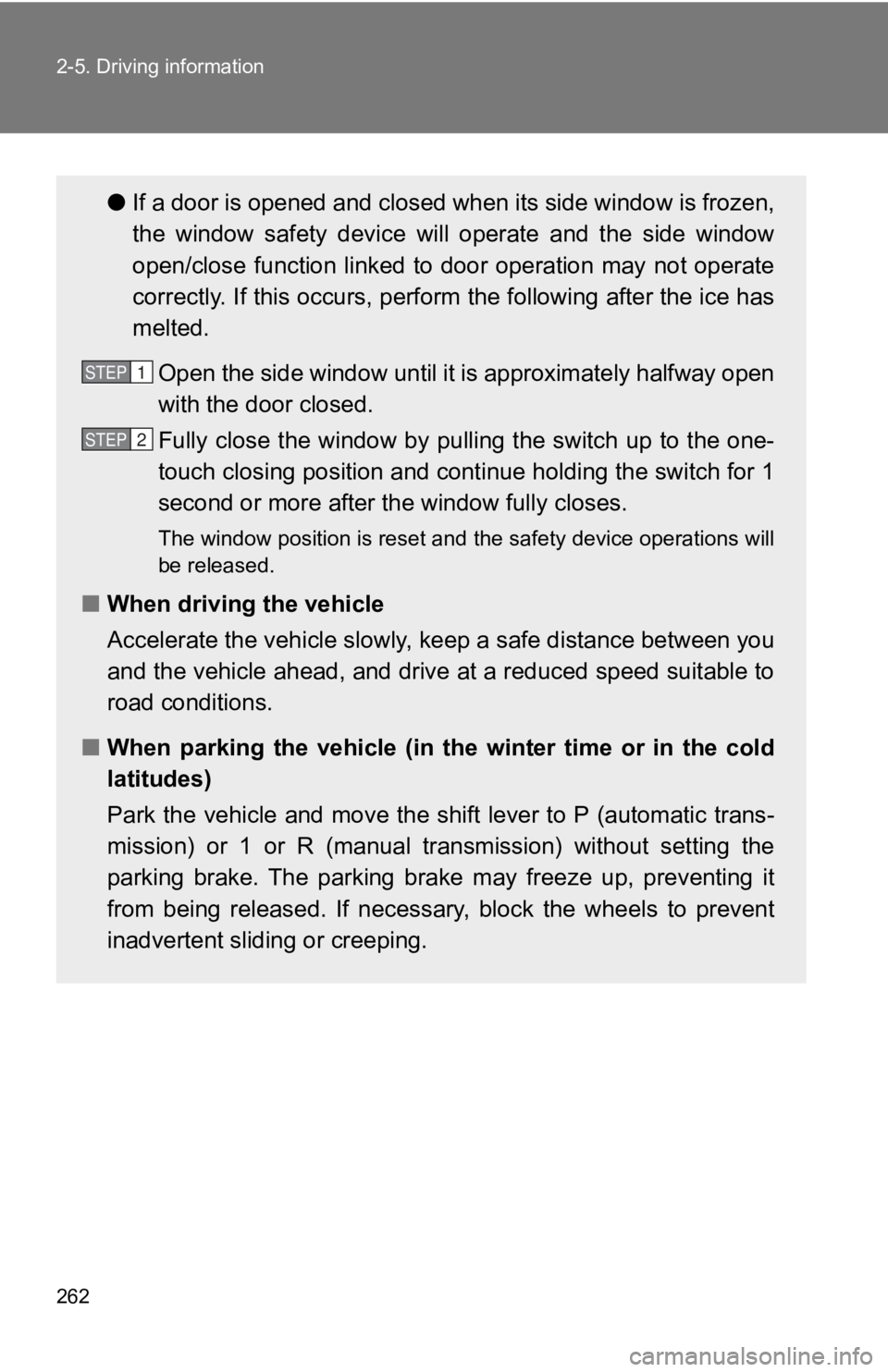

2622-5. Driving information
● If a door is opened and closed wh en its side window is frozen,
the window safety device will operate and the side window
open/close function linked to door operation may not operate
correctly. If this occurs, perform the following after the ice has
melted.
Open the side window until it is approximately halfway open
with the door closed.
Fully close the window by pulling the switch up to the one-
touch closing position and cont inue holding the switch for 1
second or more after the window fully closes. The window position is reset and the safety device operations w ill
be released.
■ When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you
and the vehicle ahead, and drive at a reduced speed suitable to
road conditions.
■ When parking the vehicle (in the winter time or in the cold
latitudes)
Park the vehicle and move the shift lever to P (automatic trans -
mission) or 1 or R (manual transmission) without setting the
parking brake. The parking brake may freeze up, preventing it
from being released. If necessary, block the wheels to prevent
inadvertent sliding or creeping. STEP 1
STEP 2

2632-5. Driving information
2
When driving Tire chains
Tire chains cannot be used on your vehicle because of the lack of
clearance between the tires and vehicle body.
When tire chains cannot be used, use of another type of tractio n
device (such as spring chains) may be acceptable if use on your vehi-
cle is recommended by the device manufacturer, taking into acco unt
tire size and road conditions.
Follow the device manufacturer's instructions, especially regar ding
maximum vehicle speed.
To help avoid damage to your vehicle, drive slowly, readjust or
remove the device if it is contacting your vehicle, and do not spin your
wheels. Damage caused to your veh icle by use of a traction devi ce is
not covered under warranty.
Make certain that any traction device you use is an SAE class “ S”
device, and use it on the rear wheels only.
Always use the utmost care when driving with a traction device. Over-
confidence because you are using a traction device could easily lead
to a serious accident.
Selecting tire chains
We recommend that you consult your Toyota dealer for informatio n
about the chains t hat you can use.

2642-5. Driving information
WARNING■
Driving with snow tires
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in a loss of vehicle control and ca use death or
serious injury. ●
Use tires of the specified size, and that are the same size, sa me
maker, same brand and tread pattern. ●
Maintain the recommended level of air pressure.●
Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.●
Use snow tires on all, not just some wheels.
NOTICE■
Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealer s or
legitimate tire retailers.
This is because the removal and a ttachment of snow tires affect s the
operation of the tire pressure wa rning valves and transmitters.
■
Fitting tire chains
The tire pressure warning valves and transmitters may not funct ion cor-
rectly when tire chains are fitted.

2652-5. Driving information
2
When driving
Trailer towing Toyota does not recommend towi ng a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier f or a wheelchair, scooter, bicyc le, etc.
Your Toyota is not designed for trailer towing or for the use o f tow
hitch mounted carriers.

2662-5. Driving information

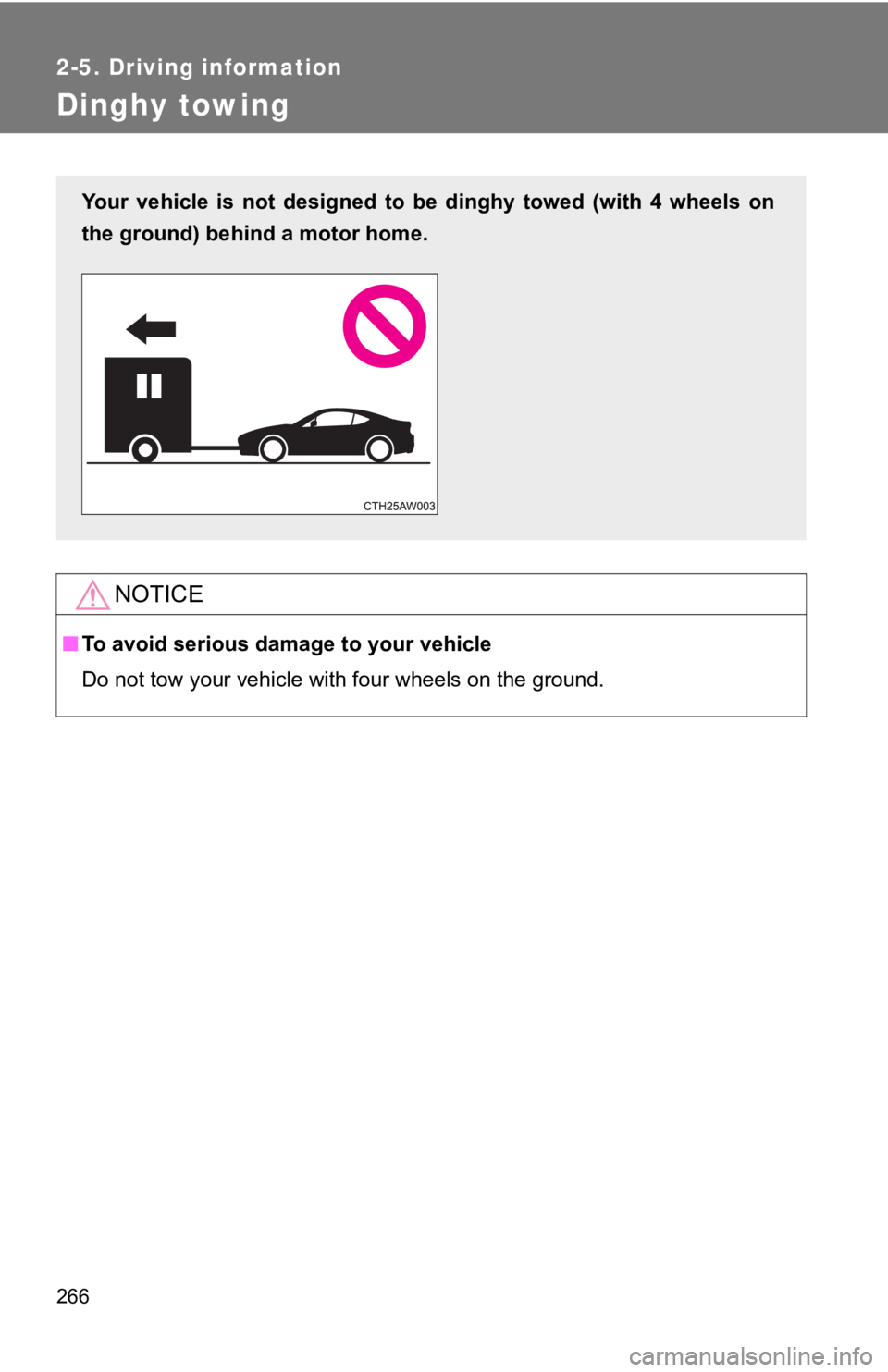

Dinghy towing
NOTICE■ To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

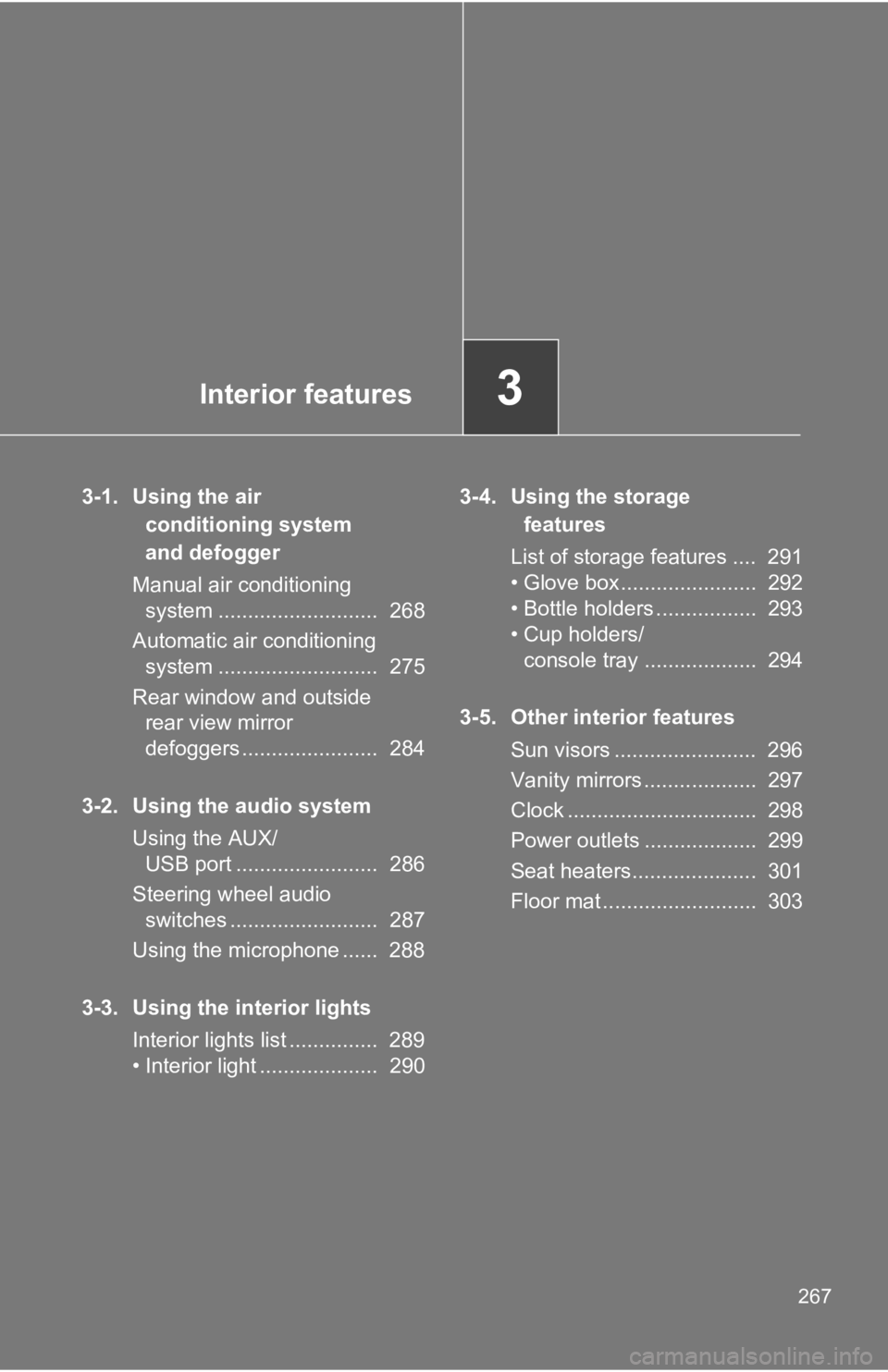

Interior features
3
2673-1. Using the air
conditioning system
and defogger
Manual air conditioning
system ........................... 268
Automatic air conditioning
system ........................... 275
Rear window and outside
rear view mirror
defoggers ....................... 284
3-2. Using the audio system
Using the AUX/
USB port ........................ 286
Steering wheel audio
switches ......................... 287
Using the microphone ...... 288
3-3. Using the interior lights
Interior lights list ............... 289
• Interior light .................... 290 3-4. Using the storage
features
List of storage features .... 291
• Glove box....................... 292
• Bottle holders ................. 293
• Cup holders/
console tray ................... 294
3-5. Other interior features
Sun visors ........................ 296
Vanity mirrors ................... 297
Clock ................................ 298
Power outlets ................... 299
Seat heaters..................... 301
Floor mat .......................... 303

2683-1. Using the air conditioning system and defogger
Manual air conditioning system 
Adjusting the settings
To adjust the fan speed, turn th e fan speed control dial clock-
wise (increase) or counter clockwise (decrease).Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
dial clockwise (warm) or c ounterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
 : If equippedFan speed control dialAir outlet selection dial
Air conditioning on/off button Temperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2
STEP 3

2693-1. Using the air condit ioning system and defogger
3
Interior features Defogging the windshield
Set the air outlet selection dial to
position. The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.
Perform the following operations accordingly:
● To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature con-
trol dial.
● If the dehumidification func tion is not operating, press
to operate the dehumi dification function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.STEP 1
STEP 2

2703-1. Using the air condit ioning system and defogger
■ Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.
