TOYOTA 86 2019 Owners Manual

5
When trouble arises
4215-2. Steps to take in an emergency
Once 
(Flashes)
(Vehicles with an auto-
matic transmission) The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch
was put in
ACCESSORY
mode twice with-
out the engine
being started. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
brake
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(  P. 441), the
“ENGINE START
STOP” switch
was touched with
the electronic
key. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
brake
pedal
within 10
seconds
of the
buzzer
sounding.Interior
buzzer Exterior
buzzer Warning message Details Correction
procedure

4225-2. Steps to take in an emergency
Once 
(Flashes)
(Vehicles with a manual
transmission) The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch
was put in
ACCESSORY
mode twice with-
out the engine
being started. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(  P. 441), the
“ENGINE START
STOP” switch
was touched with
the electronic
key. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal
within 10
seconds
of the
buzzer
sounding.Interior
buzzer Exterior
buzzer Warning message Details Correction
procedure

5
When trouble arises
4235-2. Steps to take in an emergency
Once 
(Flashes)
(Flashes quickly in green)Indicates that the
steering lock has
not been
released. Release
the steer-
ing lock.
(  P. 172)
Con-
tinu-
ous 
(Flashes)
(Vehicles with an auto-
matic transmission) The “ENGINE
START STOP”
switch has been
turned off with the
shift lever in a
position other
than P. Shift the
shift lever
to P.
Once 
(Flashes)
(Vehicles with an auto-
matic transmission) After the
“ENGINE START
STOP” switch
has been turned
off with the shift
lever in a posi-
tion other than P,
the shift lever has
been shifted to P. Turn the
“ENGINE
START
STOP”
switch off.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy pla ce or an
audio sound.Interior
buzzer Exterior
buzzer Warning message Details Correction
procedure

4245-2. Steps to take in an emergency

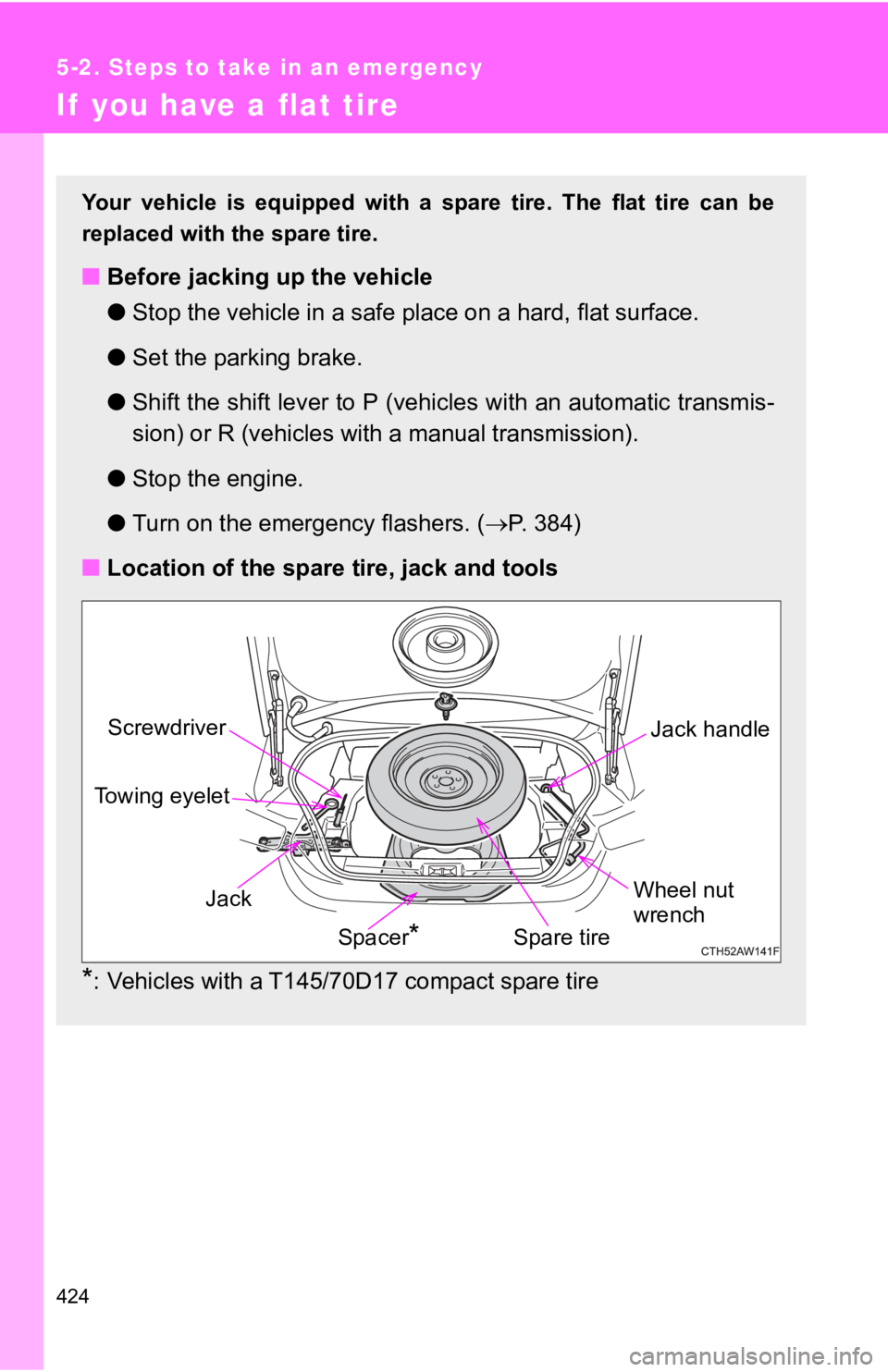

If you have a flat tire Your vehicle is equipped with a spare tire. The flat tire can b e
replaced with the spare tire.
■ Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (vehicles with an automatic transmis -
sion) or R (vehicles with a manual transmission).
● Stop the engine.
● Turn on the emergency flashers. (  P. 3 8 4 )
■ Location of the spare t ire, jack and tools
* : Vehicles with a T145/70D 17 compact spare tireJack Jack handle
Spare tireTowing eyelet Screwdriver
Wheel nut
wrench
Spacer
*

5
When trouble arises
4255-2. Steps to take in an emergency
Taking out the spare tire
Remove the luggage mat.
Remove the cover and loosen
the center fastener that secures
the spare tire.STEP 1
STEP 2

4265-2. Steps to take in an emergency
Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).STEP 1
Flat tire Wheel
chock posi-
tions
Front Left-
hand
side Behind the
rear right-
hand side
tire
Right-
hand
side Behind the
rear left-
hand side
tire
Rear Left-
hand
side In front of
the front
right-hand
side tire
Right-
hand
side In front of
the front
left-hand
side tireSTEP 2

5
When trouble arises
4275-2. Steps to take in an emergency
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.STEP 3
STEP 4
STEP 5

4285-2. Steps to take in an emergency
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face. If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each wheel nut by hand
to approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
89 ft•lbf (120 N•m, 12.2 kgf•m)STEP 1
Tapered portion
Disc wheel
seatSTEP 2
STEP 3
STEP 4

5
When trouble arises
4295-2. Steps to take in an emergency
Stow the flat tire, tire jack and all tools. (  P. 430)■
The compact spare tire ●
The compact spare tire is identified by the label “TEMPORARY US E
ONLY” on the tire sidewall.
Use the compact spare tire tem porarily only in an emergency.●
Make sure to check the tire pre ssure of the compa ct spare tire.
(  P. 468)■
When using the compact spare tire
As the compact spare tire is not equipped with the tire pressure warning
valve and transmitter, low infla tion pressure of the spare tire will not be
warned. Also, if you replace the compact spare tire after the t ire pressure
warning light comes on, the light remains on.■
If you have a flat rear tire
Install the compact spare tire on the front of the vehicle. Per form the fol-
lowing steps.
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of
the vehicle.
■
After completing the tire change
The tire pressure warning system must be reset. (  P. 3 4 6 )STEP 5
STEP 1
STEP 2

4305-2. Steps to take in an emergency
■
Storing a tire (for compact spare tire)
■
Storing a tire (except compact spare tire) Vehicles with a T145/70D17 compact
spare tire only: Install the spare tire
spacer with the “Ft  ” mark facing the
front of the vehicle and the rear edge of
the spacer contacting the vehicle body.
Install the center fastener as shown in
the illustration.STEP 1
STEP 2
Vehicles with a T145/70D17 compact
spare tire only: Bef ore stowing the flat
tire, remove the s pare tire spacer.
Install the center fastener as shown in
the illustration.STEP 1
STEP 2
