TOYOTA 86 2020 Owners Manual

381
4-3. Do-it-yourself maintenance
4
Maintenance and care
WARNING
■
Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immedia tely after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hand s. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or c rack.
● Fully install the light bulbs and any parts used to secure them . Failure to
do so may result in heat damage, fire, or water entering a light unit. This
may damage the light or cause condensation to build up on the i nner side
of the lens.
■ When changing the back-up lights
Stop the engine and wait until the exhaust pipes have cooled do wn suffi-
ciently. The lights are located near the exhaust pipe and touching a hot
exhaust pipe can cause burns.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

382 4-3. Do-it-yourself maintenance

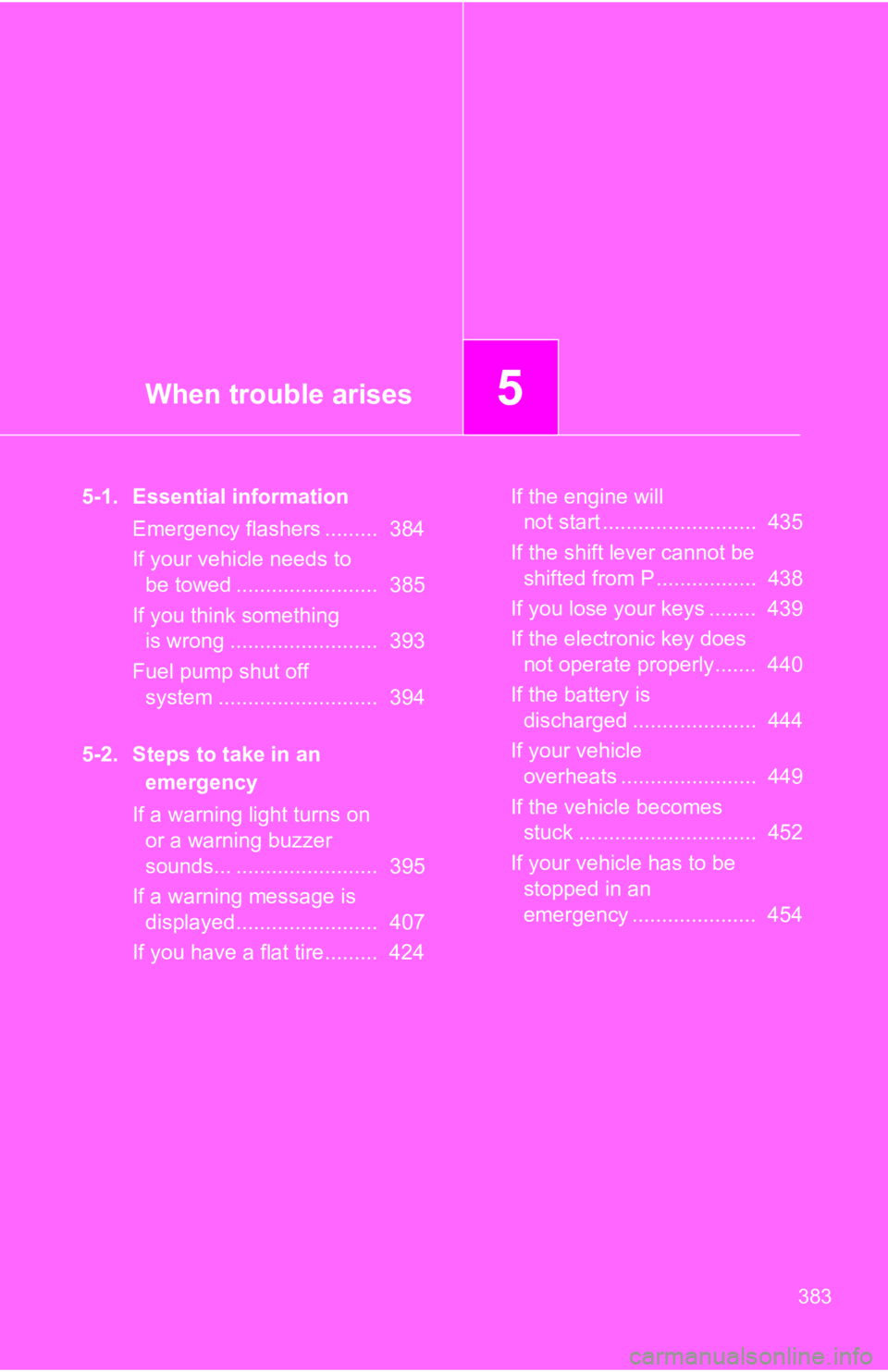

When trouble arises5
383
5-1. Essential informationEmergency flashers ......... 384
If your vehicle needs to be towed ........................ 385
If you think something is wrong ......................... 393
Fuel pump shut off system ........................... 394
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds... ........................ 395
If a warning message is displayed........................ 407
If you have a flat tire......... 424 If the engine will
not start .......................... 435
If the shift lever cannot be shifted from P................. 438
If you lose your keys ........ 439
If the electronic key does not operate properly....... 440
If the battery is discharged ..................... 444
If your vehicle overheats ....................... 449
If the vehicle becomes stuck .............................. 452
If your vehicle has to be stopped in an
emergency ..................... 454

384
5-1. Essential information
Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the en gine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.

5
When trouble arises
385
5-1. Essential information
If the vehicle is trapped in rising water
●Remove the seat belt first.
● If the door can be opened, open the door and exi t the vehicle.
● If the door can not be opened, open the window using the power
window switch and exit the vehicle through the window.
● If the window can not be opened using the power window switch,
remain calm, wait until the water level inside the vehicle rises to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle, and then open the door and exi t
the vehicle.
WARNING
■ Using an emergency hammer* for emergency escape
The front side windows and rear side windows, as well as the re ar window
can be shattered with an emergency hammer
* used for emergency escape.
However, an emergency hammer
* can not shatter the windshield as it is
laminated glass.
*: Contact your Toyota dealer or aftermarket accessory manufactur er for fur-
ther information about an emergency hammer.
■ Escaping the vehicle from the window
There are cases where escaping the vehicle from the window is not possible
due to seating position, passenger body type, etc.
When using an emergency hammer, consider your seat location and the size
of the window opening to ensure that the opening is accessible and large
enough to escape.
In the event the vehicle is submerged in water, remain calm and per-
form the following.

386
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Co ntact
your Toyota dealer before towing.
● The engine is running, but t he vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available in an emergency, your vehicle m ay be
temporarily towed using a cable or chain secured to the emergen cy
towing eyelet. This should only be attempted on hard surfaced r oads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes . The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
For vehicles with an automatic transmission, only the front tow ing
eyelet may be used.
If towing is necessary, we recommen d having your vehicle towed by
your Toyota dealer or a commercial towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all towing, and abide by all stat e/pro-
vincial and local laws.
If towing from the rear, the vehicle's front wheels and axles m ust be
in good condition. ( P. 392)
If they are damaged, use a to wing dolly or flat bed truck.

5
When trouble arises
387
5-1. Essential
information
To w i n g e y e l e t
■Before emergency towing
Release the parking brake.
Shift the shift lever to N.
Vehicles without a smart key system: Turn the engine switch to the
“ACC” (engine off) or “ON” (engine running) position.
Vehicles with a smart key system: Turn the “ENGINE START
STOP” switch to ACCESSORY (engine off) or IGNITION ON
(engine running) mode.
■ If towing a vehicle
Do not tow another vehicle. If towing a vehicle that has broken down is
unavoidable, avoid towing a vehicle that is heavier than your v ehicle. Also,
do not pull out a vehicle that has fallen into a ditch.
WARNING
■ Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place ex cessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing .
● If the engine is not running, the power assist for the brakes a nd steering
will not function, making steering and braking more difficult.
STEP 1
STEP 2
STEP 3

388 5-1. Essential information
NOTICE
■To prevent causing serious damage to the transmission in emerge ncy
towing (vehicles with an a utomatic transmission)
Never tow a vehicle from the rear with four wheels on the groun d. This may
cause serious damage to the transmission.
■ To prevent damage to the vehicle
●When towing this vehicle, make sure to observe the following:
• Do not use a wire rope
• Keep vehicle speed below 20 mph (30 km/h) and do not tow for d is-
tances over 19 miles (30 km)
• Tow the vehicle in the forward direction
• Do not apply rope to the vehicle's suspension and so forth
● Do not tow another vehicle, boat (trailer) and so forth, that i s heavier than
this vehicle.
■ When towing down a long slope
Use a wheel lift-type or flat bed truck. ( P. 392, 393)
If a wheel lift-type or flat bed truck is not used, the brakes may overheat,
leading to poor brake performance.

5
When trouble arises
389
5-1. Essential
information
Installing a towing eyelet
Remove the eyelet cover(s).
To prevent damage to the vehicle, cover the tip of the screwdriver
with a rag.
Front Remove the upper cover using a
flathead screwdriver and then
pull the lower cover outward by
hand to remove it.
Upper cover
Lower cover
Rear
STEP 1

390 5-1. Essential information
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.STEP 2
STEP 3
■Location of the eme rgency towing eyelet
P. 425
WARNING
■ Installing towing eyelets to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelets may come loose during towing. This
may lead to accidents that cause serious injury or even death.
■ After towing
●Always remove the towing eyelet. Failure to do so can cause the SRS air-
bags to not operate correctly in the event of a frontal collisi on.
● Always remove the towing eyelets. Failure to do so may prevent the fuel
pump shut off system from operating properly if the vehicle receives an
impact from the rear.
