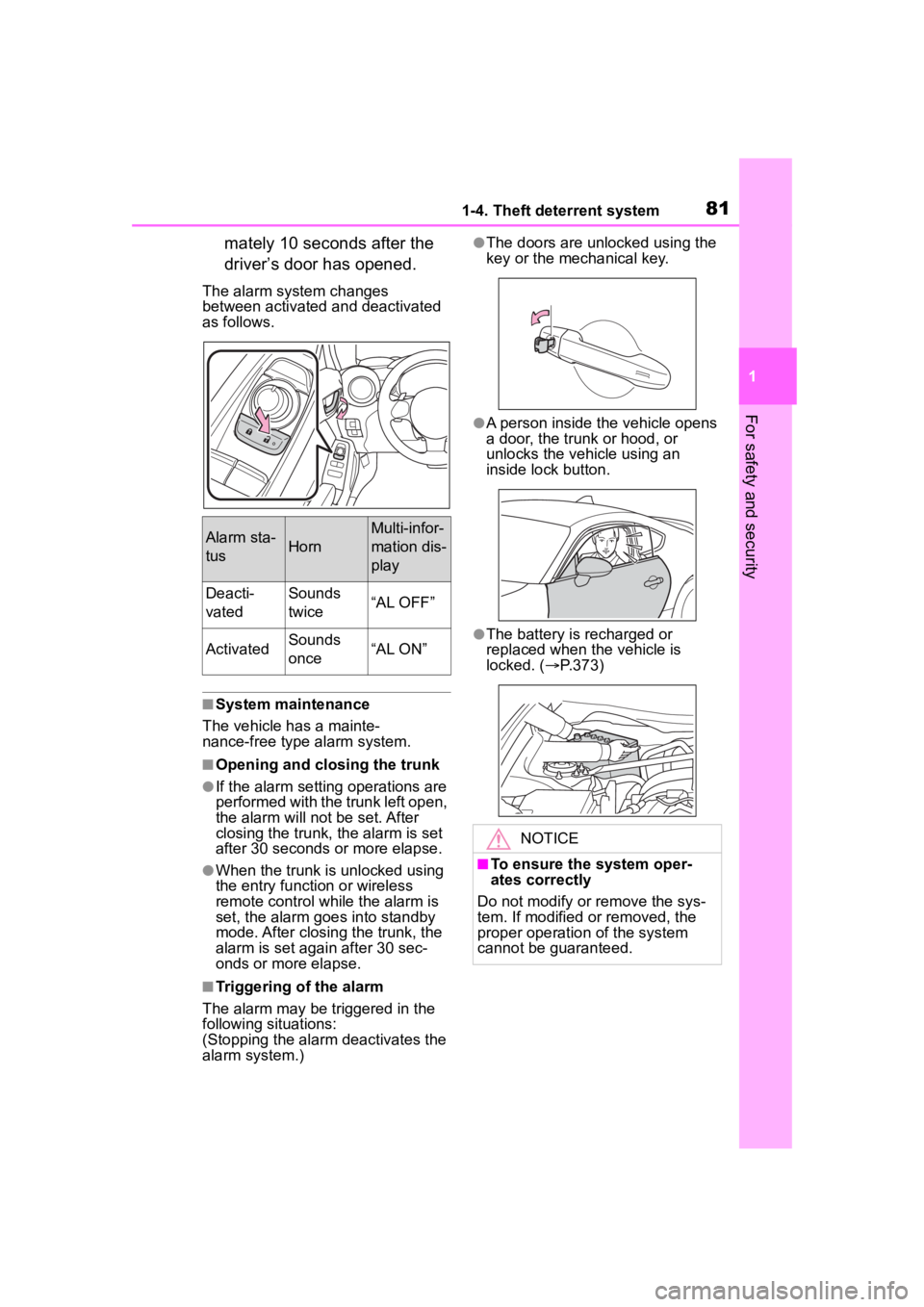

811-4. Theft deterrent system
1
For safety and security
mately 10 seconds after the
driver’s door has opened.
The alarm system changes
between activated and deactivated
as follows.
■System maintenance
The vehicle has a mainte-
nance-free type alarm system.
■Opening and closing the trunk
●If the alarm setting operations are
performed with the trunk left open,
the alarm will not be set. After
closing the trunk, the alarm is set
after 30 seconds or more elapse.
●When the trunk is unlocked using
the entry function or wireless
remote control while the alarm is
set, the alarm goes into standby
mode. After closing the trunk, the
alarm is set again after 30 sec-
onds or more elapse.
■Triggering of the alarm
The alarm may be triggered in the
following situations:
(Stopping the alarm deactivates the
alarm system.)
●The doors are unlocked using the
key or the mechanical key.
●A person inside the vehicle opens
a door, the trunk or hood, or
unlocks the vehicle using an
inside lock button.
●The battery is recharged or
replaced when the vehicle is
locked. ( P.373)
Alarm sta-
tusHorn
Multi-infor-
mation dis-
play
Deacti-
vatedSounds
twice“AL OFF”
ActivatedSounds
once“AL ON”
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.

821-4. Theft deterrent system

83
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
.2-1. Instrument cluster
Warning lights and indica-tors ............................... 84
Gauges and meters ....... 88
Multi-information display ..................................... 93

842-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
Warning lights inform the driver
of malfunctions in the indicated
vehicle systems.

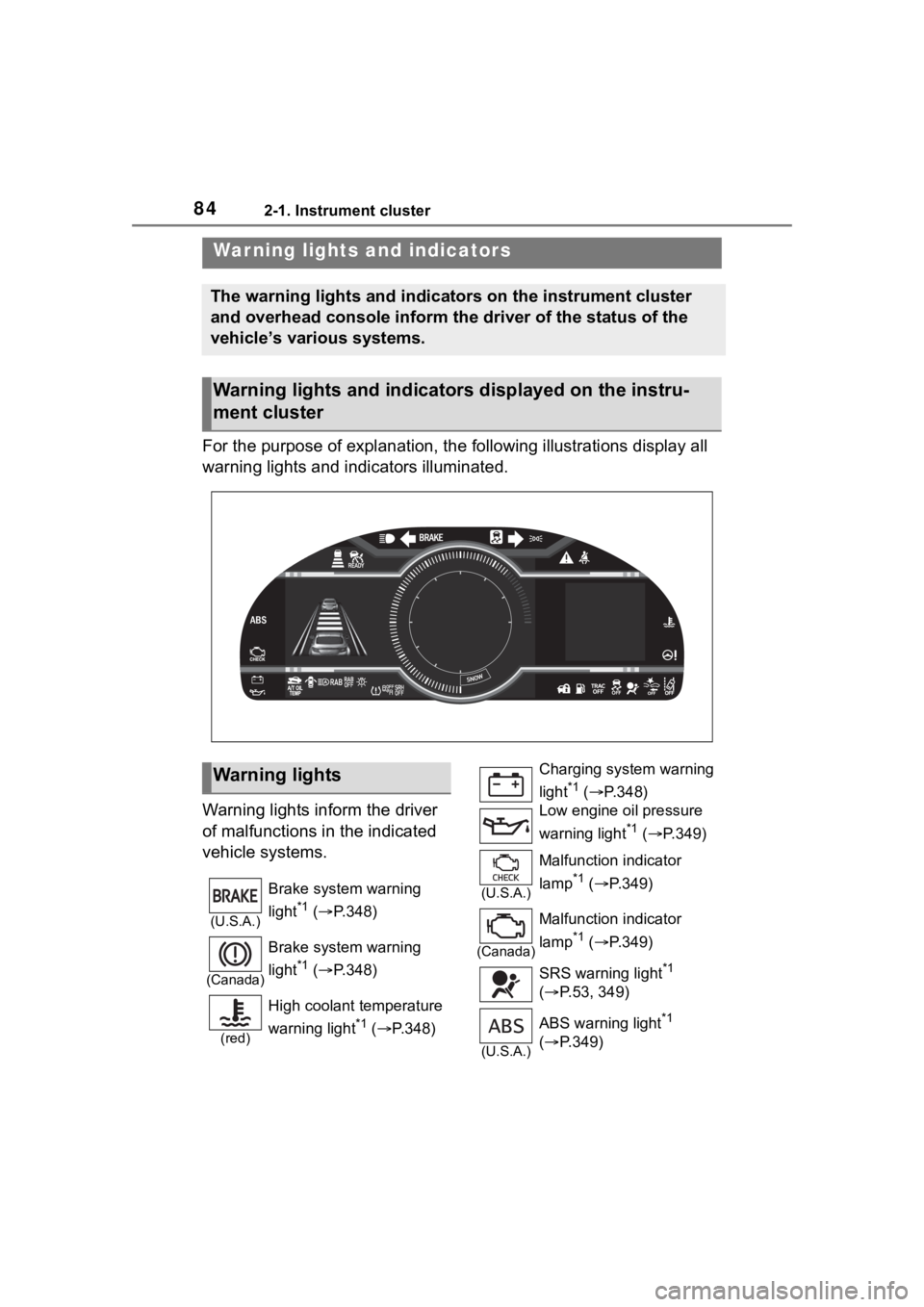

War ning lights and indicators
The warning lights and indicators on the instrument cluster
and overhead console inform the driver of the status of the
vehicle’s various systems.
Warning lights and indicators displayed on the instru-
ment cluster
Warning lights
(U.S.A.)
Brake system warning
light
*1 (  P.348)
(Canada)
Brake system warning
light
*1 ( P.348)
(red)
High coolant temperature
warning light
*1 ( P.348)
Charging system warning
light
*1 ( P.348)
Low engine oil pressure
warning light
*1 (  P.349)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.349)
(Canada)
Malfunction indicator
lamp
*1 ( P.349)
SRS warning light
*1
(  P.53, 349)
(U.S.A.)
ABS warning light*1
(  P.349)

852-1. Instrument cluster
2
Vehicle status information and indicators
*1: These lights turn on when the
engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if a
light does not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*2: The front passenger’s seat belt reminder light is located on the
overhead console.
*3: This light illuminates on the over-head console.

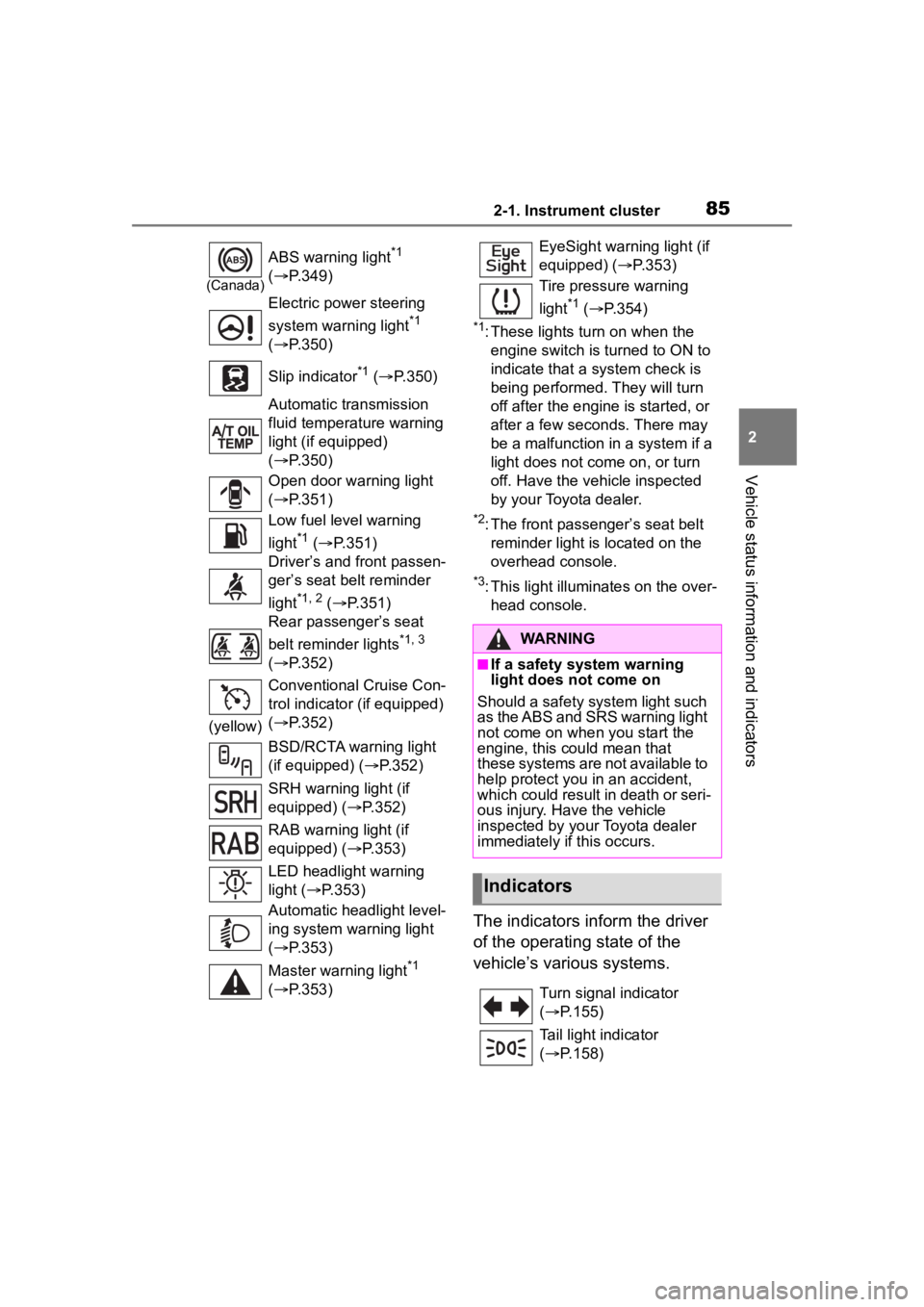

The indicators inform the driver
of the operating state of the
vehicle’s various systems.
(Canada)
ABS warning light*1
(  P.349)
Electric power steering
system warning light
*1
(  P.350)
Slip indicator
*1 (  P.350)
Automatic transmission
fluid temperature warning
light (if equipped)
(  P.350)
Open door warning light
(  P.351)
Low fuel level warning
light
*1 (  P.351)
Driver’s and front passen-
ger’s seat belt reminder
light
*1, 2 (  P.351)
Rear passenger’s seat
belt reminder lights
*1, 3
(  P.352)
(yellow) Conventional Cruise Con-
trol indicator (if equipped)
(
 P.352)
BSD/RCTA warning light
(if equipped) ( P.352)
SRH warning light (if
equipped) ( P.352)
RAB warning light (if
equipped) ( P.353)
LED headlight warning
light ( P.353)
Automatic headlight level-
ing system warning light
(  P.353)
Master warning light
*1
(  P.353)
EyeSight warning light (if
equipped) ( P.353)
Tire pressure warning
light
*1 (  P.354)
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SRS warning light
not come on when you start the
engine, this could mean that
these systems are not available to
help protect you in an accident,
which could result in death or seri-
ous injury. Have the vehicle
inspected by you r Toyota dealer
immediately if this occurs.
Indicators
Turn signal indicator
(  P.155)
Tail light indicator
(  P.158)

862-1. Instrument cluster

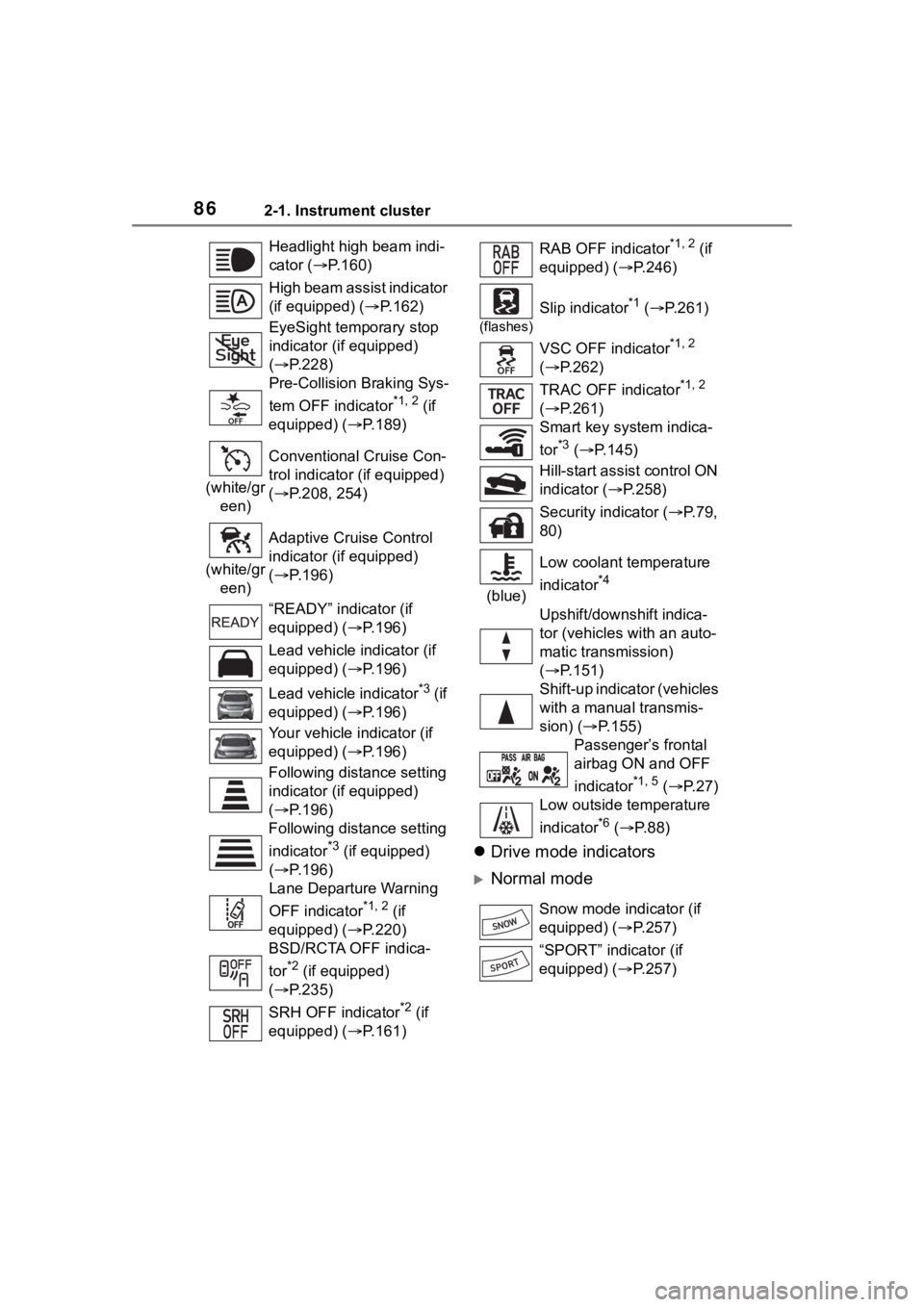

Drive mode indicators
Normal mode
Headlight high beam indi-
cator ( P.160)
High beam assist indicator
(if equipped) ( P.162)
EyeSight temporary stop
indicator (if equipped)
(  P.228)
Pre-Collision Braking Sys-
tem OFF indicator
*1, 2 (if
equipped) ( P.189)
(white/gr een) Conventional Cruise Con-
trol indicator (if equipped)
(
 P.208, 254)
(white/gr een) Adaptive Cru
ise Control
indicator (if equipped)
(  P.196)
“READY” indicator (if
equipped) ( P.196)
Lead vehicle indicator (if
equipped) ( P.196)
Lead vehicle indicator
*3 (if
equipped) ( P.196)
Your vehicle indicator (if
equipped) ( P.196)
Following distance setting
indicator (if equipped)
(  P.196)
Following distance setting
indicator
*3 (if equipped)
(  P.196)
Lane Departure Warning
OFF indicator
*1, 2 (if
equipped) ( P.220)
BSD/RCTA OFF indica-
tor
*2 (if equipped)
(  P.235)
SRH OFF indicator
*2 (if
equipped) ( P.161)
RAB OFF indicator*1, 2 (if
equipped) ( P.246)
(flashes)
Slip indicator*1 ( P.261)
VSC OFF indicator
*1, 2
(  P.262)
TRAC OFF indicator
*1, 2
(  P.261)
Smart key system indica-
tor
*3 (  P.145)
Hill-start assist control ON
indicator ( P.258)
Security indicator ( P. 7 9 ,
80)
(blue) Low coolant temperature
indicator
*4
Upshift/downshift indica-
tor (vehicles with an auto-
matic transmission)
(
 P.151)
Shift-up indicator (vehicles
with a manual transmis-
sion) ( P.155)
Passenger’s frontal
airbag ON and OFF
indicator
*1, 5 (  P. 2 7 )
Low outside temperature
indicator
*6 (  P. 8 8 )
Snow mode indicator (if
equipped) ( P.257)
“SPORT” indicator (if
equipped) ( P.257)

872-1. Instrument cluster
2
Vehicle status information and indicators

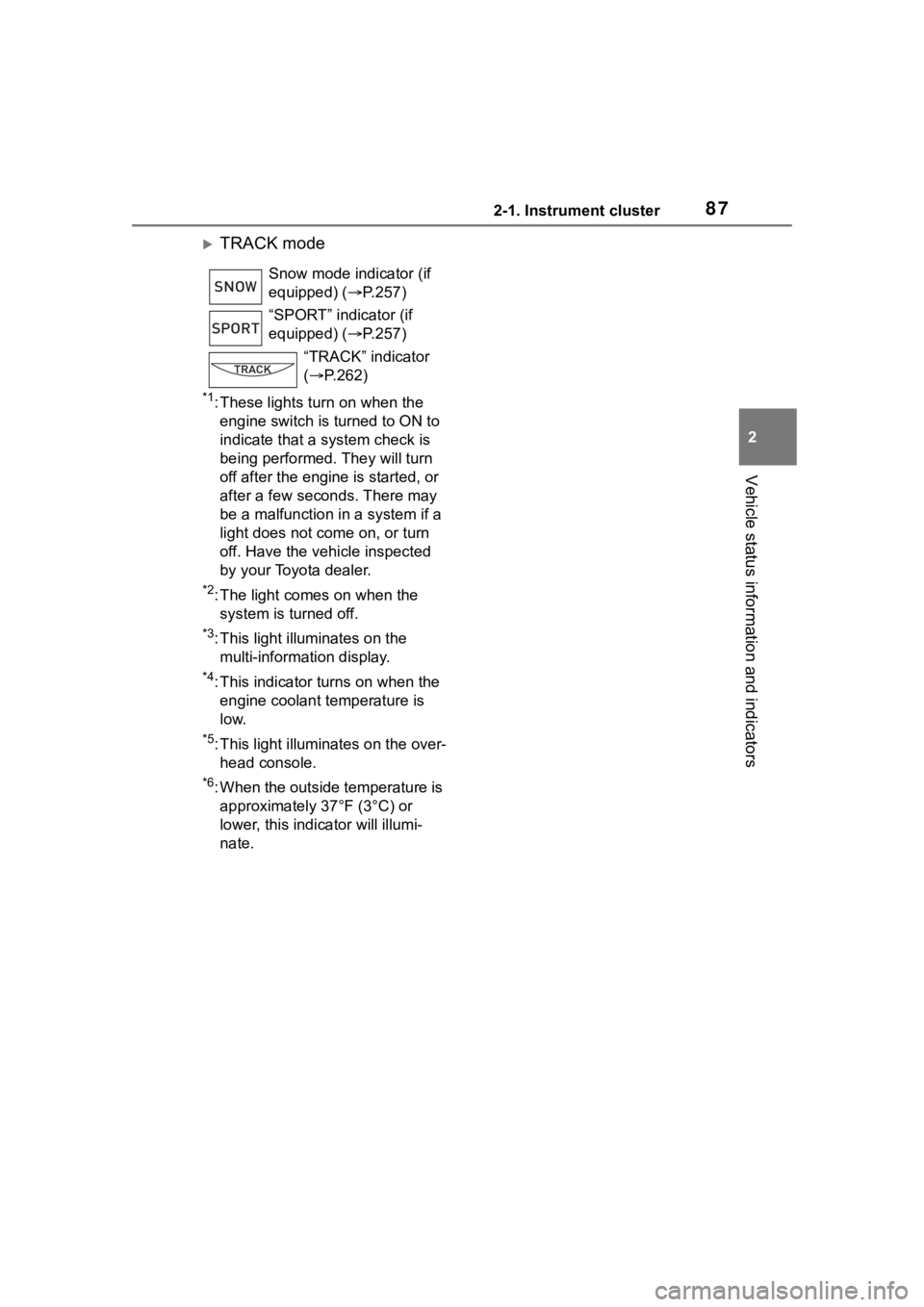

TRACK mode
*1: These lights turn on when the engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if a
light does not co me on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*2: The light comes on when the system is turned off.
*3: This light illuminates on the multi-information display.
*4: This indicator turns on when the engine coolant temperature is
low.
*5: This light illuminates on the over-head console.
*6: When the outside temperature is approximately 37°F (3°C) or
lower, this indicator will illumi-
nate. Snow mode indicator (if
equipped) (
P.257)
“SPORT” indicator (if
equipped) ( P.257)
“TRACK” indicator
(  P.262)
SNOW
SPORT

882-1. Instrument cluster

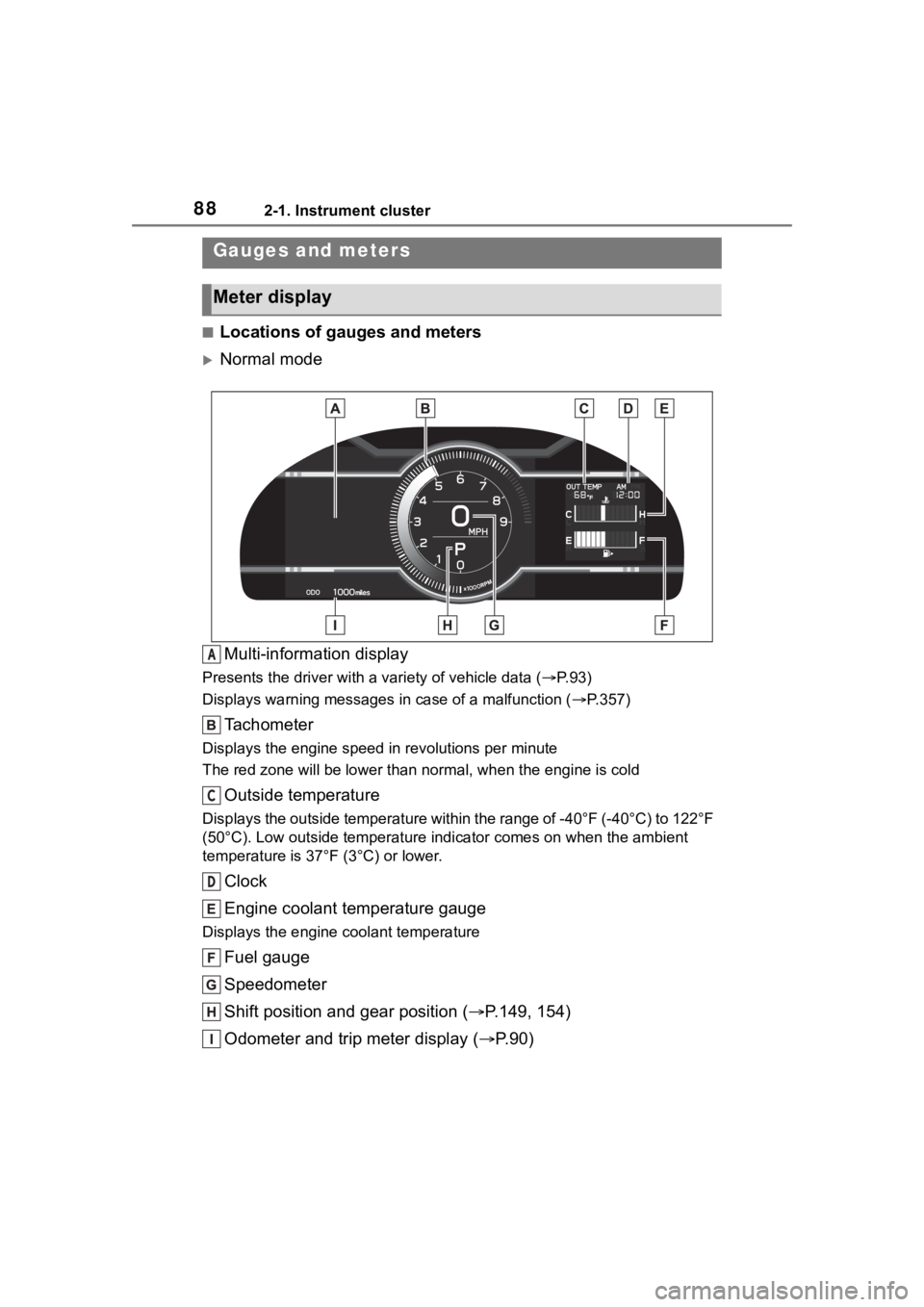

■Locations of gauges and meters
Normal modeMulti-information display
Presents the driver with a variety of vehicle data (P.93)
Displays warning messages in case of a malfunction (P.357)
Tachometer
Displays the engine speed in revolutions per minute
The red zone will be lower than n ormal, when the engine is cold
Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to 122°F
(50°C). Low outside temperature indicator comes on when the amb ient
temperature is 37°F (3°C) or lower.
Clock
Engine coolant temperature gauge
Displays the engine c oolant temperature
Fuel gauge
Speedometer
Shift position and gear position ( P.149, 154)
Odometer and trip meter display ( P.90)
Gauges and meters
Meter display
A
C
D

892-1. Instrument cluster
2
Vehicle status information and indicators

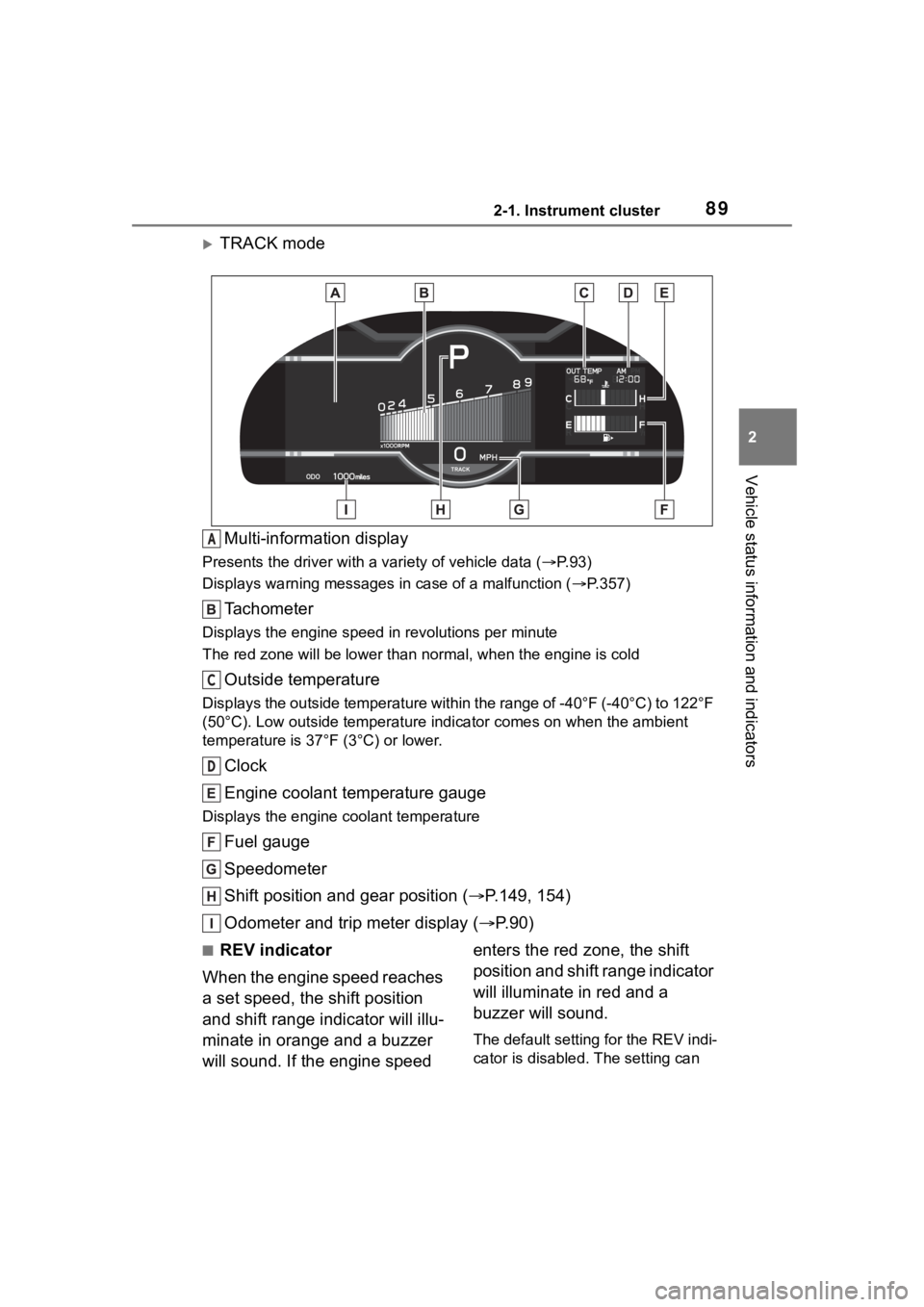

TRACK modeMulti-information display
Presents the driver with a variety of vehicle data (P.93)
Displays warning messages in case of a malfunction (P.357)
Tachometer
Displays the engine speed in revolutions per minute
The red zone will be lower than n ormal, when the engine is cold
Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to 122°F
(50°C). Low outside temperature indicator comes on when the amb ient
temperature is 37°F (3°C) or lower.
Clock
Engine coolant temperature gauge
Displays the engine c oolant temperature
Fuel gauge
Speedometer
Shift position and gear position ( P.149, 154)
Odometer and trip meter display ( P.90)

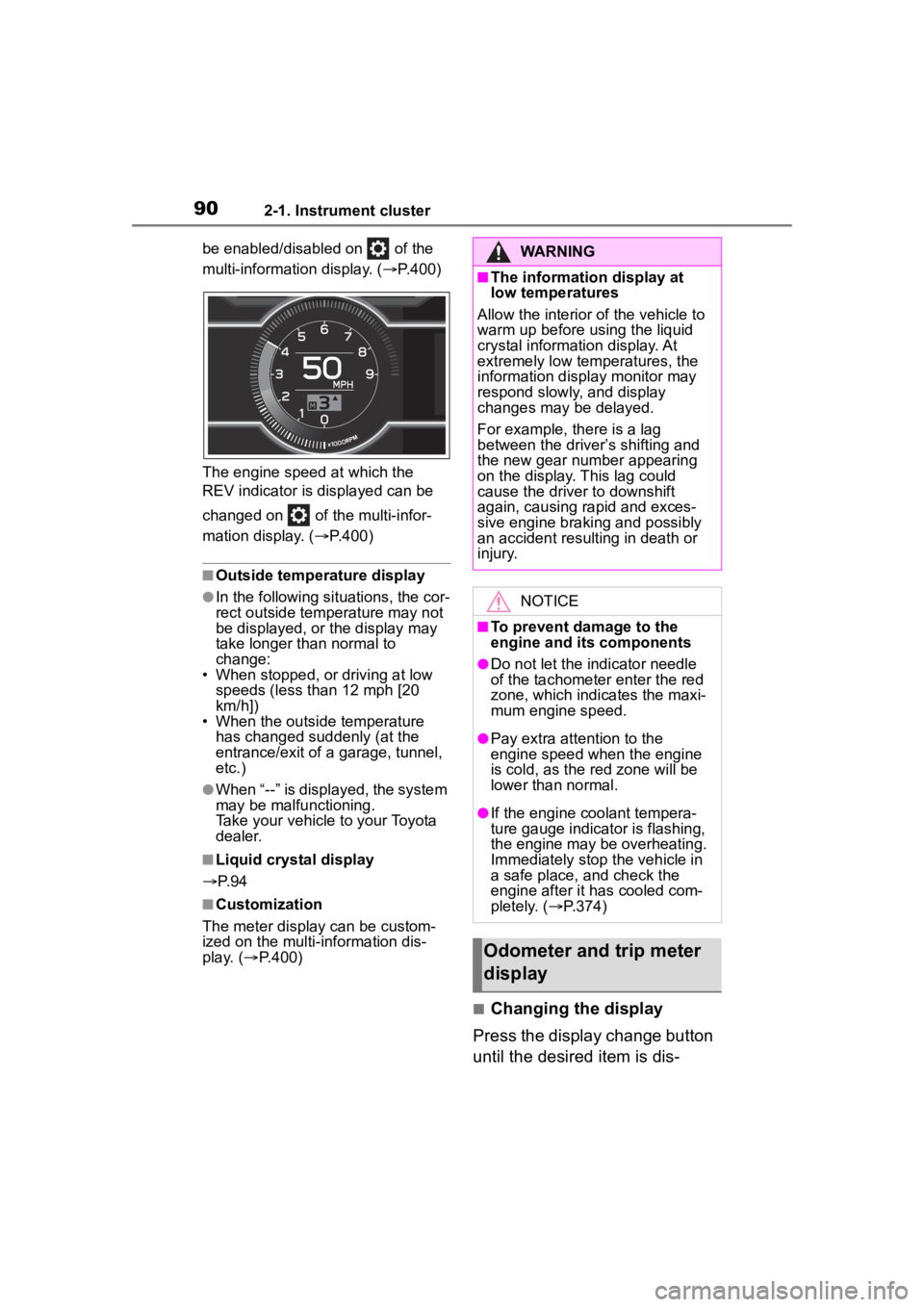

■REV indicator
When the engine speed reaches
a set speed, the shift position
and shift range indicator will illu-
minate in orange and a buzzer
will sound. If the engine speed enters the red zone, the shift
position and shift range indicator
will illuminate in red and a
buzzer will sound.
The default setting for the REV indi-
cator is disabled. The setting can
A
C
D

902-1. Instrument cluster
be enabled/disabled on of the
multi-information display. (P.400)
The engine speed at which the
REV indicator is d isplayed can be
changed on of the multi-infor-
mation display. ( P.400)
■Outside temperature display
●In the following si tuations, the cor-
rect outside tempe rature may not
be displayed, or the display may
take longer than normal to
change:
• When stopped, or driving at low speeds (less than 12 mph [20
km/h])
• When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)
●When “--” is displayed, the system
may be malfunctioning.
Take your vehicle to your Toyota
dealer.
■Liquid crystal display
 P. 9 4
■Customization
The meter display can be custom-
ized on the multi-information dis-
play. ( P.400)
■Changing the display
Press the display change button
until the desired item is dis-
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before using the liquid
crystal information display. At
extremely low temperatures, the
information disp lay monitor may
respond slowly, and display
changes may be delayed.
For example, there is a lag
between the driver’s shifting and
the new gear number appearing
on the display. This lag could
cause the driver to downshift
again, causing rapid and exces-
sive engine braking and possibly
an accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
●Do not let the indicator needle
of the tachometer enter the red
zone, which indicates the maxi-
mum engine speed.
●Pay extra attention to the
engine speed when the engine
is cold, as the red zone will be
lower than normal.
●If the engine coolant tempera-
ture gauge indicator is flashing,
the engine may be overheating.
Immediately stop the vehicle in
a safe place, and check the
engine after it has cooled com-
pletely. ( P.374)
Odometer and trip meter
display
