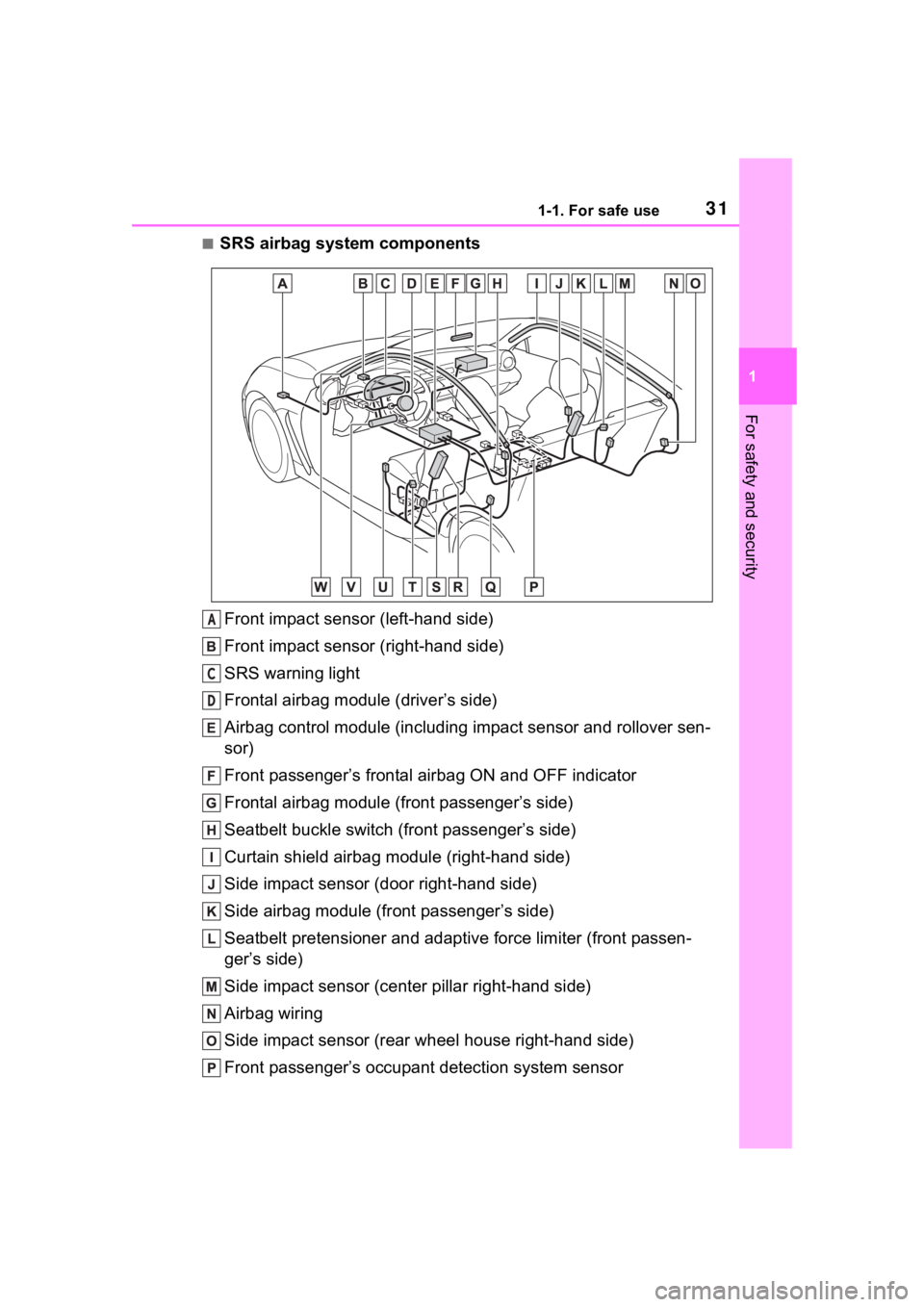

■SRS airbag system componentsFront impact sensor (left-hand side)
Front impact sensor (right-hand side)
SRS warning light
Frontal airbag module (driver’s side)
Airbag control module (including impact sensor and rollover sen-
sor)
Front passenger’s frontal airbag ON and OFF indicator
Frontal airbag module (front passenger’s side)
Seatbelt buckle switch (front passenger’s side)
Curtain shield airbag module (right-hand side)
Side impact sensor (door right-hand side)
Side airbag module (fr ont passenger’s side)
Seatbelt pretensioner and adaptive force limiter (front passen-
ger’s side)
Side impact sensor (center pillar right-hand side)
Airbag wiring
Side impact sensor (rear wheel house right-hand side)
Front passenger’s occupant detection system sensor
A
C
D

321-1. For safe use
Side impact sensor (rear wheel house left-hand side)
Side airbag module (driver’s side)
Side impact sensor (center pillar left-hand side)
Seatbelt pretensioner (driver’s side)
Side impact sensor (door left-hand side)
Knee airbag module (driver’s side)
Curtain shield airbag module (left-hand side)
■If the SRS airbag deploys
If the SRS airbag deploys, fuel sup-
ply will be cut off to reduce the risk
of fire caused by leaking fuel. For
details about restarting of the
engine, refer to P.347.
■SRS Airbag System Servicing
In the following cases, contact your
Toyota dealer as soon as possible.
●The front part of the vehicle was
involved in an accident in which
only the driver’s SRS frontal air-
bag or both driver’s and front pas-
senger’s SRS frontal airbags did
not deploy.
●The pad of the steering wheel, the
cover over the front passenger’s
SRS frontal airbag, or either roof
side (from the front pillar to a point
over the rear seat) is scratched,
cracked, or otherwise damaged.
●The center pillar, door, rear wheel
house or rear sub frame, or an
area near these parts, was
involved in an accident in which
the SRS side air bag and SRS cur-
tain shield airbag did not deploy.
●The fabric or leather of either front
seatback is cut, frayed, or other-
wise damaged.
●The rear part of the vehicle was
involved in an accident in which
no SRS airbag was deployed.
■When you sell your vehicle
When you sell your vehicle, we urge
you to inform the buyer that the vehicle is equipped with SRS air-
bags. Also, notify the buyer of the
applicable section in this Owner’s
Manual.
WARNING
■General Precautions regard-
ing SRS Airbag System
●To obtain maximum protection
in the event of an accident, the
driver and all passengers must
always wear seatbelts when in
the vehicle. The SRS airbag is
designed only to be a supple-
ment to the primary protection
provided by the seatbelt. It does
not eliminate the need to fasten
seatbelts. In combination with
the seatbelts, it offers the best
protection in case of a serious
accident.
Not wearing a seat belt increases
the chance of severe injury or
death in a crash even when the
vehicle has the SRS airbag.
For instructions and precautions
concerning the seatbelt system,
refer to P.25.

331-1. For safe use

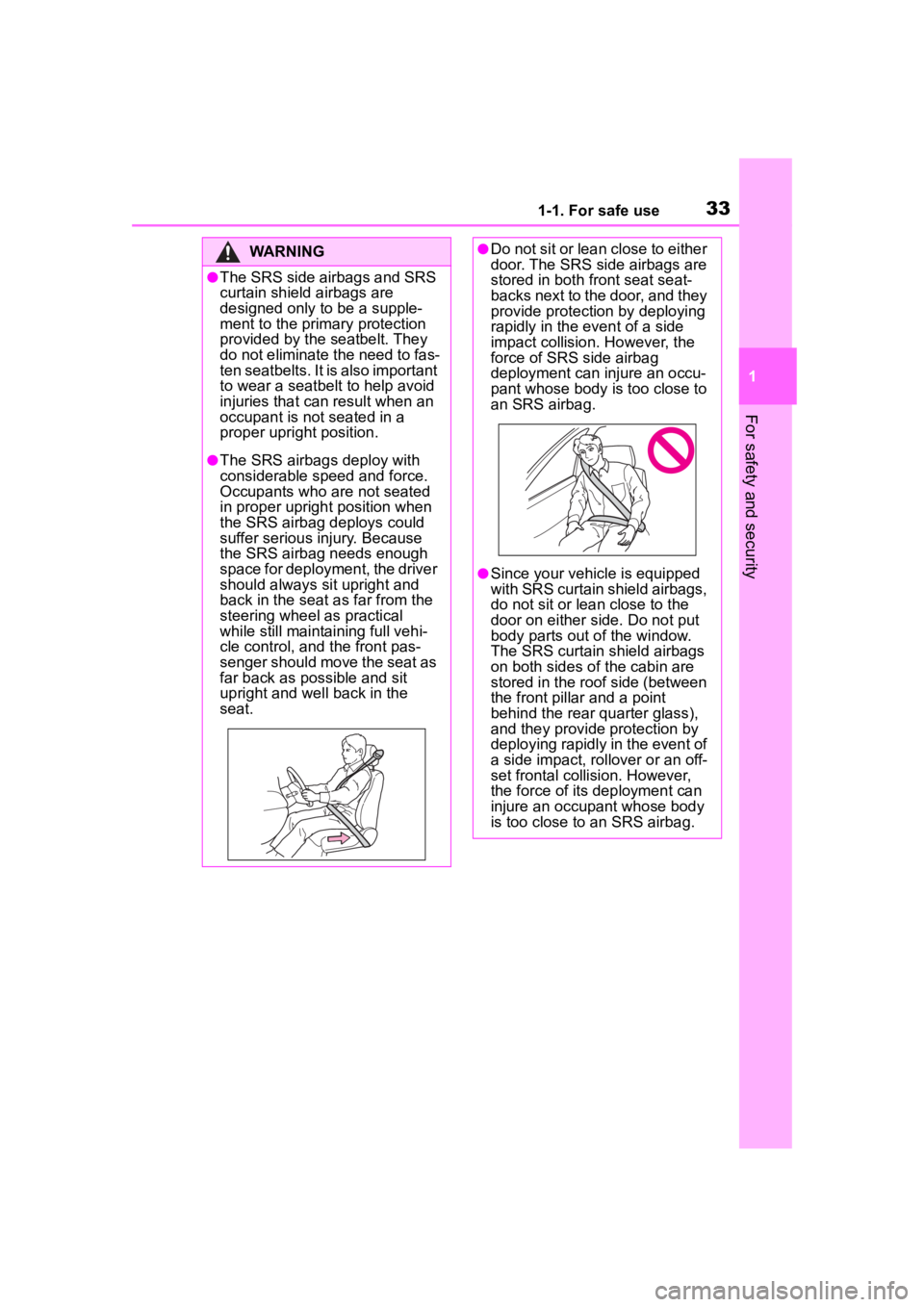

1
For safety and security
WARNING
●The SRS side airbags and SRS
curtain shield airbags are
designed only to be a supple-
ment to the primary protection
provided by the seatbelt. They
do not eliminate the need to fas-
ten seatbelts. It is also important
to wear a seatbelt to help avoid
injuries that can result when an
occupant is not seated in a
proper upright position.
●The SRS airbags deploy with
considerable speed and force.
Occupants who are not seated
in proper upright position when
the SRS airbag deploys could
suffer serious injury. Because
the SRS airbag needs enough
space for deployment, the driver
should always sit upright and
back in the seat a s far from the
steering wheel as practical
while still maintaining full vehi-
cle control, and the front pas-
senger should move the seat as
far back as possible and sit
upright and we ll back in the
seat.
●Do not sit or lean close to either
door. The SRS side airbags are
stored in both front seat seat-
backs next to the door, and they
provide protection by deploying
rapidly in the event of a side
impact collision. However, the
force of SRS side airbag
deployment can injure an occu-
pant whose body is too close to
an SRS airbag.
●Since your vehicle is equipped
with SRS curtain shield airbags,
do not sit or lean close to the
door on either side. Do not put
body parts out of the window.
The SRS curtain shield airbags
on both sides of the cabin are
stored in the roof side (between
the front pilla r and a point
behind the rear quarter glass),
and they provide protection by
deploying rapidly in the event of
a side impact, rollover or an off-
set frontal collision. However,
the force of its deployment can
injure an occupant whose body
is too close to an SRS airbag.

341-1. For safe use

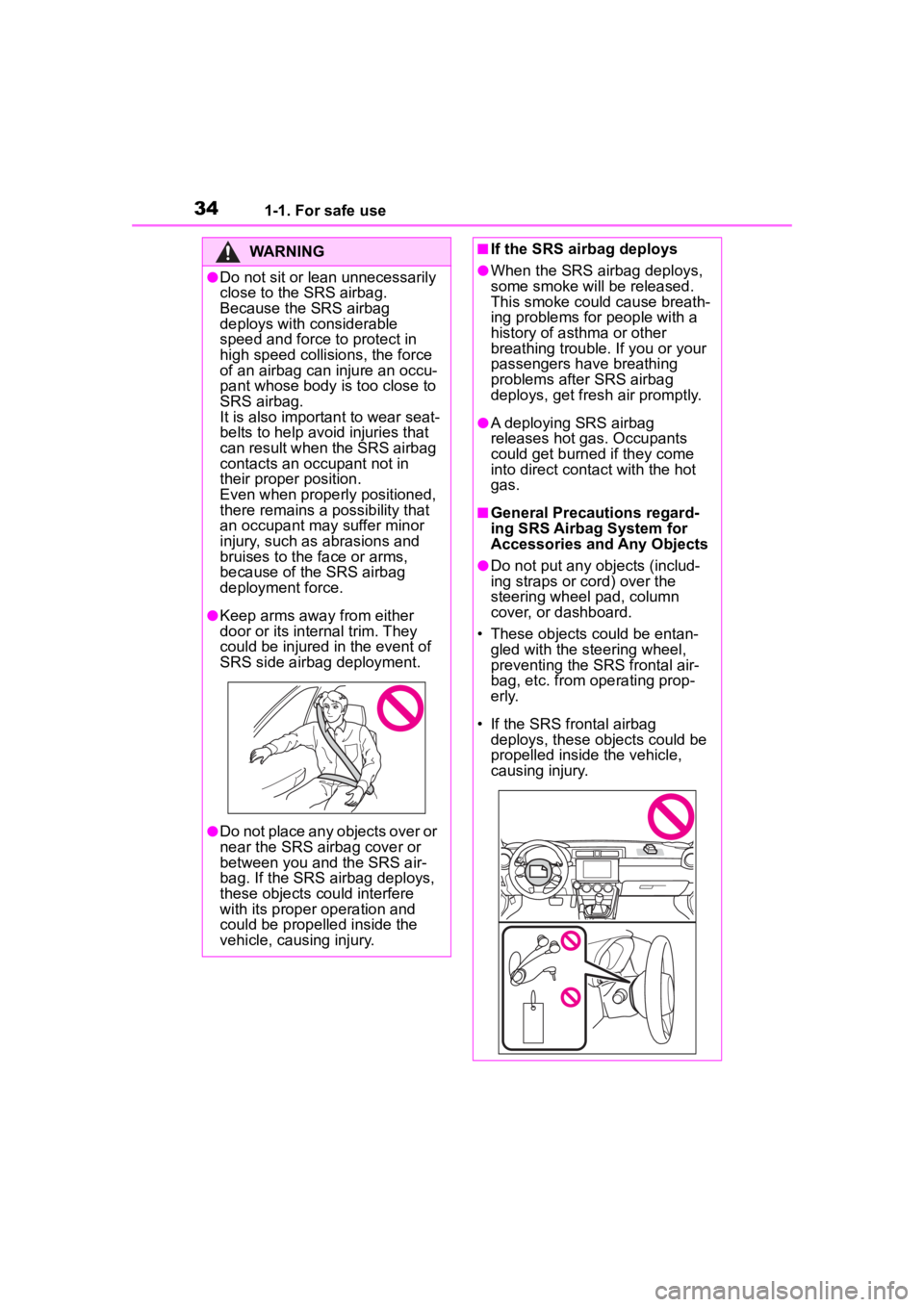

WARNING
●Do not sit or lean unnecessarily
close to the SRS airbag.
Because the SRS airbag
deploys with considerable
speed and force to protect in
high speed collisions, the force
of an airbag can injure an occu-
pant whose body is too close to
SRS airbag.
It is also important to wear seat-
belts to help avoid injuries that
can result when the SRS airbag
contacts an occupant not in
their proper position.
Even when properly positioned,
there remains a possibility that
an occupant may suffer minor
injury, such as abrasions and
bruises to the face or arms,
because of the SRS airbag
deployment force.
●Keep arms away from either
door or its internal trim. They
could be injured in the event of
SRS side airbag deployment.
●Do not place any objects over or
near the SRS airbag cover or
between you and the SRS air-
bag. If the SRS airbag deploys,
these objects could interfere
with its proper operation and
could be propelled inside the
vehicle, causing injury.
■If the SRS airbag deploys
●When the SRS airbag deploys,
some smoke will be released.
This smoke could cause breath-
ing problems for people with a
history of asthma or other
breathing trouble. If you or your
passengers have breathing
problems after SRS airbag
deploys, get fresh air promptly.
●A deploying SRS airbag
releases hot gas. Occupants
could get burned if they come
into direct contact with the hot
gas.
■General Precautions regard-
ing SRS Airbag System for
Accessories and Any Objects
●Do not put any objects (includ-
ing straps or cord) over the
steering wheel pad, column
cover, or dashboard.
• These objects could be entan- gled with the steering wheel,
preventing the SRS frontal air-
bag, etc. from operating prop-
erly.
• If the SRS frontal airbag deploys, these objects could be
propelled inside the vehicle,
causing injury.

351-1. For safe use

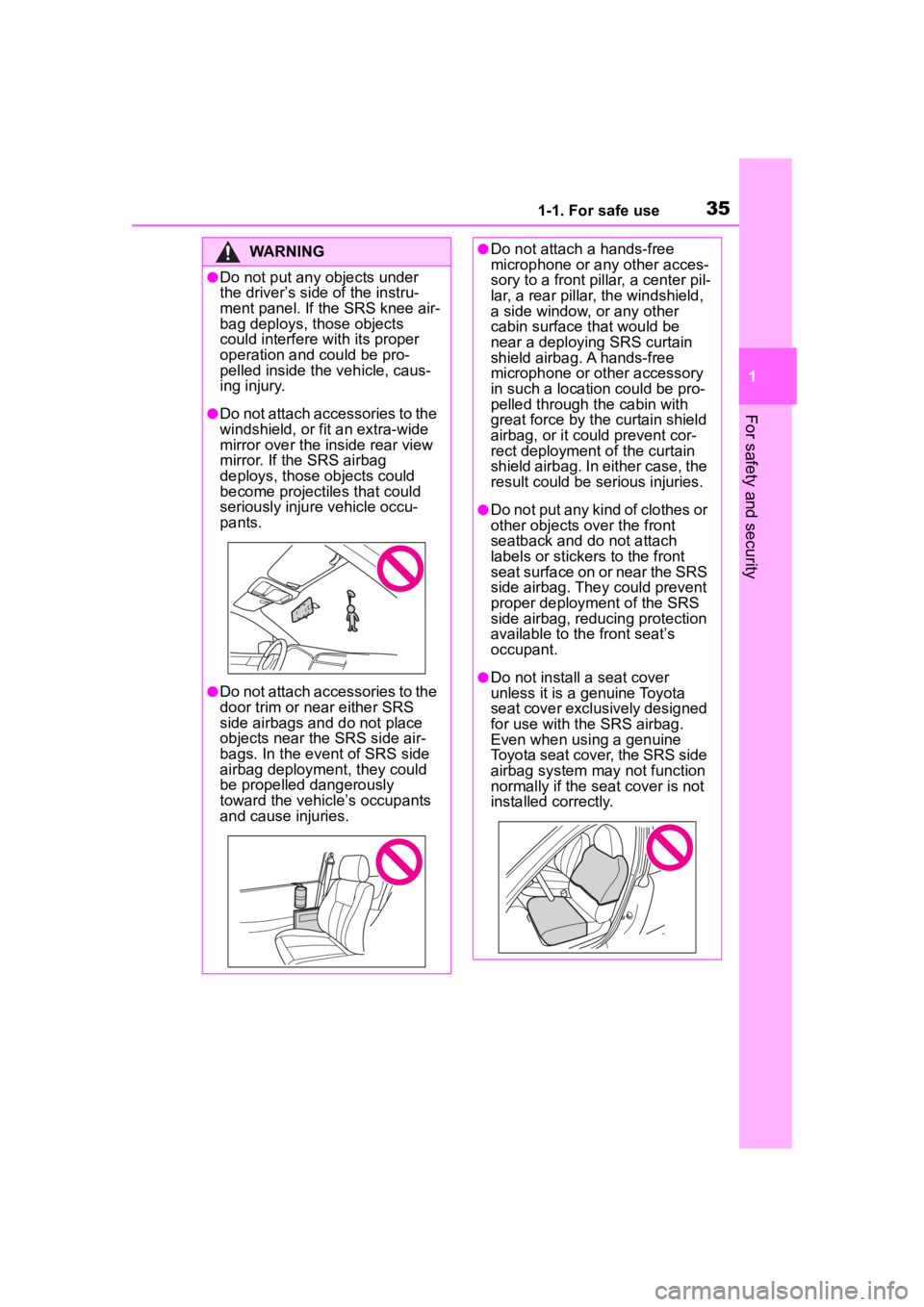

1
For safety and security
WARNING
●Do not put any objects under
the driver’s side of the instru-
ment panel. If the SRS knee air-
bag deploys, those objects
could interfere with its proper
operation and could be pro-
pelled inside the vehicle, caus-
ing injury.
●Do not attach accessories to the
windshield, or fit an extra-wide
mirror over the inside rear view
mirror. If the SRS airbag
deploys, those objects could
become projectile s that could
seriously injure vehicle occu-
pants.
●Do not attach accessories to the
door trim or near either SRS
side airbags and do not place
objects near the SRS side air-
bags. In the event of SRS side
airbag deployment, they could
be propelled dangerously
toward the vehicle’s occupants
and cause injuries.
●Do not attach a hands-free
microphone or any other acces-
sory to a front pillar, a center pil-
lar, a rear pillar, the windshield,
a side window, or any other
cabin surface that would be
near a deploying SRS curtain
shield airbag. A hands-free
microphone or other accessory
in such a location could be pro-
pelled through the cabin with
great force by the curtain shield
airbag, or it could prevent cor-
rect deployment o f the curtain
shield airbag. In either case, the
result could be serious injuries.
●Do not put any kind of clothes or
other objects over the front
seatback and do not attach
labels or stickers to the front
seat surface on or near the SRS
side airbag. They could prevent
proper deployment of the SRS
side airbag, reducing protection
available to th e front seat’s
occupant.
●Do not install a seat cover
unless it is a genuine Toyota
seat cover exclusively designed
for use with the SRS airbag.
Even when using a genuine
Toyota seat cover, the SRS side
airbag system may not function
normally if the seat cover is not
installed correctly.

361-1. For safe use
WARNING
■General Precautions regard-
ing SRS Airbag System and
Children
●Place children in the rear seat
properly restrained at all times.
The SRS airbag deploys with
considerable speed and force
and can injure or even kill chil-
dren, especially if they are not
restrained or improperly
restrained. Because children
are lighter and weaker than
adults, their risk of being injured
from deployment is greater.
For that reason, we strongly
recommend that ALL children
(including those in child restraint
systems) sit in the REAR seat
properly restrained at all times
in a child restraint device or in a
seatbelt, whichever is appropri-
ate for the child’s age, height
and weight.
Secure ALL types of child
restraint systems (including for-
ward facing child restraint sys-
tem) in the REAR seats at all
times.
According to accident statistics,
children are safer when properly
restrained in the rear seating
positions than in the front seat-
ing positions.
For instructions and precautions
concerning the child restraint
system, refer to P.64.
●NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT SEAT. DOING SO
RISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY
PLACING THE CHILD’S HEAD
TOO CLOSE TO THE SRS
AIRBAG.

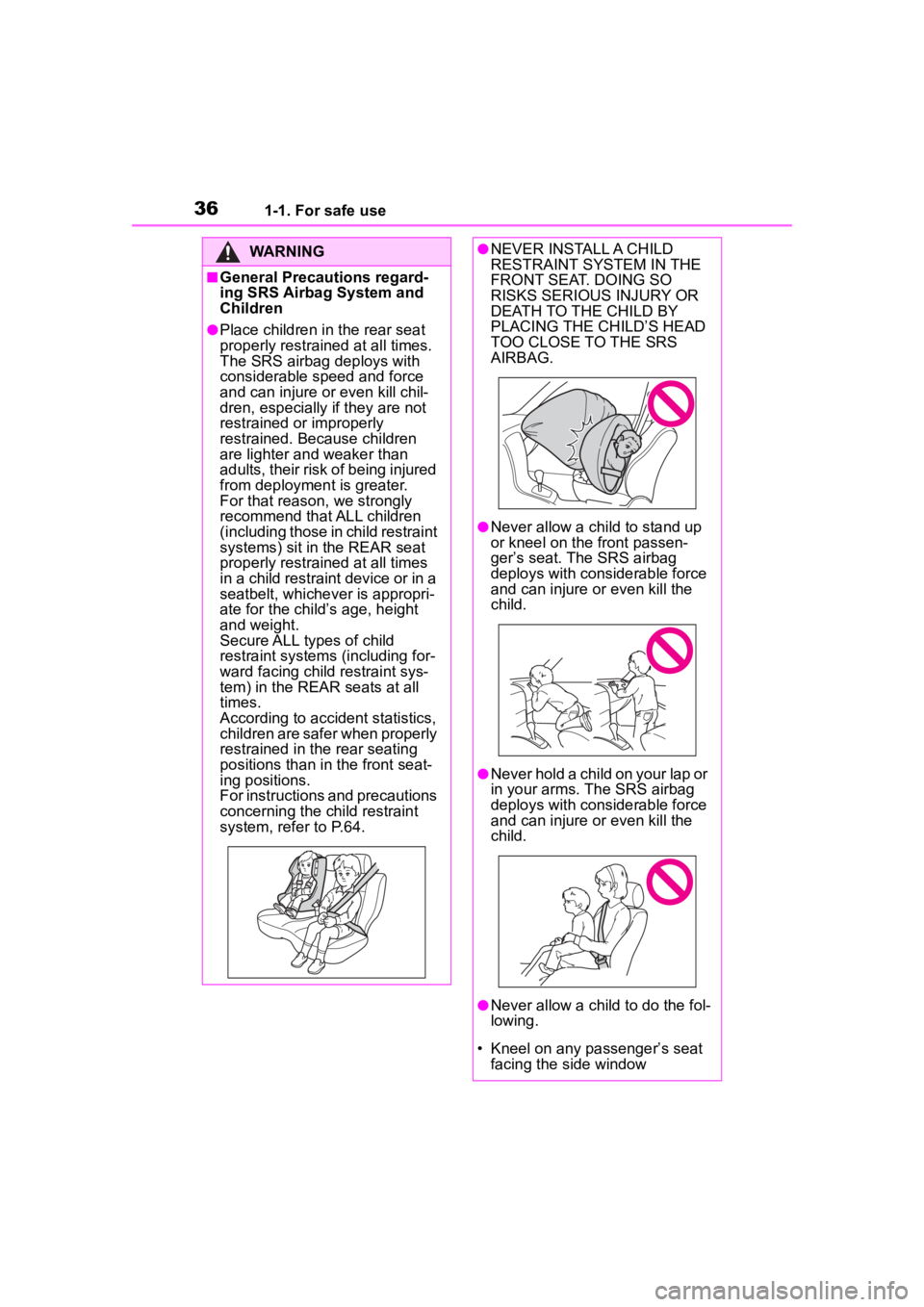

●Never allow a child to stand up
or kneel on the front passen-
ger’s seat. The SRS airbag
deploys with considerable force
and can injure o r even kill the
child.
●Never hold a child on your lap or
in your arms. The SRS airbag
deploys with considerable force
and can injure o r even kill the
child.

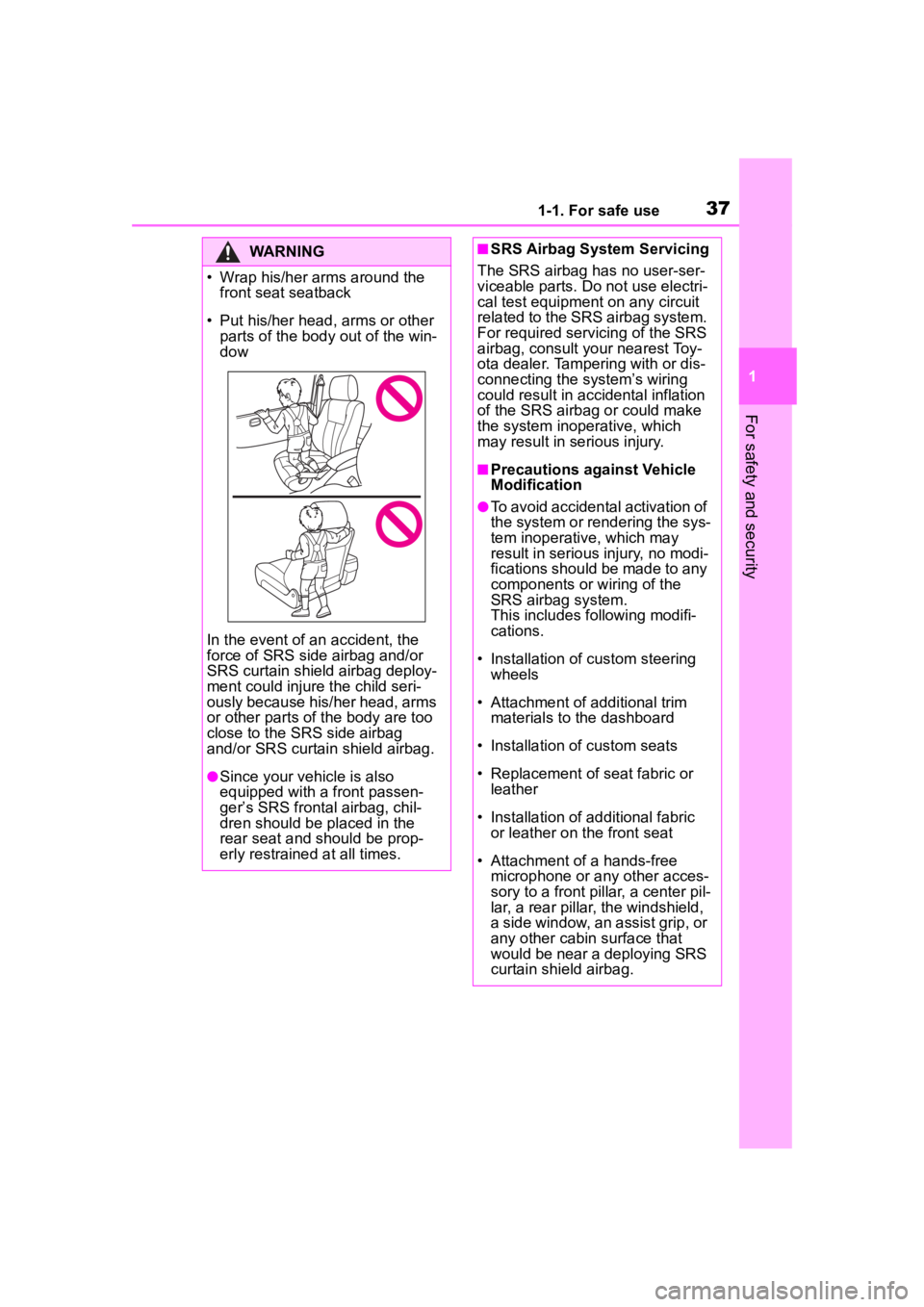

●Never allow a child to do the fol-
lowing.
• Kneel on any passenger’s seat facing the side window

371-1. For safe use
1
For safety and security
WARNING

381-1. For safe use
WARNING
• Installation of additional electri-cal/electronic equipment such
as a mobile two-way radio on or
near the SRS airbag system
components and/or wiring is not
advisable. This could interfere
with proper operation of the
SRS airbag system.
• Modifications on or inside the door panels for the purpose of a
speaker replacement or sound
insulation
●The impact sensors, which
detect the pressure of an
impact, are located in the doors.
Do not modify any components
of the doors or d oor trims, such
as the addition of door speakers
for example. Any modifications
to the doors will create a risk of
the airbag system becoming
inoperative or unintended air-
bag deployment.
●Do not perform any of the fol-
lowing modifications. Such
modifications can interfere with
proper operation of the SRS air-
bag system.
• Attachment of any equipment (bush bar, winches, snow plow,
skid plate, etc.) other than genu-
ine Toyota accessory parts to
the front end.
• Modification of the suspension system or front end structure.
• Installation of a tire of different size and construc tion from the
tires specified on the vehicle
placard attached to the driver’s
center pillar or specified for indi-
vidual vehicle models in this
Owner’s Manual.
• Attachment of any equipment (side steps or side sill protec-
tors, etc.) other than genuine
Toyota accessory parts to the
side body.
Always consult your Toyota dealer
if you want to install any acces-
sory parts on your vehicle.
NOTICE
■SRS Airbag System Servicing
●When discarding an airbag
module or scrapping the entire
vehicle damaged by a collision,
consult your Toyota dealer.
●If you need service or repair in
areas indicated in the following
list, have the work performed by
an authorized Toyota dealer.
The SRS airbag control module,
impact sensors and airbag mod-
ules are stored in these areas.
• Under the center of the instru- ment panel
• On both the right and left sides at the front of the vehicle
• Steering wheel and column and nearby areas
• Bottom of the s teering column
and nearby areas
• Top of the dashboard on front passenger’s side and nearby
areas
• Each front seat and nearby area
• Inside each center pillar
• Inside each door
• In each roof side (from the front
pillar to a point over the rear
seat)

391-1. For safe use
1
For safety and security
This vehicle is equipped with a
Toyota advanced frontal airbag
system that complies with the
advanced frontal airbag require-
ments in the amended Federal
Motor Vehicle Safety Standard
(FMVSS) No. 208.
The Toyota advanced frontal air-
bag system automatically deter-
mines the deployment force of
the driver’s SRS frontal airbag at
the time of deployment as well
as whether or not to activate the
front passenger’s SRS frontal
airbag and, if activated, the
deployment force of the SRS
frontal airbag at the time of
deployment.
Always wear your seatbelt. The
Toyota advanced frontal airbag
system is a supplemental
restraint system and must be
used in combination with a seat-
belt. All occupants should wear
a seatbelt or be seated in an appropriate child restraint sys-
tem.
For the locations of the SRS air-
bags, refer to P.29.
In a moderate to severe frontal
collision, the following compo-
nents deploy.

SRS frontal airbag for driver
 SRS frontal airbag for front
passenger
 SRS curtain shield airbag
*
SRS knee airbag for driver
*: When an offset frontal collision
that is severe enough to deploy
the front airbag occurs.
These components supplement
the seatbelts by reducing the
impact to the occupant’s head,
chest and knees.
■Driver’s SRS frontal airbag
The driver’s SRS frontal airbag
uses a dual stage inflator. The
inflator operates in different
ways depending on the severity
of impact.
■Front passenger’s SRS
frontal airbag
The front passenger’s SRS fron-
tal airbag uses a dual stage
inflator. The inflator operates in
different ways depending on the
severity of impact.

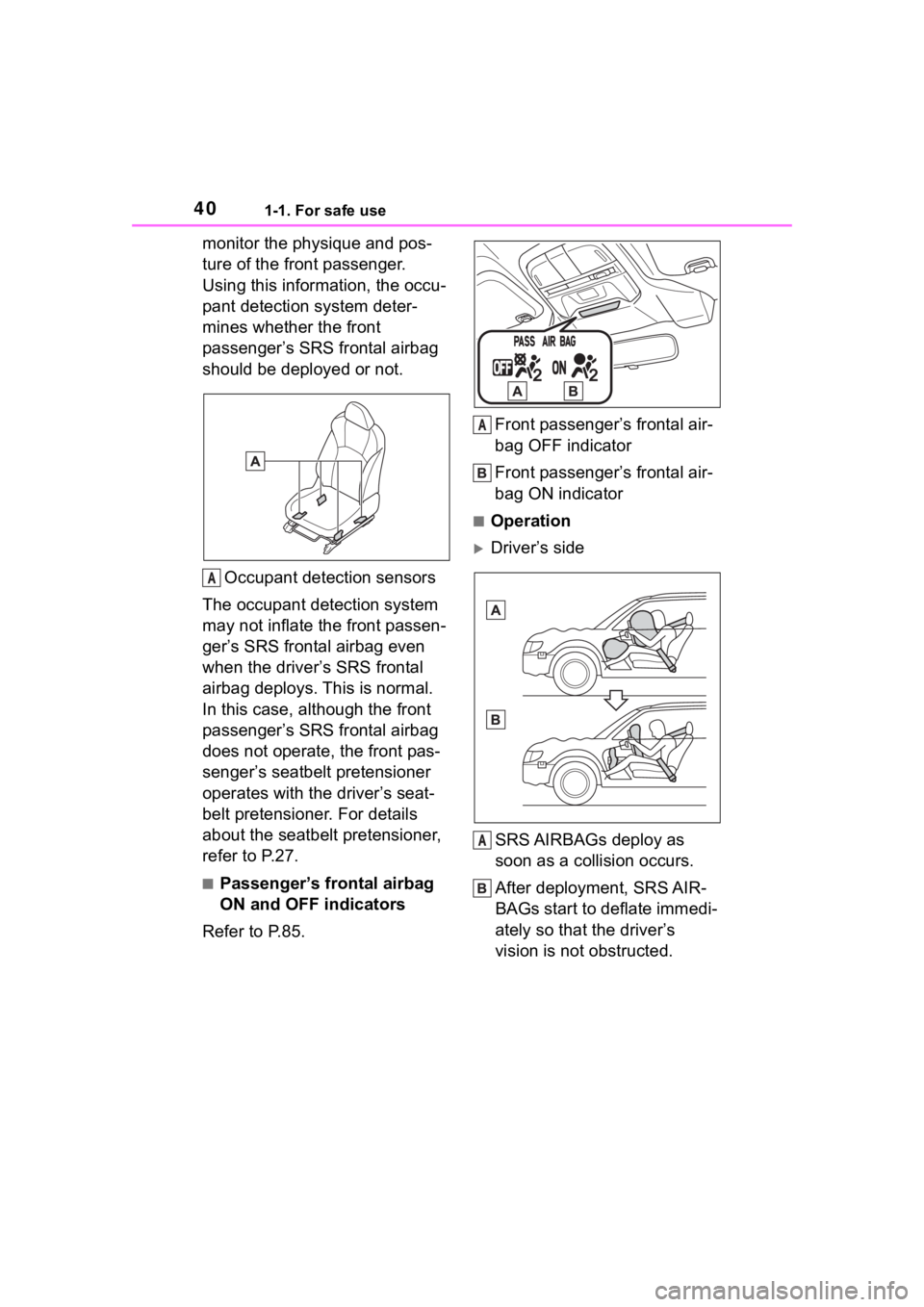

■Occupant detection system
The occupant detection system
sensors are installed between
the seat and seat rails, and
NOTICE
• Between the rear seat cushion and rear wheel house on each
side
●In the event that the SRS airbag
is deployed, replacement of the
system should be performed
only by an auth orized Toyota
dealer. When the components
of the SRS airbag system are
replaced, use only genuine Toy-
ota parts.
Toyota Advanced Frontal
Airbag System

401-1. For safe use
monitor the physique and pos-
ture of the front passenger.
Using this information, the occu-
pant detection system deter-
mines whether the front
passenger’s SRS frontal airbag
should be deployed or not.Occupant detection sensors
The occupant detection system
may not inflate the front passen-
ger’s SRS frontal airbag even
when the driver’s SRS frontal
airbag deploys. This is normal.
In this case, although the front
passenger’s SRS frontal airbag
does not operate, the front pas-
senger’s seatbelt pretensioner
operates with the driver’s seat-
belt pretensioner. For details
about the seatbelt pretensioner,
refer to P.27.
■Passenger’s frontal airbag
ON and OFF indicators
Refer to P.85. Front passenger’s frontal air-
bag OFF indicator
Front passenger’s frontal air-
bag ON indicator
■Operation
Driver’s side
SRS AIRBAGs deploy as
soon as a collision occurs.
After deployment, SRS AIR-
BAGs start to deflate immedi-
ately so that the driver’s
vision is not obstructed.
A
A
A
