TOYOTA AURIS 2011 Owners Manual (in English)

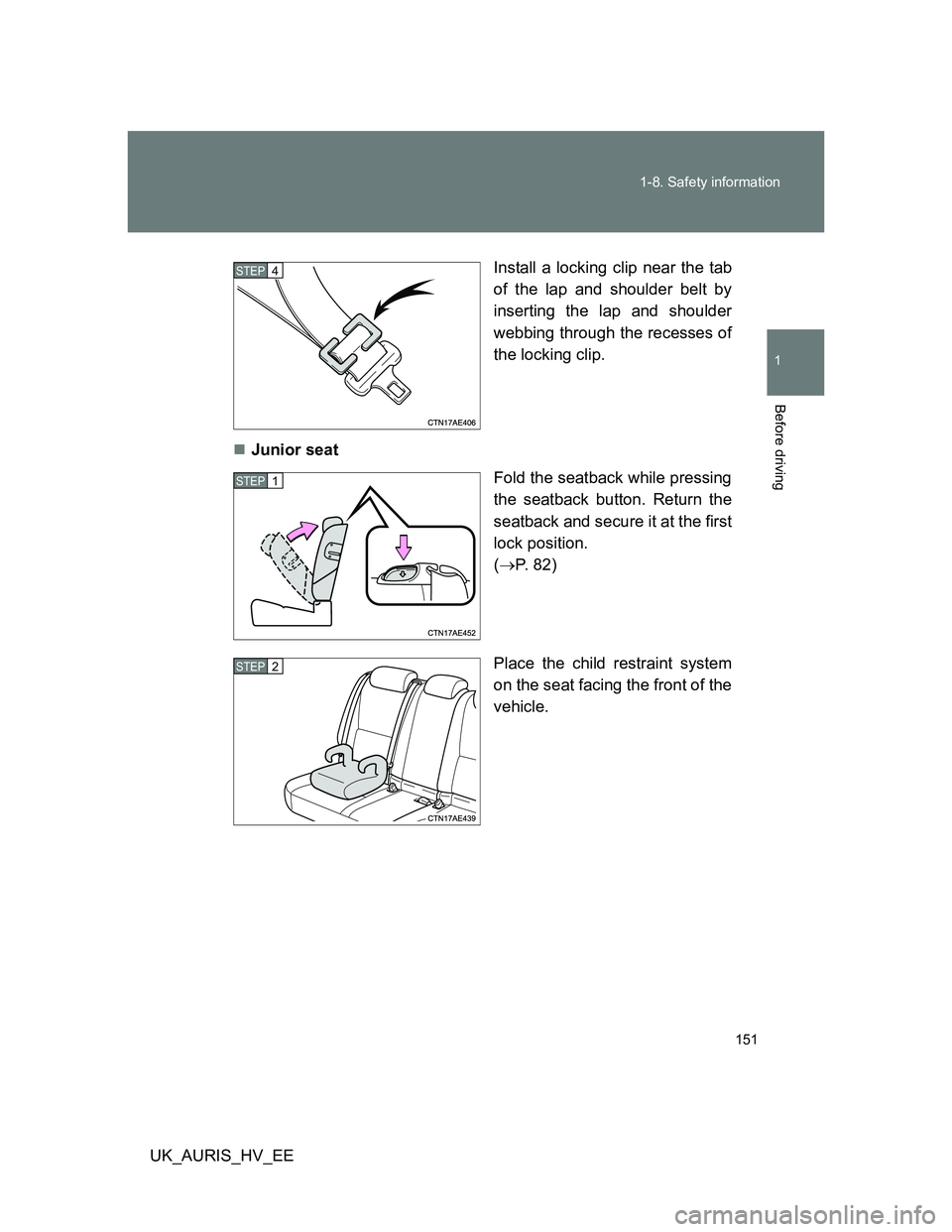

151 1-8. Safety information
1
Before driving
UK_AURIS_HV_EEInstall a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip.
Junior seat
Fold the seatback while pressing
the seatback button. Return the
seatback and secure it at the first
lock position.
(P. 8 2 )
Place the child restraint system
on the seat facing the front of the
vehicle.
STEP4
STEP1
STEP2

152 1-8. Safety information
UK_AURIS_HV_EESit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer's instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child's shoulder, and that the lap
belt is as low as possible.
(P. 85)
Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Fold the seatback while pressing
the seatback button. Return the
seatback and secure it at the first
lock position.
(P. 8 2 )
STEP3
STEP1

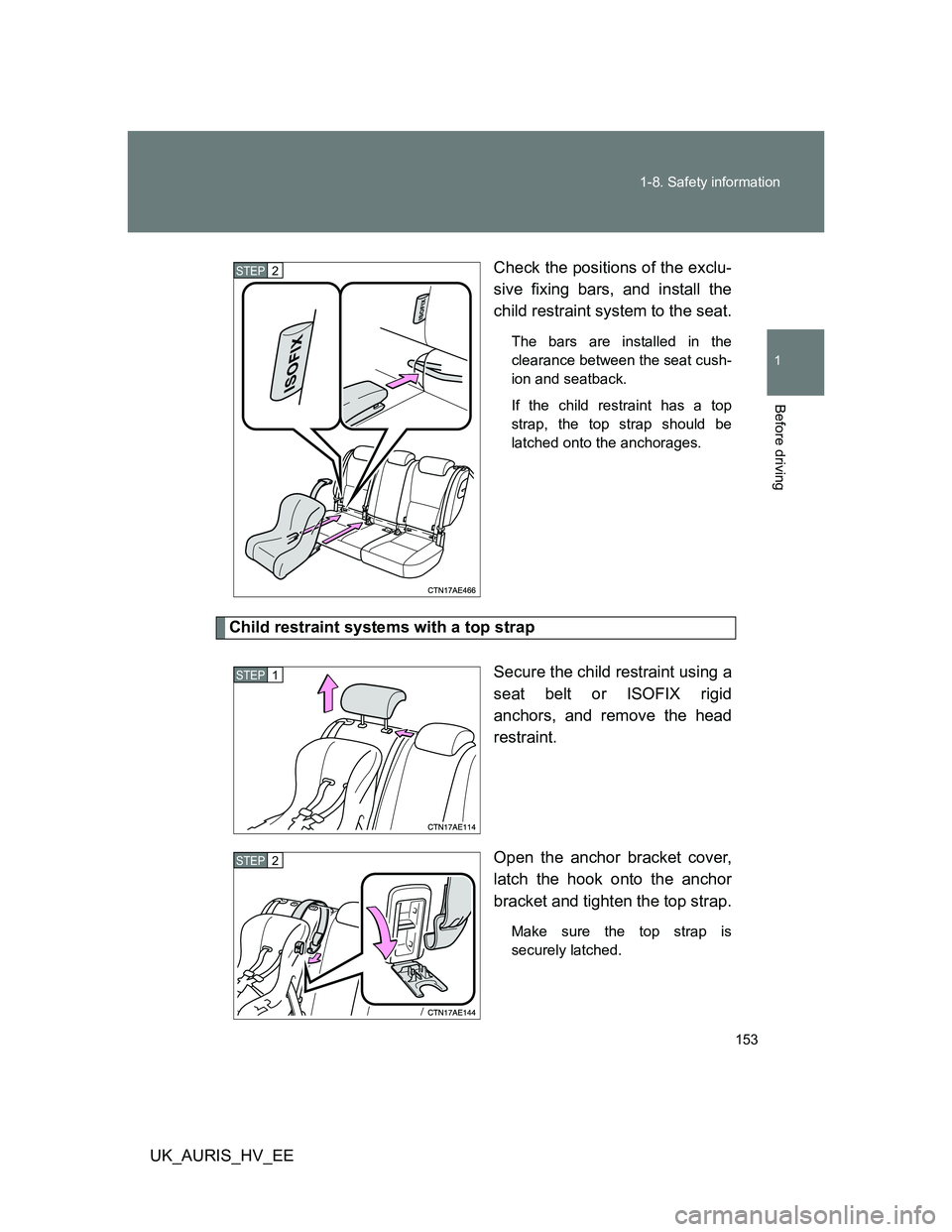

153 1-8. Safety information
1
Before driving
UK_AURIS_HV_EECheck the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
The bars are installed in the
clearance between the seat cush-
ion and seatback.
If the child restraint has a top
strap, the top strap should be
latched onto the anchorages.
Child restraint systems with a top strap
Secure the child restraint using a
seat belt or ISOFIX rigid
anchors, and remove the head
restraint.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
STEP2
STEP1
STEP2

154 1-8. Safety information
UK_AURIS_HV_EEReplace the head restraint.
STEP3
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

155 1-8. Safety information
1
Before driving
UK_AURIS_HV_EE
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
If the driver's seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
When installing a forward facing or
junior child seat on the front passenger
seat, move the seat as far back as pos-
sible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

156 1-8. Safety information
UK_AURIS_HV_EE
CAUTION
When installing a child restraint system
Never install a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
“ON”. (P. 159)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a label on both sides of the
passenger side sun visor, indicating it is
forbidden to attach a rear-facing child
restraint system to the front passenger
seat.
Details of the label on the passenger
side sun visor are shown in the illustra-
tions below. The label includes informa-
tion written in the language of your
country.

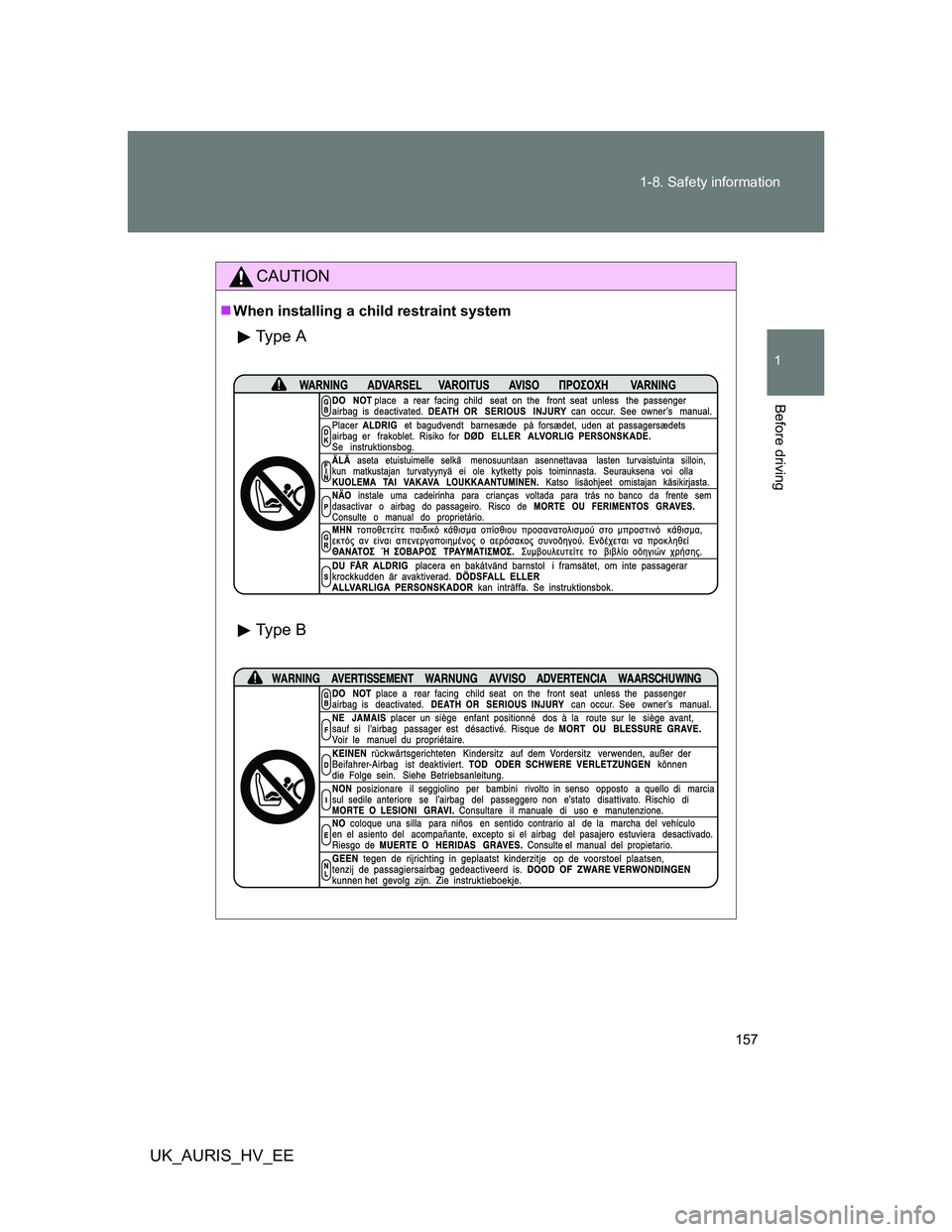

157 1-8. Safety information
1
Before driving
UK_AURIS_HV_EE
CAUTION
When installing a child restraint system
Ty p e A
Ty p e B

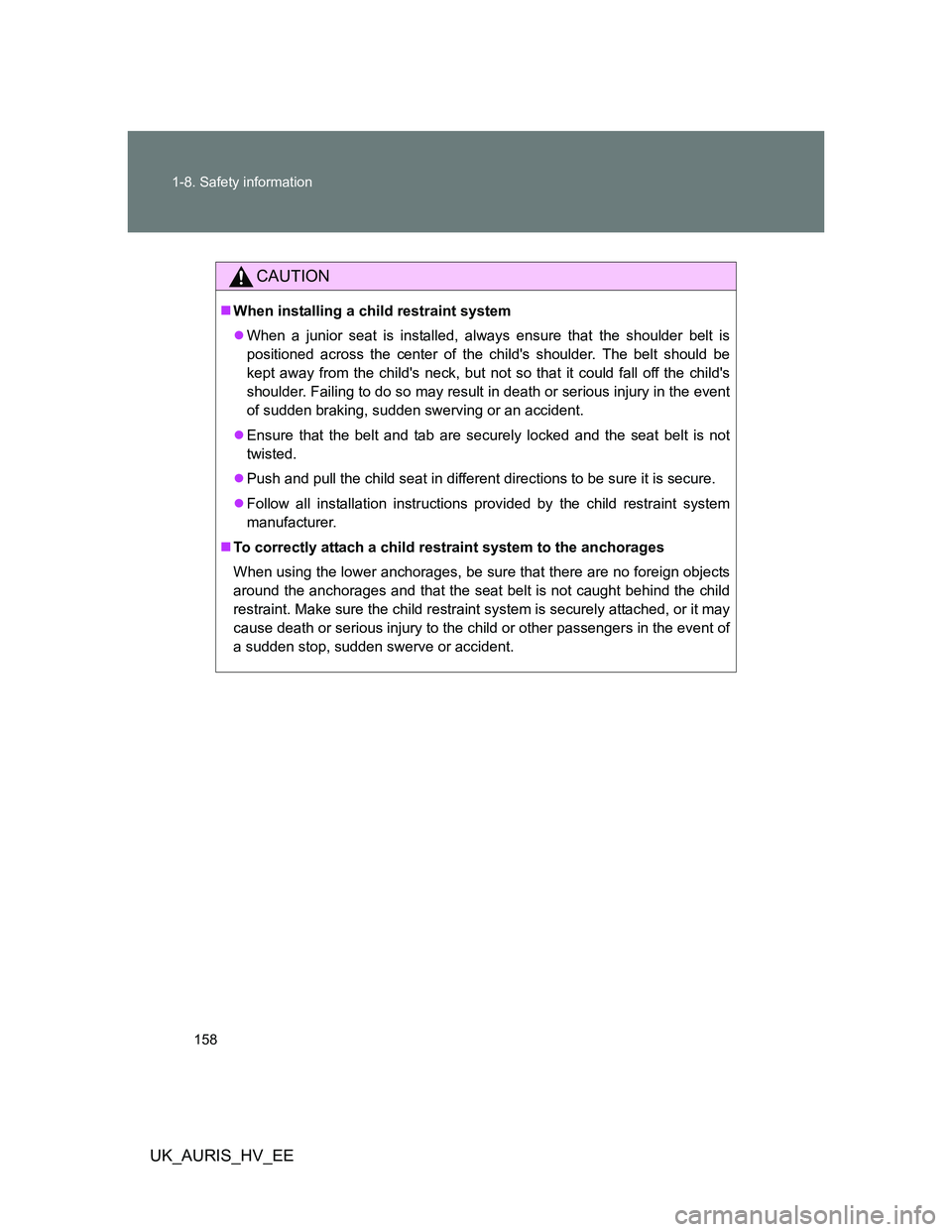

158 1-8. Safety information
UK_AURIS_HV_EE
CAUTION
When installing a child restraint system
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child's shoulder. The belt should be
kept away from the child's neck, but not so that it could fall off the child's
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
Push and pull the child seat in different directions to be sure it is secure.
Follow all installation instructions provided by the child restraint system
manufacturer.
To correctly attach a child restraint system to the anchorages
When using the lower anchorages, be sure that there are no foreign objects
around the anchorages and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child or other passengers in the event of
a sudden stop, sudden swerve or accident.

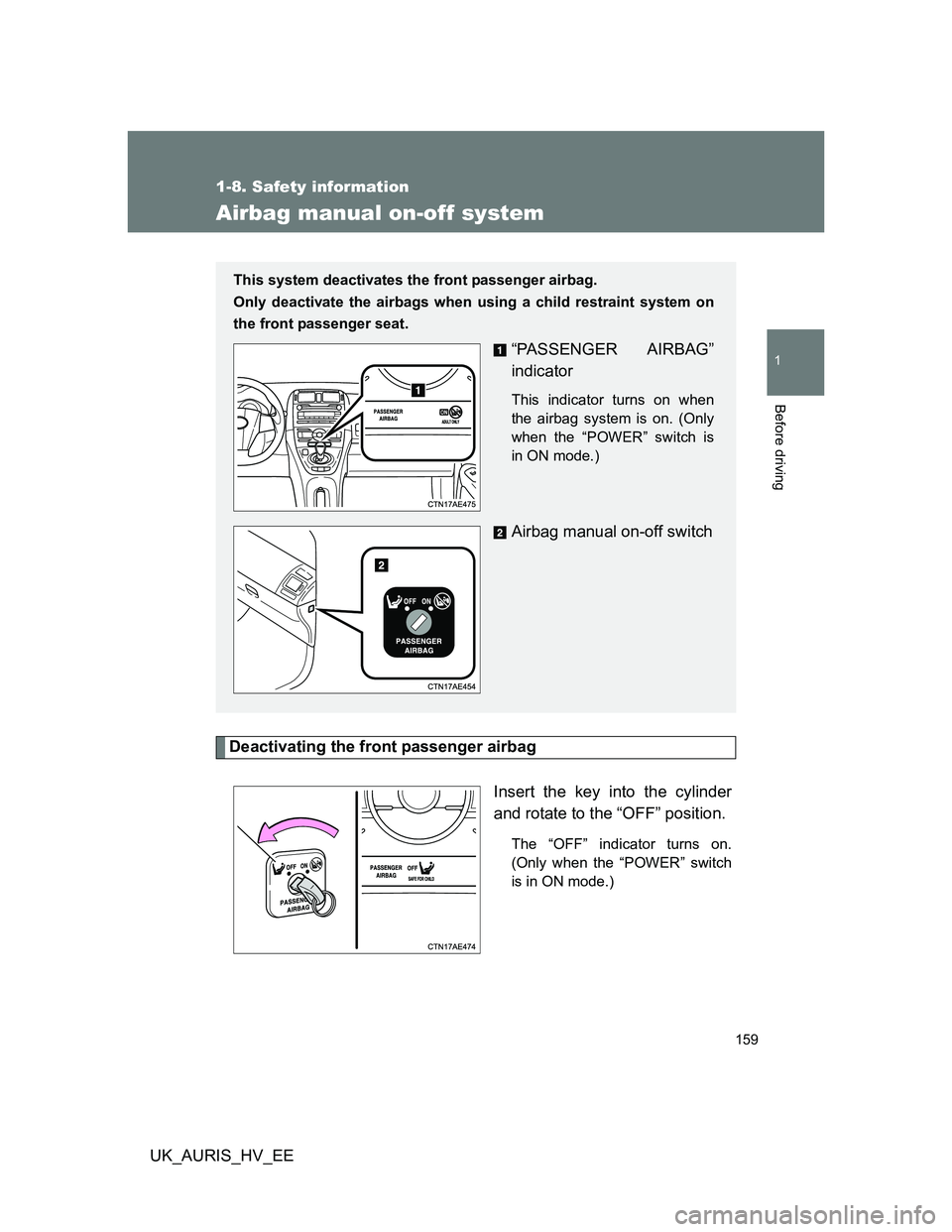

159
1
1-8. Safety information
Before driving
UK_AURIS_HV_EE
Airbag manual on-off system
Deactivating the front passenger airbag
Insert the key into the cylinder
and rotate to the “OFF” position.
The “OFF” indicator turns on.
(Only when the “POWER” switch
is in ON mode.)
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
“PASSENGER AIRBAG”
indicator
This indicator turns on when
the airbag system is on. (Only
when the “POWER” switch is
in ON mode.)
Airbag manual on-off switch

160 1-8. Safety information
UK_AURIS_HV_EE
Airbag manual on-off indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator does not change when the airbag manual on-off switch is
switched to the “ON” or “OFF” position.
CAUTION
When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.
