Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (P. 501)
Front bulb locations
Headlight low beam
(halogen bulb)
Front position light
Front fog light
Headlight
high beam
Front turn signal light

412 4-3. Do-it-yourself maintenance
UK_AURIS_HV_EE
Replacing light bulbs
Headlight low beams (halogen bulbs)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Rear bulb locations
Rear fog light Back-up light
Stop light
Tail light
License plate light
Rear turn signal light
STEP1
STEP2

413 4-3. Do-it-yourself maintenance
4
Maintenance and care

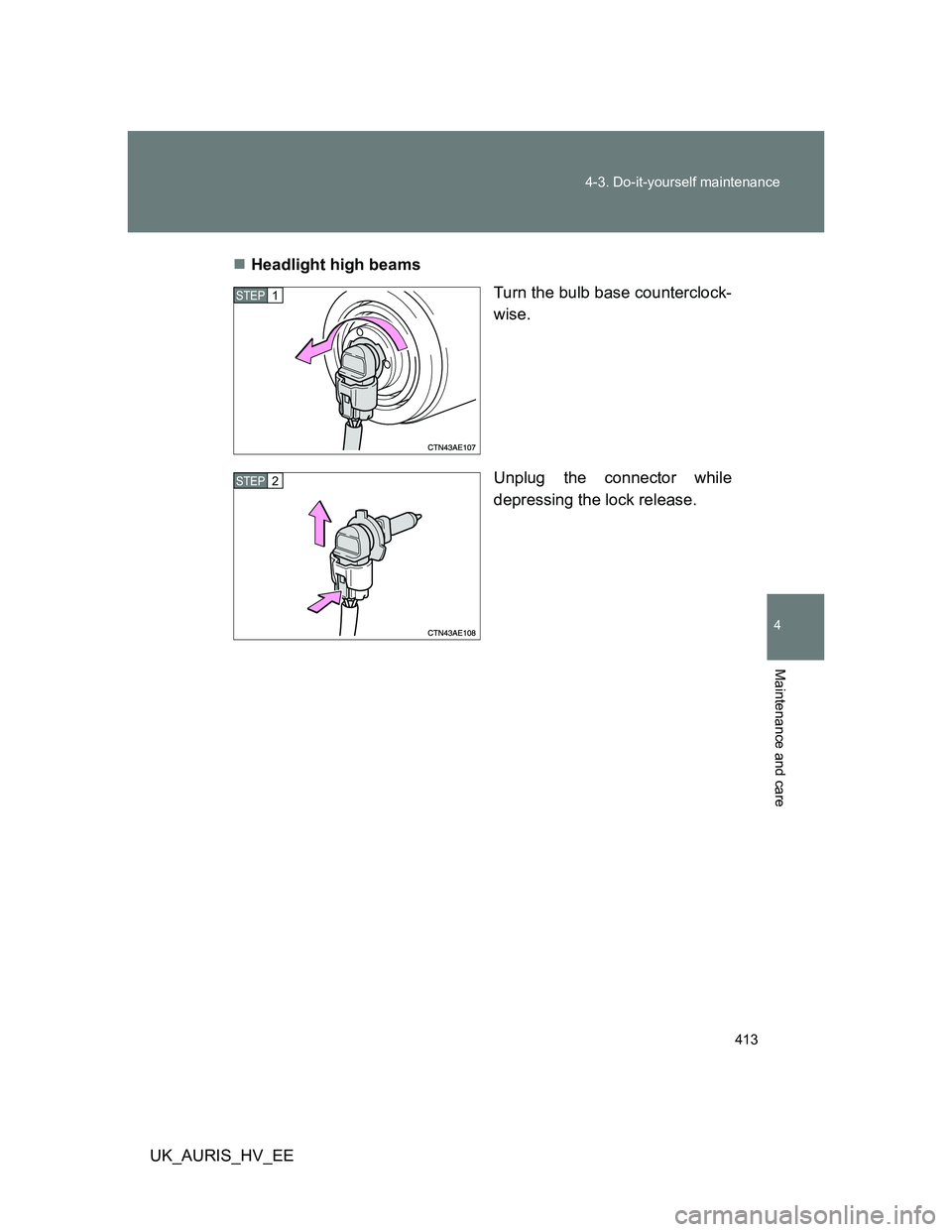

UK_AURIS_HV_EEHeadlight high beams
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2

414 4-3. Do-it-yourself maintenance

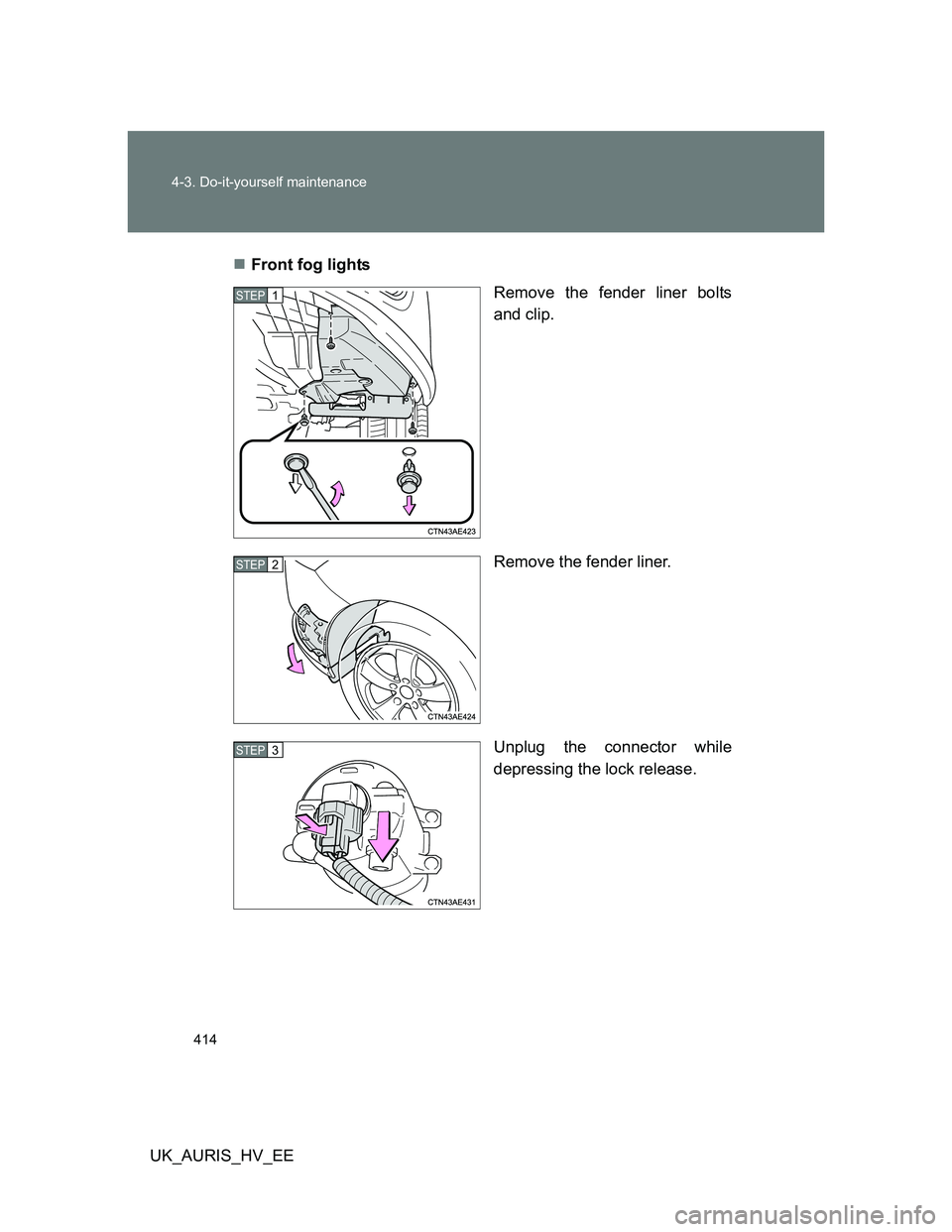

UK_AURIS_HV_EEFront fog lights
Remove the fender liner bolts
and clip.
Remove the fender liner.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

415 4-3. Do-it-yourself maintenance
4
Maintenance and care

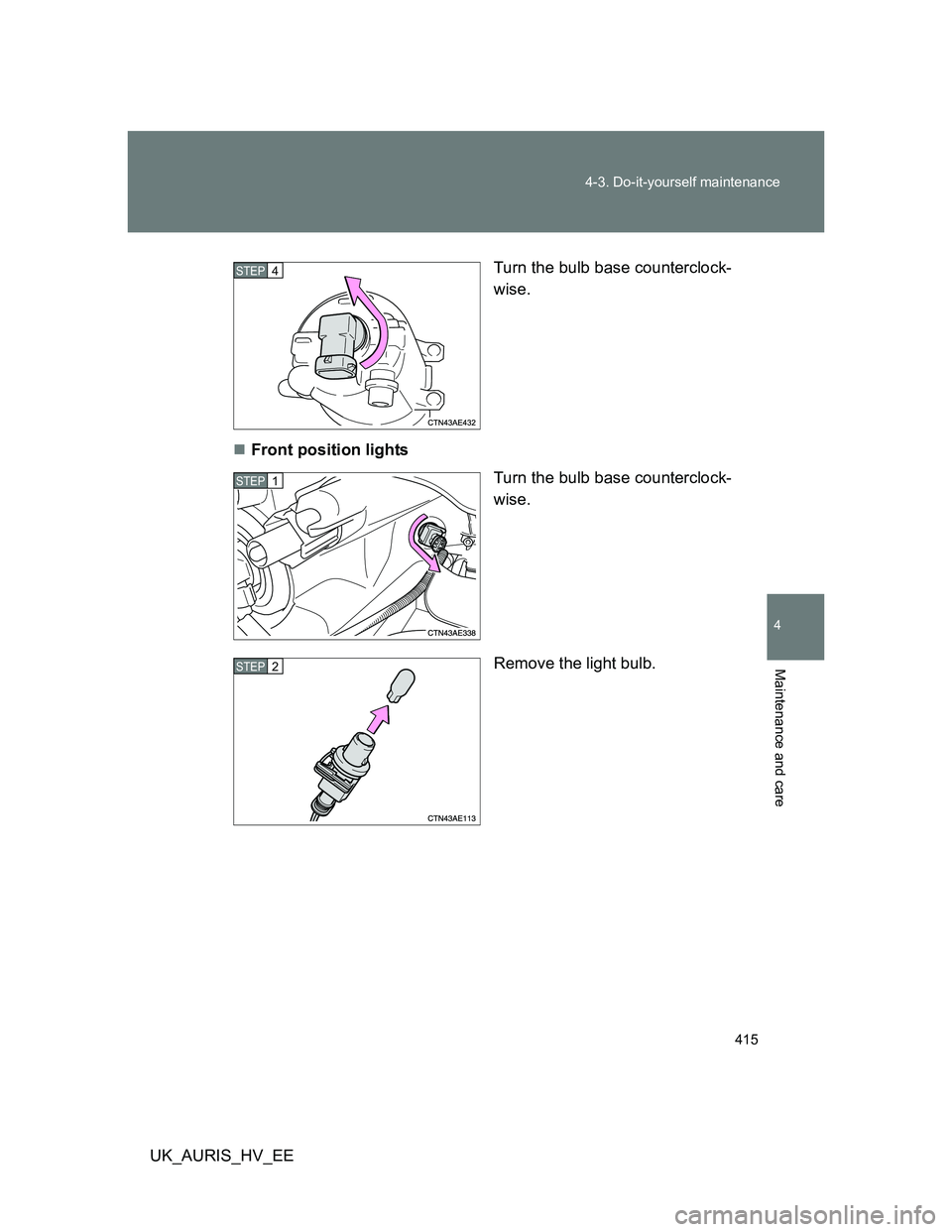

UK_AURIS_HV_EETurn the bulb base counterclock-
wise.
Front position lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP4
STEP1
STEP2

416 4-3. Do-it-yourself maintenance
UK_AURIS_HV_EEFront turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2

417 4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EEBack-up lights/rear fog light, tail lights, stop lights and rear
turn signal lights
Open the back door and remove
the cover.
Remove the light bulb.
Stop light
Back-up light
Rear fog light
Tail light
Rear turn signal light
Remove the light bulb.
STEP1
STEP2
STEP3

418 4-3. Do-it-yourself maintenance

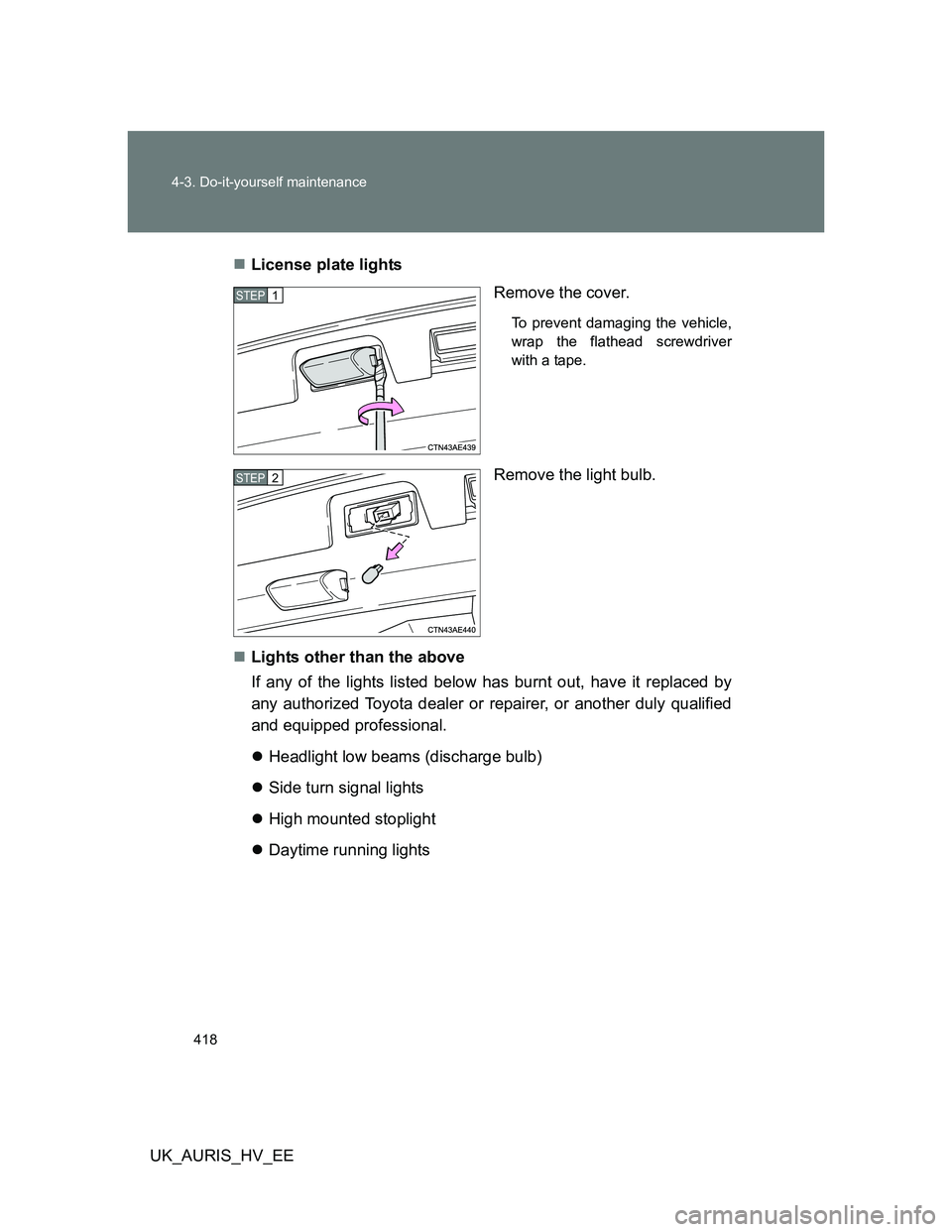

UK_AURIS_HV_EELicense plate lights
Remove the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight low beams (discharge bulb)
Side turn signal lights
High mounted stoplight
Daytime running lights
STEP1
STEP2

419 4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EE
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The high mounted stoplight, side turn signal lights and daytime running lights
consist of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 410
Installing the fender liner clip
Install the clip.

420 4-3. Do-it-yourself maintenance
UK_AURIS_HV_EE
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
Discharge headlights (if equipped)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing discharge headlights (includ-
ing light bulbs).
Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result
in serious injury or death by electric shock.
Do not attempt to take apart or repair the low beam discharge headlight
bulbs, connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
