automatic transmission TOYOTA AURIS 2011 Owners Manual (in English)

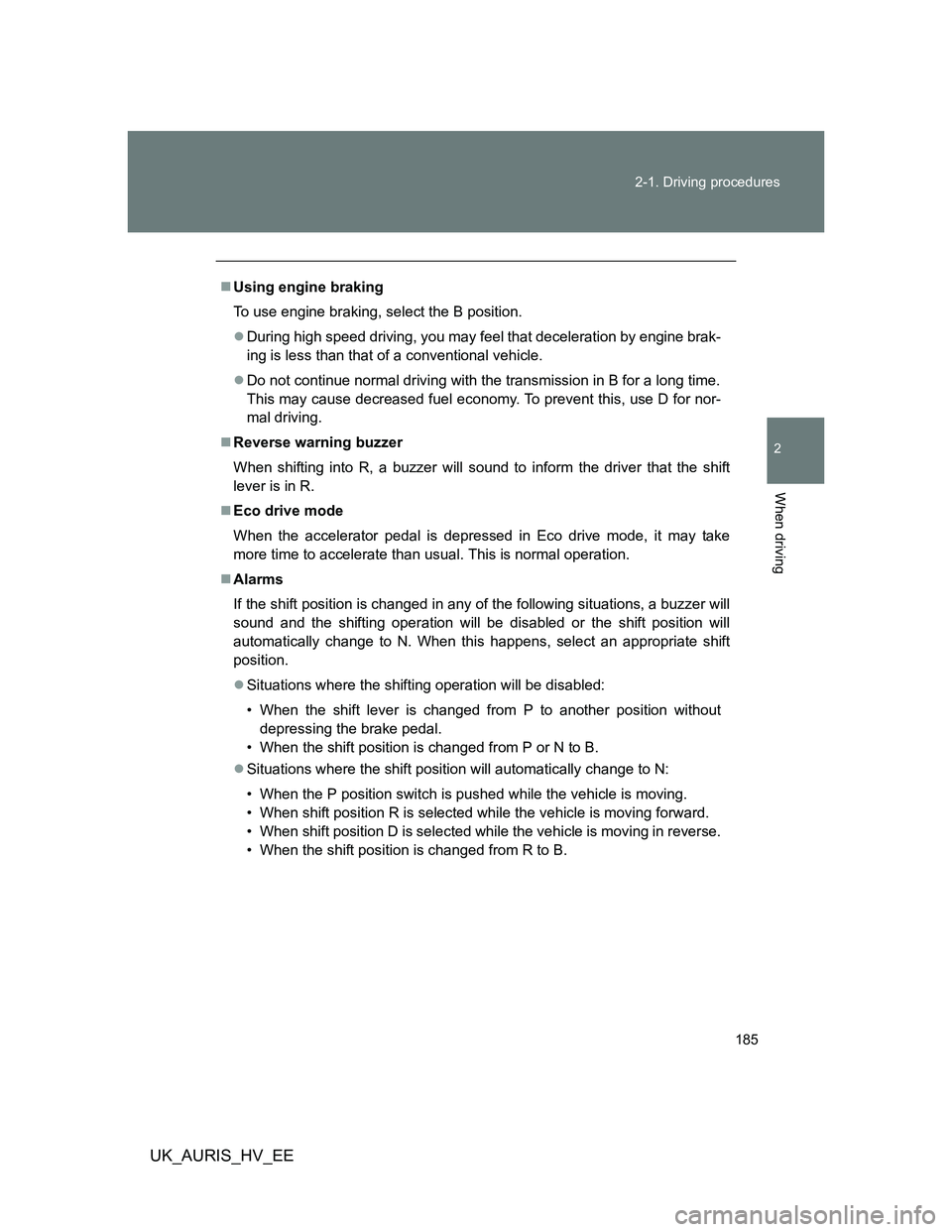

185 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE
Using engine braking
To use engine braking, select the B position.
During high speed driving, you may feel that deceleration by engine brak-
ing is less than that of a conventional vehicle.
Do not continue normal driving with the transmission in B for a long time.
This may cause decreased fuel economy. To prevent this, use D for nor-
mal driving.
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
Eco drive mode
When the accelerator pedal is depressed in Eco drive mode, it may take
more time to accelerate than usual. This is normal operation.
Alarms
If the shift position is changed in any of the following situations, a buzzer will
sound and the shifting operation will be disabled or the shift position will
automatically change to N. When this happens, select an appropriate shift
position.
Situations where the shifting operation will be disabled:
• When the shift lever is changed from P to another position without
depressing the brake pedal.
• When the shift position is changed from P or N to B.
Situations where the shift position will automatically change to N:
• When the P position switch is pushed while the vehicle is moving.
• When shift position R is selected while the vehicle is moving forward.
• When shift position D is selected while the vehicle is moving in reverse.
• When the shift position is changed from R to B.

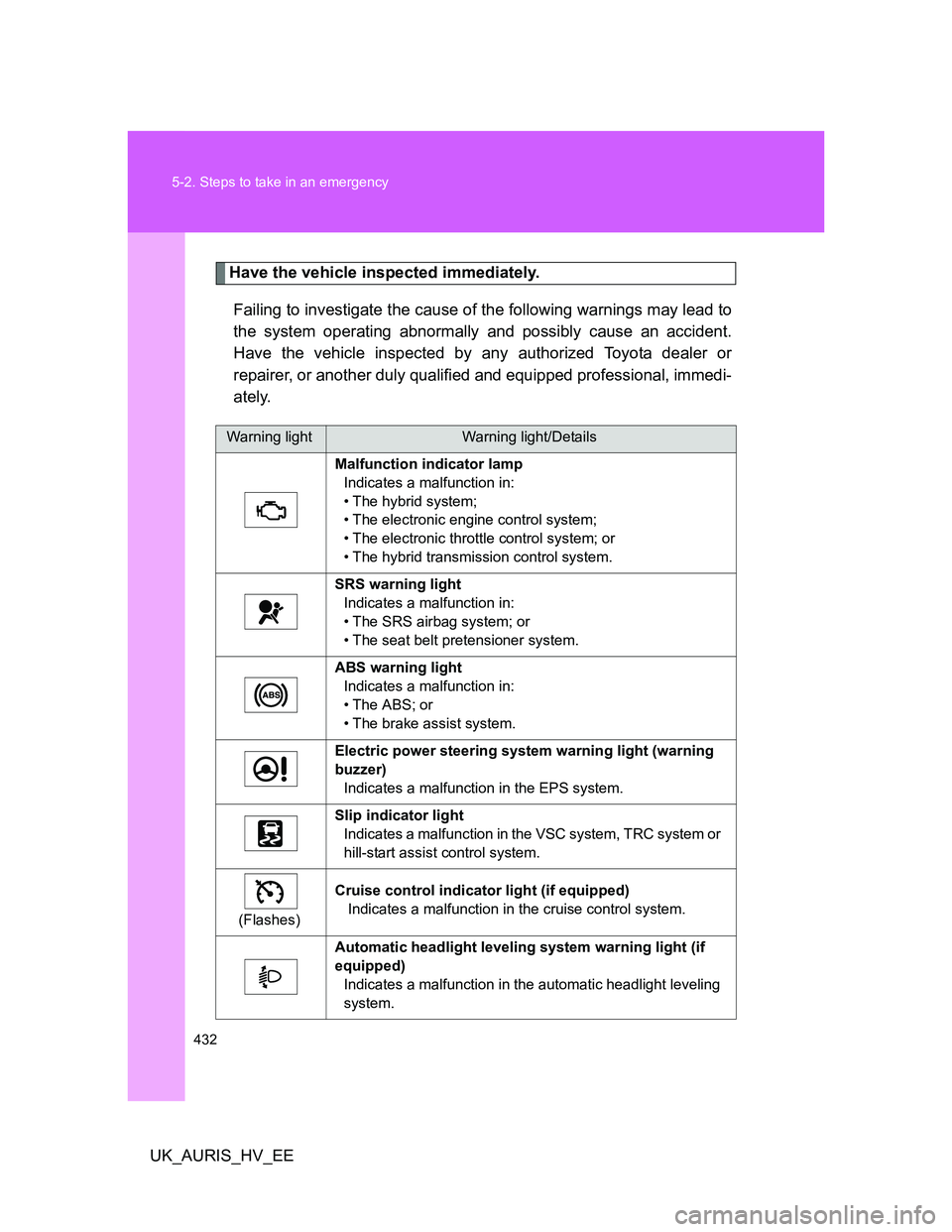

432 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The hybrid transmission control system.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS system.
Slip indicator light
Indicates a malfunction in the VSC system, TRC system or
hill-start assist control system.
(Flashes)Cruise control indicator light (if equipped)
Indicates a malfunction in the cruise control system.
Automatic headlight leveling system warning light (if
equipped)
Indicates a malfunction in the automatic headlight leveling
system.

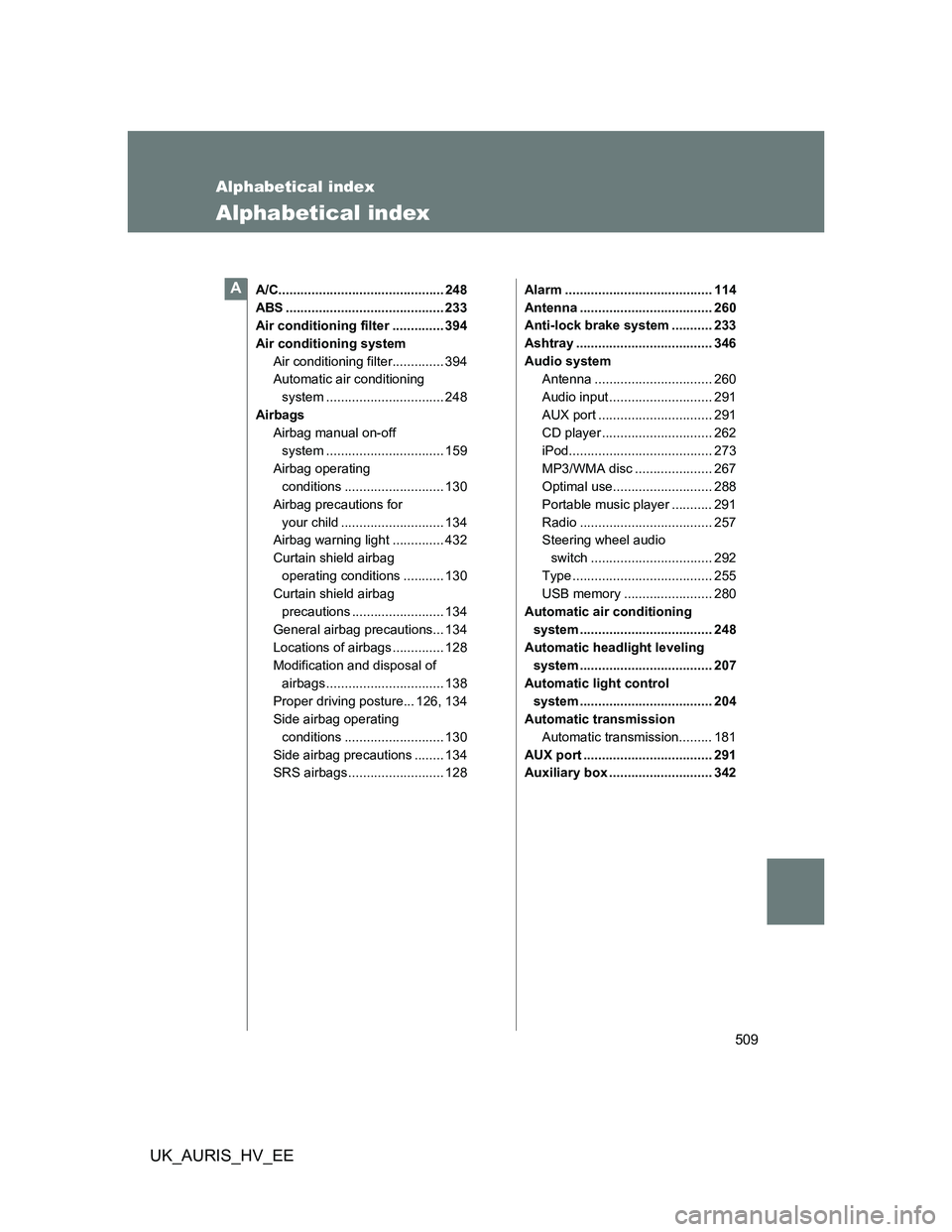

509
UK_AURIS_HV_EE
Alphabetical index
Alphabetical index
A/C............................................. 248
ABS ........................................... 233
Air conditioning filter .............. 394
Air conditioning system
Air conditioning filter.............. 394
Automatic air conditioning
system ................................ 248
Airbags
Airbag manual on-off
system ................................ 159
Airbag operating
conditions ........................... 130
Airbag precautions for
your child ............................ 134
Airbag warning light .............. 432
Curtain shield airbag
operating conditions ........... 130
Curtain shield airbag
precautions ......................... 134
General airbag precautions... 134
Locations of airbags .............. 128
Modification and disposal of
airbags ................................ 138
Proper driving posture... 126, 134
Side airbag operating
conditions ........................... 130
Side airbag precautions ........ 134
SRS airbags .......................... 128Alarm ........................................ 114
Antenna .................................... 260
Anti-lock brake system ........... 233
Ashtray ..................................... 346
Audio system
Antenna ................................ 260
Audio input ............................ 291
AUX port ............................... 291
CD player .............................. 262
iPod....................................... 273
MP3/WMA disc ..................... 267
Optimal use........................... 288
Portable music player ........... 291
Radio .................................... 257
Steering wheel audio
switch ................................. 292
Type ...................................... 255
USB memory ........................ 280
Automatic air conditioning
system .................................... 248
Automatic headlight leveling
system .................................... 207
Automatic light control
system .................................... 204
Automatic transmission
Automatic transmission......... 181
AUX port ................................... 291
Auxiliary box ............................ 342A

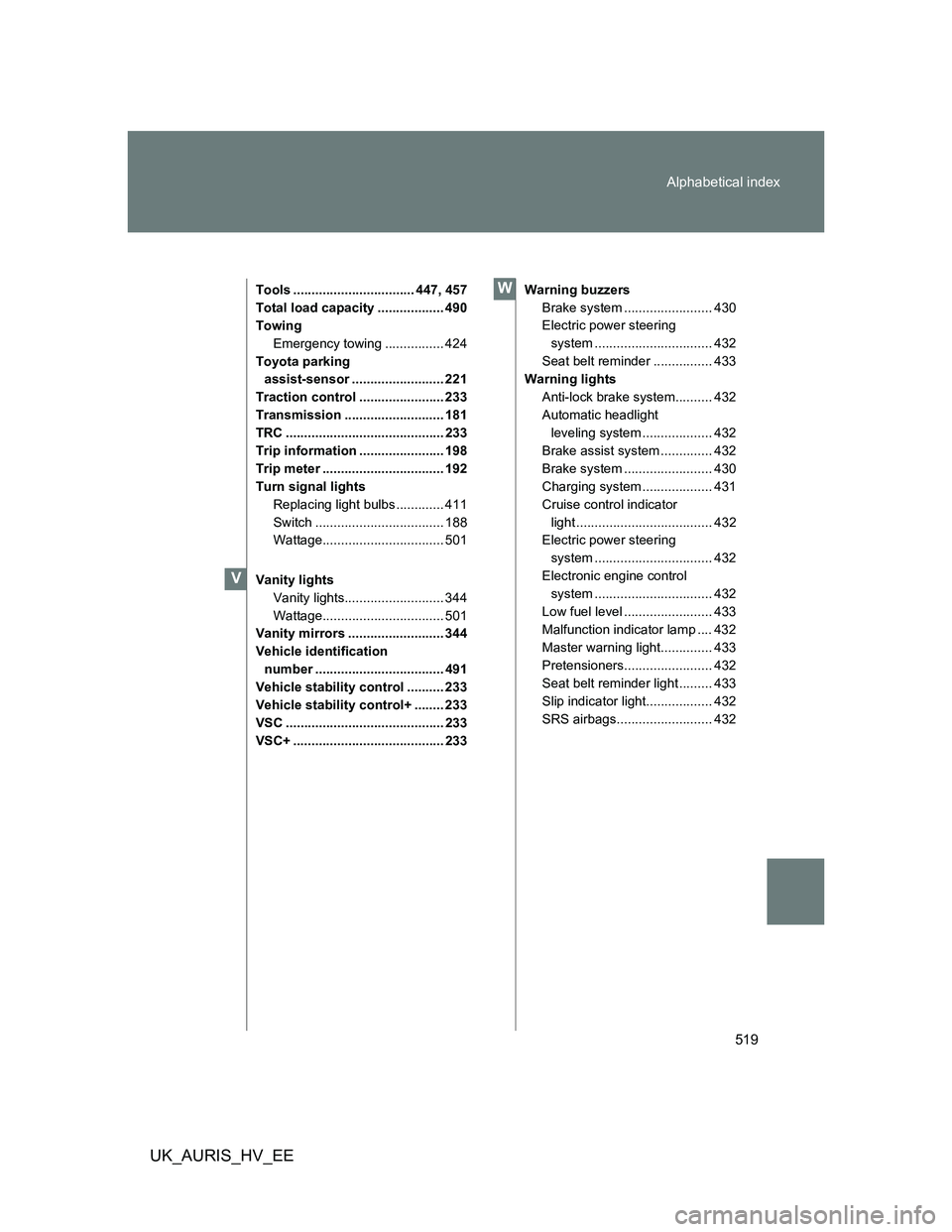

519 Alphabetical index
UK_AURIS_HV_EE
Tools ................................. 447, 457
Total load capacity .................. 490
Towing
Emergency towing ................ 424
Toyota parking
assist-sensor ......................... 221
Traction control ....................... 233
Transmission ........................... 181
TRC ........................................... 233
Trip information ....................... 198
Trip meter ................................. 192
Turn signal lights
Replacing light bulbs ............. 411
Switch ................................... 188
Wattage................................. 501
Vanity lights
Vanity lights........................... 344
Wattage................................. 501
Vanity mirrors .......................... 344
Vehicle identification
number ................................... 491
Vehicle stability control .......... 233
Vehicle stability control+ ........ 233
VSC ........................................... 233
VSC+ ......................................... 233Warning buzzers
Brake system ........................ 430
Electric power steering
system ................................ 432
Seat belt reminder ................ 433
Warning lights
Anti-lock brake system.......... 432
Automatic headlight
leveling system ................... 432
Brake assist system .............. 432
Brake system ........................ 430
Charging system ................... 431
Cruise control indicator
light ..................................... 432
Electric power steering
system ................................ 432
Electronic engine control
system ................................ 432
Low fuel level ........................ 433
Malfunction indicator lamp .... 432
Master warning light.............. 433
Pretensioners........................ 432
Seat belt reminder light ......... 433
Slip indicator light.................. 432
SRS airbags.......................... 432
V
W
