411
4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EE

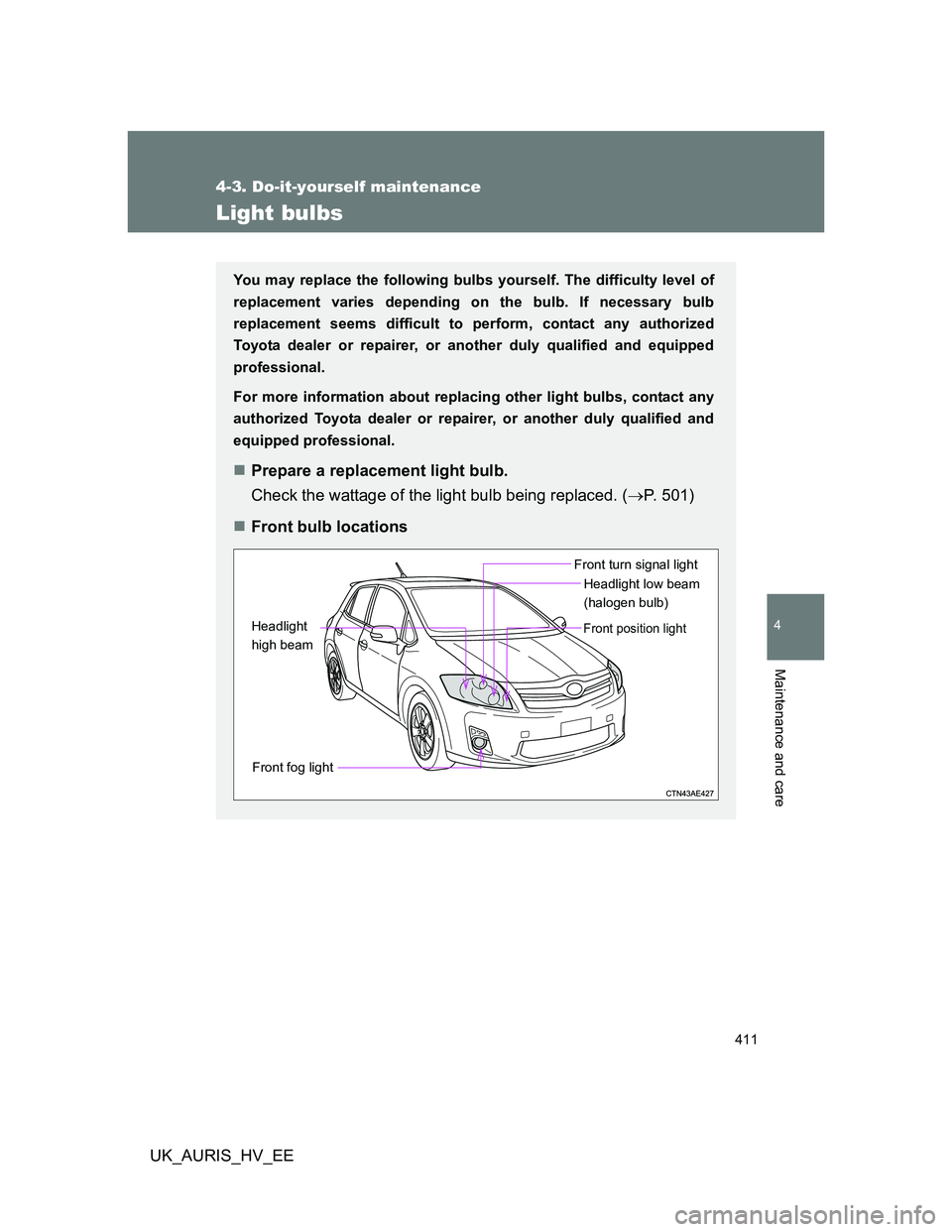

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (P. 501)
Front bulb locations
Headlight low beam
(halogen bulb)
Front position light
Front fog light
Headlight
high beam
Front turn signal light

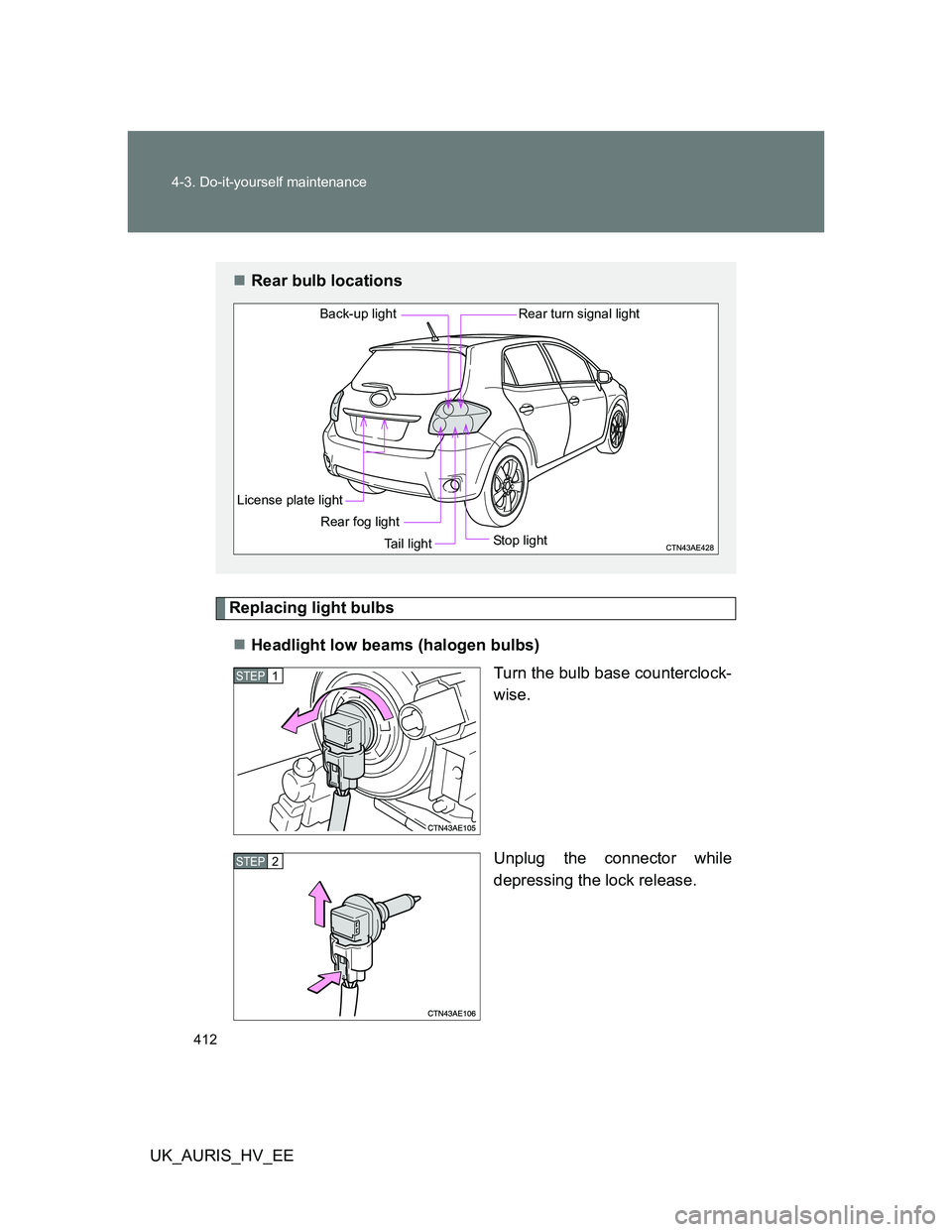

412 4-3. Do-it-yourself maintenance
UK_AURIS_HV_EE
Replacing light bulbs
Headlight low beams (halogen bulbs)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Rear bulb locations
Rear fog light Back-up light
Stop light
Tail light
License plate light
Rear turn signal light
STEP1
STEP2

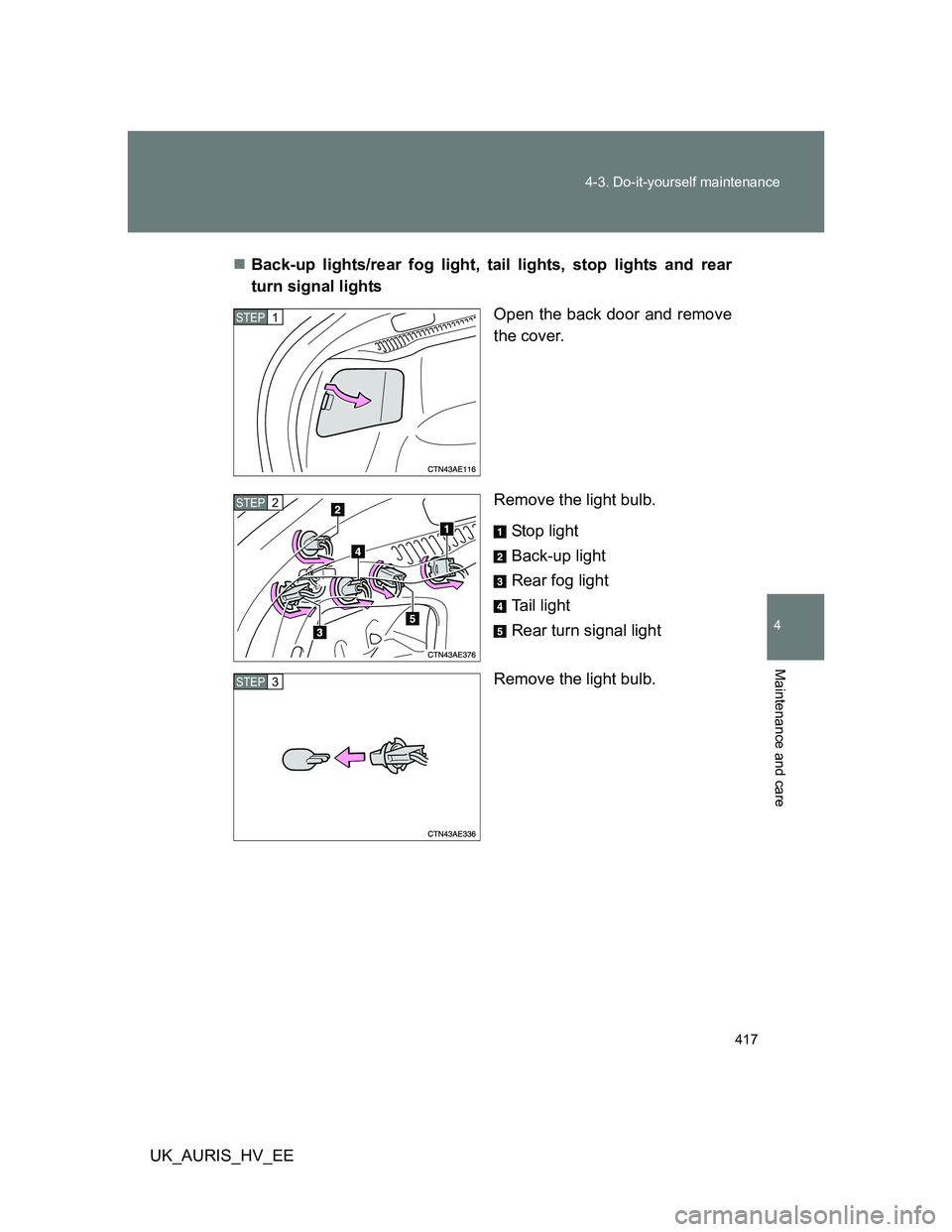

417 4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EEBack-up lights/rear fog light, tail lights, stop lights and rear
turn signal lights
Open the back door and remove
the cover.
Remove the light bulb.
Stop light
Back-up light
Rear fog light
Tail light
Rear turn signal light
Remove the light bulb.
STEP1
STEP2
STEP3

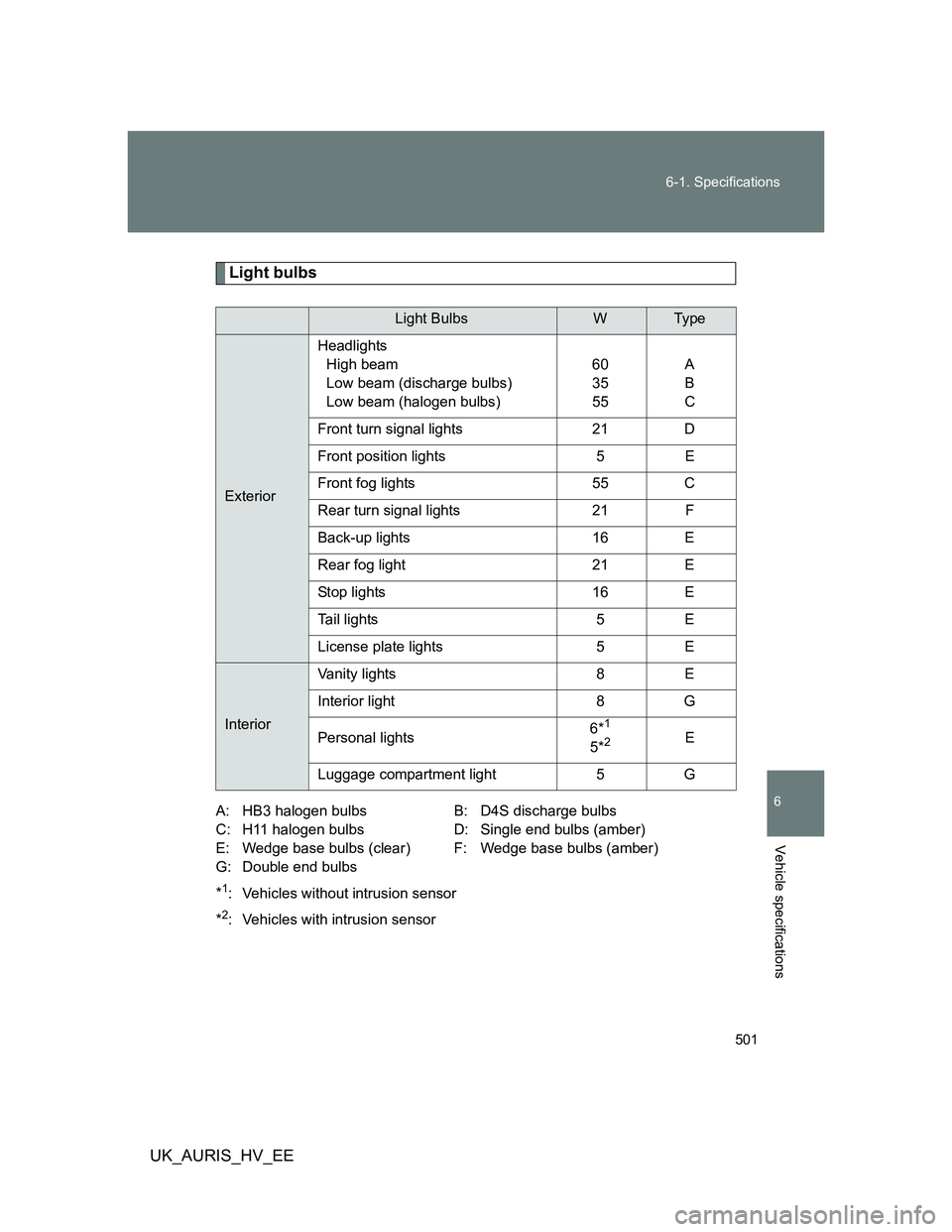

501 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE
Light bulbs
A: HB3 halogen bulbs B: D4S discharge bulbs
C: H11 halogen bulbs D: Single end bulbs (amber)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
*
1: Vehicles without intrusion sensor
*
2: Vehicles with intrusion sensor
Light BulbsWTy p e
ExteriorHeadlights
High beam
Low beam (discharge bulbs)
Low beam (halogen bulbs)60
35
55A
B
C
Front turn signal lights 21 D
Front position lights 5 E
Front fog lights 55 C
Rear turn signal lights 21 F
Back-up lights 16 E
Rear fog light 21 E
Stop lights 16 E
Tail lights 5 E
License plate lights 5 E
InteriorVanity lights 8 E
Interior light 8 G
Personal lights6*1
5*2E
Luggage compartment light 5 G

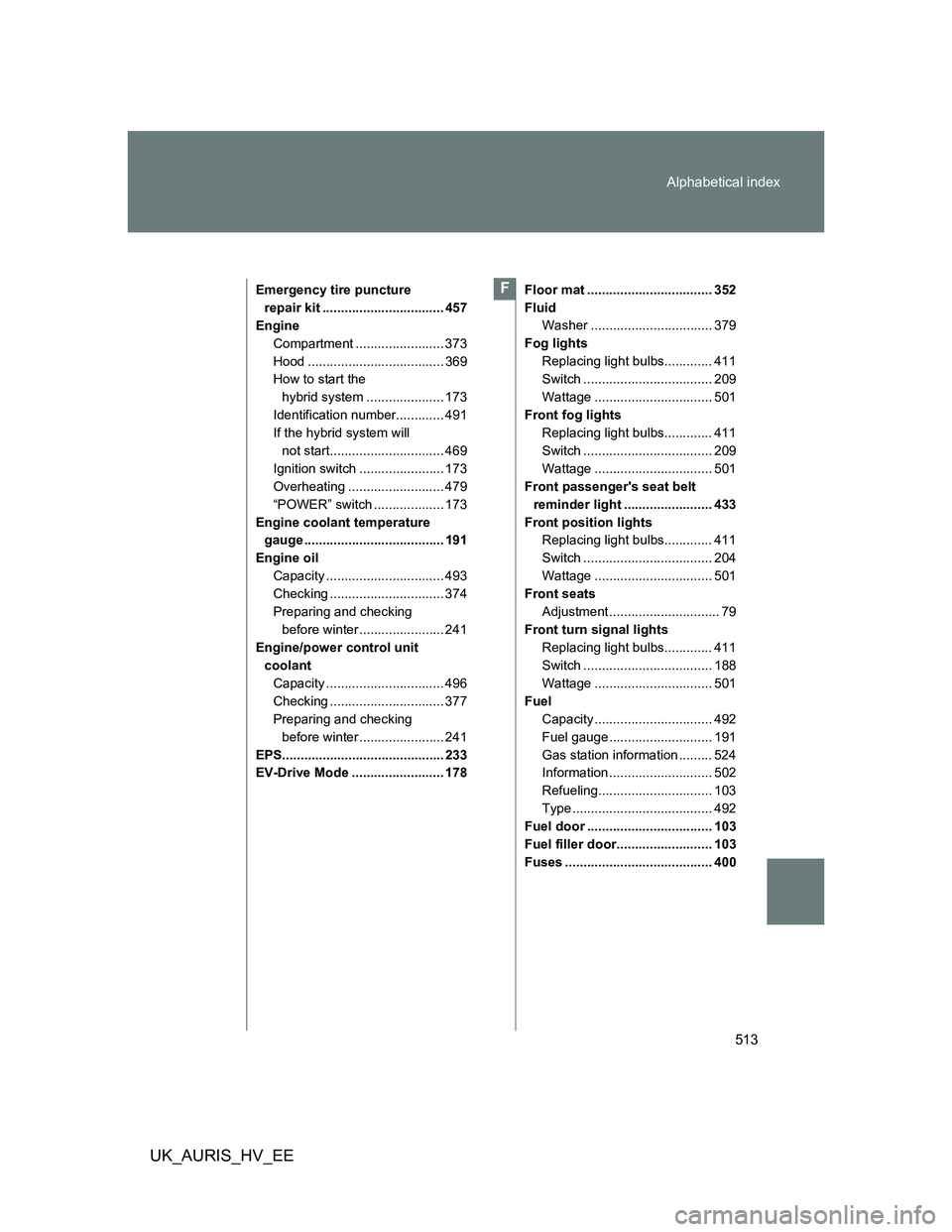

513 Alphabetical index
UK_AURIS_HV_EE
Emergency tire puncture
repair kit ................................. 457
Engine
Compartment ........................ 373
Hood ..................................... 369
How to start the
hybrid system ..................... 173
Identification number............. 491
If the hybrid system will
not start............................... 469
Ignition switch ....................... 173
Overheating .......................... 479
“POWER” switch ................... 173
Engine coolant temperature
gauge ...................................... 191
Engine oil
Capacity ................................ 493
Checking ............................... 374
Preparing and checking
before winter ....................... 241
Engine/power control unit
coolant
Capacity ................................ 496
Checking ............................... 377
Preparing and checking
before winter ....................... 241
EPS............................................ 233
EV-Drive Mode ......................... 178Floor mat .................................. 352
Fluid
Washer ................................. 379
Fog lights
Replacing light bulbs............. 411
Switch ................................... 209
Wattage ................................ 501
Front fog lights
Replacing light bulbs............. 411
Switch ................................... 209
Wattage ................................ 501
Front passenger's seat belt
reminder light ........................ 433
Front position lights
Replacing light bulbs............. 411
Switch ................................... 204
Wattage ................................ 501
Front seats
Adjustment .............................. 79
Front turn signal lights
Replacing light bulbs............. 411
Switch ................................... 188
Wattage ................................ 501
Fuel
Capacity ................................ 492
Fuel gauge ............................ 191
Gas station information ......... 524
Information ............................ 502
Refueling............................... 103
Type ...................................... 492
Fuel door .................................. 103
Fuel filler door.......................... 103
Fuses ........................................ 400F

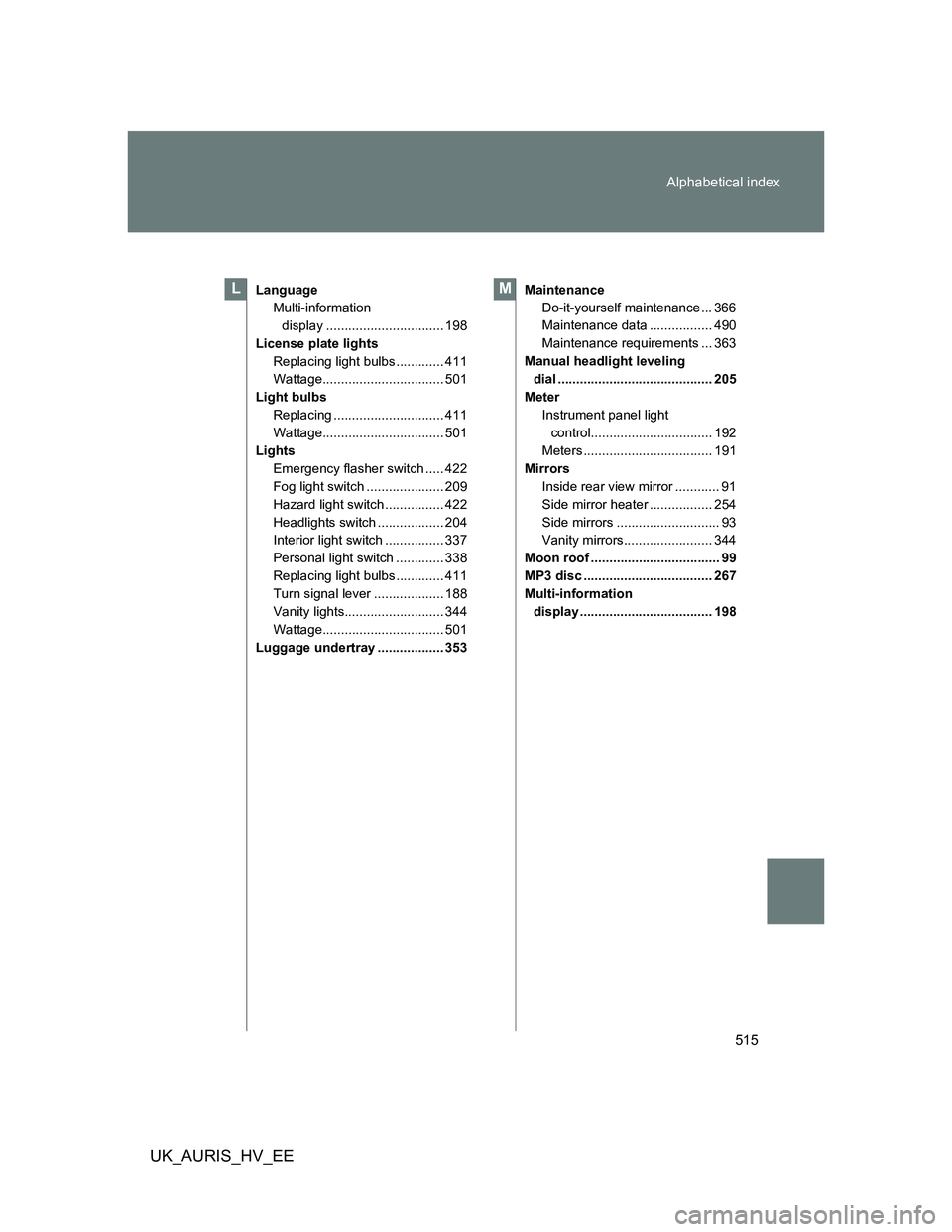

515 Alphabetical index
UK_AURIS_HV_EE
Language
Multi-information
display ................................ 198
License plate lights
Replacing light bulbs ............. 411
Wattage................................. 501
Light bulbs
Replacing .............................. 411
Wattage................................. 501
Lights
Emergency flasher switch ..... 422
Fog light switch ..................... 209
Hazard light switch ................ 422
Headlights switch .................. 204
Interior light switch ................ 337
Personal light switch ............. 338
Replacing light bulbs ............. 411
Turn signal lever ................... 188
Vanity lights........................... 344
Wattage................................. 501
Luggage undertray .................. 353Maintenance
Do-it-yourself maintenance ... 366
Maintenance data ................. 490
Maintenance requirements ... 363
Manual headlight leveling
dial .......................................... 205
Meter
Instrument panel light
control................................. 192
Meters ................................... 191
Mirrors
Inside rear view mirror ............ 91
Side mirror heater ................. 254
Side mirrors ............................ 93
Vanity mirrors........................ 344
Moon roof ................................... 99
MP3 disc ................................... 267
Multi-information
display .................................... 198LM

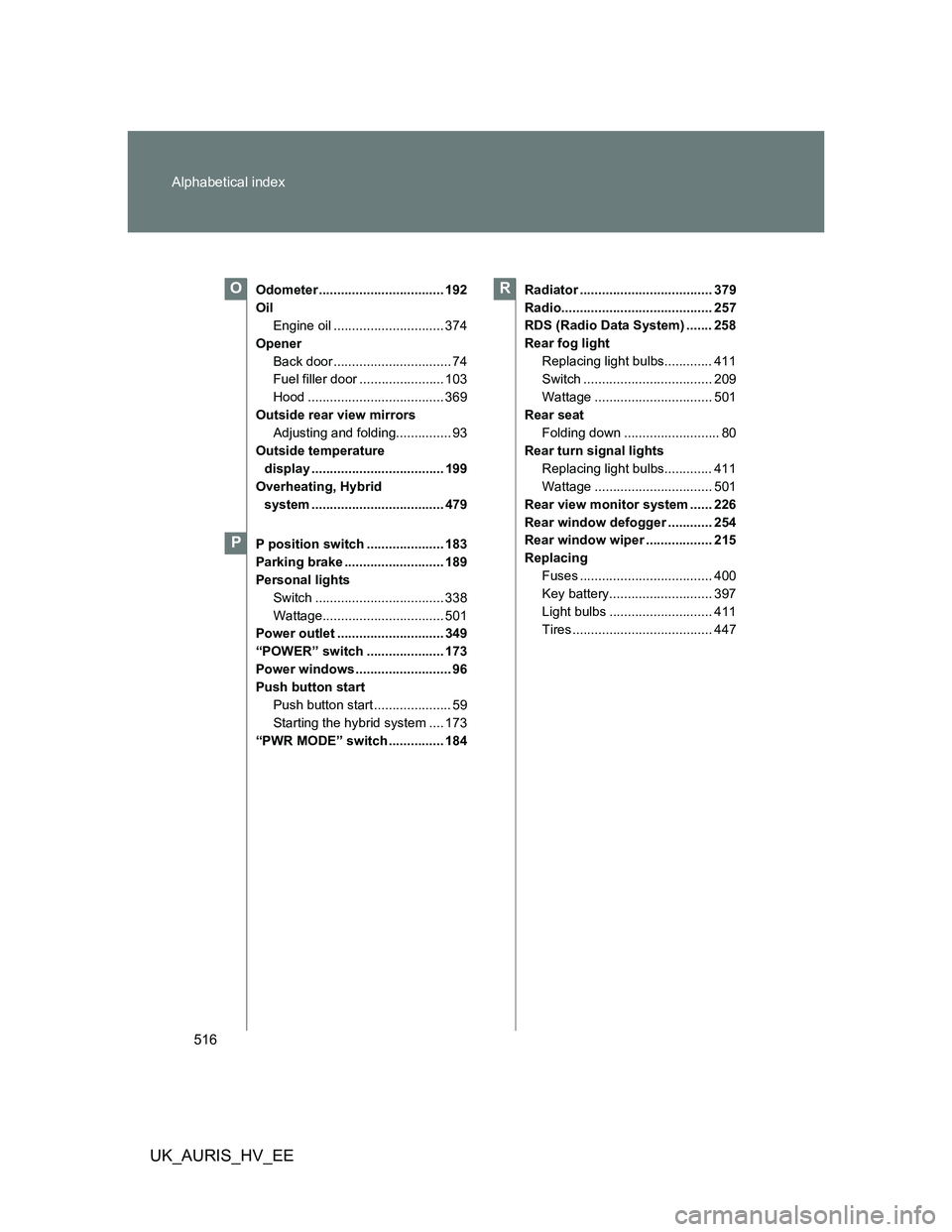

516 Alphabetical index
UK_AURIS_HV_EE
Odometer .................................. 192
Oil
Engine oil .............................. 374
Opener
Back door ................................ 74
Fuel filler door ....................... 103
Hood ..................................... 369
Outside rear view mirrors
Adjusting and folding............... 93
Outside temperature
display .................................... 199
Overheating, Hybrid
system .................................... 479
P position switch ..................... 183
Parking brake ........................... 189
Personal lights
Switch ................................... 338
Wattage................................. 501
Power outlet ............................. 349
“POWER” switch ..................... 173
Power windows .......................... 96
Push button start
Push button start ..................... 59
Starting the hybrid system .... 173
“PWR MODE” switch ............... 184Radiator .................................... 379
Radio......................................... 257
RDS (Radio Data System) ....... 258
Rear fog light
Replacing light bulbs............. 411
Switch ................................... 209
Wattage ................................ 501
Rear seat
Folding down .......................... 80
Rear turn signal lights
Replacing light bulbs............. 411
Wattage ................................ 501
Rear view monitor system ...... 226
Rear window defogger ............ 254
Rear window wiper .................. 215
Replacing
Fuses .................................... 400
Key battery............................ 397
Light bulbs ............................ 411
Tires ...................................... 447O
P
R

518 Alphabetical index
UK_AURIS_HV_EE
Storage feature ........................ 339
Storage precautions ................ 240
Stuck
If your vehicle becomes
stuck ................................... 484
Sun visors ................................ 343
Sunshade
Roof ...................................... 100
Switch
Airbag manual on-off
switch.................................. 159
“ECO MODE” switch ............. 184
Emergency flasher switch ..... 422
Engine switch ........................ 173
Fog light switch ..................... 209
Hazard light switch ................ 422
Ignition switch ....................... 173
Light switches ....................... 204
P position switch ................... 183
Power door lock switch ........... 72
“POWER” switch ................... 173
Power window switch .............. 96
“PWR MODE” switch ............ 184
Window lock switch ................. 96
Wiper and washer ......... 210, 215Tail lights
Replacing light bulbs............. 411
Switch ................................... 204
Wattage ................................ 501
Talk switch ............................... 315
Telephone switch .................... 315
Theft deterrent system
Alarm .................................... 114
Double locking system .......... 112
Immobilizer system............... 106
Tire inflation pressure ............. 390
Tires
Chains................................... 241
Checking ............................... 387
If you have a flat tire ..... 447, 457
Inflation pressure .................. 390
Replacing .............................. 447
Rotating tires......................... 387
Size ....................................... 499
Snow tires ............................. 241
Spare tire .............................. 447T
