213 2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE

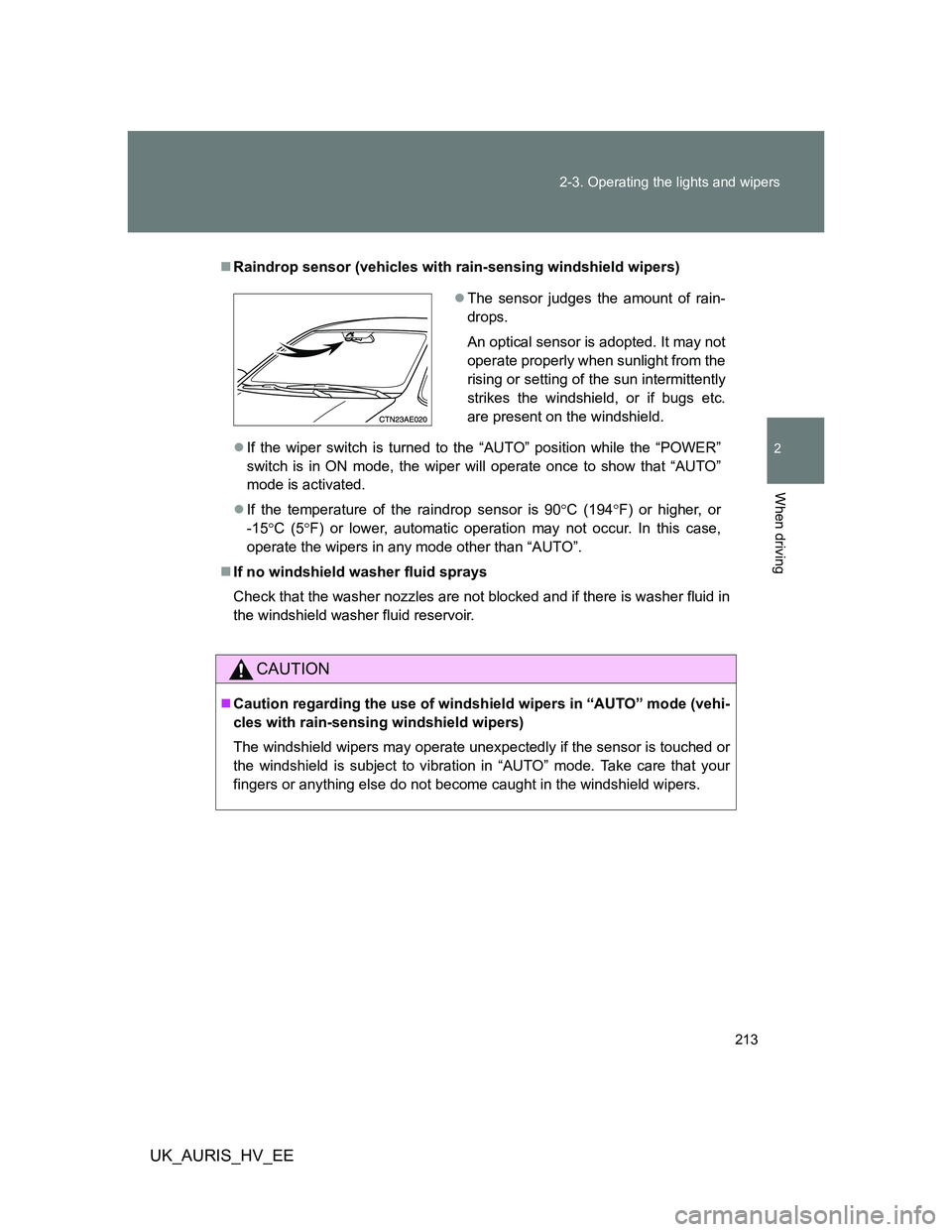

Raindrop sensor (vehicles with rain-sensing windshield wipers)
If the wiper switch is turned to the “AUTO” position while the “POWER”
switch is in ON mode, the wiper will operate once to show that “AUTO”
mode is activated.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
CAUTION
Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
The sensor judges the amount of rain-
drops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.

214 2-3. Operating the lights and wipers
UK_AURIS_HV_EE

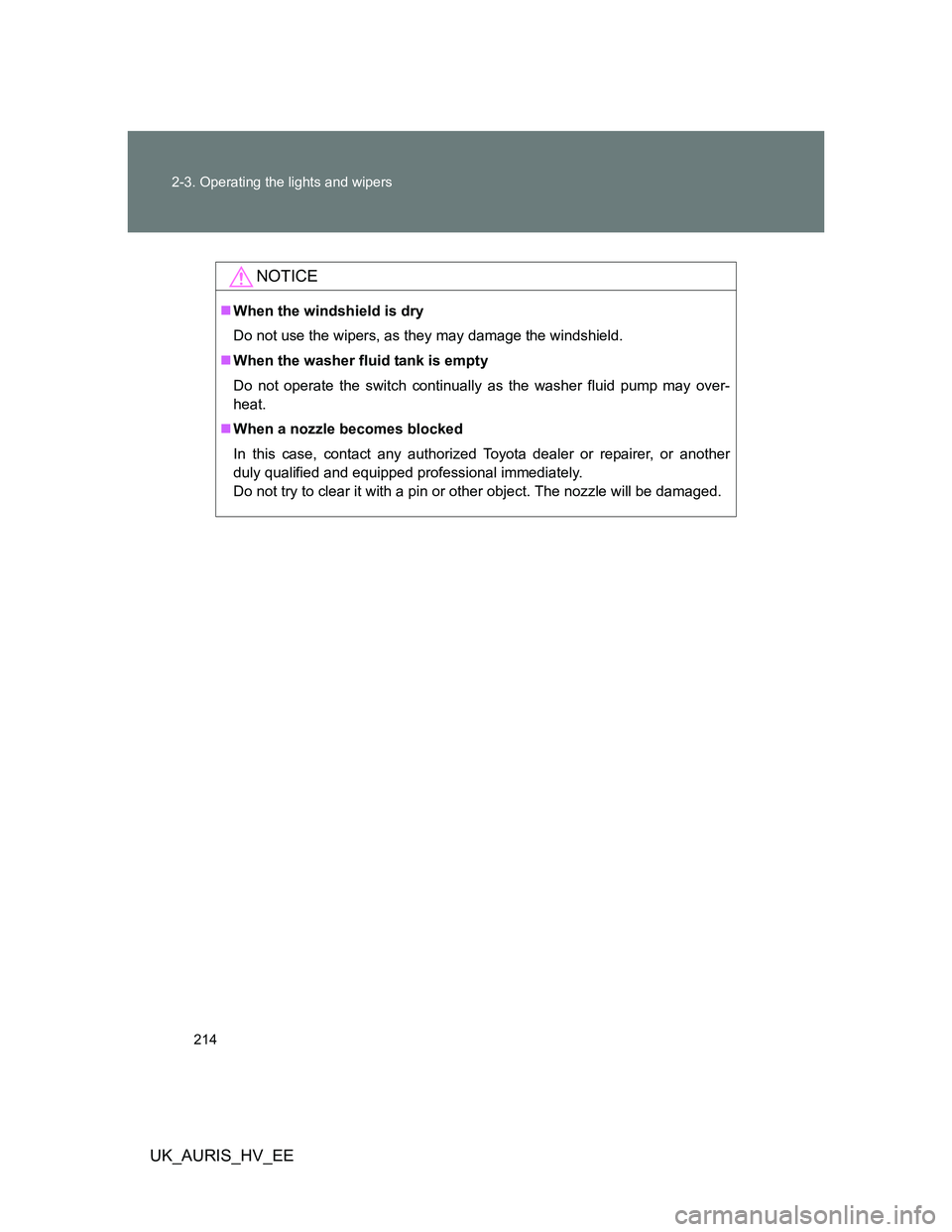

NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

215
2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE

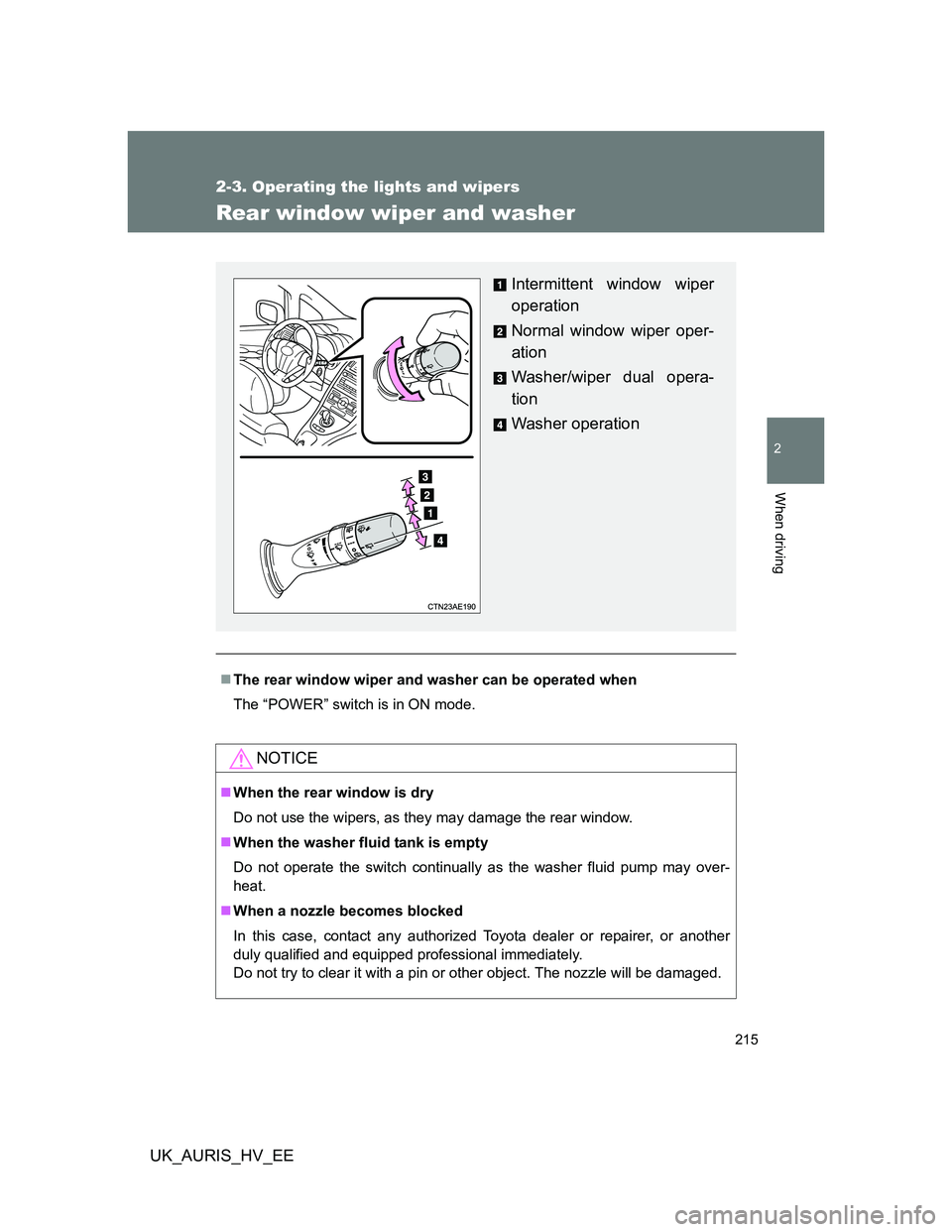

Rear window wiper and washer
The rear window wiper and washer can be operated when
The “POWER” switch is in ON mode.
NOTICE
When the rear window is dry
Do not use the wipers, as they may damage the rear window.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer operation

216
2-3. Operating the lights and wipers
UK_AURIS_HV_EE

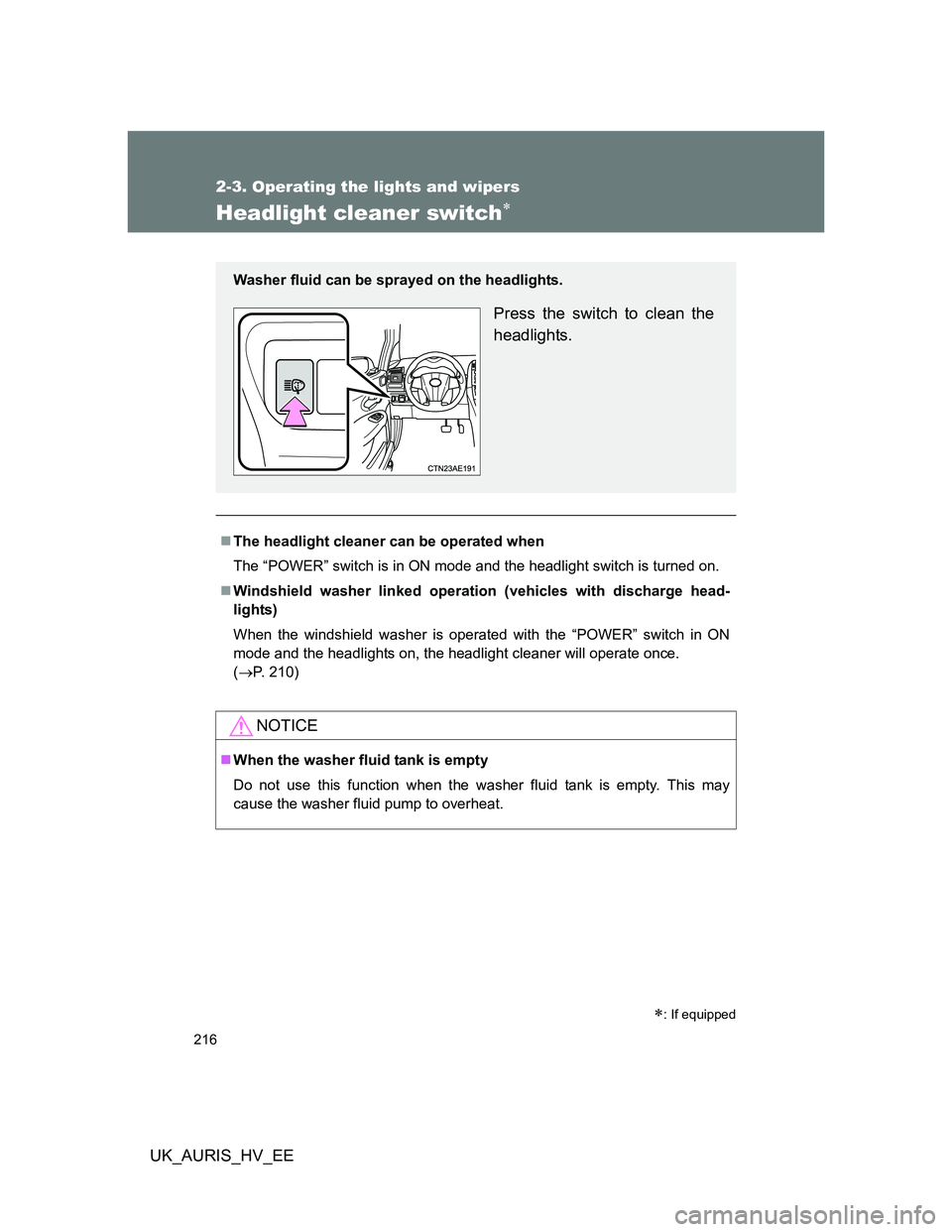

Headlight cleaner switch
The headlight cleaner can be operated when
The “POWER” switch is in ON mode and the headlight switch is turned on.
Windshield washer linked operation (vehicles with discharge head-
lights)
When the windshield washer is operated with the “POWER” switch in ON
mode and the headlights on, the headlight cleaner will operate once.
(P. 210)
NOTICE
When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may
cause the washer fluid pump to overheat.
: If equipped
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

241
2-5. Driving information
2
When driving
UK_AURIS_HV_EE
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
Pre-winter preparations
Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
Have a service technician inspect the level and specific grav-
ity of 12-volt battery electrolyte.
Ensure that all tires are the same size and brand, and that chains
match the size of the tires.
Before driving the vehicle
Perform the following according to the driving conditions.
Do not try to forcibly open a window, scrape an outside rear
view mirror surface or move a wiper or outside rear view mir-
ror that is frozen. Pour warm water over the frozen area to
melt the ice. Wipe away the water immediately to prevent it
from freezing.
To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
Remove any ice that has accumulated on the vehicle chassis.
Periodically check for and remove any excess ice or snow
that may have accumulated in the wheel well or on the
brakes.

366
UK_AURIS_HV_EE
4-3. Do-it-yourself maintenance

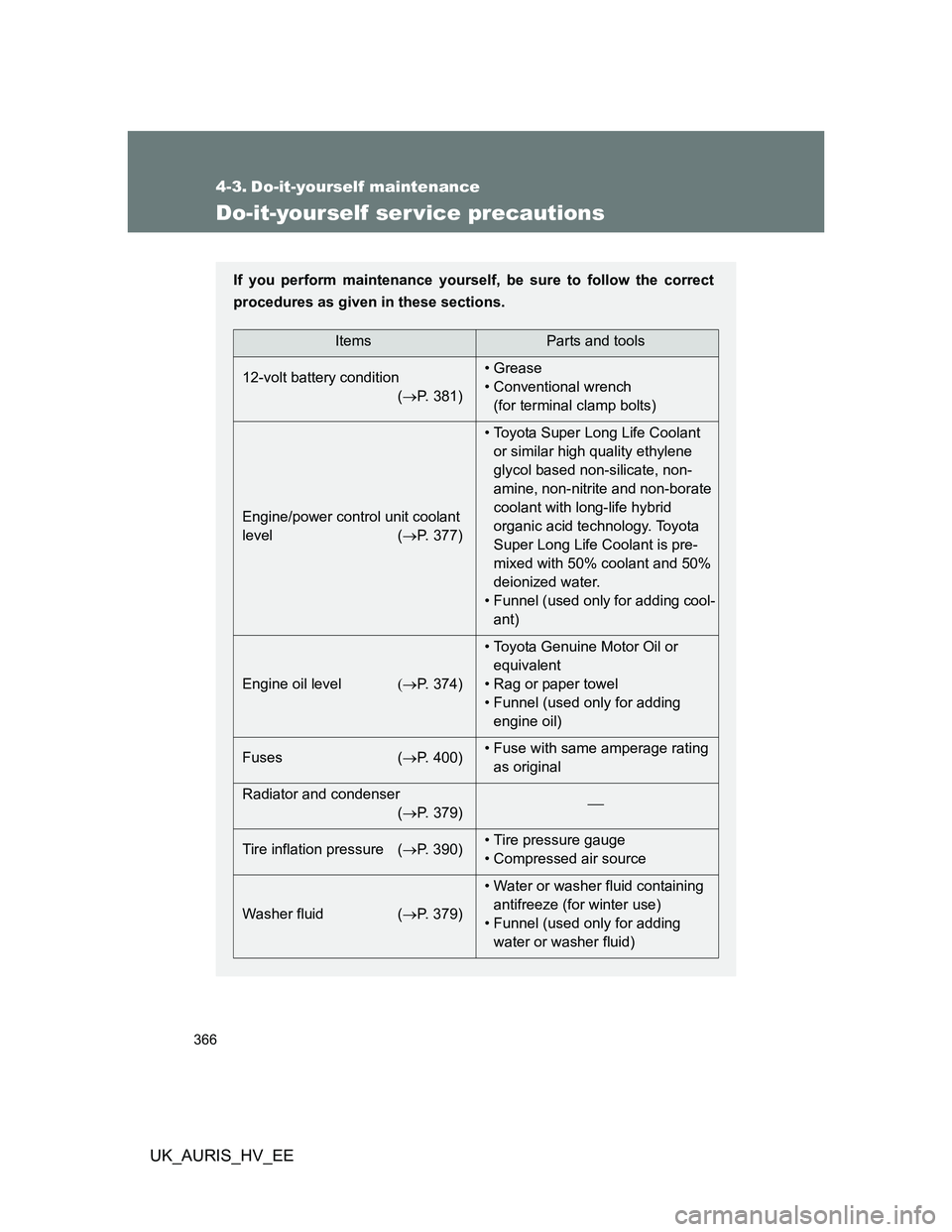

Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
12-volt battery condition
(P. 381)• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine/power control unit coolant
level (P. 377)• Toyota Super Long Life Coolant
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. Toyota
Super Long Life Coolant is pre-
mixed with 50% coolant and 50%
deionized water.
• Funnel (used only for adding cool-
ant)
Engine oil levelP. 374)• Toyota Genuine Motor Oil or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 400)• Fuse with same amperage rating
as original
Radiator and condenser
(P. 379)
Tire inflation pressure (P. 390)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 379)• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)

373
4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EE

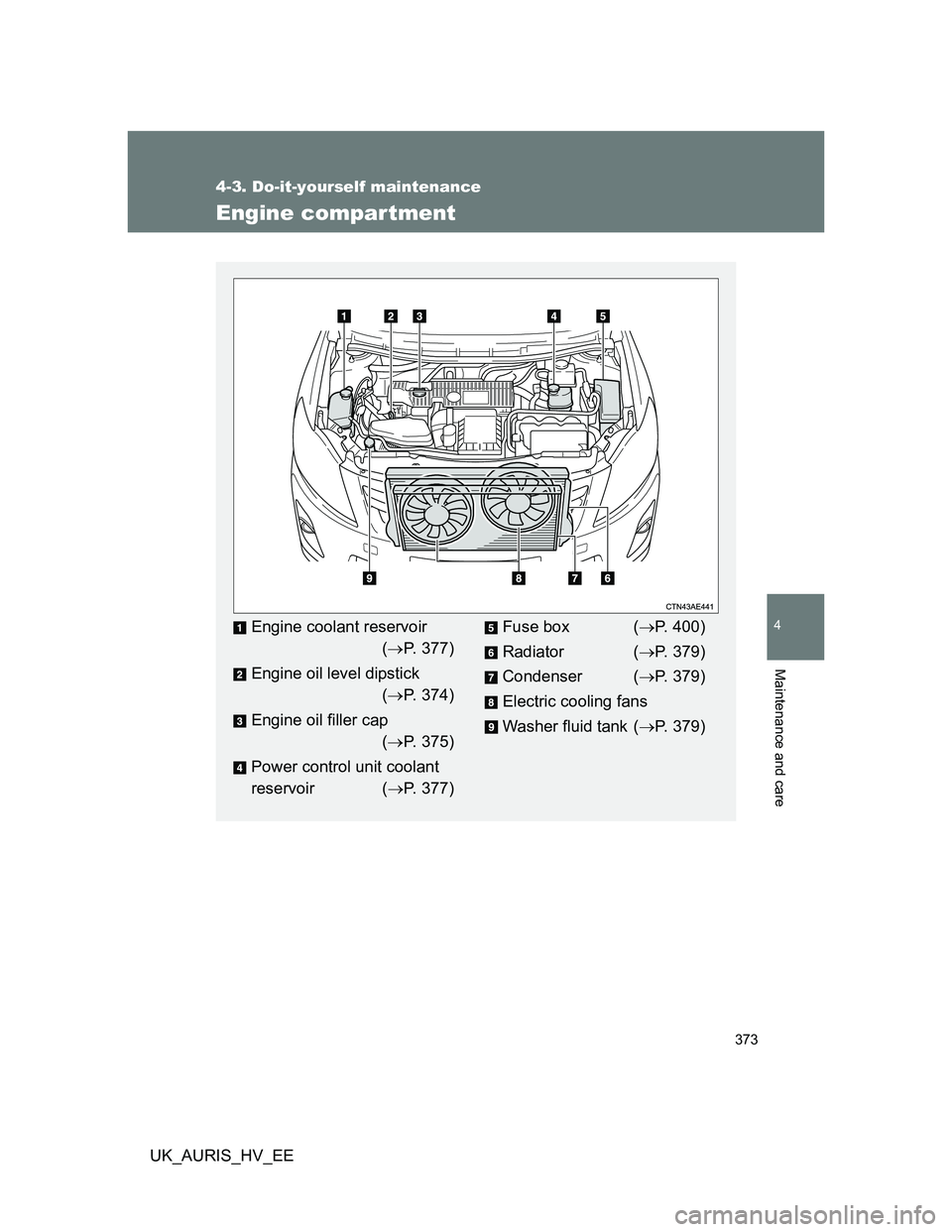

Engine compartment
Engine coolant reservoir
(P. 377)
Engine oil level dipstick
(P. 374)
Engine oil filler cap
(P. 375)
Power control unit coolant
reservoir (P. 377)Fuse box (P. 400)
Radiator (P. 379)
Condenser (P. 379)
Electric cooling fans
Washer fluid tank (P. 379)

379 4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EE

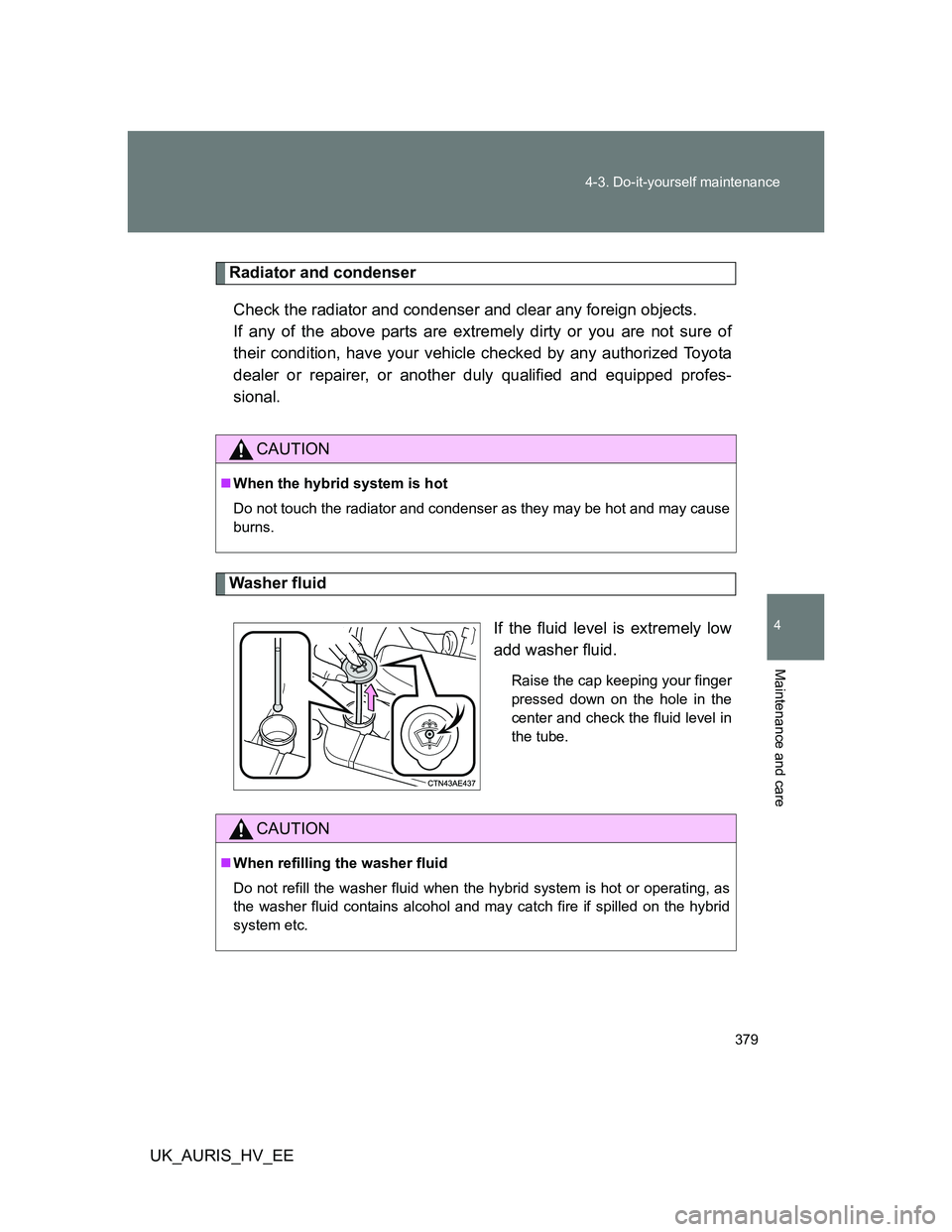

Radiator and condenser
Check the radiator and condenser and clear any foreign objects.
If any of the above parts are extremely dirty or you are not sure of
their condition, have your vehicle checked by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
Washer fluid
If the fluid level is extremely low
add washer fluid.
Raise the cap keeping your finger
pressed down on the hole in the
center and check the fluid level in
the tube.
CAUTION
When the hybrid system is hot
Do not touch the radiator and condenser as they may be hot and may cause
burns.
CAUTION
When refilling the washer fluid
Do not refill the washer fluid when the hybrid system is hot or operating, as
the washer fluid contains alcohol and may catch fire if spilled on the hybrid
system etc.

380 4-3. Do-it-yourself maintenance
UK_AURIS_HV_EE
NOTICE
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.

513 Alphabetical index
UK_AURIS_HV_EE
Emergency tire puncture
repair kit ................................. 457
Engine
Compartment ........................ 373
Hood ..................................... 369
How to start the
hybrid system ..................... 173
Identification number............. 491
If the hybrid system will
not start............................... 469
Ignition switch ....................... 173
Overheating .......................... 479
“POWER” switch ................... 173
Engine coolant temperature
gauge ...................................... 191
Engine oil
Capacity ................................ 493
Checking ............................... 374
Preparing and checking
before winter ....................... 241
Engine/power control unit
coolant
Capacity ................................ 496
Checking ............................... 377
Preparing and checking
before winter ....................... 241
EPS............................................ 233
EV-Drive Mode ......................... 178Floor mat .................................. 352
Fluid
Washer ................................. 379
Fog lights
Replacing light bulbs............. 411
Switch ................................... 209
Wattage ................................ 501
Front fog lights
Replacing light bulbs............. 411
Switch ................................... 209
Wattage ................................ 501
Front passenger's seat belt
reminder light ........................ 433
Front position lights
Replacing light bulbs............. 411
Switch ................................... 204
Wattage ................................ 501
Front seats
Adjustment .............................. 79
Front turn signal lights
Replacing light bulbs............. 411
Switch ................................... 188
Wattage ................................ 501
Fuel
Capacity ................................ 492
Fuel gauge ............................ 191
Gas station information ......... 524
Information ............................ 502
Refueling............................... 103
Type ...................................... 492
Fuel door .................................. 103
Fuel filler door.......................... 103
Fuses ........................................ 400F
