171 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE
NOTICE
When driving the vehicle
Do not depress the accelerator and brake pedals at the same time during
driving. If the brake pedal is depressed while driving with the accelerator
pedal depressed, driving torque may be restrained.
Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
Avoiding damage to vehicle parts
Do not turn the steering wheel fully in either direction and hold it there for a
long time.
Doing so may damage the power steering motor.
When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional, as soon as
possible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or those of the brake discs are exceeded.
If the vehicle will not shift out of the P position
There is a possibility that the 12-volt battery is discharged. Check the 12-volt
battery in this situation.

5
455 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
CAUTION
Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury.
Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5 kgf•m,
76 ft•lbf) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the
wheels may fall off, which could lead to an accident causing death or serious
injury.
When installing the wheel nuts
Be sure to install the wheel nuts with the tapered end facing inward.
(P. 393)
Tool storage precaution (while the compact spare tire is in use)
Stow the jack and tool bag in the luggage undertray. Do not place them on
the luggage mat as they may be thrown about and possibly injure people in
the vehicle in the event of sudden braking or in an accident.
When using the compact spare tire
Remember that your compact spare tire is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
Do not use more than one compact spare tire simultaneously.
Replace the compact spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.

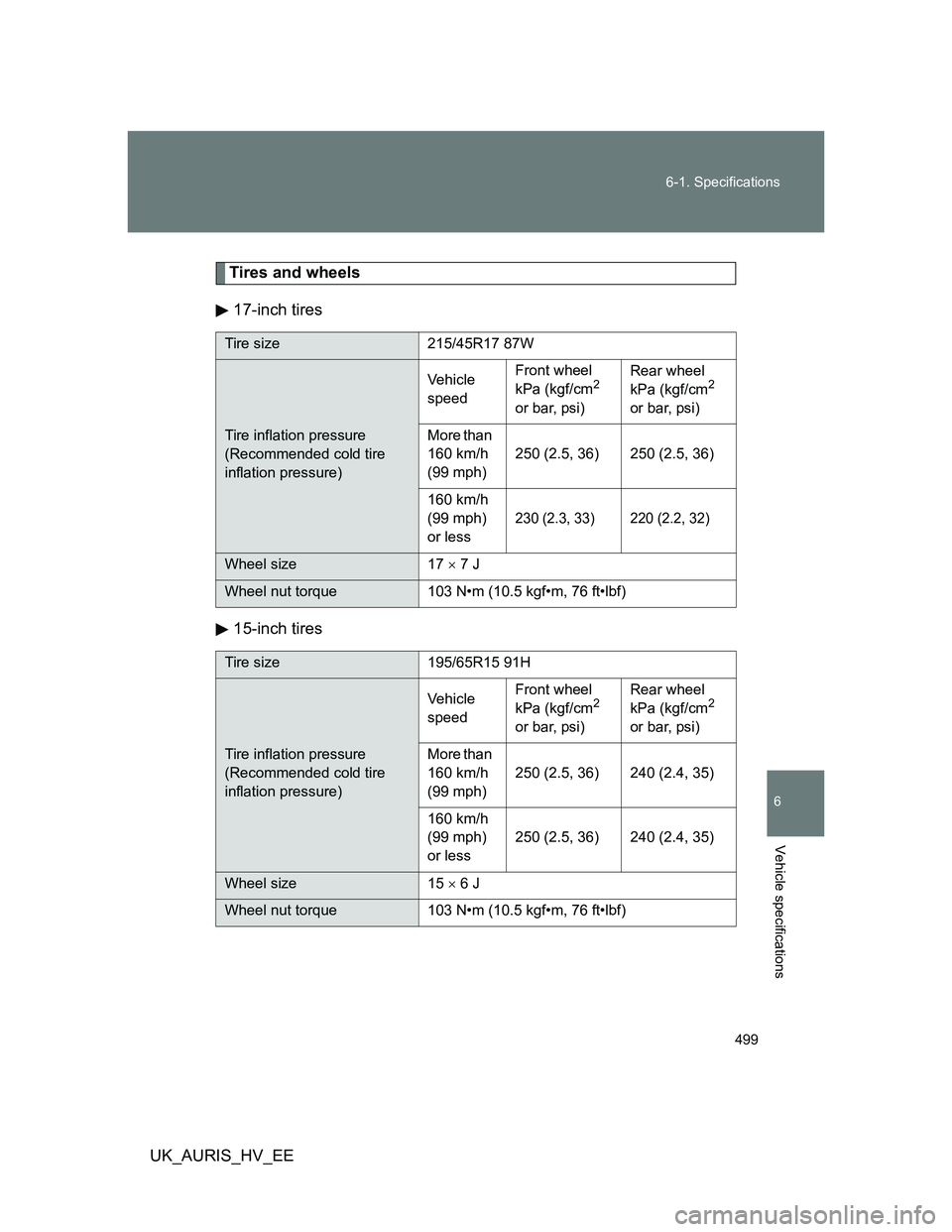

499 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE
Tires and wheels
17-inch tires
15-inch tires
Tire size 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 250 (2.5, 36)
160 km/h
(99 mph)
or less
230 (2.3, 33) 220 (2.2, 32)
Wheel size 17  7 J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 240 (2.4, 35)
160 km/h
(99 mph)
or less250 (2.5, 36) 240 (2.4, 35)
Wheel size 15  6 J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

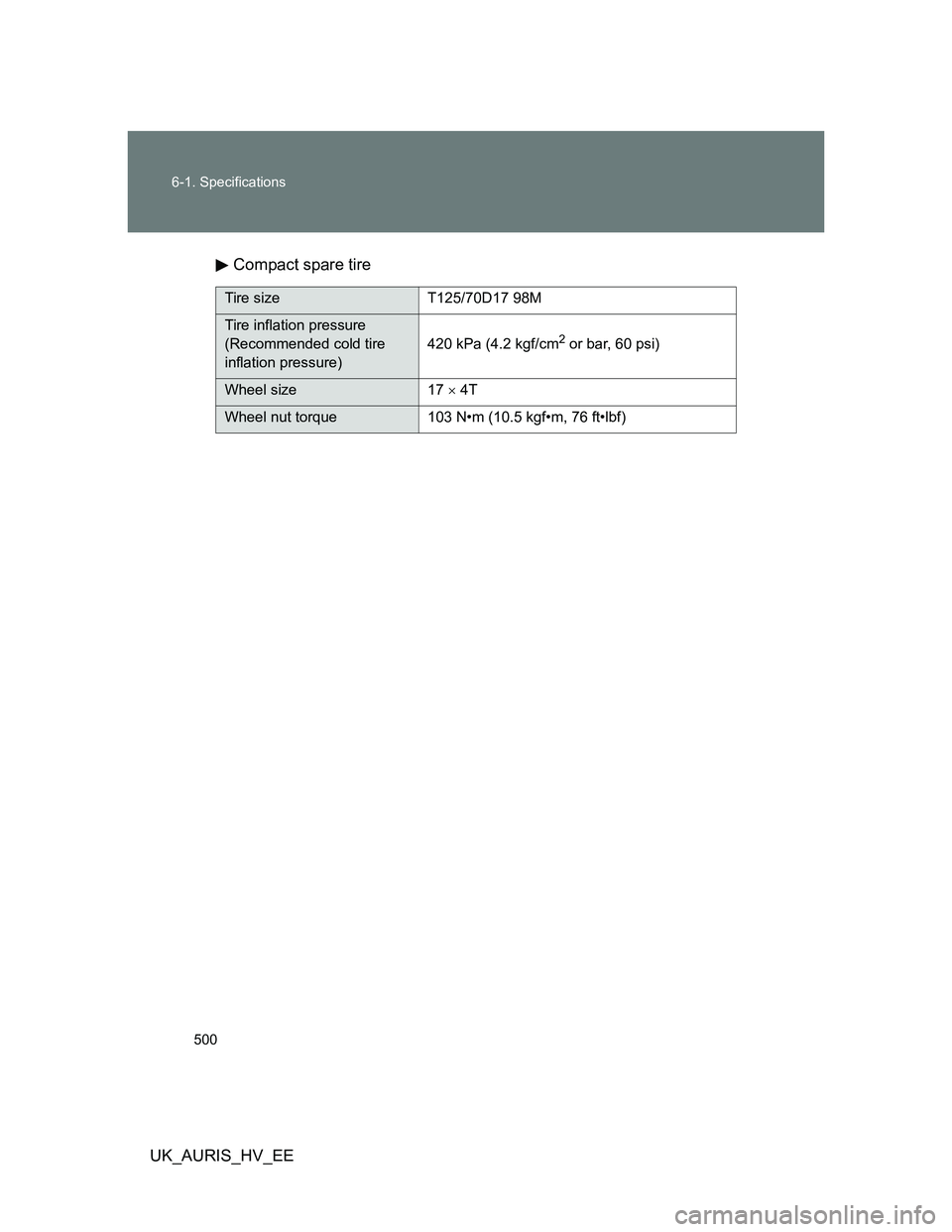

500 6-1. Specifications
UK_AURIS_HV_EECompact spare tire
Tire size T125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
