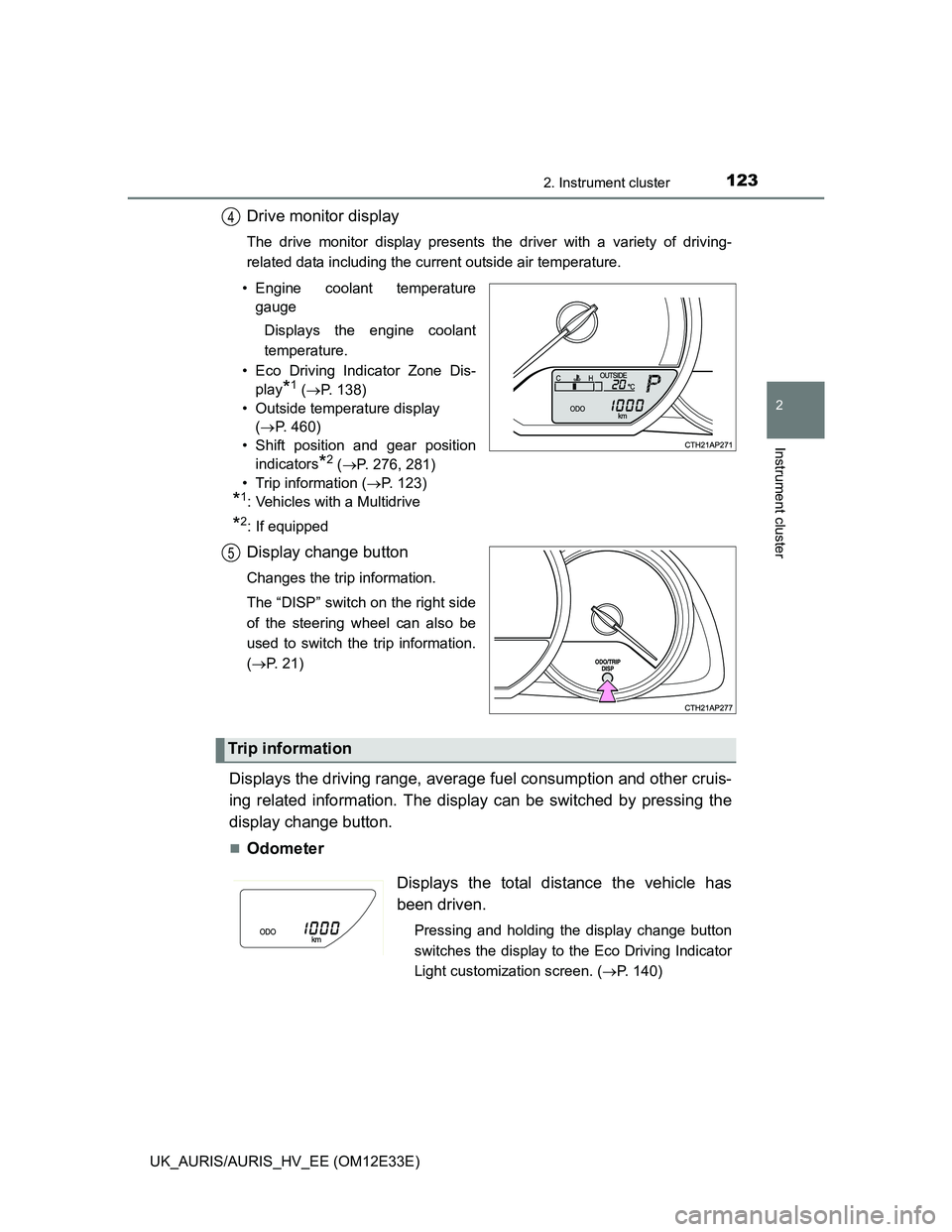

1232. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
2
Instrument cluster
Drive monitor display
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
• Engine coolant temperature
gauge
Displays the engine coolant
temperature.
• Eco Driving Indicator Zone Dis-
play
*1 (P. 138)
• Outside temperature display
(P. 460)
• Shift position and gear position
indicators
*2 (P. 276, 281)
• Trip information (P. 123)
*1: Vehicles with a Multidrive
*2: If equipped
Display change button
Changes the trip information.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
(P. 21)
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
display change button.
Odometer
4
5
Trip information
Displays the total distance the vehicle has
been driven.
Pressing and holding the display change button
switches the display to the Eco Driving Indicator
Light customization screen. (P. 140)

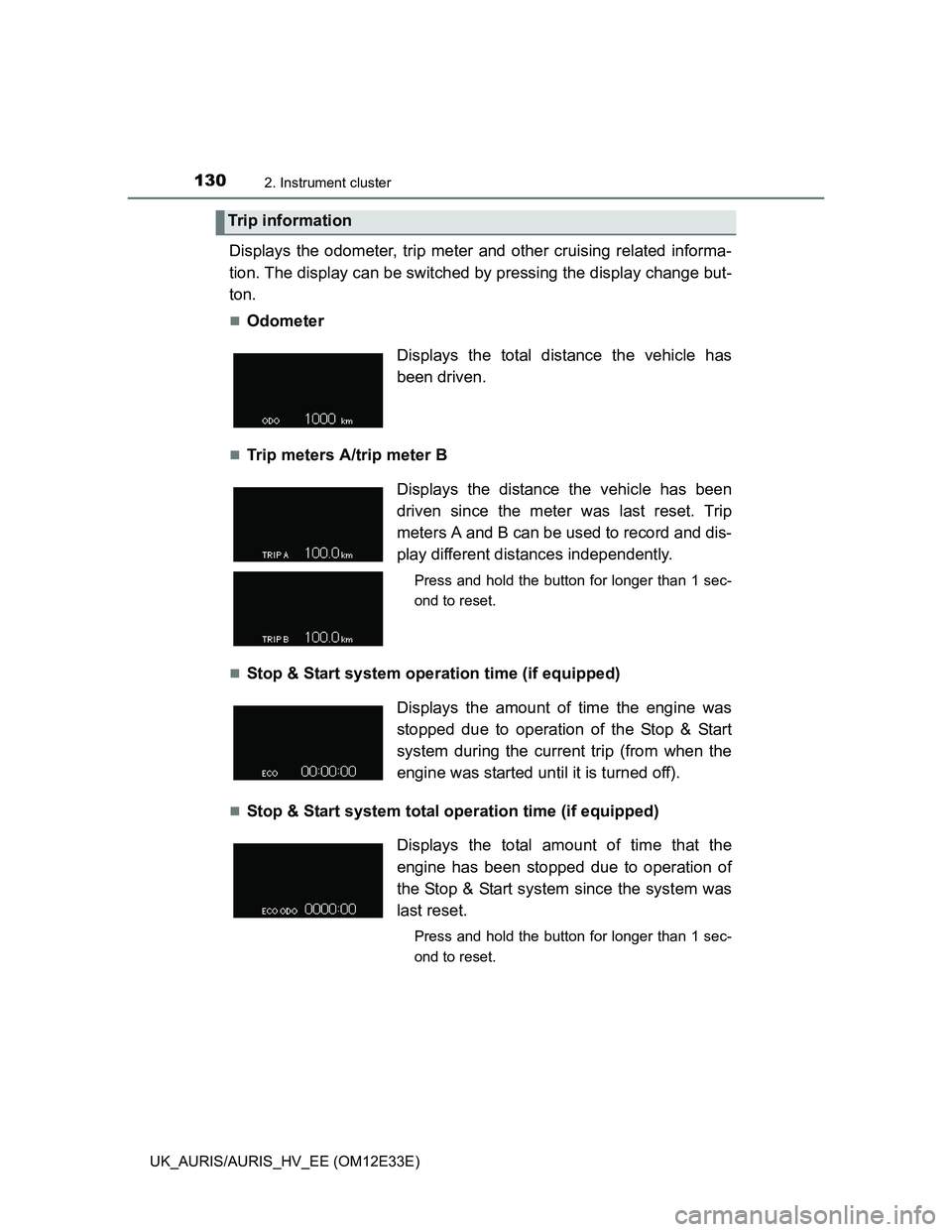

1302. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Displays the odometer, trip meter and other cruising related informa-
tion. The display can be switched by pressing the display change but-
ton.
Odometer
Trip meters A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Trip information
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 sec-
ond to reset.
Displays the amount of time the engine was
stopped due to operation of the Stop & Start
system during the current trip (from when the
engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to operation of
the Stop & Start system since the system was
last reset.
Press and hold the button for longer than 1 sec-
ond to reset.

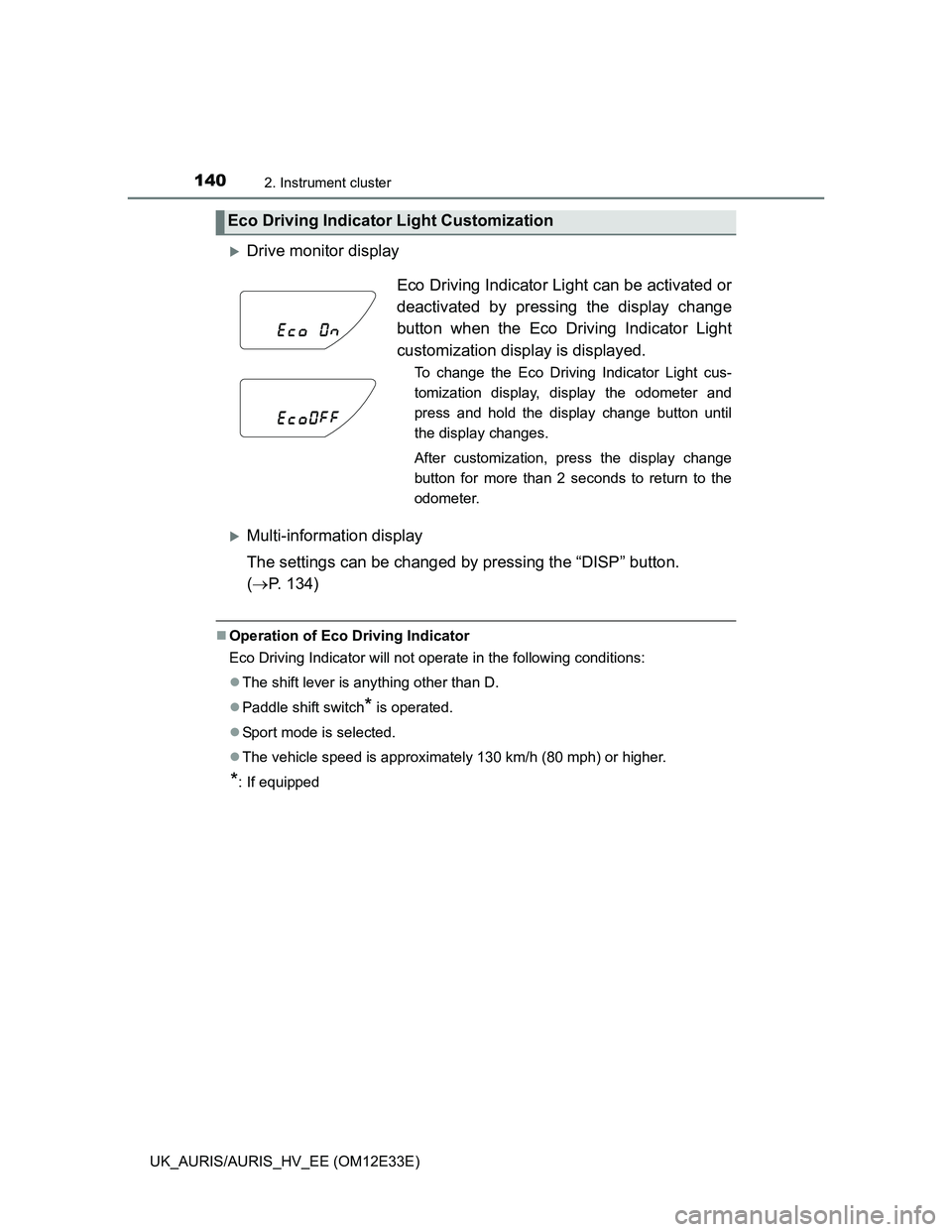

1402. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Drive monitor display
Multi-information display
The settings can be changed by pressing the “DISP” button.
(P. 134)
Operation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:
The shift lever is anything other than D.
Paddle shift switch
* is operated.
Sport mode is selected.
The vehicle speed is approximately 130 km/h (80 mph) or higher.
*: If equipped
Eco Driving Indicator Light Customization
Eco Driving Indicator Light can be activated or
deactivated by pressing the display change
button when the Eco Driving Indicator Light
customization display is displayed.
To change the Eco Driving Indicator Light cus-
tomization display, display the odometer and
press and hold the display change button until
the display changes.
After customization, press the display change
button for more than 2 seconds to return to the
odometer.

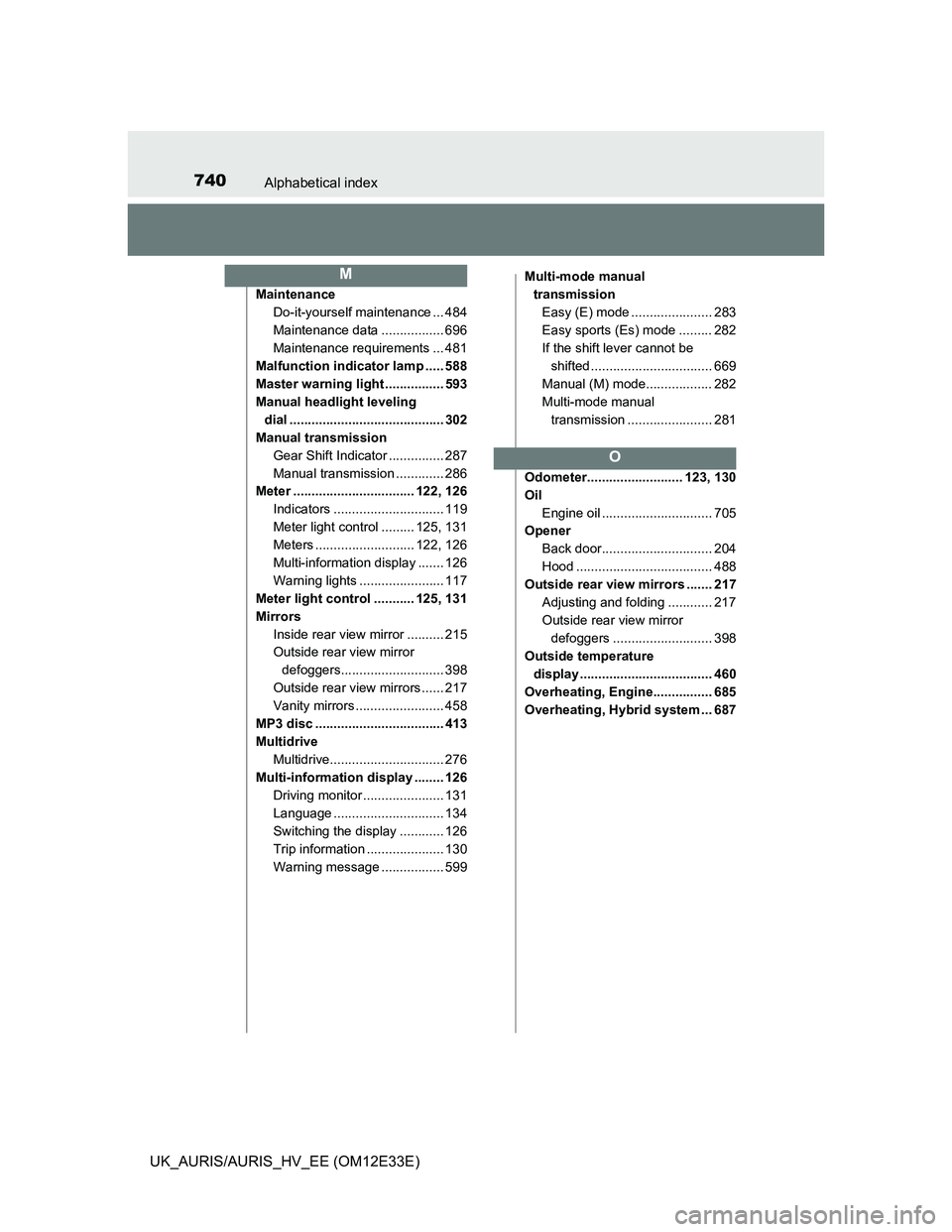

740Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Maintenance
Do-it-yourself maintenance ... 484
Maintenance data ................. 696
Maintenance requirements ... 481
Malfunction indicator lamp ..... 588
Master warning light ................ 593
Manual headlight leveling
dial .......................................... 302
Manual transmission
Gear Shift Indicator ............... 287
Manual transmission ............. 286
Meter ................................. 122, 126
Indicators .............................. 119
Meter light control ......... 125, 131
Meters ........................... 122, 126
Multi-information display ....... 126
Warning lights ....................... 117
Meter light control ........... 125, 131
Mirrors
Inside rear view mirror .......... 215
Outside rear view mirror
defoggers............................ 398
Outside rear view mirrors ...... 217
Vanity mirrors ........................ 458
MP3 disc ................................... 413
Multidrive
Multidrive............................... 276
Multi-information display ........ 126
Driving monitor ...................... 131
Language .............................. 134
Switching the display ............ 126
Trip information ..................... 130
Warning message ................. 599Multi-mode manual
transmission
Easy (E) mode ...................... 283
Easy sports (Es) mode ......... 282
If the shift lever cannot be
shifted ................................. 669
Manual (M) mode.................. 282
Multi-mode manual
transmission ....................... 281
Odometer.......................... 123, 130
Oil
Engine oil .............................. 705
Opener
Back door.............................. 204
Hood ..................................... 488
Outside rear view mirrors ....... 217
Adjusting and folding ............ 217
Outside rear view mirror
defoggers ........................... 398
Outside temperature
display .................................... 460
Overheating, Engine................ 685
Overheating, Hybrid system ... 687
M
O
