Instrument cluster

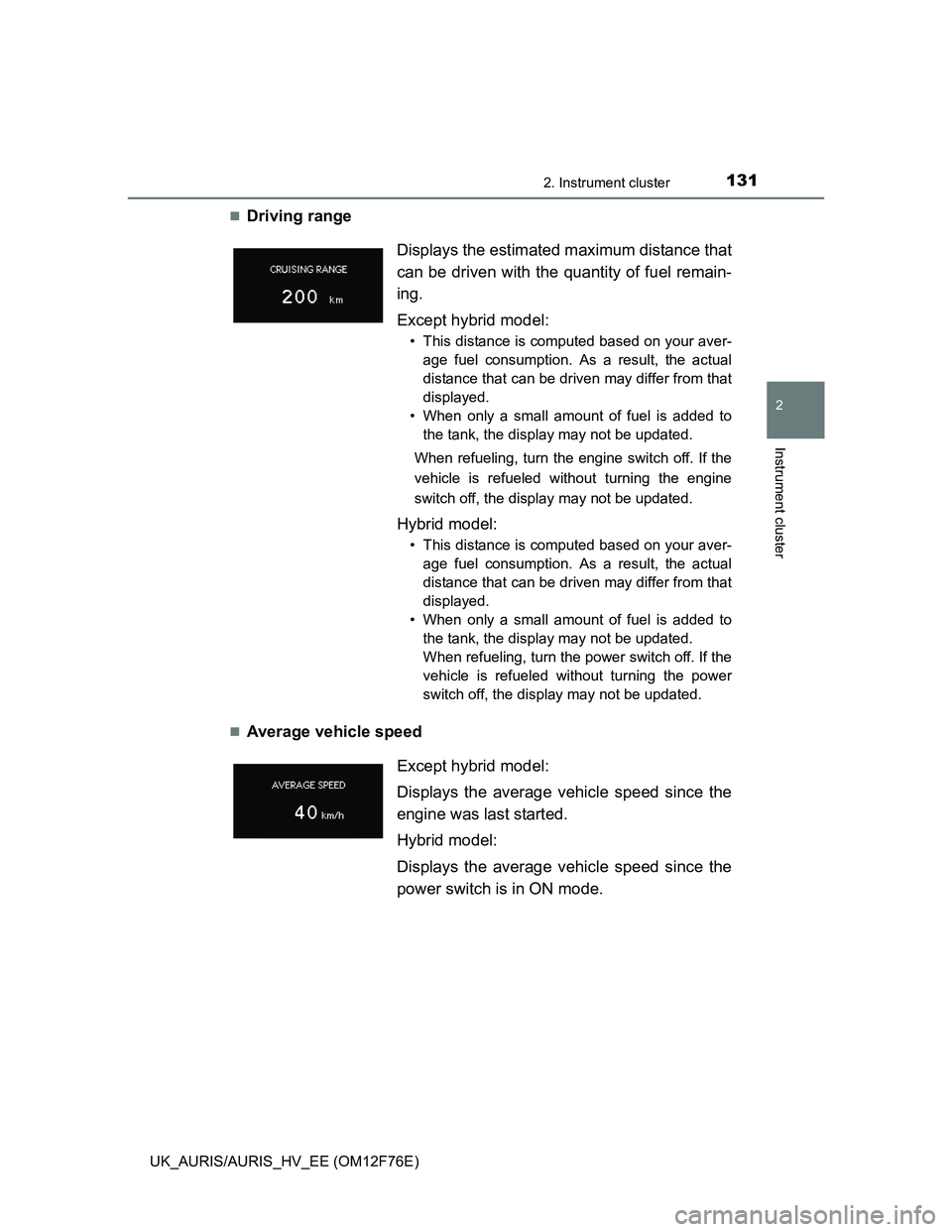

Driving range
Average vehicle speedDisplays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing.
Except hybrid model:
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
Hybrid model:
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the power switch off. If the
vehicle is refueled without turning the power
switch off, the display may not be updated.
Except hybrid model:
Displays the average vehicle speed since the
engine was last started.
Hybrid model:
Displays the average vehicle speed since the
power switch is in ON mode.

1322. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

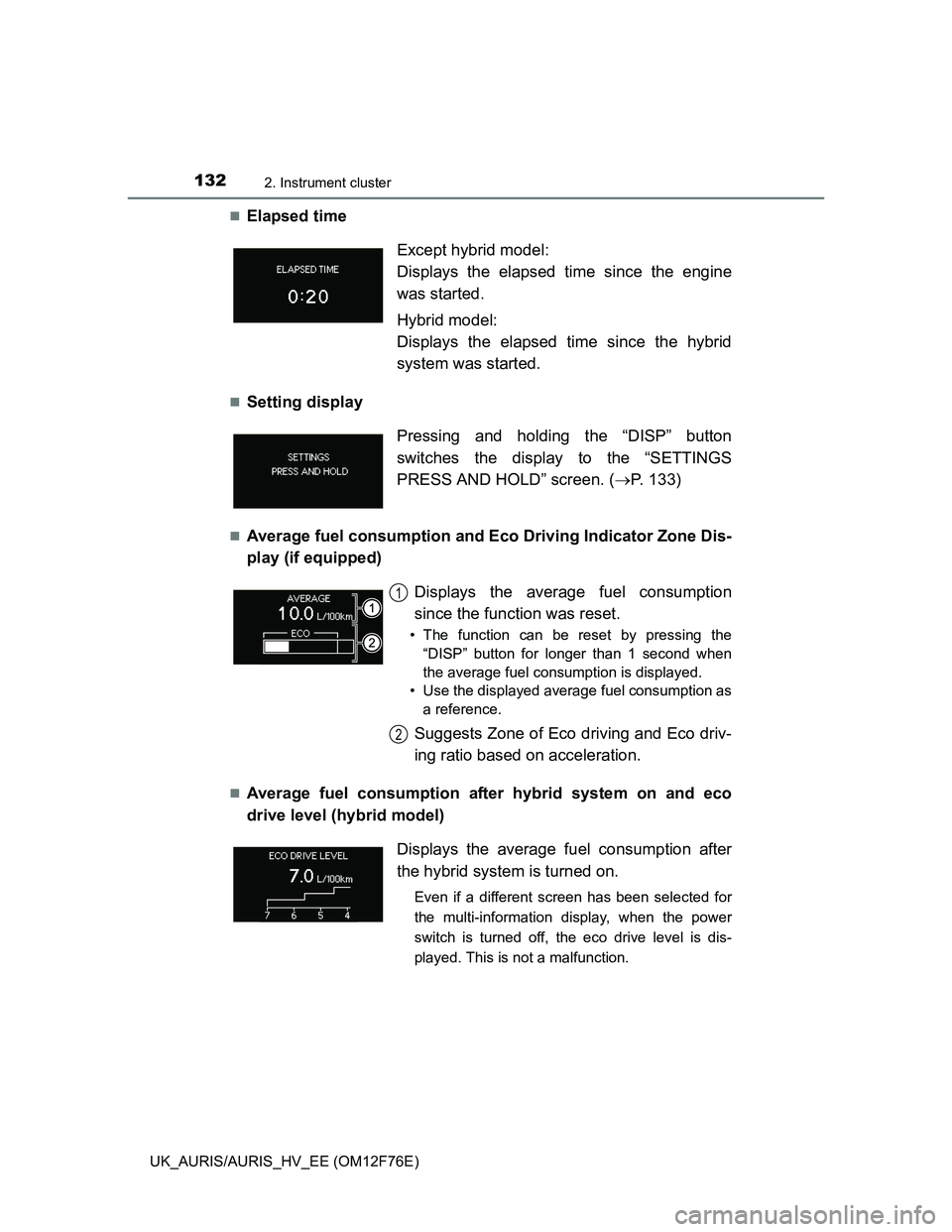

Elapsed time
Setting display
Average fuel consumption and Eco Driving Indicator Zone Dis-
play (if equipped)
Average fuel consumption after hybrid system on and eco
drive level (hybrid model)Except hybrid model:
Displays the elapsed time since the engine
was started.
Hybrid model:
Displays the elapsed time since the hybrid
system was started.
Pressing and holding the “DISP” button
switches the display to the “SETTINGS
PRESS AND HOLD” screen. (P. 133)
Displays the average fuel consumption
since the function was reset.
• The function can be reset by pressing the
“DISP” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
Suggests Zone of Eco driving and Eco driv-
ing ratio based on acceleration.
1
2
Displays the average fuel consumption after
the hybrid system is turned on.
Even if a different screen has been selected for
the multi-information display, when the power
switch is turned off, the eco drive level is dis-
played. This is not a malfunction.

1332. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
Energy monitor
Displays the status of the hybrid system. (P. 141)
The average fuel consumption display settings, and ON/OFF setting
of Eco Drive Indicator Light, etc. can be selected.
Items that can be changed
*1: If equipped
*2: The default setting varies according to countries.
*3: Vehicle with a Multidrive
*4: Hybrid model
*5: EV indicator is disable and the power area of the hybrid system indicator
changes color.

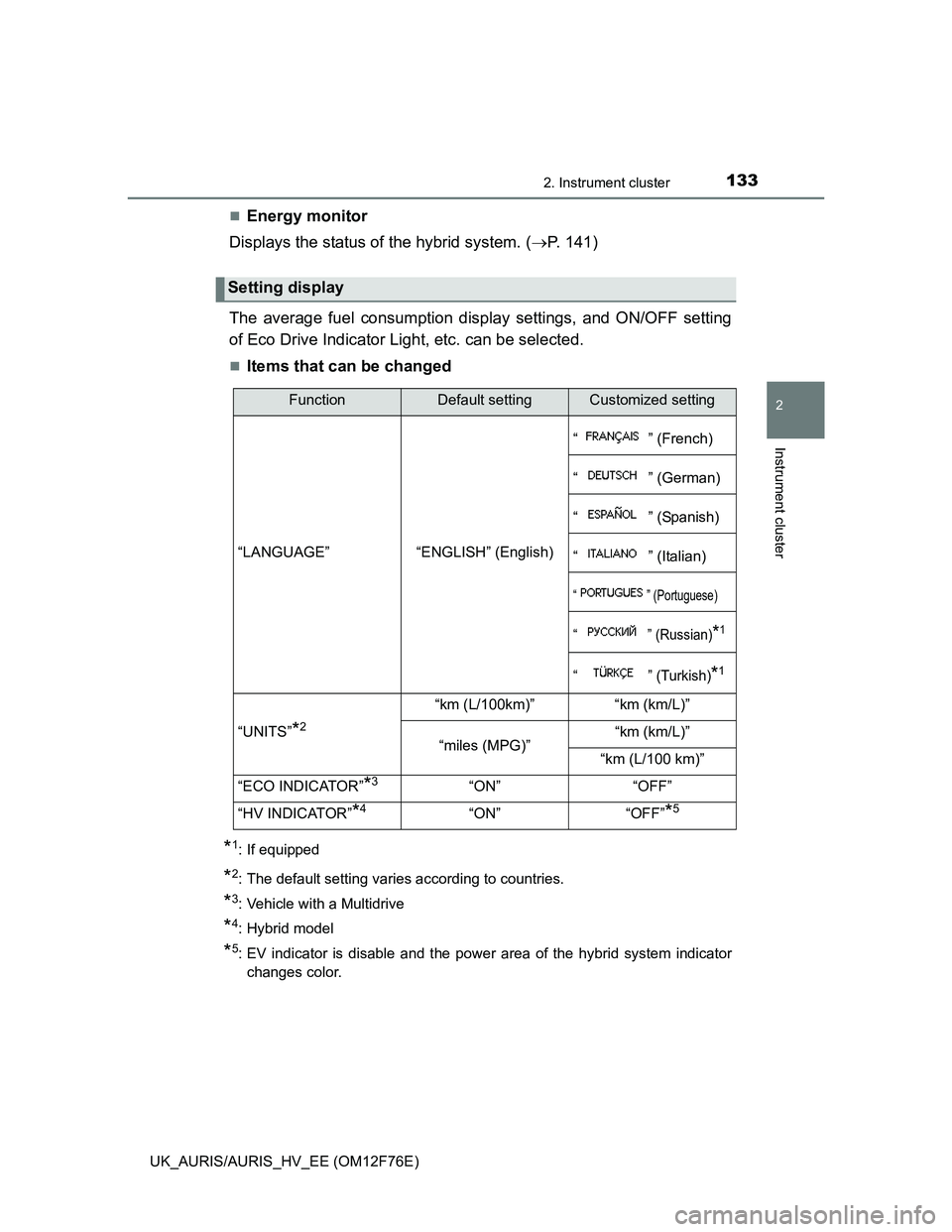

Setting display
FunctionDefault settingCustomized setting
“LANGUAGE” “ENGLISH” (English)“ ” (French)
“ ” (German)
“ ” (Spanish)
“ ” (Italian)
“ ” (Portuguese)
“ ” (Russian)*1
“ ” (Turkish)*1
“UNITS”*2
“km (L/100km)” “km (km/L)”
“miles (MPG)”“km (km/L)”
“km (L/100 km)”
“ECO INDICATOR”
*3“ON” “OFF”
“HV INDICATOR”
*4“ON” “OFF”*5

1342. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

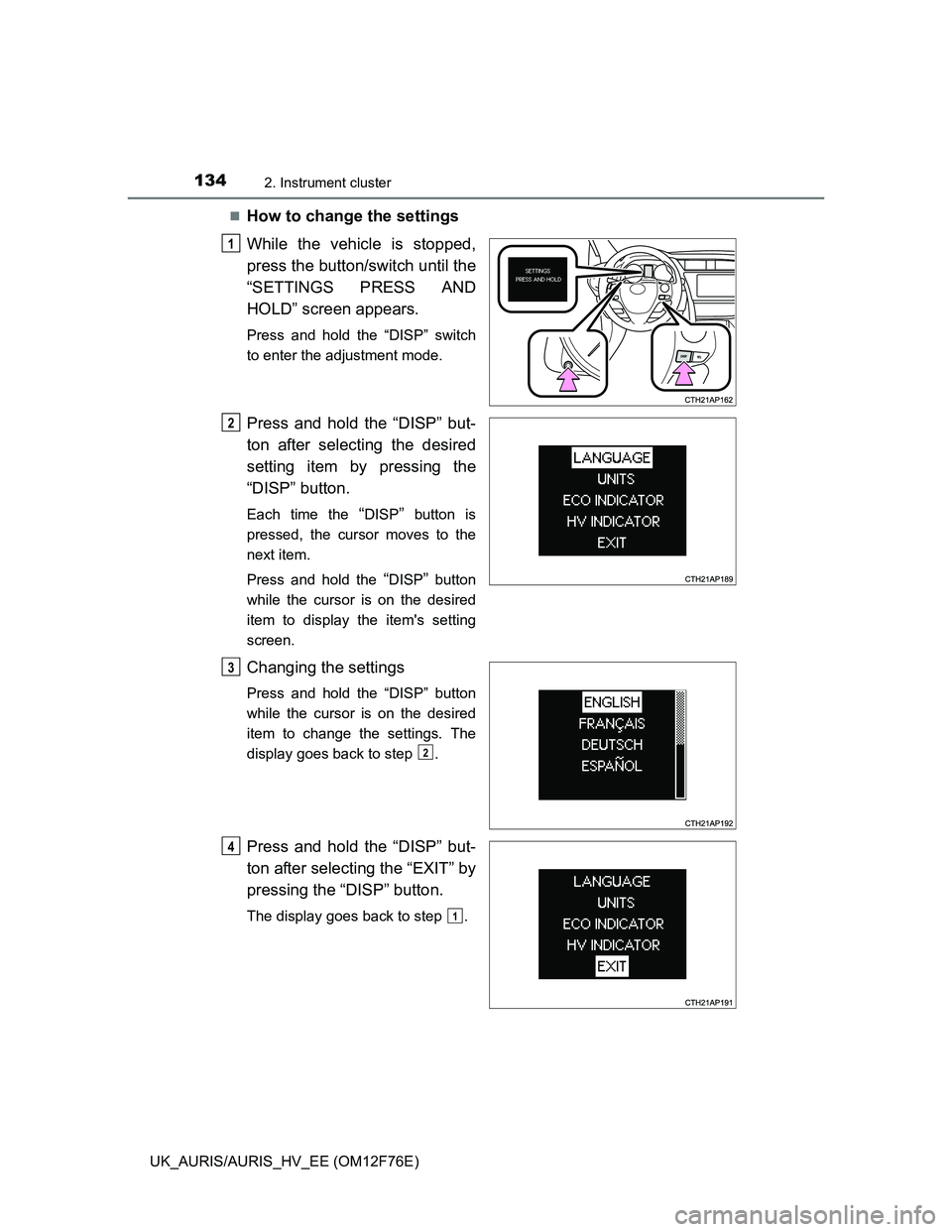

How to change the settings
While the vehicle is stopped,
press the button/switch until the
“SETTINGS PRESS AND
HOLD” screen appears.
Press and hold the “DISP” switch
to enter the adjustment mode.
Press and hold the “DISP” but-
ton after selecting the desired
setting item by pressing the
“DISP” button.
Each time the “DISP” button is
pressed, the cursor moves to the
next item.
Press and hold the
“DISP” button
while the cursor is on the desired
item to display the item's setting
screen.
Changing the settings
Press and hold the “DISP” button
while the cursor is on the desired
item to change the settings. The
display goes back to step .
Press and hold the “DISP” but-
ton after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
1
2
3
2
4
1

1352. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

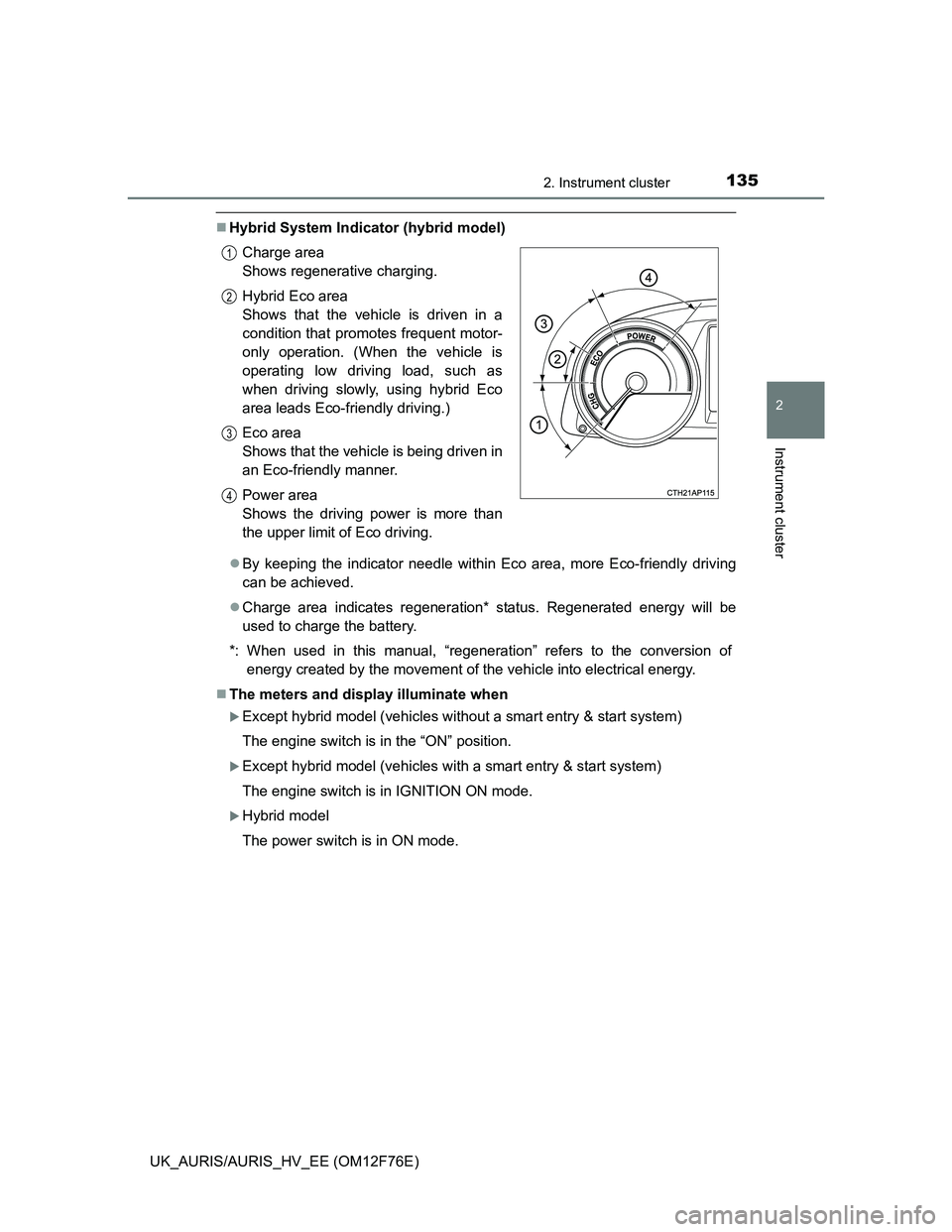

Hybrid System Indicator (hybrid model)
By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
The meters and display illuminate when
Except hybrid model (vehicles without a smart entry & start system)
The engine switch is in the “ON” position.
Except hybrid model (vehicles with a smart entry & start system)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that the vehicle is driven in a
condition that promotes frequent motor-
only operation. (When the vehicle is
operating low driving load, such as
when driving slowly, using hybrid Eco
area leads Eco-friendly driving.)
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows the driving power is more than
the upper limit of Eco driving.
1
2
3
4

1362. Instrument cluster

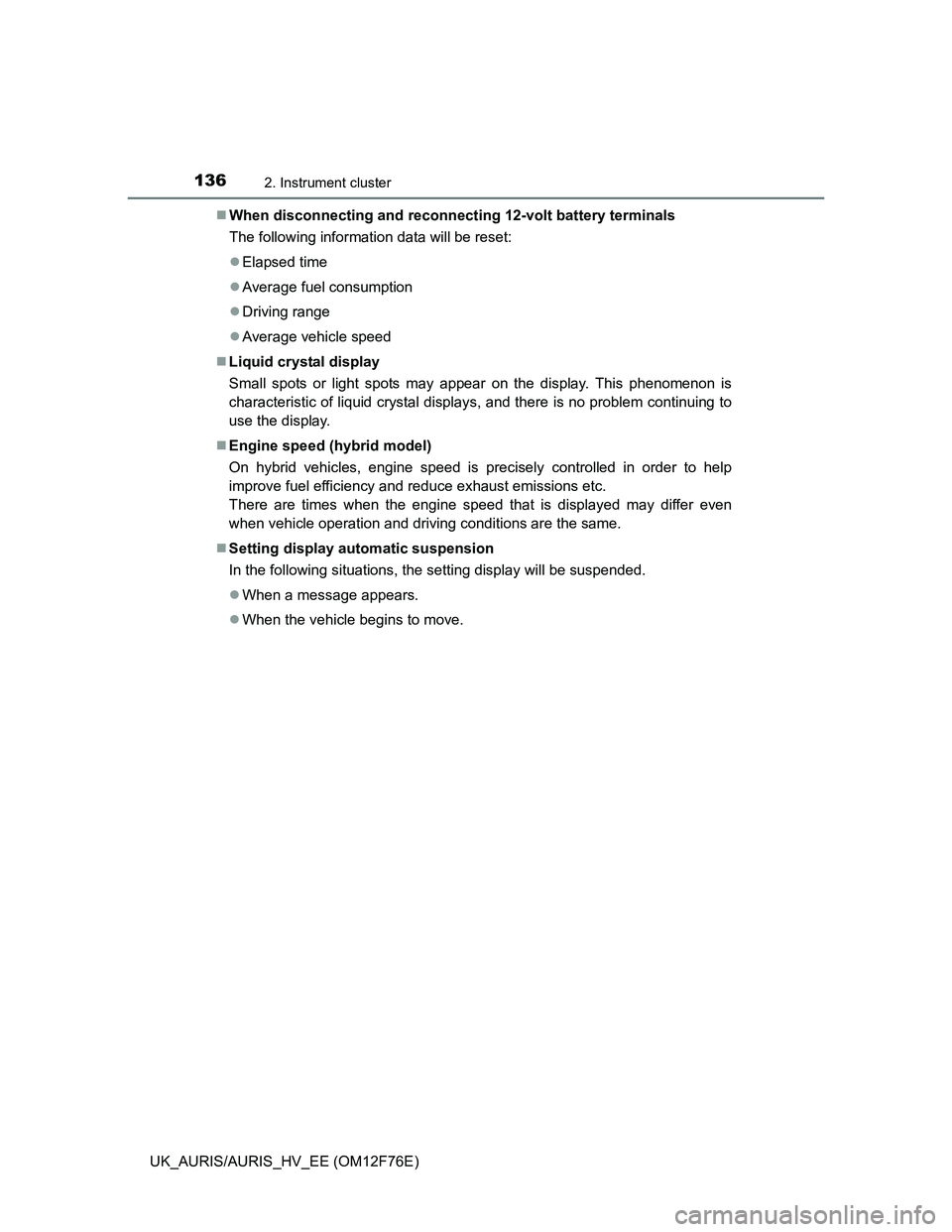

UK_AURIS/AURIS_HV_EE (OM12F76E)When disconnecting and reconnecting 12-volt battery terminals
The following information data will be reset:
Elapsed time
Average fuel consumption
Driving range
Average vehicle speed
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Engine speed (hybrid model)
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
Setting display automatic suspension
In the following situations, the setting display will be suspended.
When a message appears.
When the vehicle begins to move.

1372. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
During Eco-friendly acceleration
operation (Eco driving), Eco Driv-
ing Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, and when
the vehicle is stopped, the light
turns off.

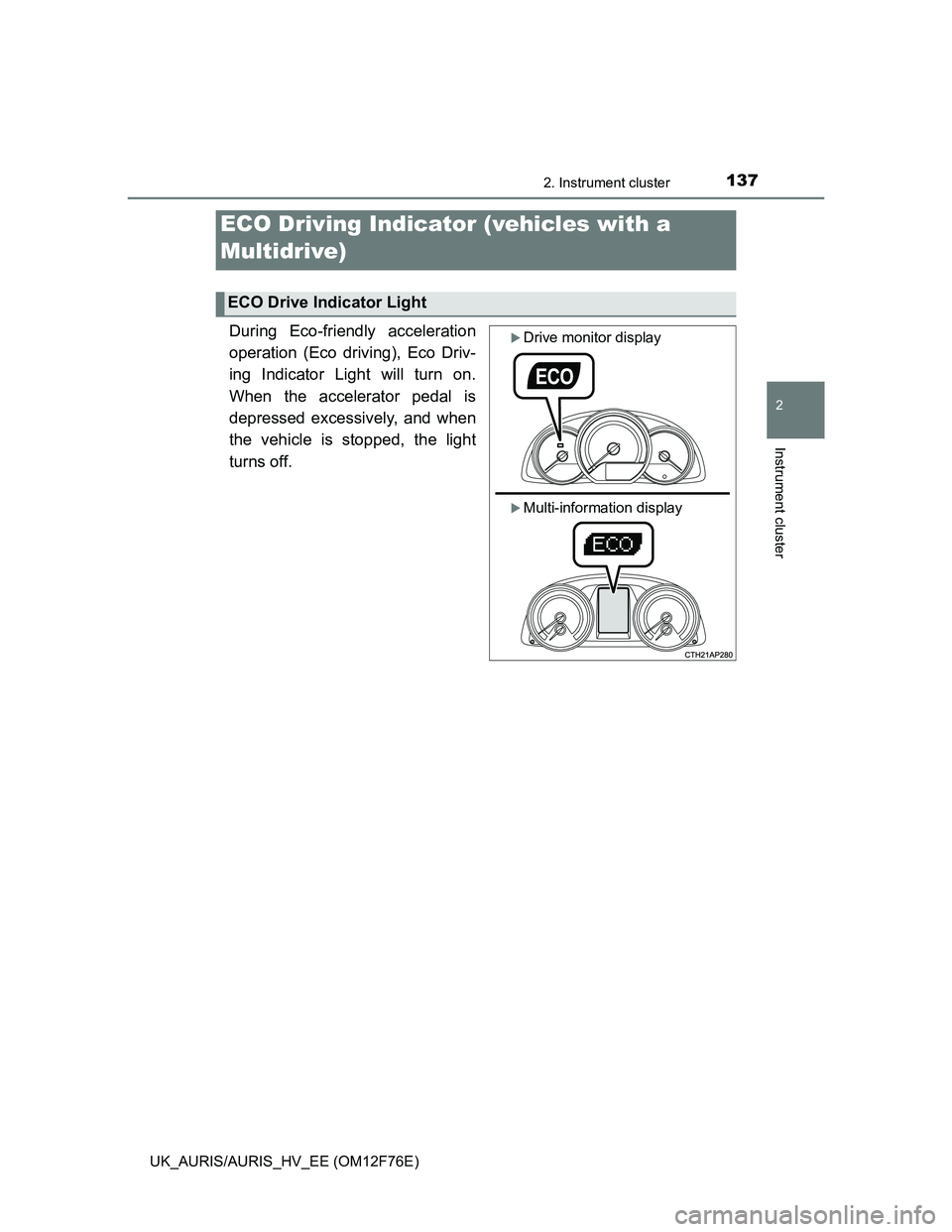

ECO Driving Indicator (vehicles with a
Multidrive)
ECO Drive Indicator Light
Drive monitor display
Multi-information display

1382. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
Suggests Zone of Eco driving and
Eco driving ratio based on accel-
eration.
Eco driving ratio based on
acceleration
If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display
blinks.
Zone of Eco driving
ECO Drive Indicator Zone Display
Drive monitor display
Multi-information display
1
2

1392. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
Drive monitor display
Multi-information display
The settings can be changed by pressing the “DISP” button.
(P. 133)
Operation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:
The shift lever is in any position other than D.
Paddle shift switch
* is operated.
Sport mode is selected.
The vehicle speed is approximately 130 km/h (80 mph) or higher.
*: If equipped

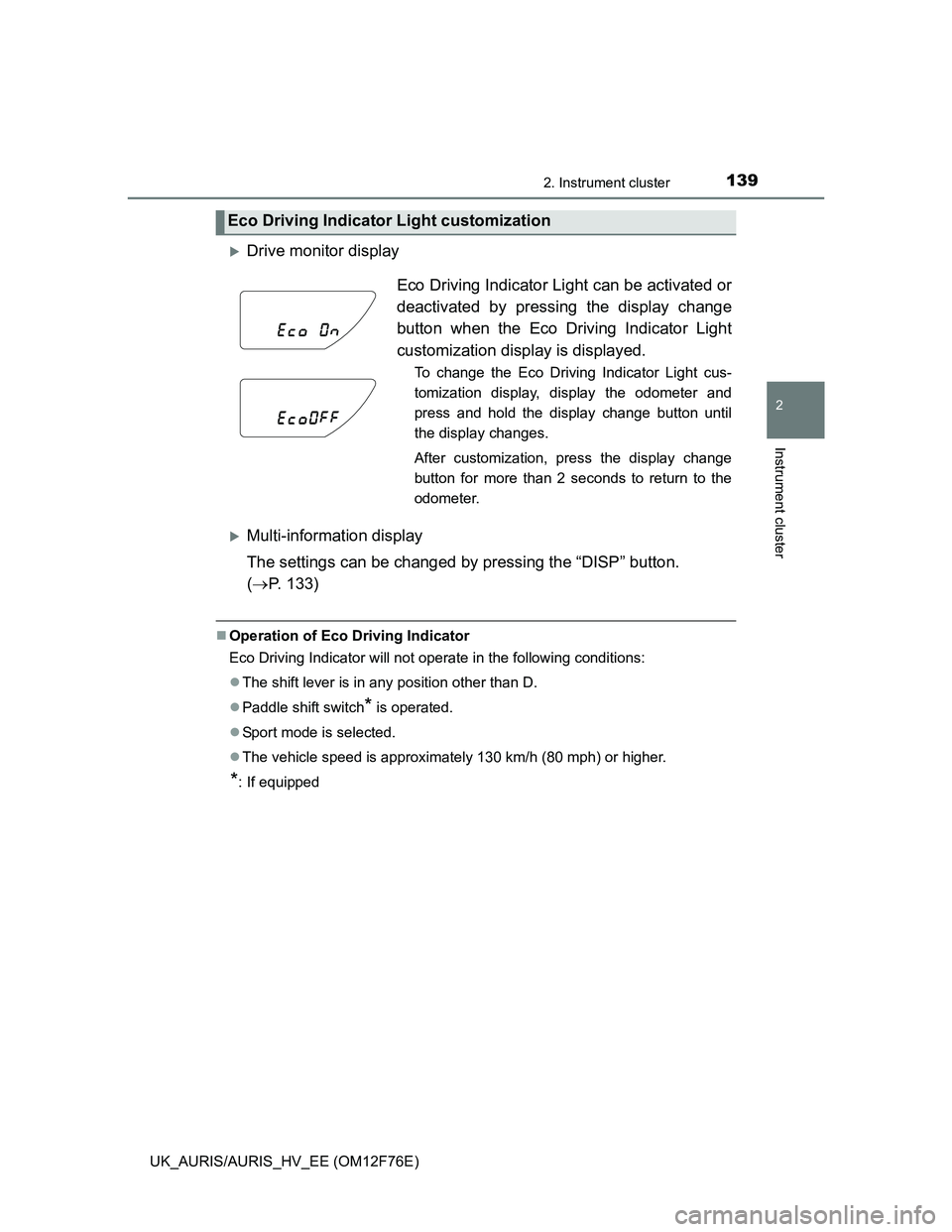

Eco Driving Indicator Light customization
Eco Driving Indicator Light can be activated or
deactivated by pressing the display change
button when the Eco Driving Indicator Light
customization display is displayed.
To change the Eco Driving Indicator Light cus-
tomization display, display the odometer and
press and hold the display change button until
the display changes.
After customization, press the display change
button for more than 2 seconds to return to the
odometer.

1402. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

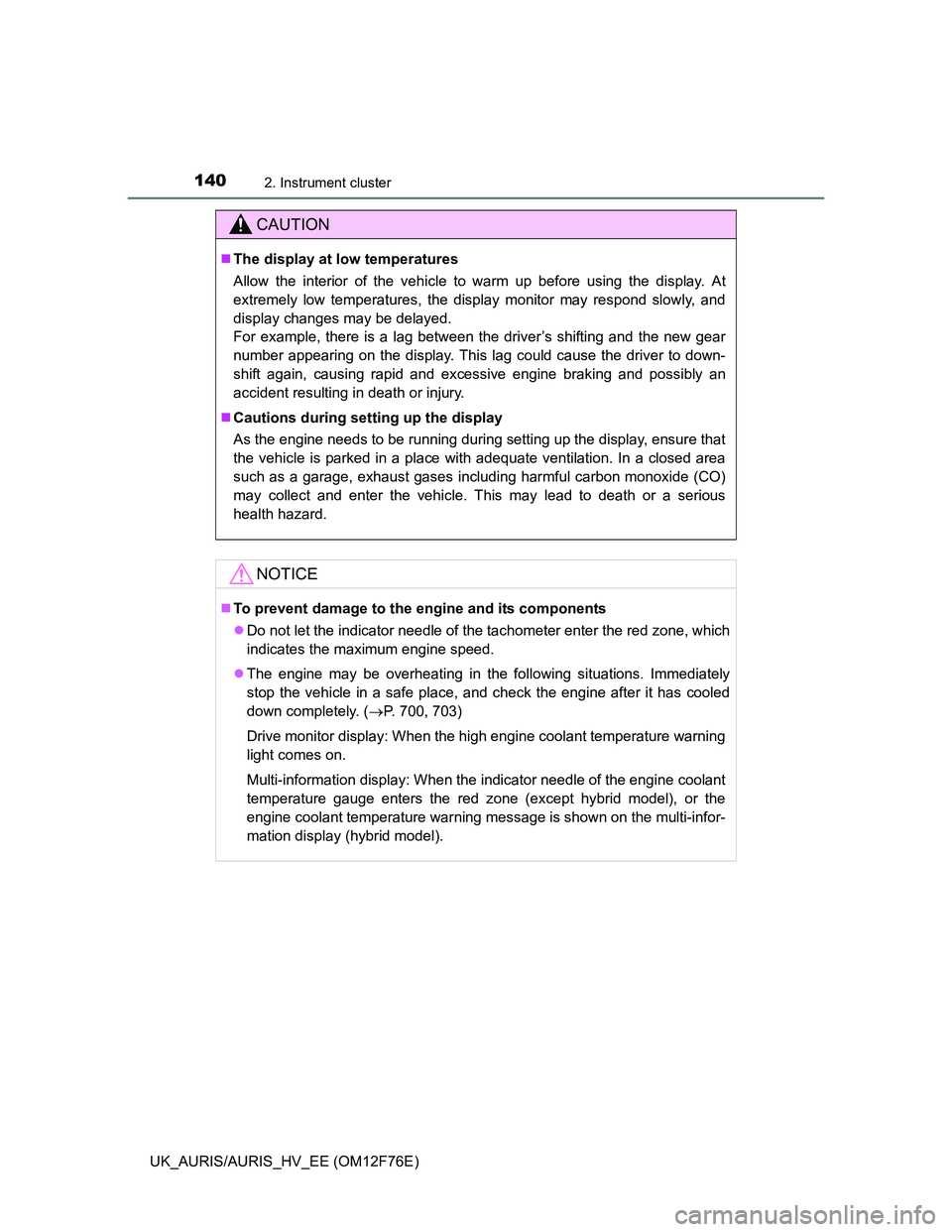

CAUTION
The display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating in the following situations. Immediately
stop the vehicle in a safe place, and check the engine after it has cooled
down completely. (P. 700, 703)
Drive monitor display: When the high engine coolant temperature warning
light comes on.
Multi-information display: When the indicator needle of the engine coolant
temperature gauge enters the red zone (except hybrid model), or the
engine coolant temperature warning message is shown on the multi-infor-
mation display (hybrid model).
