TOYOTA AURIS 2013 Owners Manual (in English)

2213-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12F76E)
3
Operation of each component
When the power window does not close normally (windows with one-
touch closing function only)
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
Except hybrid model (vehicles without a smart entry & start system): After
stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the engine switch is
turned to the “ON” position.
Except hybrid model (vehicles with a smart entry & start system): After
stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the engine switch is
turned to IGNITION ON mode.
Hybrid model: After stopping the vehicle, the window can be closed by
holding the power window switch in the one-touch closing position while the
power switch is turned to ON mode.
If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
1
2
3

2223-5. Opening and closing the windows
UK_AURIS/AURIS_HV_EE (OM12F76E)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Closing the windows
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
Jam protection function (windows with one-touch closing function
only)
Never use any part of your body to intentionally activate the jam protection
function.
The jam protection function may not work if something gets caught just
before the window fully closes.

223
4Driving
UK_AURIS/AURIS_HV_EE (OM12F76E)4-1. Before driving
Driving the vehicle ............. 224
Cargo and luggage ............ 241
Trailer towing (except
hybrid model) ................... 242
Trailer towing
(hybrid model).................. 252
4-2. Driving procedures
Engine (ignition) switch
(except hybrid model
[vehicles without a
smart entry & start
system]) ........................... 262
Engine (ignition) switch
(except hybrid model
[vehicles with a smart
entry & start system])....... 266
Power (ignition) switch....... 276
EV drive mode ................... 282
Multidrive ........................... 284
Multi-mode Manual
Transmission ................... 289
Manual transmission.......... 294
Hybrid transmission ........... 297
Turn signal lever ................ 305
Parking brake .................... 306
Horn ................................... 3074-3. Operating the lights and
wipers
Headlight switch................. 308
Automatic High Beam ........ 316
Fog light switch .................. 320
Windshield wipers and
washer ............................. 322
Rear window wiper and
washer ............................. 326
4-4. Refueling
Opening the fuel tank
cap ................................... 328
4-5. Using the driving support
systems
Cruise control..................... 332
Speed limiter ...................... 337
Toyota parking
assist-sensor ................... 340
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 346
Stop & Start system ........... 362
Driving assist systems ....... 368
Hill-start assist control........ 374
Diesel particulate filter
system ............................. 376
4-6. Driving tips
Hybrid vehicle driving
tips ................................... 378
Winter driving tips .............. 380

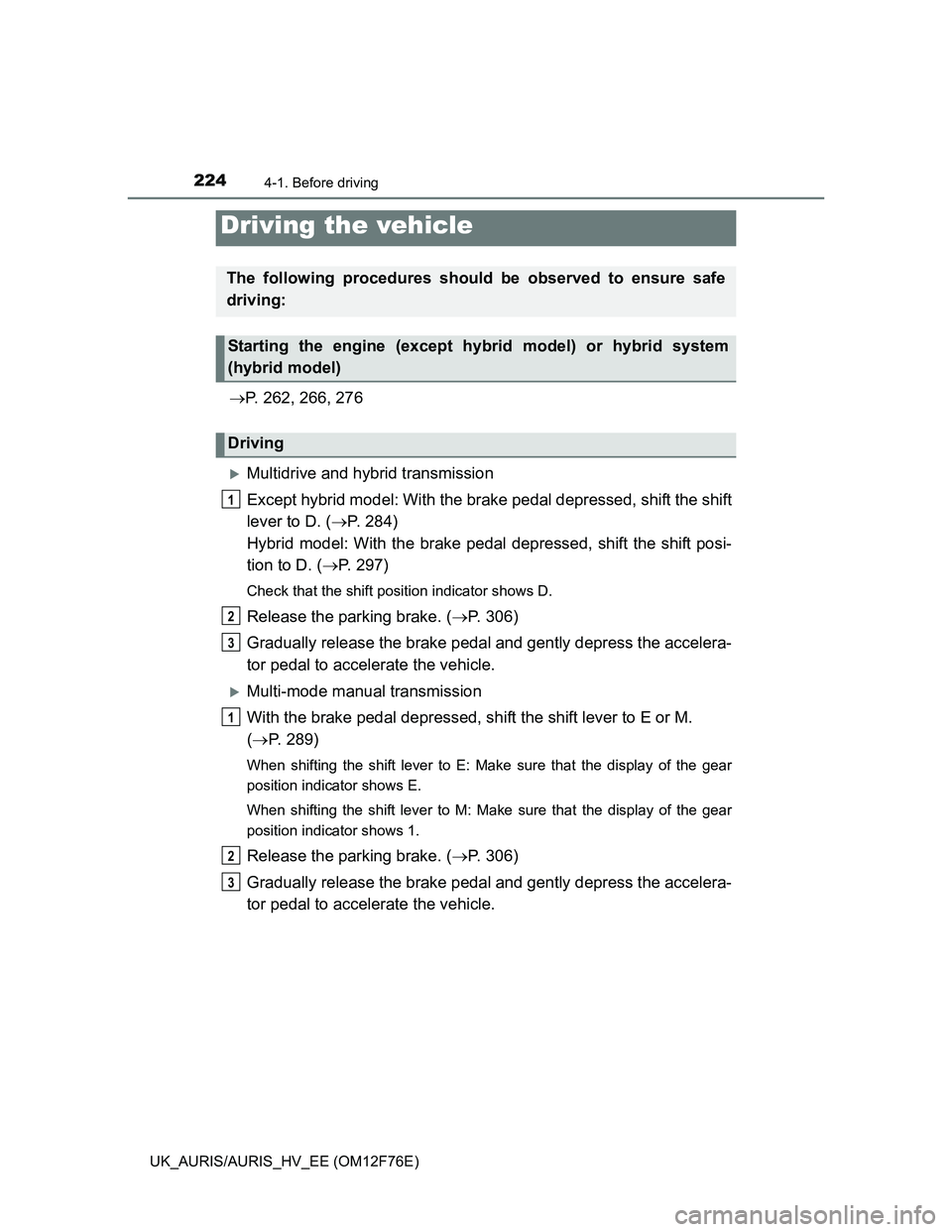

224
UK_AURIS/AURIS_HV_EE (OM12F76E)
4-1. Before driving
P. 262, 266, 276
Multidrive and hybrid transmission
Except hybrid model: With the brake pedal depressed, shift the shift
lever to D. (P. 284)
Hybrid model: With the brake pedal depressed, shift the shift posi-
tion to D. (P. 297)
Check that the shift position indicator shows D.
Release the parking brake. (P. 306)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Multi-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or M.
(P. 289)
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Release the parking brake. (P. 306)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine (except hybrid model) or hybrid system
(hybrid model)
Driving
1
2
3
1
2
3

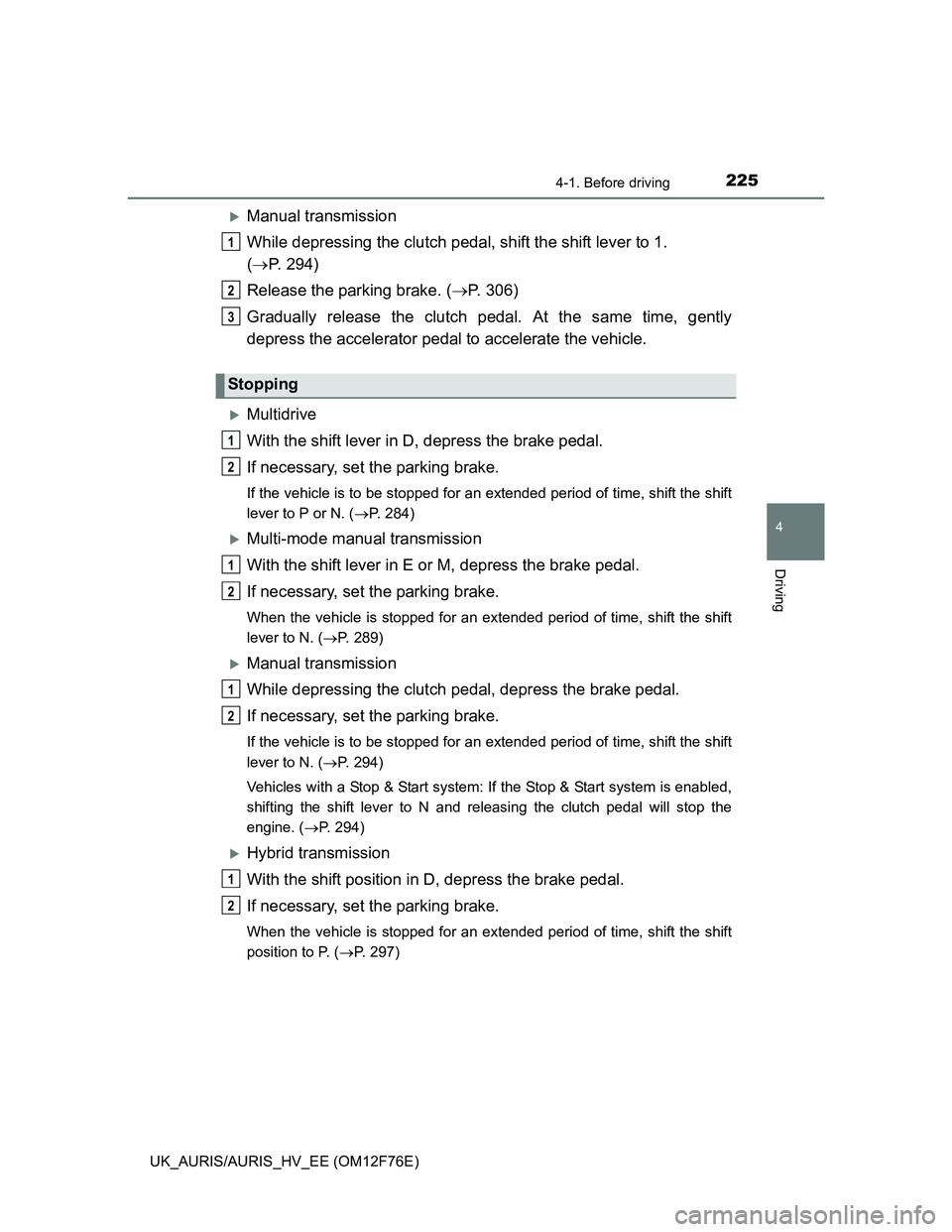

2254-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 294)
Release the parking brake. (P. 306)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Multidrive
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (P. 284)
Multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the shift
lever to N. (P. 289)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. (P. 294)
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
shifting the shift lever to N and releasing the clutch pedal will stop the
engine. (P. 294)
Hybrid transmission
With the shift position in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the shift
position to P. (P. 297)
Stopping
1
2
3
1
2
1
2
1
2
1
2

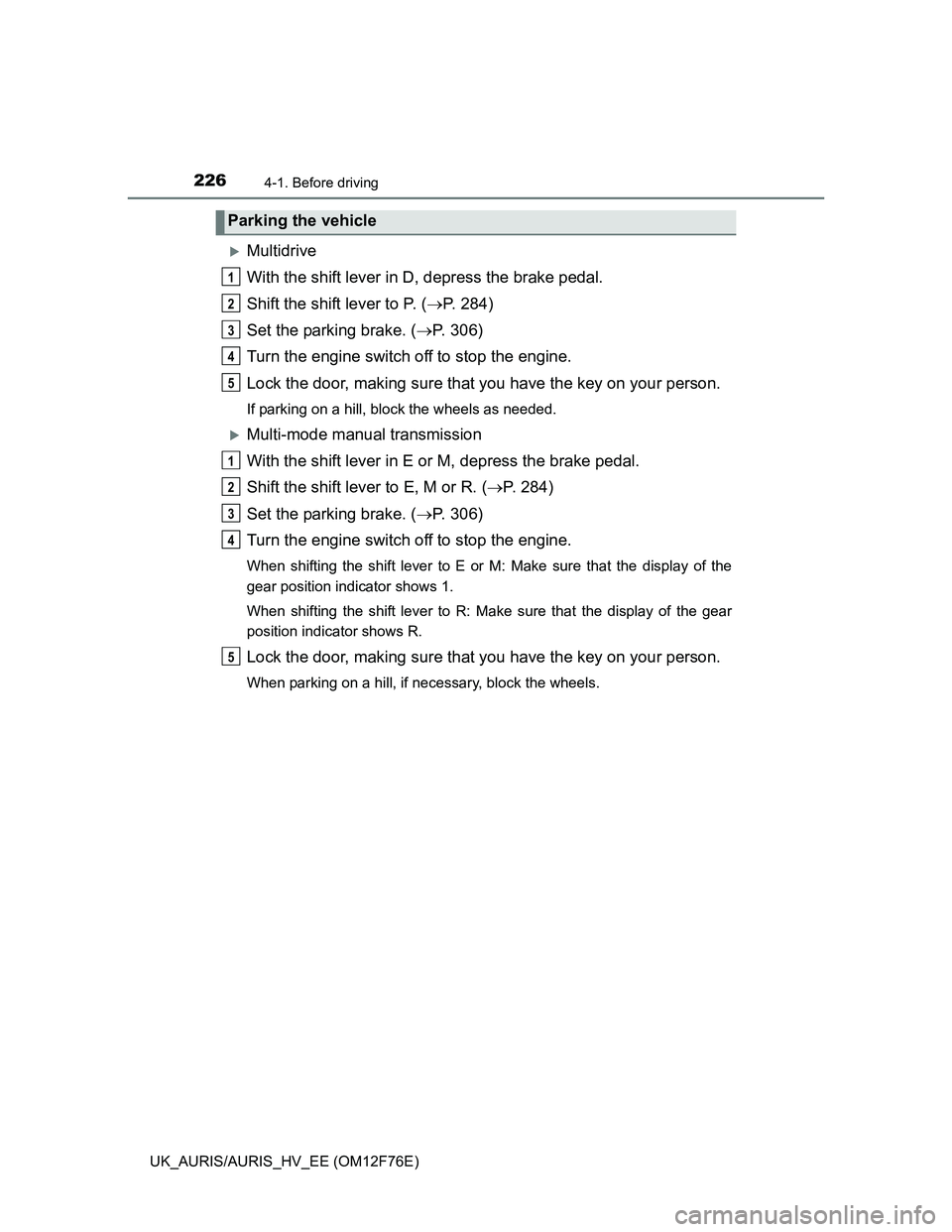

2264-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12F76E)
Multidrive
With the shift lever in D, depress the brake pedal.
Shift the shift lever to P. (P. 284)
Set the parking brake. (P. 306)
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
Shift the shift lever to E, M or R. (P. 284)
Set the parking brake. (P. 306)
Turn the engine switch off to stop the engine.
When shifting the shift lever to E or M: Make sure that the display of the
gear position indicator shows 1.
When shifting the shift lever to R: Make sure that the display of the gear
position indicator shows R.
Lock the door, making sure that you have the key on your person.
When parking on a hill, if necessary, block the wheels.
Parking the vehicle
1
2
3
4
5
1
2
3
4
5

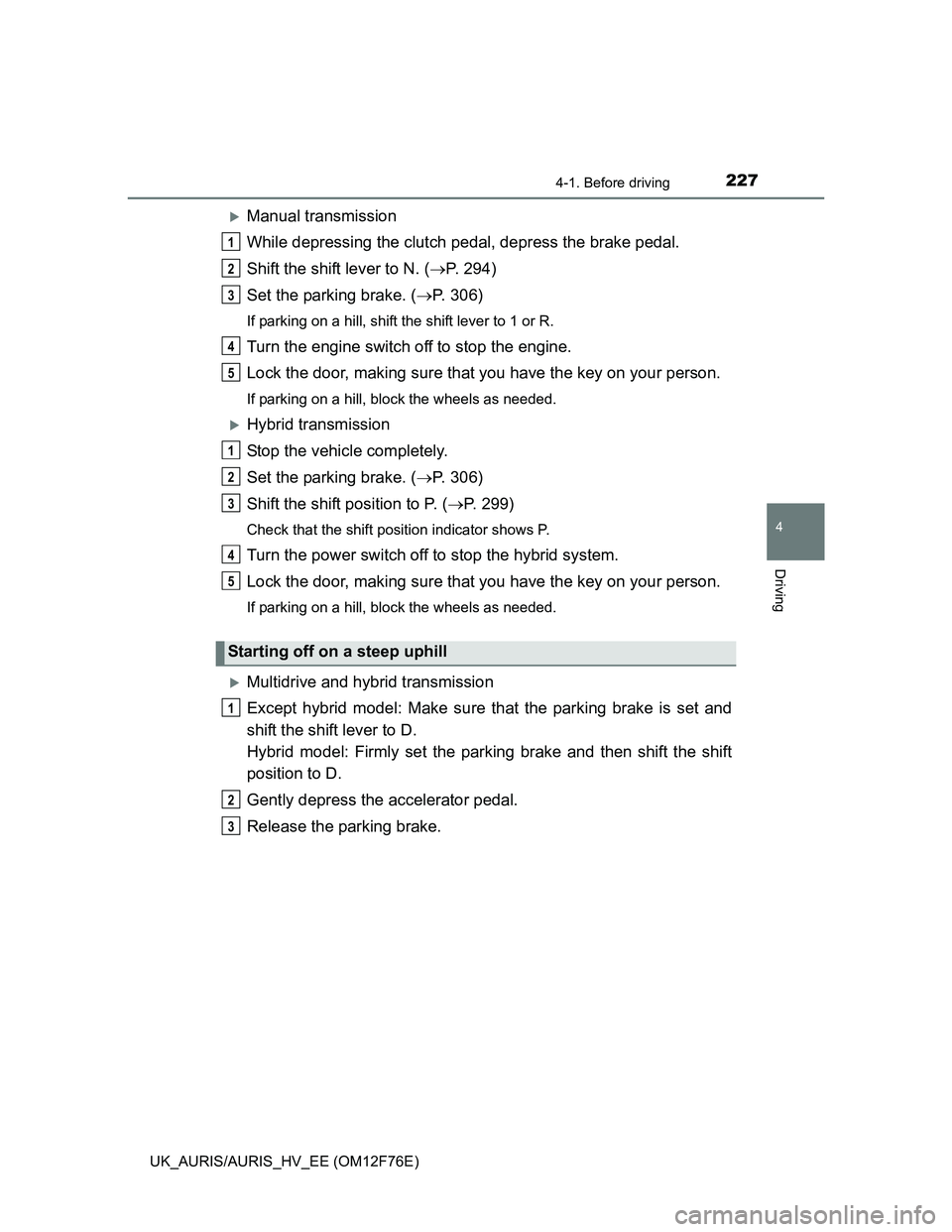

2274-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
Shift the shift lever to N. (P. 294)
Set the parking brake. (P. 306)
If parking on a hill, shift the shift lever to 1 or R.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Hybrid transmission
Stop the vehicle completely.
Set the parking brake. (P. 306)
Shift the shift position to P. (P. 299)
Check that the shift position indicator shows P.
Turn the power switch off to stop the hybrid system.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Multidrive and hybrid transmission
Except hybrid model: Make sure that the parking brake is set and
shift the shift lever to D.
Hybrid model: Firmly set the parking brake and then shift the shift
position to D.
Gently depress the accelerator pedal.
Release the parking brake.
Starting off on a steep uphill
1
2
3
4
5
1
2
3
4
5
1
2
3

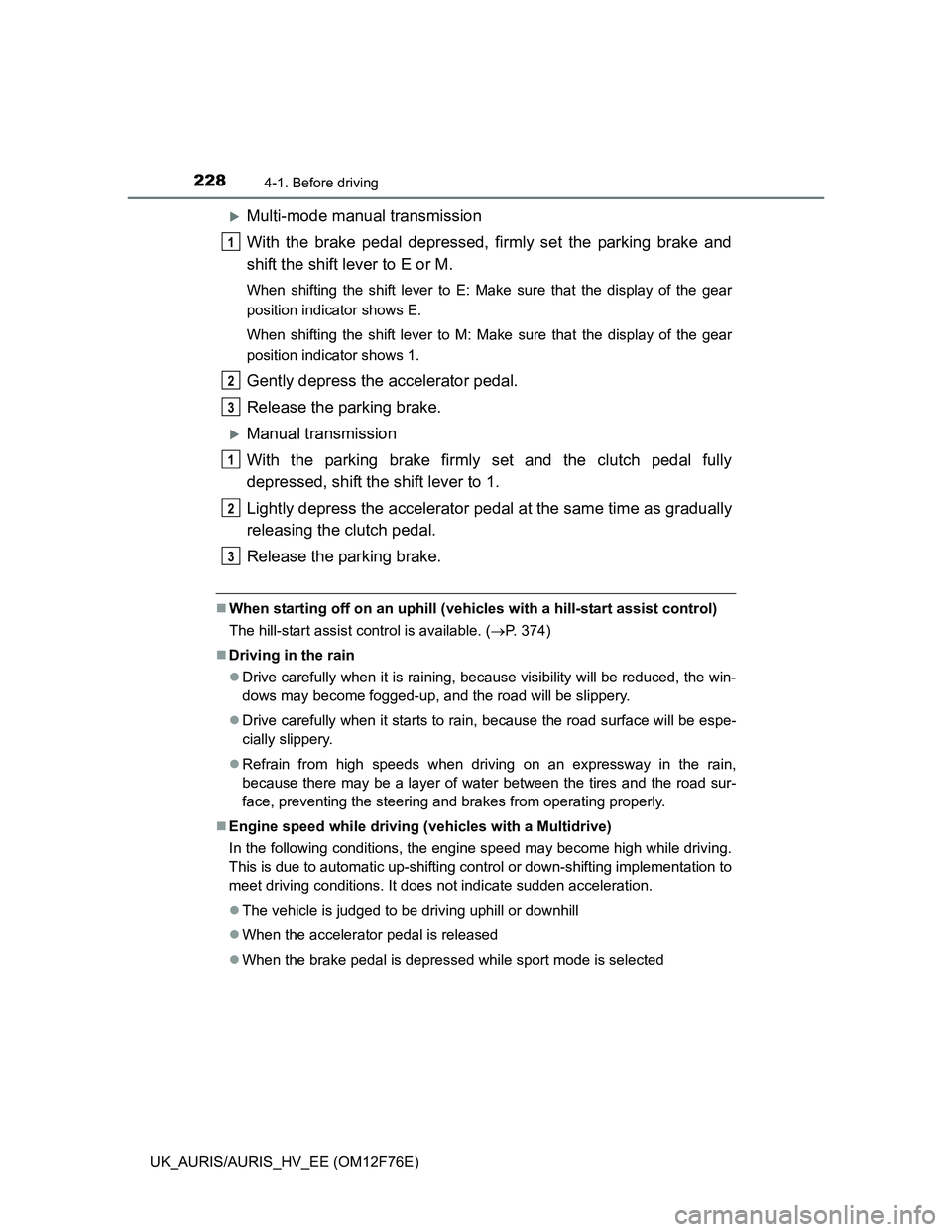

2284-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12F76E)
Multi-mode manual transmission
With the brake pedal depressed, firmly set the parking brake and
shift the shift lever to E or M.
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
When starting off on an uphill (vehicles with a hill-start assist control)
The hill-start assist control is available. (P. 374)
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
Engine speed while driving (vehicles with a Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
The vehicle is judged to be driving uphill or downhill
When the accelerator pedal is released
When the brake pedal is depressed while sport mode is selected
1
2
3
1
2
3

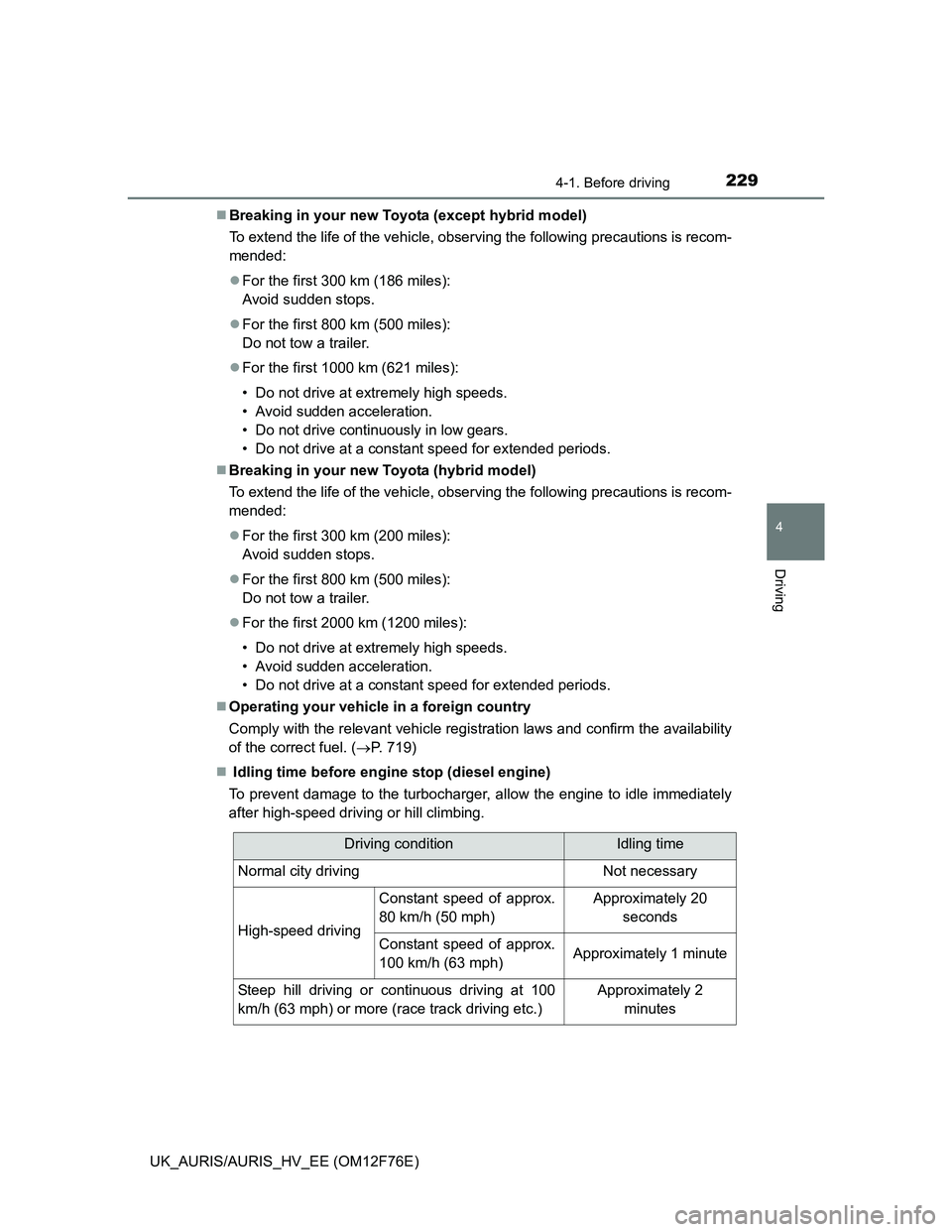

2294-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
Breaking in your new Toyota (except hybrid model)
To extend the life of the vehicle, observing the following precautions is recom-
mended:
For the first 300 km (186 miles):
Avoid sudden stops.
For the first 800 km (500 miles):
Do not tow a trailer.
For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
Breaking in your new Toyota (hybrid model)
To extend the life of the vehicle, observing the following precautions is recom-
mended:
For the first 300 km (200 miles):
Avoid sudden stops.
For the first 800 km (500 miles):
Do not tow a trailer.
For the first 2000 km (1200 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive at a constant speed for extended periods.
Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 719)
 Idling time before engine stop (diesel engine)
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or hill climbing.
Driving conditionIdling time
Normal city driving Not necessary
High-speed driving
Constant speed of approx.
80 km/h (50 mph)Approximately 20
seconds
Constant speed of approx.
100 km/h (63 mph)Approximately 1 minute
Steep hill driving or continuous driving at 100
km/h (63 mph) or more (race track driving etc.)Approximately 2
minutes

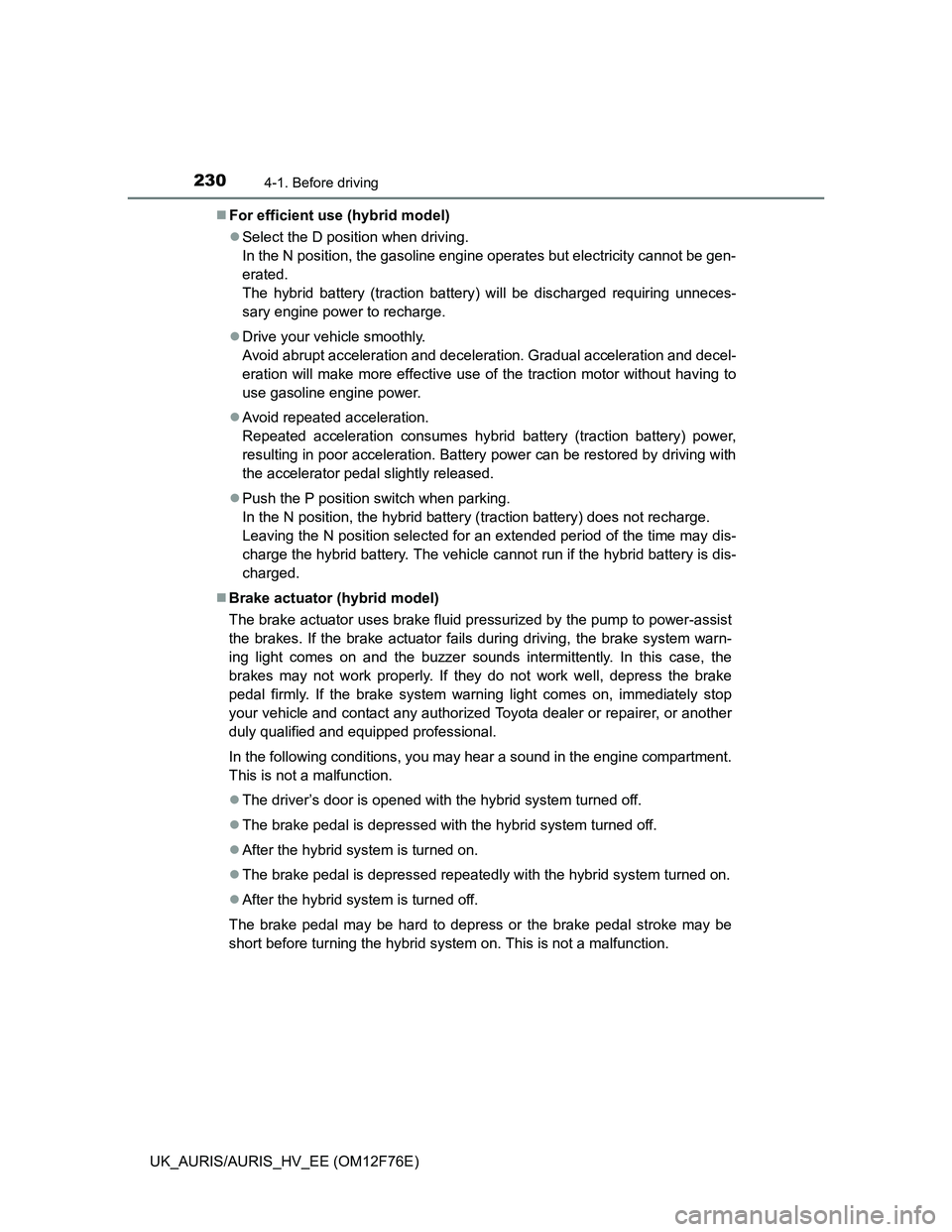

2304-1. Before driving
UK_AURIS/AURIS_HV_EE (OM12F76E)For efficient use (hybrid model)
Select the D position when driving.
In the N position, the gasoline engine operates but electricity cannot be gen-
erated.
The hybrid battery (traction battery) will be discharged requiring unneces-
sary engine power to recharge.
Drive your vehicle smoothly.
Avoid abrupt acceleration and deceleration. Gradual acceleration and decel-
eration will make more effective use of the traction motor without having to
use gasoline engine power.
Avoid repeated acceleration.
Repeated acceleration consumes hybrid battery (traction battery) power,
resulting in poor acceleration. Battery power can be restored by driving with
the accelerator pedal slightly released.
Push the P position switch when parking.
In the N position, the hybrid battery (traction battery) does not recharge.
Leaving the N position selected for an extended period of the time may dis-
charge the hybrid battery. The vehicle cannot run if the hybrid battery is dis-
charged.
Brake actuator (hybrid model)
The brake actuator uses brake fluid pressurized by the pump to power-assist
the brakes. If the brake actuator fails during driving, the brake system warn-
ing light comes on and the buzzer sounds intermittently. In this case, the
brakes may not work properly. If they do not work well, depress the brake
pedal firmly. If the brake system warning light comes on, immediately stop
your vehicle and contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
In the following conditions, you may hear a sound in the engine compartment.
This is not a malfunction.
The driver’s door is opened with the hybrid system turned off.
The brake pedal is depressed with the hybrid system turned off.
After the hybrid system is turned on.
The brake pedal is depressed repeatedly with the hybrid system turned on.
After the hybrid system is turned off.
The brake pedal may be hard to depress or the brake pedal stroke may be
short before turning the hybrid system on. This is not a malfunction.
