TOYOTA AURIS 2013 Owners Manual (in English)

3014-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving

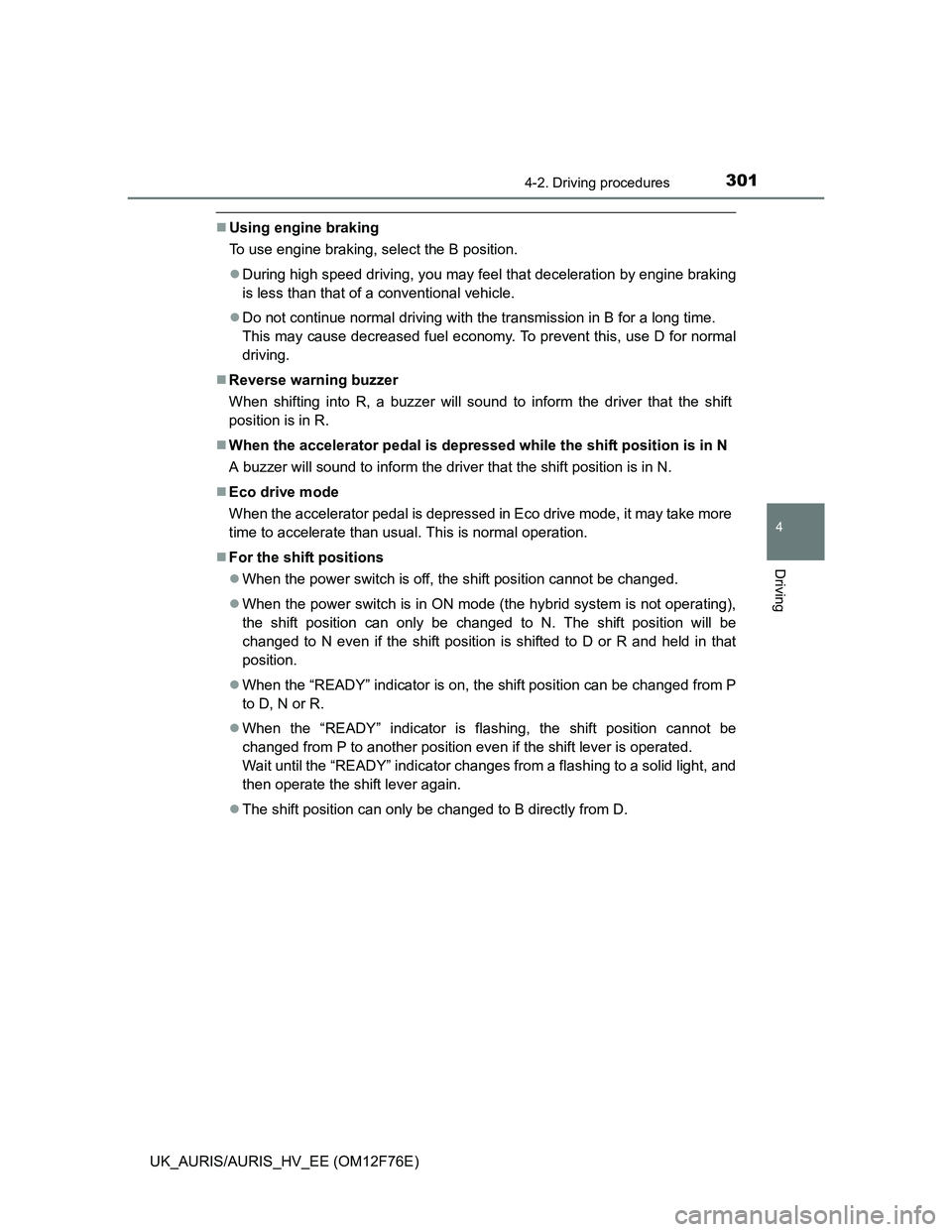

Using engine braking
To use engine braking, select the B position.
During high speed driving, you may feel that deceleration by engine braking
is less than that of a conventional vehicle.
Do not continue normal driving with the transmission in B for a long time.
This may cause decreased fuel economy. To prevent this, use D for normal
driving.
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
position is in R.
When the accelerator pedal is depressed while the shift position is in N
A buzzer will sound to inform the driver that the shift position is in N.
Eco drive mode
When the accelerator pedal is depressed in Eco drive mode, it may take more
time to accelerate than usual. This is normal operation.
For the shift positions
When the power switch is off, the shift position cannot be changed.
When the power switch is in ON mode (the hybrid system is not operating),
the shift position can only be changed to N. The shift position will be
changed to N even if the shift position is shifted to D or R and held in that
position.
When the “READY” indicator is on, the shift position can be changed from P
to D, N or R.
When the “READY” indicator is flashing, the shift position cannot be
changed from P to another position even if the shift lever is operated.
Wait until the “READY” indicator changes from a flashing to a solid light, and
then operate the shift lever again.
The shift position can only be changed to B directly from D.

3024-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)Alarms

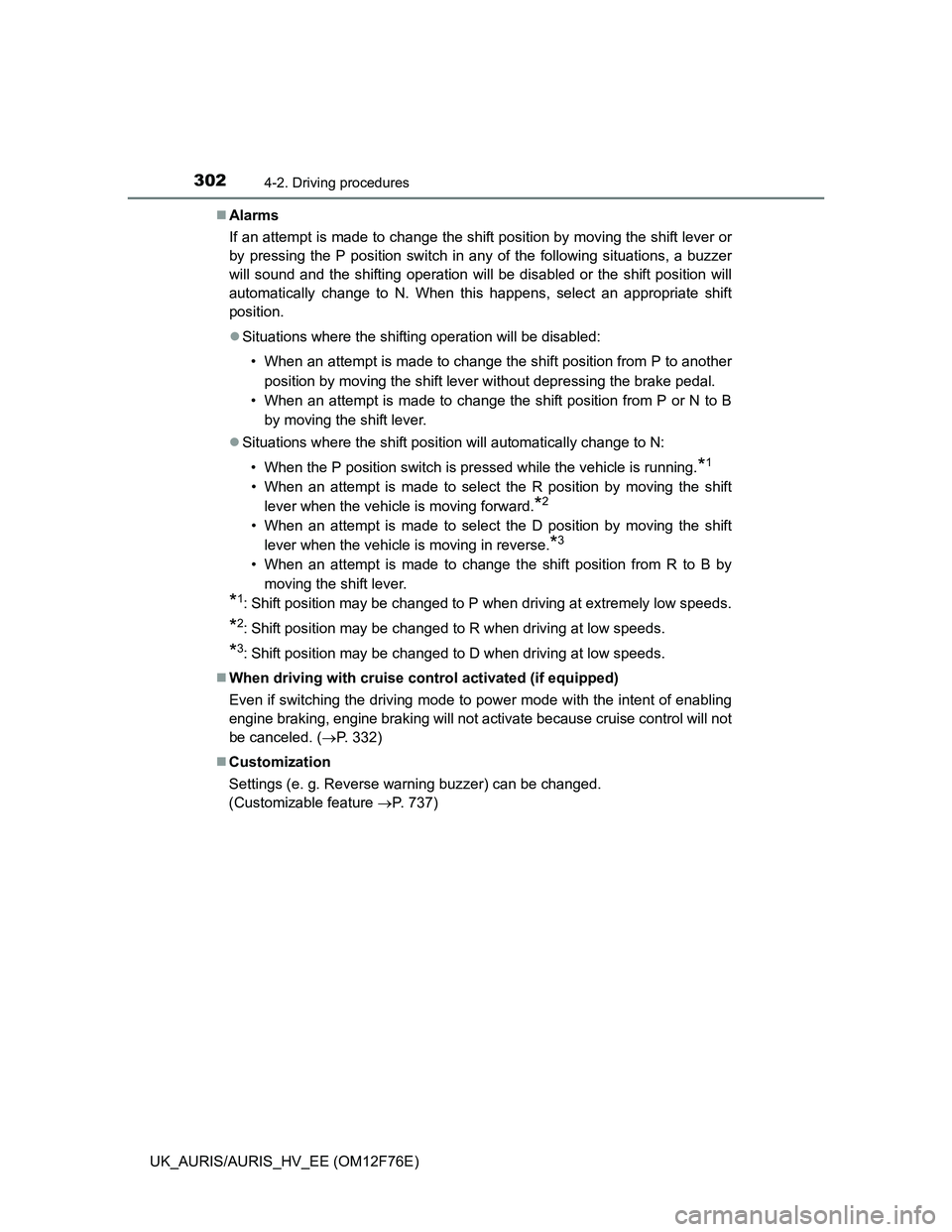

If an attempt is made to change the shift position by moving the shift lever or
by pressing the P position switch in any of the following situations, a buzzer
will sound and the shifting operation will be disabled or the shift position will
automatically change to N. When this happens, select an appropriate shift
position.
Situations where the shifting operation will be disabled:
• When an attempt is made to change the shift position from P to another
position by moving the shift lever without depressing the brake pedal.
• When an attempt is made to change the shift position from P or N to B
by moving the shift lever.
Situations where the shift position will automatically change to N:
• When the P position switch is pressed while the vehicle is running.
*1
• When an attempt is made to select the R position by moving the shift
lever when the vehicle is moving forward.
*2
• When an attempt is made to select the D position by moving the shift
lever when the vehicle is moving in reverse.
*3
• When an attempt is made to change the shift position from R to B by
moving the shift lever.
*1: Shift position may be changed to P when driving at extremely low speeds.
*2: Shift position may be changed to R when driving at low speeds.
*3: Shift position may be changed to D when driving at low speeds.
When driving with cruise control activated (if equipped)
Even if switching the driving mode to power mode with the intent of enabling
engine braking, engine braking will not activate because cruise control will not
be canceled. (P. 332)
Customization
Settings (e. g. Reverse warning buzzer) can be changed.
(Customizable feature P. 737)

3034-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving

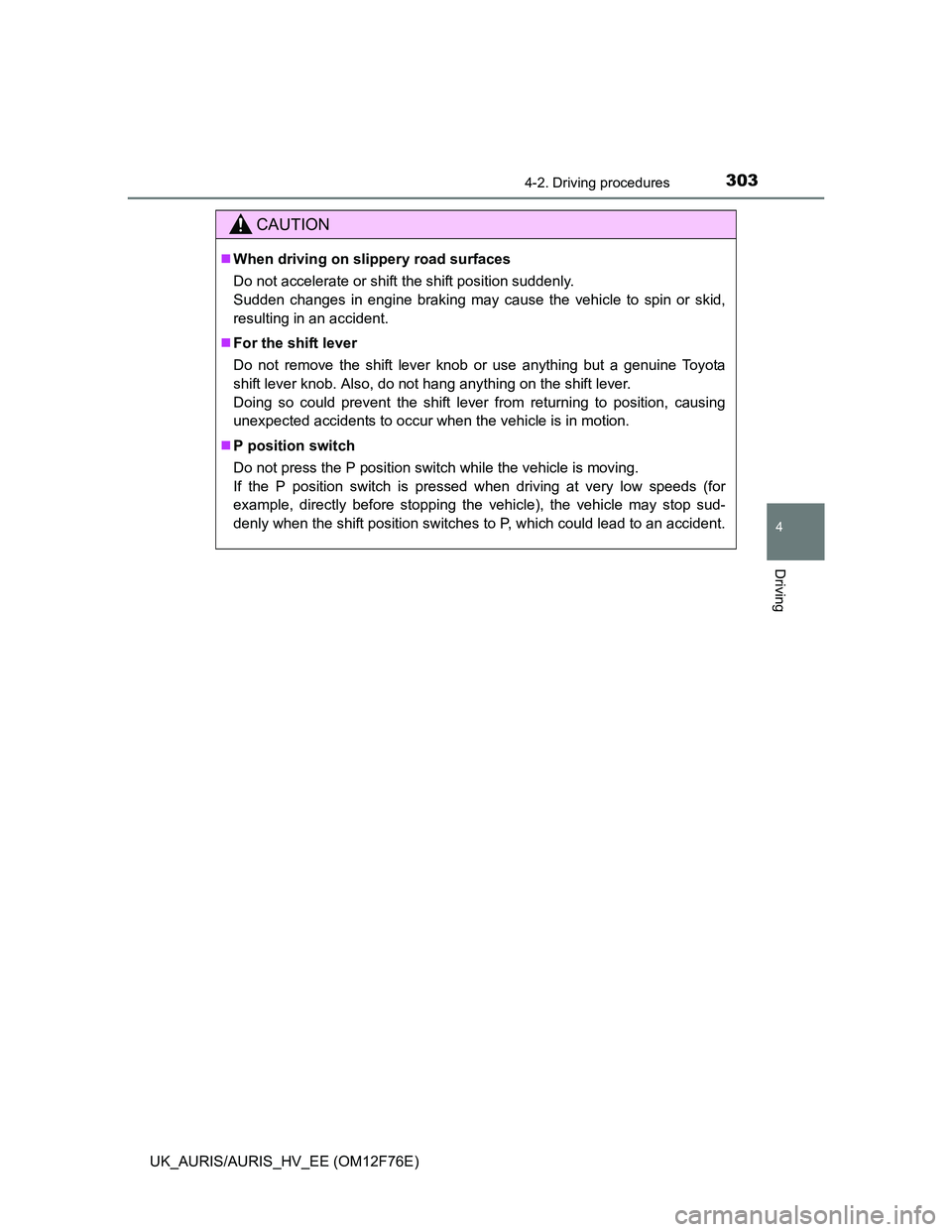

CAUTION
When driving on slippery road surfaces
Do not accelerate or shift the shift position suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
For the shift lever
Do not remove the shift lever knob or use anything but a genuine Toyota
shift lever knob. Also, do not hang anything on the shift lever.
Doing so could prevent the shift lever from returning to position, causing
unexpected accidents to occur when the vehicle is in motion.
P position switch
Do not press the P position switch while the vehicle is moving.
If the P position switch is pressed when driving at very low speeds (for
example, directly before stopping the vehicle), the vehicle may stop sud-
denly when the shift position switches to P, which could lead to an accident.

3044-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)

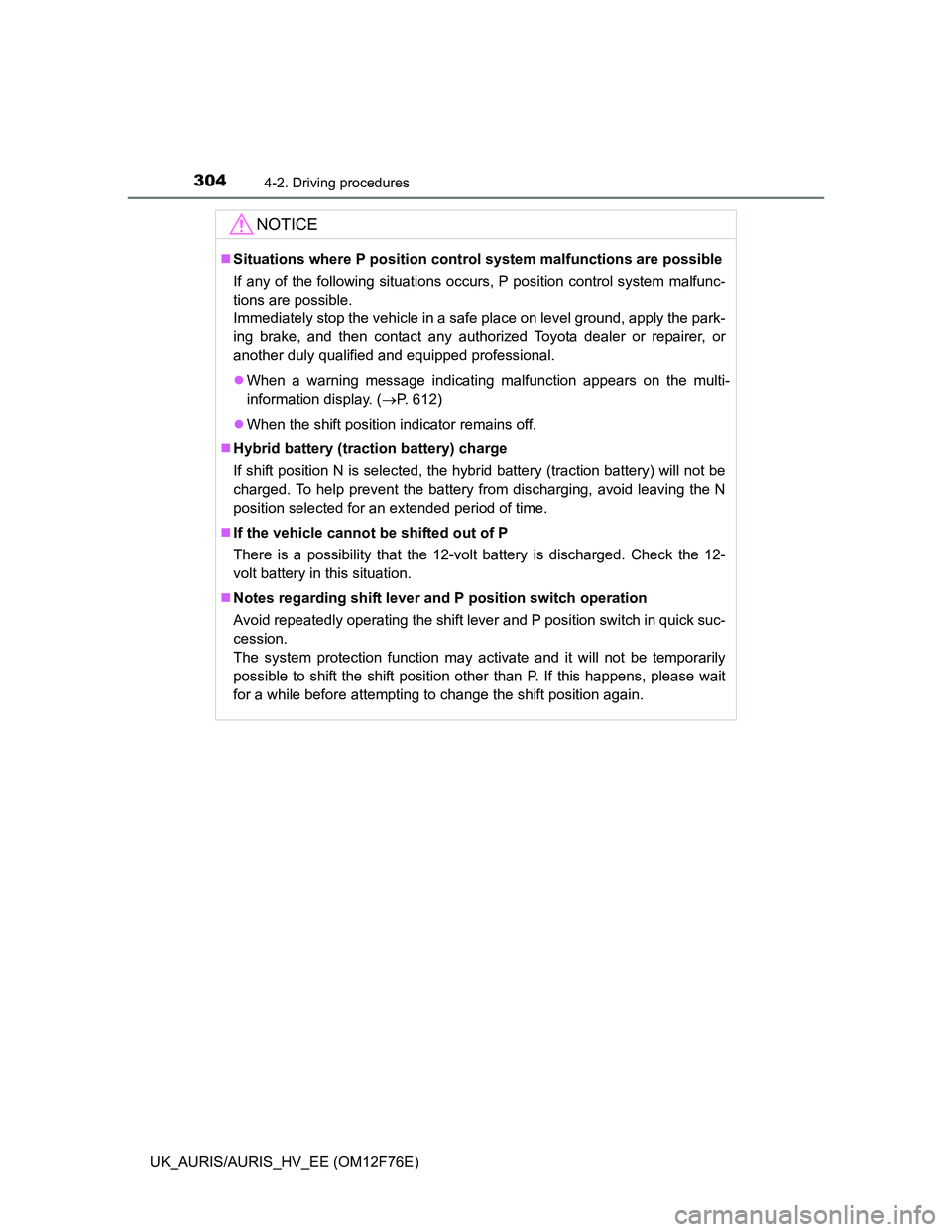

NOTICE
Situations where P position control system malfunctions are possible
If any of the following situations occurs, P position control system malfunc-
tions are possible.
Immediately stop the vehicle in a safe place on level ground, apply the park-
ing brake, and then contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
When a warning message indicating malfunction appears on the multi-
information display. (P. 612)
When the shift position indicator remains off.
Hybrid battery (traction battery) charge
If shift position N is selected, the hybrid battery (traction battery) will not be
charged. To help prevent the battery from discharging, avoid leaving the N
position selected for an extended period of time.
If the vehicle cannot be shifted out of P
There is a possibility that the 12-volt battery is discharged. Check the 12-
volt battery in this situation.
Notes regarding shift lever and P position switch operation
Avoid repeatedly operating the shift lever and P position switch in quick suc-
cession.
The system protection function may activate and it will not be temporarily
possible to shift the shift position other than P. If this happens, please wait
for a while before attempting to change the shift position again.

3054-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving

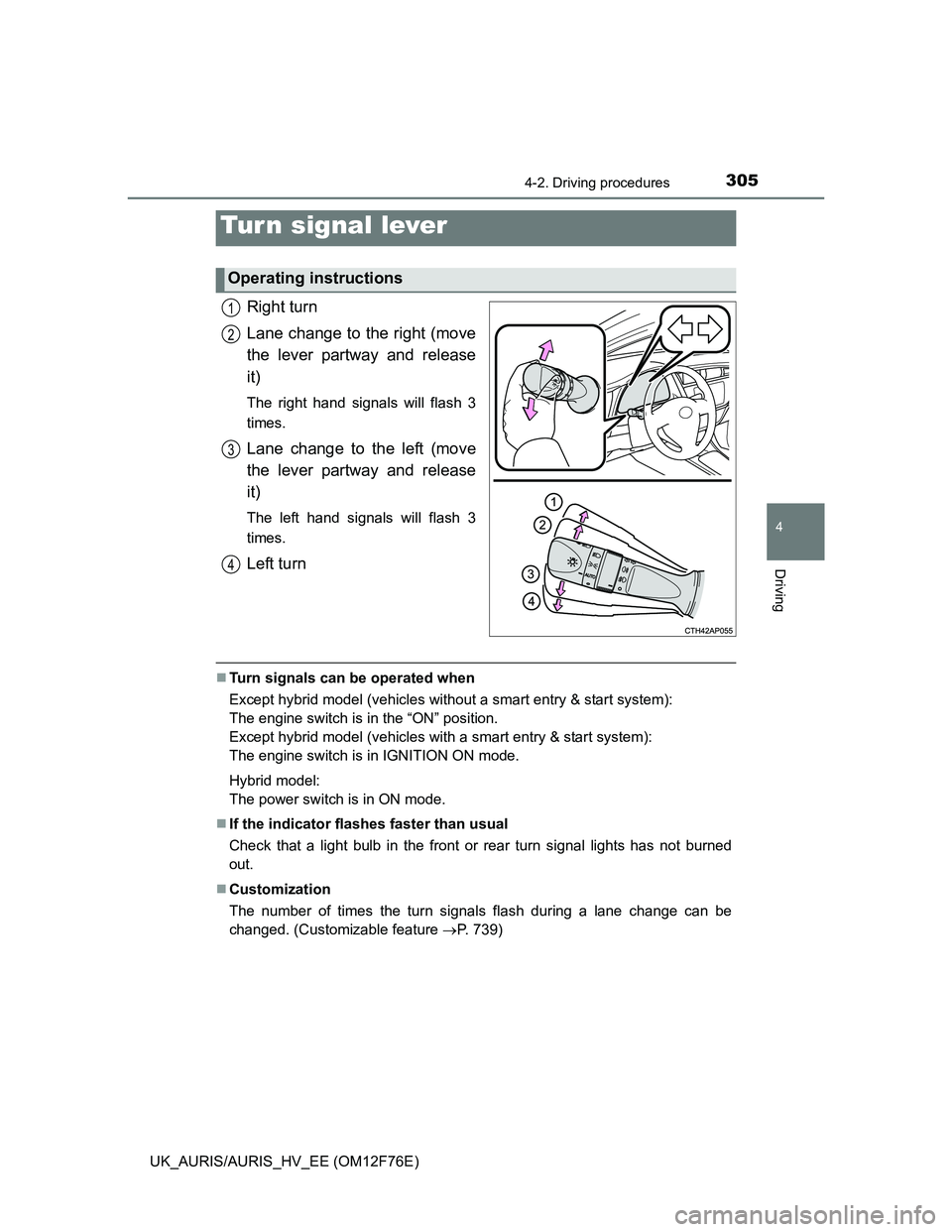

Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
Turn signals can be operated when
Except hybrid model (vehicles without a smart entry & start system):
The engine switch is in the “ON” position.
Except hybrid model (vehicles with a smart entry & start system):
The engine switch is in IGNITION ON mode.
Hybrid model:
The power switch is in ON mode.
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 739)
Tur n signal lever
Operating instructions
1
2
3
4

3064-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)

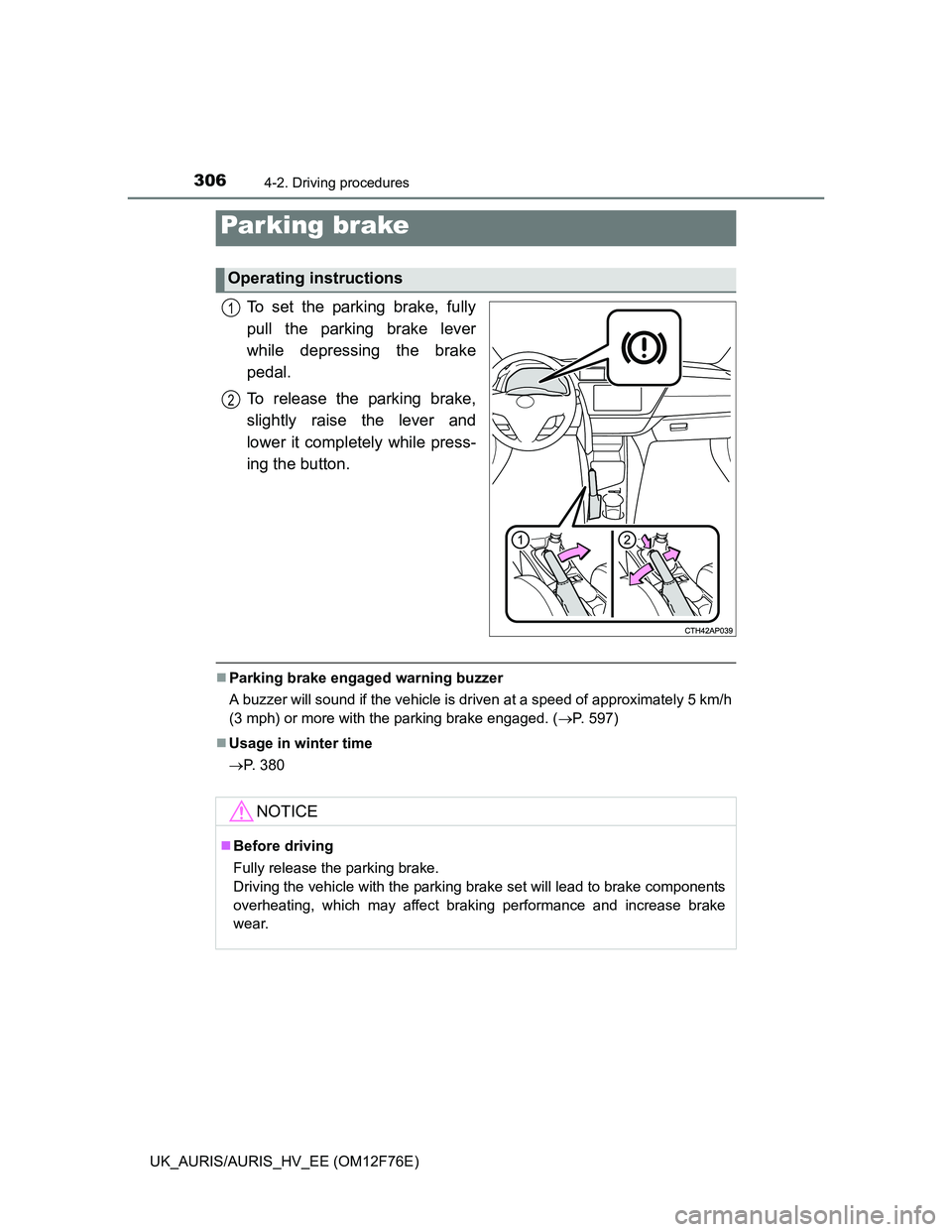

To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven at a speed of approximately 5 km/h
(3 mph) or more with the parking brake engaged. (P. 597)
Usage in winter time
P. 380
Parking brake
Operating instructions
1
2
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

3074-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving

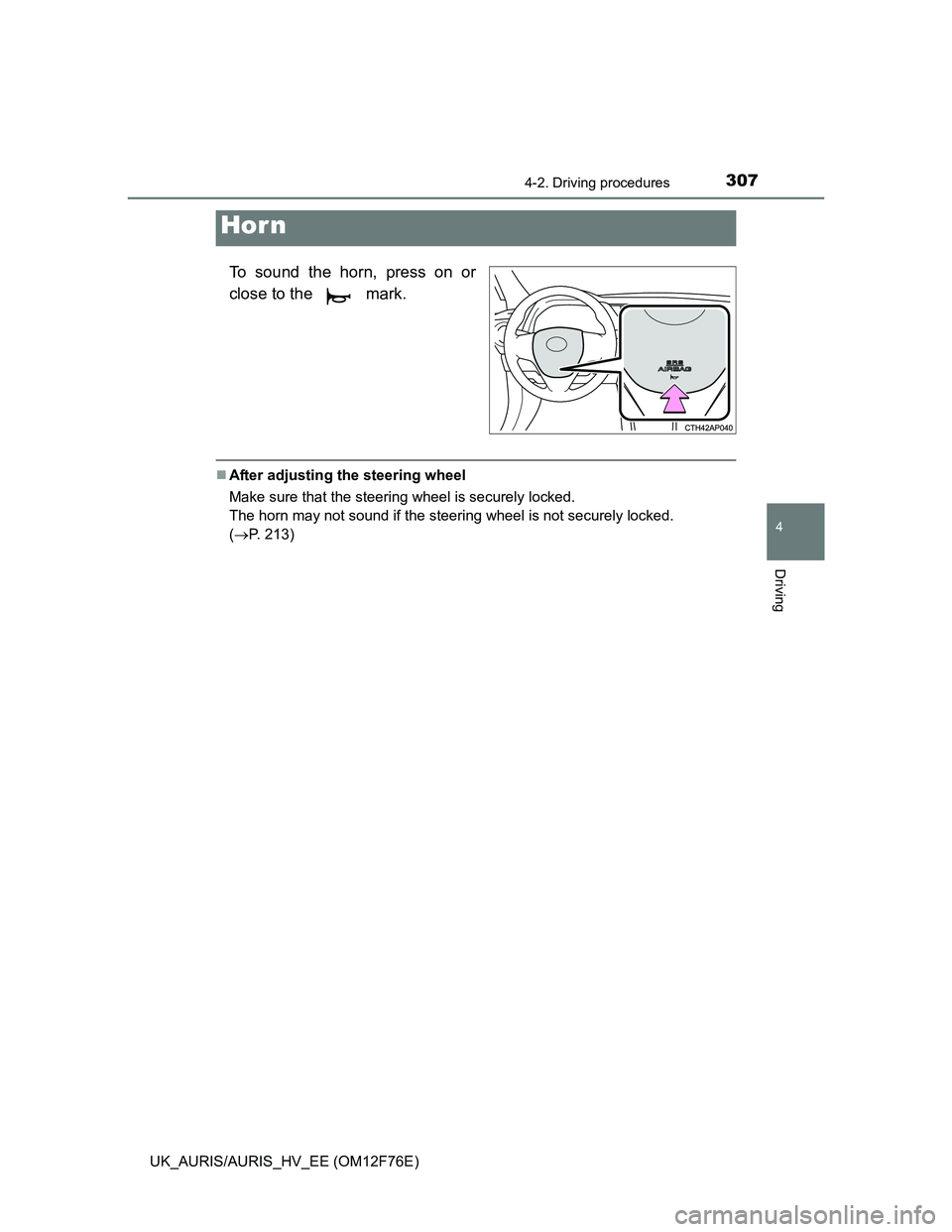

To sound the horn, press on or
close to the mark.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 213)
Hor n

308
UK_AURIS/AURIS_HV_EE (OM12F76E)
4-3. Operating the lights and wipers

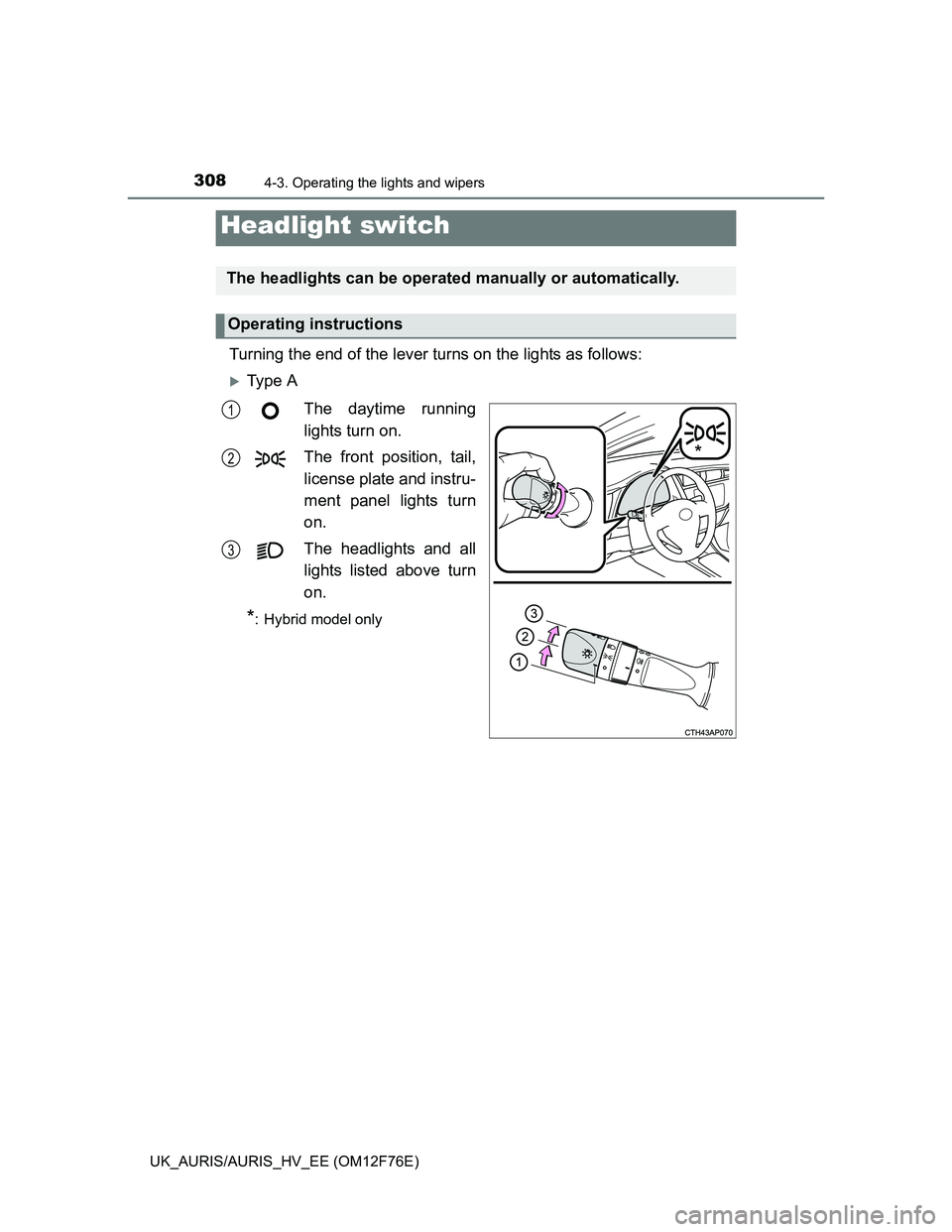

Turning the end of the lever turns on the lights as follows:
Ty p e A
The daytime running
lights turn on.
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
*: Hybrid model only
Headlight switch
The headlights can be operated manually or automatically.
Operating instructions
*
1
2
3

3094-3. Operating the lights and wipers
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
Ty p e B
The headlights, day-
time running lights and
all the lights listed
below turn on and off
automatically.
(Except hybrid model:
When the engine
switch is in IGNITION
ON mode
Hybrid model: When
the power switch is in
ON mode)
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
The daytime running
lights turn on.
*: Hybrid model only
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with
the headlights on or off.
*
1
2
3
4
Turning on the high beam headlights
1
2

3104-3. Operating the lights and wipers
UK_AURIS/AURIS_HV_EE (OM12F76E)

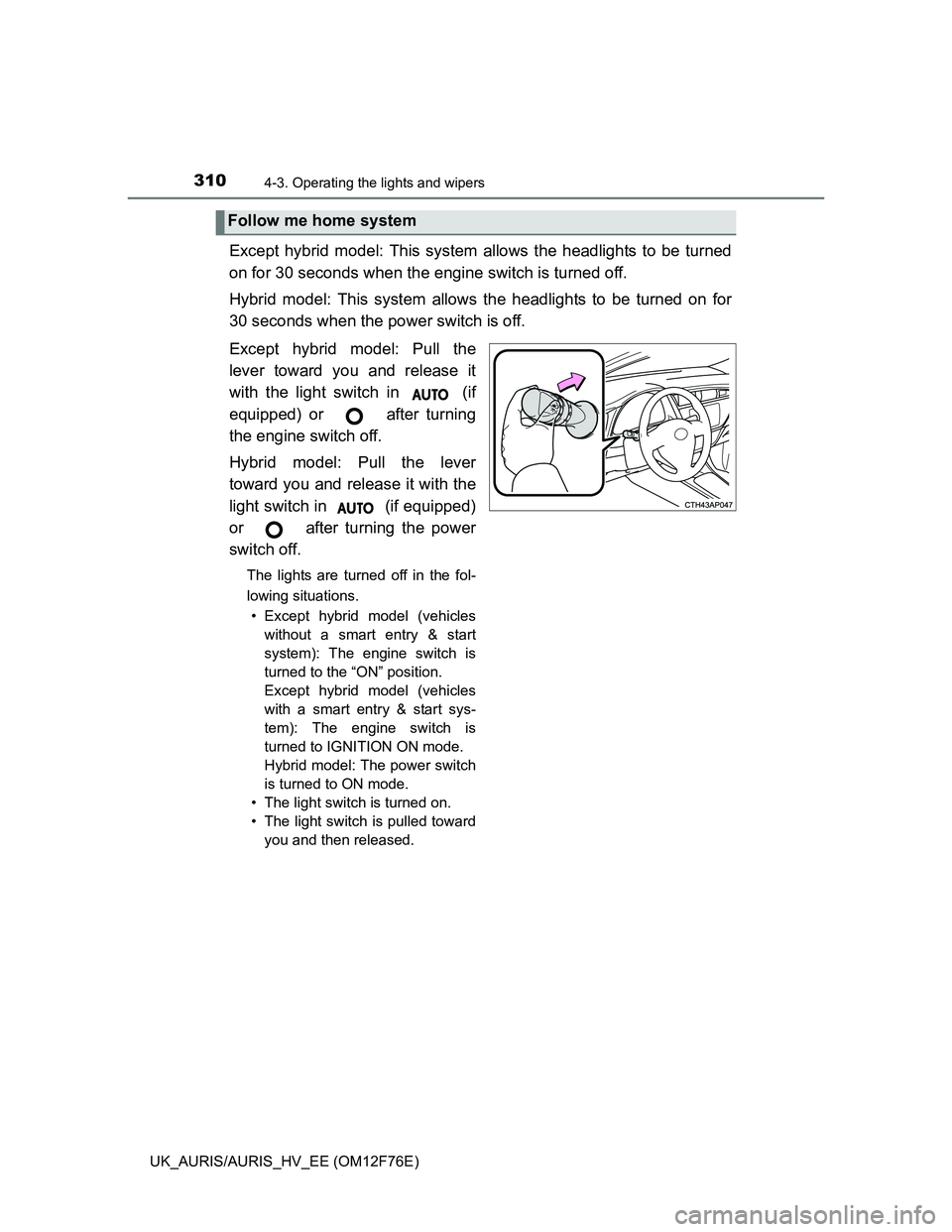

Except hybrid model: This system allows the headlights to be turned
on for 30 seconds when the engine switch is turned off.
Hybrid model: This system allows the headlights to be turned on for
30 seconds when the power switch is off.
Except hybrid model: Pull the
lever toward you and release it
with the light switch in (if
equipped) or after turning
the engine switch off.
Hybrid model: Pull the lever
toward you and release it with the
light switch in (if equipped)
or after turning the power
switch off.
The lights are turned off in the fol-
lowing situations.
• Except hybrid model (vehicles
without a smart entry & start
system): The engine switch is
turned to the “ON” position.
Except hybrid model (vehicles
with a smart entry & start sys-
tem): The engine switch is
turned to IGNITION ON mode.
Hybrid model: The power switch
is turned to ON mode.
• The light switch is turned on.
• The light switch is pulled toward
you and then released.
Follow me home system
