TOYOTA AURIS 2013 Owners Manual (in English)

7318-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications

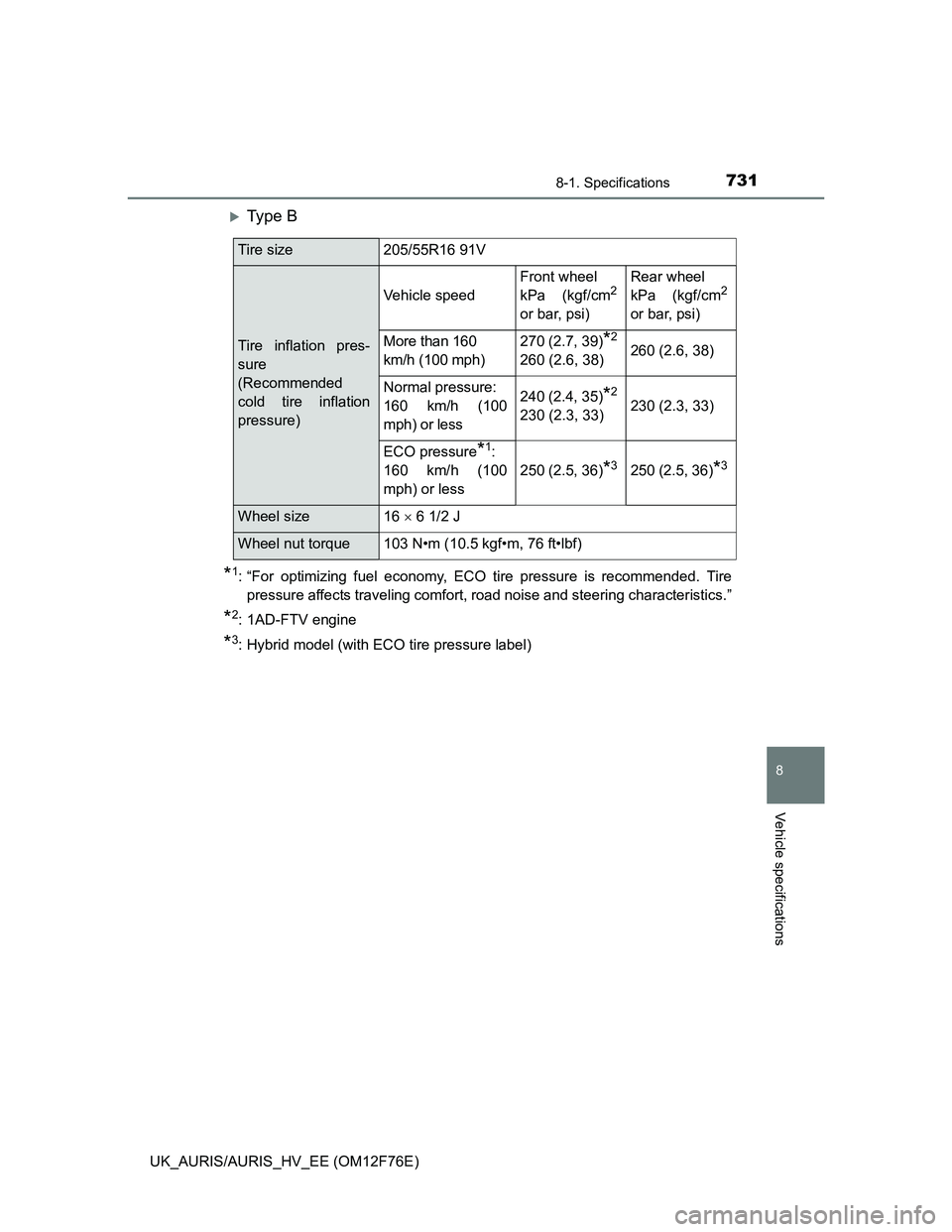

Ty p e B
*1: “For optimizing fuel economy, ECO tire pressure is recommended. Tire
pressure affects traveling comfort, road noise and steering characteristics.”
*2: 1AD-FTV engine
*3: Hybrid model (with ECO tire pressure label)
Tire size205/55R16 91V
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)270 (2.7, 39)*2
260 (2.6, 38)260 (2.6, 38)
Normal pressure:
160 km/h (100
mph) or less240 (2.4, 35)*2
230 (2.3, 33)230 (2.3, 33)
ECO pressure*1:
160 km/h (100
mph) or less
250 (2.5, 36)*3250 (2.5, 36)*3
Wheel size16  6 1/2 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

7328-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)

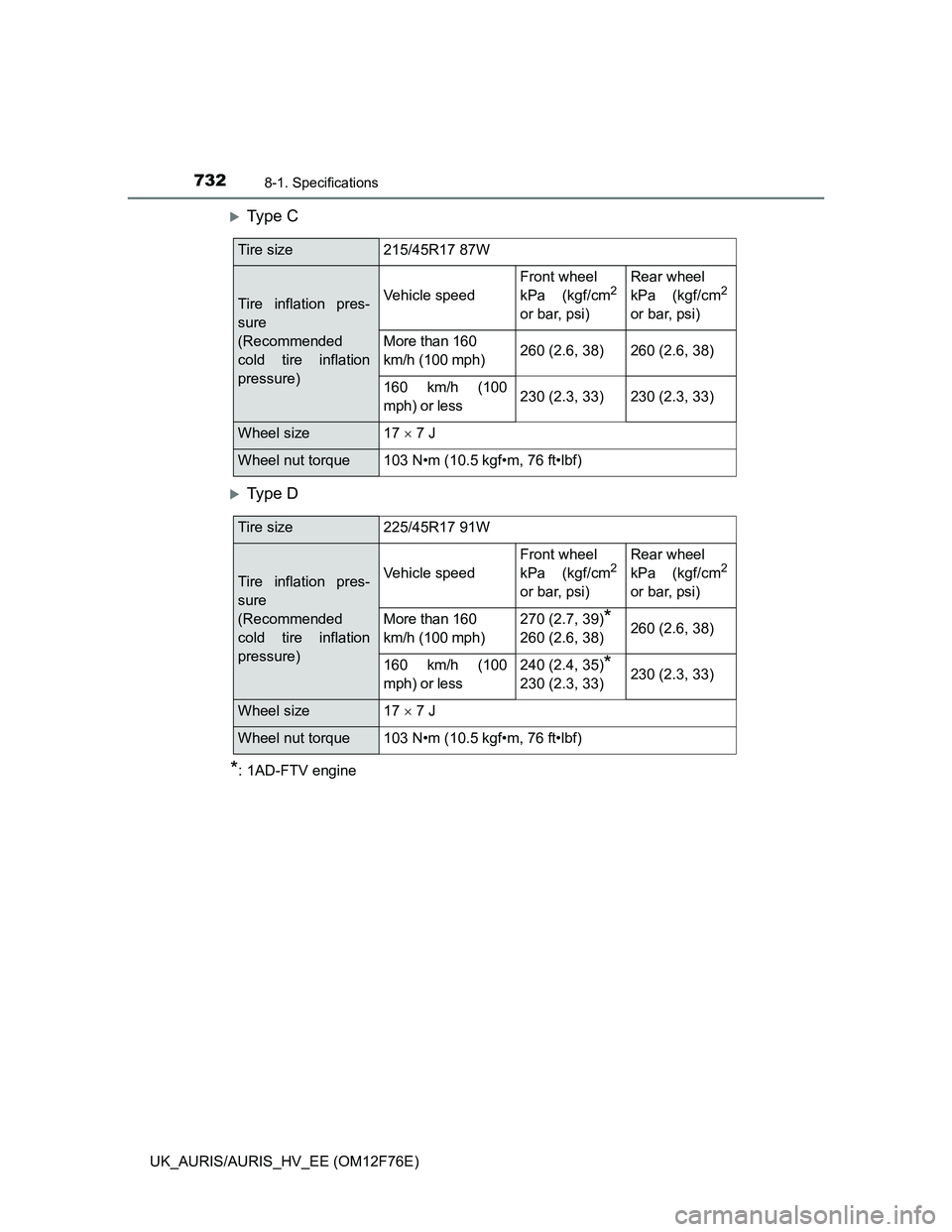

Ty p e C
Ty p e D
*: 1AD-FTV engine
Tire size215/45R17 87W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size17  7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)270 (2.7, 39)*
260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less240 (2.4, 35)*
230 (2.3, 33)230 (2.3, 33)
Wheel size17  7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

7338-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications

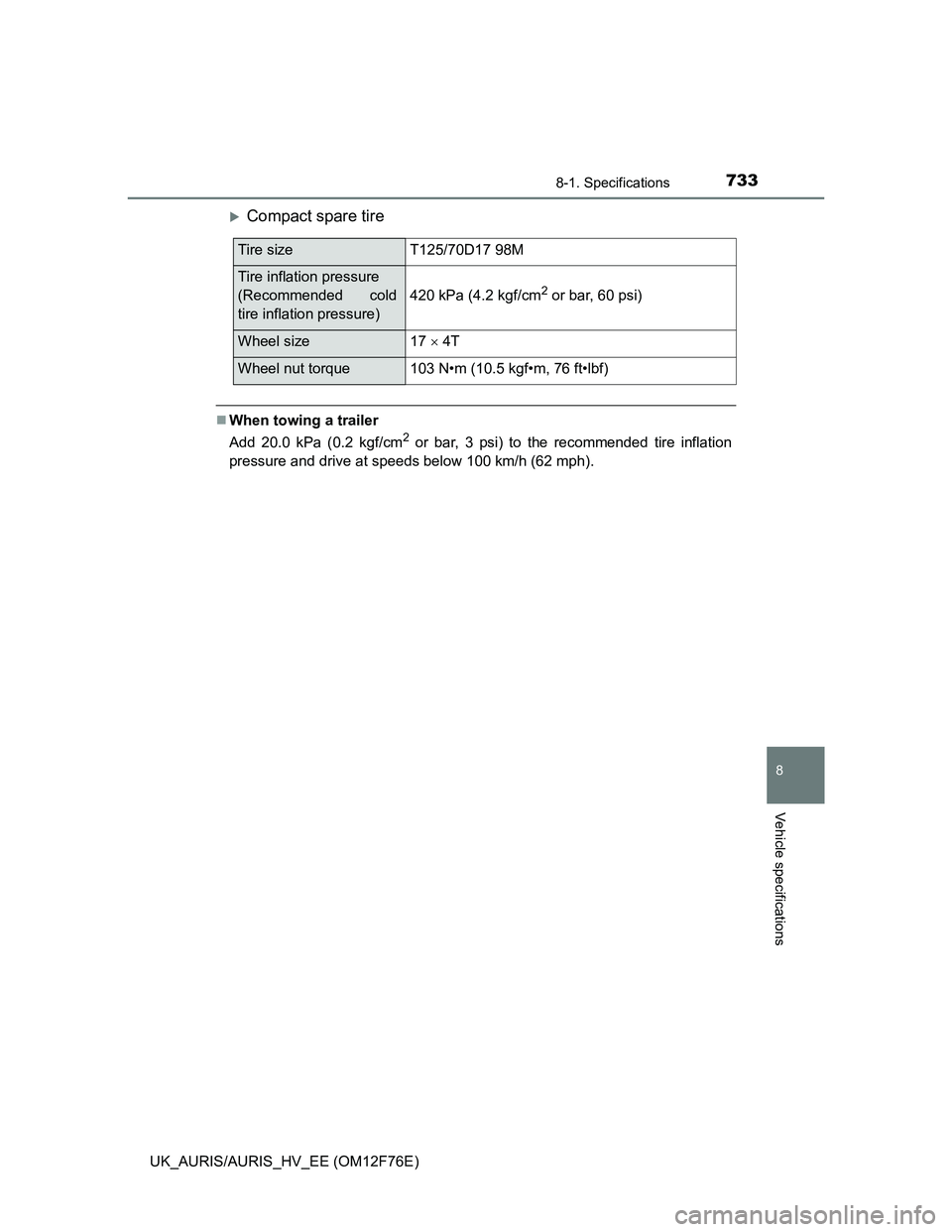

Compact spare tire
When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

7348-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)

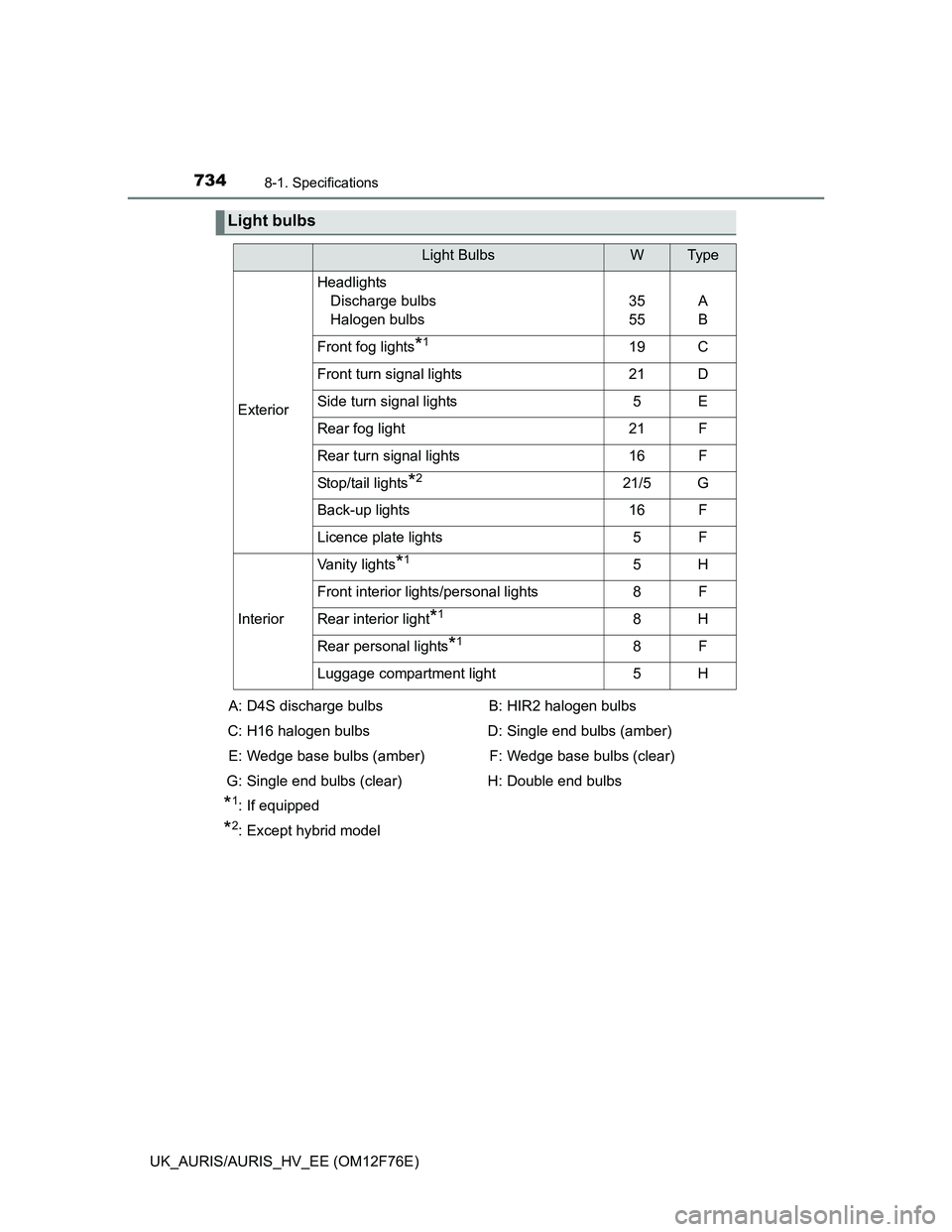

Light bulbs
Light BulbsWTy p e
Exterior
Headlights
Discharge bulbs
Halogen bulbs
35
55A
B
Front fog lights*119C
Front turn signal lights21D
Side turn signal lights5E
Rear fog light21F
Rear turn signal lights16F
Stop/tail lights*221/5G
Back-up lights16F
Licence plate lights5F
Interior
Vanity lights*15H
Front interior lights/personal lights8F
Rear interior light*18H
Rear personal lights*18F
Luggage compartment light5H
A: D4S discharge bulbs
C: H16 halogen bulbs
E: Wedge base bulbs (amber)
G: Single end bulbs (clear)
*1: If equipped
*2: Except hybrid modelB: HIR2 halogen bulbs
D: Single end bulbs (amber)
F: Wedge base bulbs (clear)
H: Double end bulbs

7358-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications

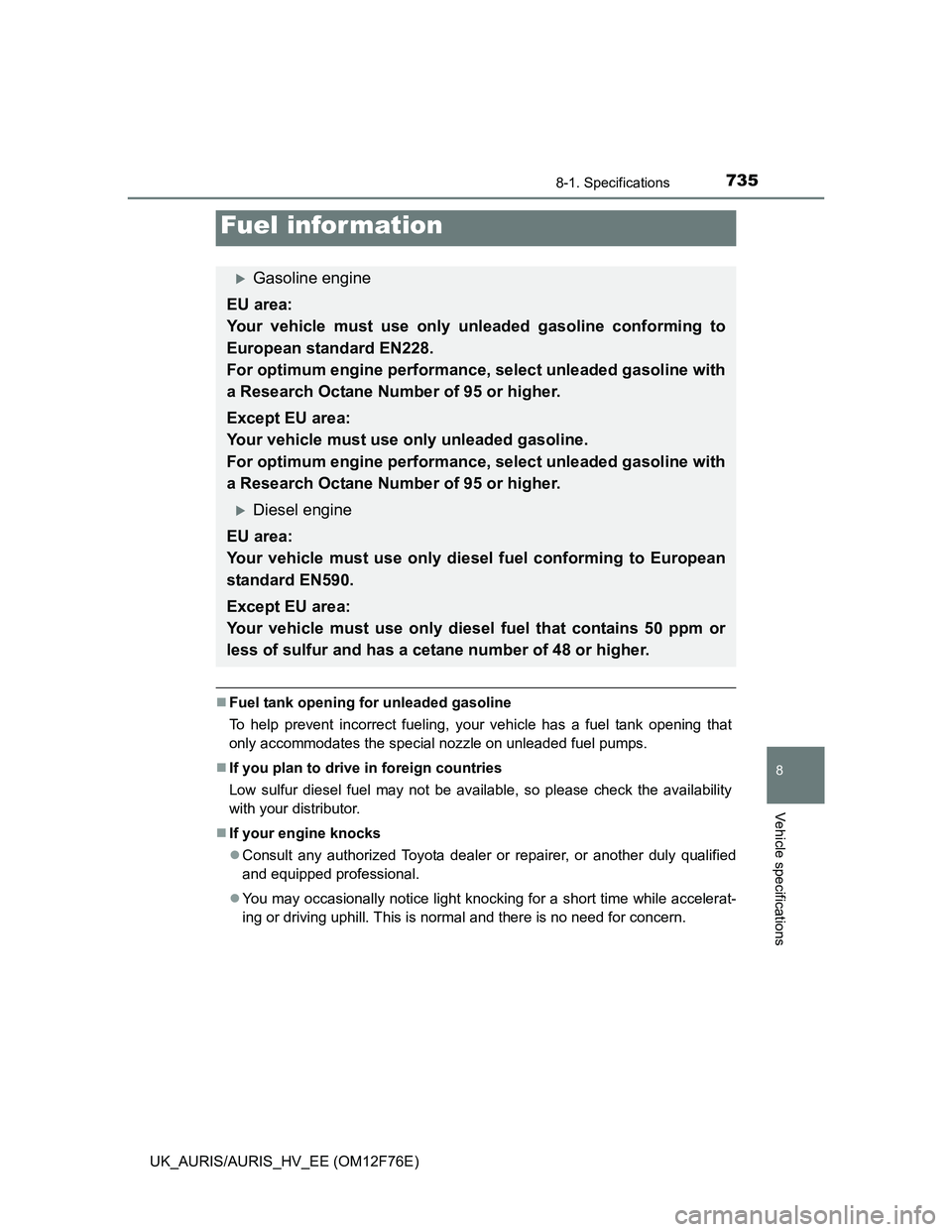

Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only unleaded gasoline conforming to
European standard EN228.
For optimum engine performance, select unleaded gasoline with
a Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with
a Research Octane Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel fuel that contains 50 ppm or
less of sulfur and has a cetane number of 48 or higher.

7368-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)

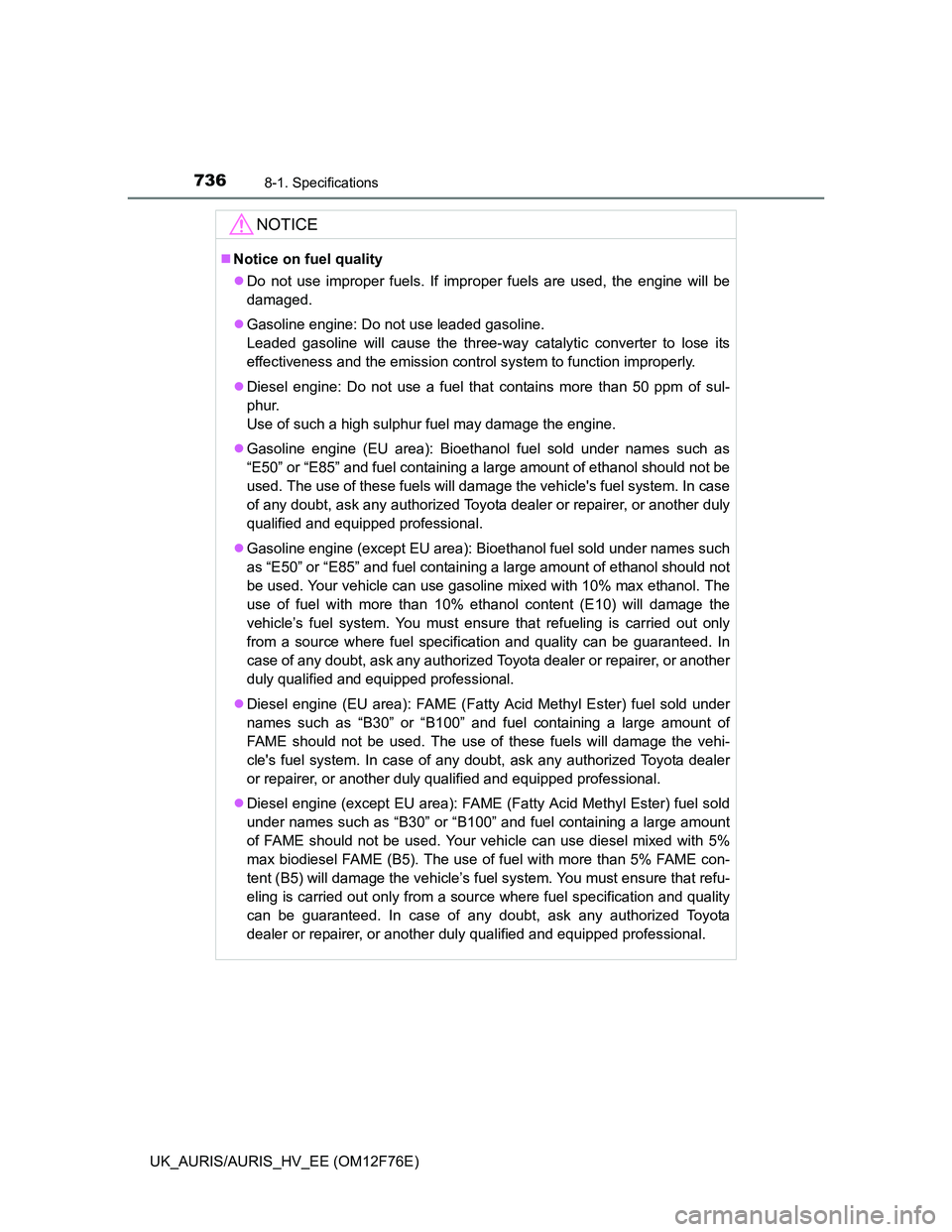

NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
Diesel engine: Do not use a fuel that contains more than 50 ppm of sul-
phur.
Use of such a high sulphur fuel may damage the engine.
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle's fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle's fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

737
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications

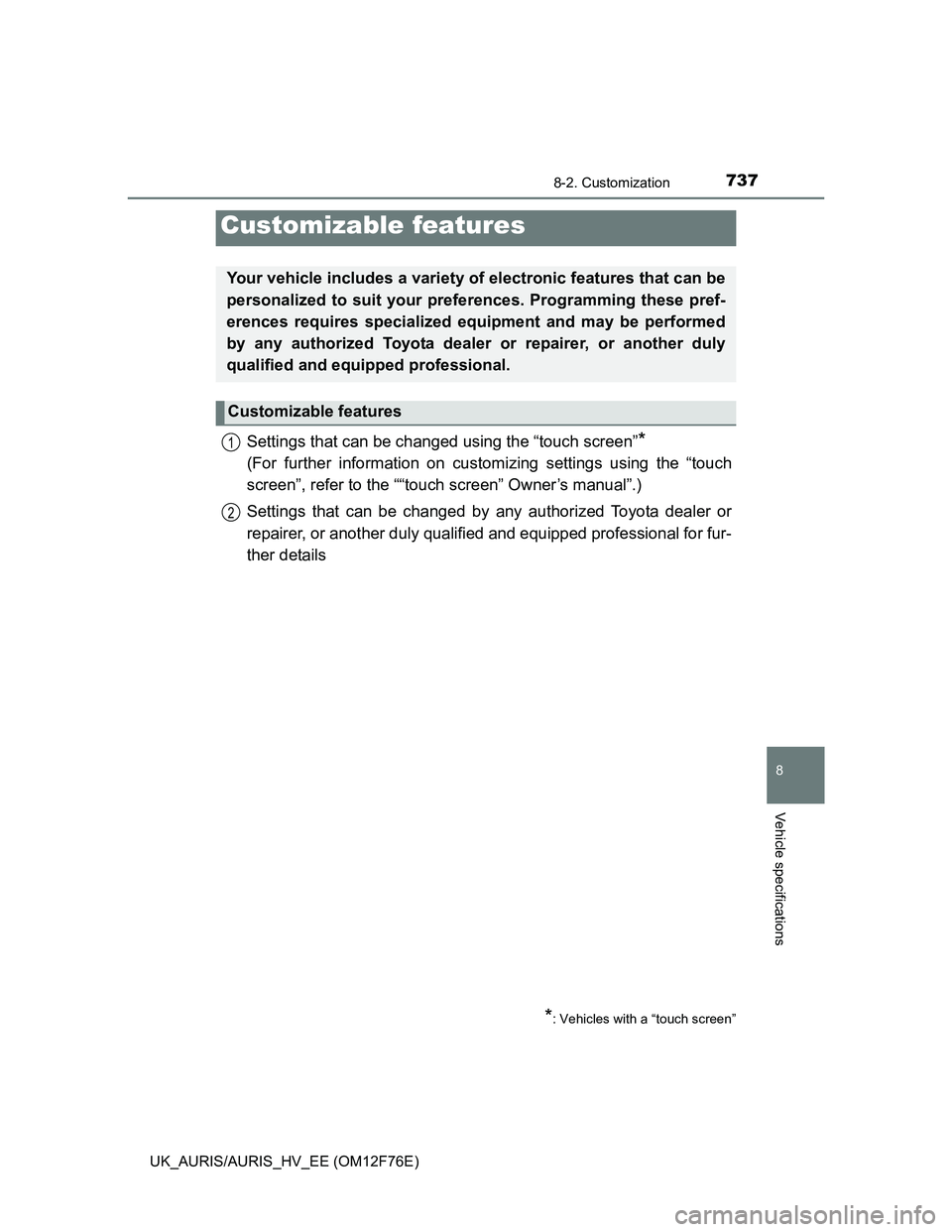

8-2. Customization
Settings that can be changed using the “touch screen”*
(For further information on customizing settings using the “touch
screen”, refer to the ““touch screen” Owner’s manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Customizable features
1
2
*: Vehicles with a “touch screen”

7388-2. Customization
UK_AURIS/AURIS_HV_EE (OM12F76E)Definition of symbols: O = Available, — = Not available
ItemFunctionDefault
settingCustom-
ized setting
Alarm*1
(P. 103)Sensitivity adjustment of
the intrusion sensor when
the window is open
StandardLow—O
Smart entry
& start
system
*1
(P. 149)
and
wireless
remote
control
(P. 189)
“Lock/unlock feedback
lights” (Enable/disable the
operation of the emer-
gency flashers when the
vehicle is locked or
unlocked)
OnOff—O
“Auto relock timer” (Adjust
the time elapsed before
the automatic door lock
function is activated if a
door is not opened after
being unlocked)
30
seconds
60
seconds
—O
120
seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff—O
Smart entry
& start
system
*1
(P. 149)
“Entry and start system”
(Smart entry & start sys-
tem can be disabled)
OnOffOO
Number of consecutive
door lock operations2 times
As many
as
desired
—O
Push-
button
start
*1
(P. 174)Push-button startOnOff—O
Wireless
remote
control
(P. 189)
Wireless remote controlOnOff—O
12

7398-2. Customization
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications
Wireless
remote
control
(P. 189)
Back door unlocking oper-
ation
*2
Press and
hold (short)
One short
press
—OPush twice
Press and
hold (long)
Off
Automatic
light control
system
(P. 308)
“Light sensor sensitivity”
(Adjust the sensitivity of
the ambient light sen-
sor)
*1
Standard-2 to 2OO
“Follow me home” (Time
elapsed before headlights
automatically turn off)30
seconds
60
seconds
—O90
seconds
120
seconds
Automatic High Beam sys-
tem
*1OnOff—O
Turn signal
lever
(P. 305)
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
—O
7
Off
(The turn
signal
lights will
be off if the
turn signal
lever is
moved to
the first
position in
direction of
flashing
light.)
ItemFunctionDefault
settingCustom-
ized setting12

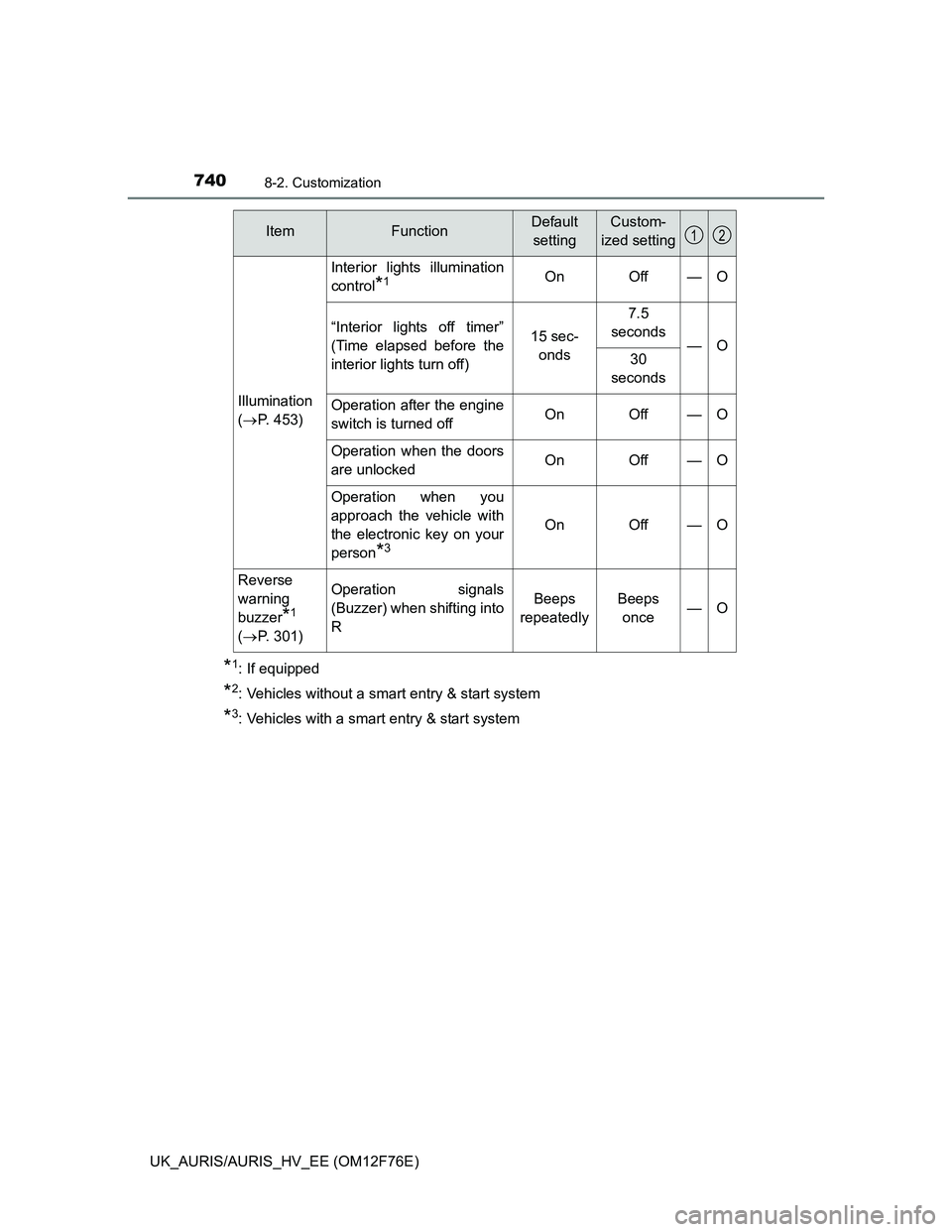

7408-2. Customization
UK_AURIS/AURIS_HV_EE (OM12F76E)
*1: If equipped
*2: Vehicles without a smart entry & start system
*3: Vehicles with a smart entry & start system
Illumination
(P. 453)
Interior lights illumination
control
*1OnOff—O
“Interior lights off timer”
(Time elapsed before the
interior lights turn off)15 sec-
onds
7.5
seconds
—O30
seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors
are unlockedOnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*3
OnOff—O
Reverse
warning
buzzer
*1
(P. 301)
Operation signals
(Buzzer) when shifting into
RBeeps
repeatedlyBeeps
once—O
ItemFunctionDefault
settingCustom-
ized setting12
