Horn ...................................3074-3. Operating the lights and
wipers
Headlight switch ................ 308
Automatic High Beam ....... 316
Fog light switch ................. 320
Windshield wipers and
washer ............................ 322
Rear window wiper and
washer ............................ 326
4-4. Refueling
Opening the fuel tank
cap .................................. 328
4-5. Using the driving support
systems
Cruise control .................... 332
Speed limiter ..................... 337
Toyota parking
assist-sensor ................... 340
Simple-IPA
(Simple-Intelligent
Parking Assist) ................ 346
Stop & Start system .......... 362
Driving assist systems....... 368
Hill-start assist control ....... 374
Diesel particulate filter
system............................. 376
4-6. Driving tips
Hybrid vehicle driving
tips .................................. 378
Winter driving tips.............. 380
4Driving

1162. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

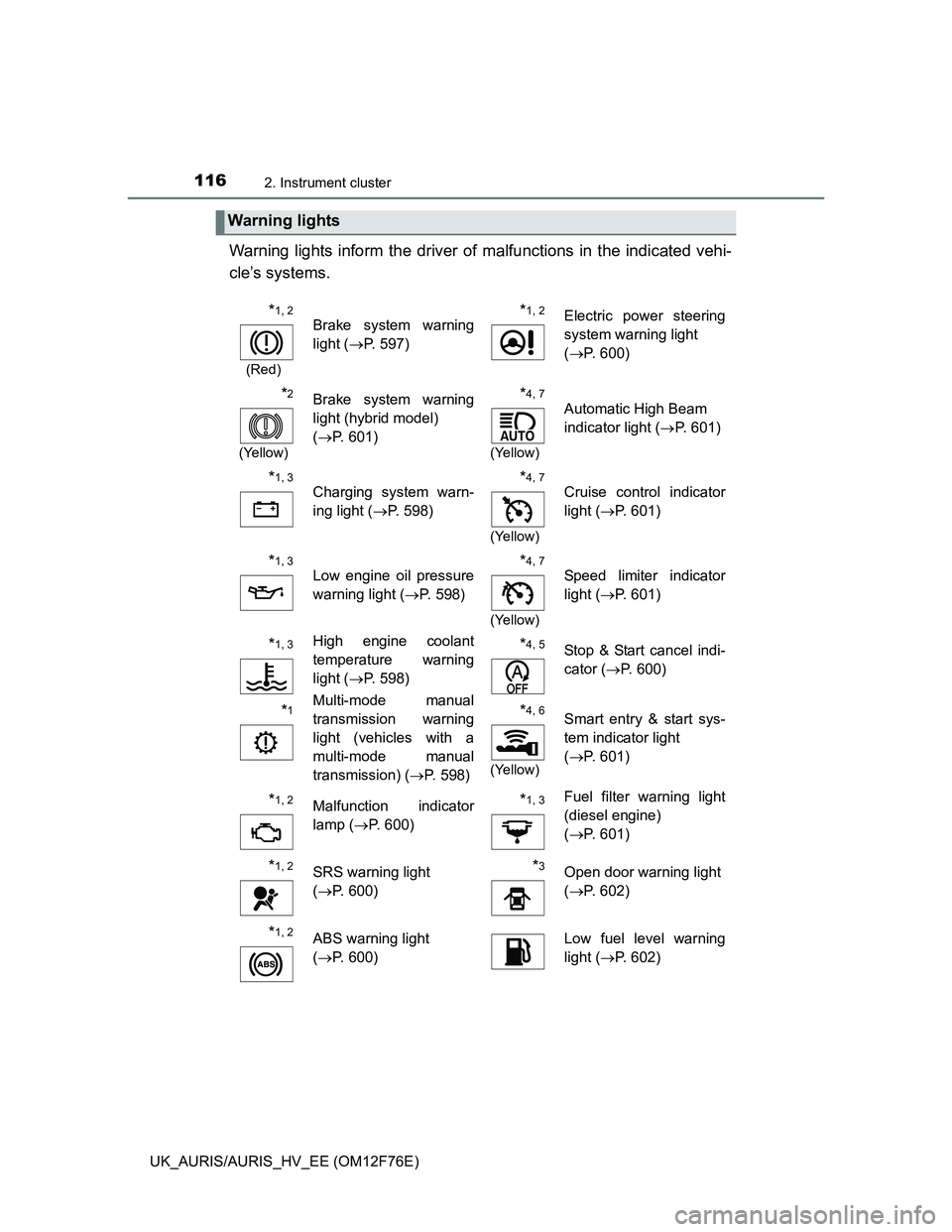

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1, 2
(Red)
Brake system warning
light (P. 597)*1, 2Electric power steering
system warning light
(P. 600)
*2
(Yellow)
Brake system warning
light (hybrid model)
(P. 601)*4, 7
(Yellow)
Automatic High Beam
indicator light (P. 601)
*1, 3
Charging system warn-
ing light (P. 598)*4, 7
(Yellow)
Cruise control indicator
light (P. 601)
*1, 3
Low engine oil pressure
warning light (P. 598)*4, 7
(Yellow)
Speed limiter indicator
light (P. 601)
*1, 3High engine coolant
temperature warning
light (P. 598)*4, 5Stop & Start cancel indi-
cator (P. 600)
*1Multi-mode manual
transmission warning
light (vehicles with a
multi-mode manual
transmission) (P. 598)*4, 6
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 601)
*1, 2Malfunction indicator
lamp (P. 600)*1, 3Fuel filter warning light
(diesel engine)
(P. 601)
*1, 2SRS warning light
(P. 600)*3Open door warning light
(P. 602)
*1, 2ABS warning light
(P. 600)Low fuel level warning
light (P. 602)

1182. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

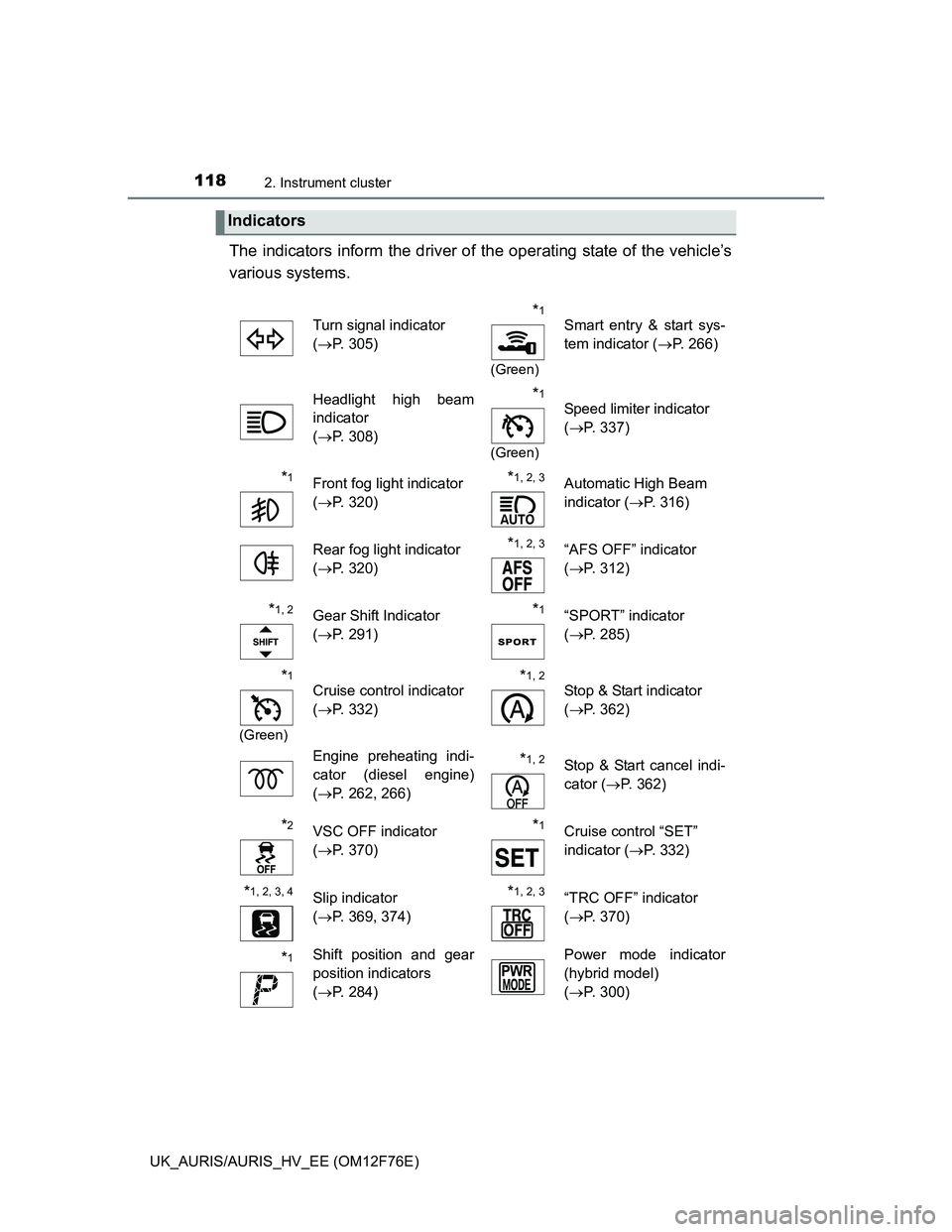

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 305)*1
(Green)
Smart entry & start sys-
tem indicator (P. 266)
Headlight high beam
indicator
(P. 308)
*1
(Green)
Speed limiter indicator
(P. 337)
*1Front fog light indicator
(P. 320)*1, 2, 3Automatic High Beam
indicator (P. 316)
Rear fog light indicator
(P. 320)
*1, 2, 3“AFS OFF” indicator
(P. 312)
*1, 2Gear Shift Indicator
(P. 291)*1“SPORT” indicator
(P. 285)
*1
(Green)
Cruise control indicator
(P. 332)*1, 2
Stop & Start indicator
(P. 362)
Engine preheating indi-
cator (diesel engine)
(P. 262, 266)
*1, 2Stop & Start cancel indi-
cator (P. 362)
*2VSC OFF indicator
(P. 370)*1Cruise control “SET”
indicator (P. 332)
*1, 2, 3, 4 Slip indicator
(P. 369, 374)*1, 2, 3 “TRC OFF” indicator
(P. 370)
*1Shift position and gear
position indicators
(P. 284)Power mode indicator
(hybrid model)
(P. 300)

223
4Driving
UK_AURIS/AURIS_HV_EE (OM12F76E)4-1. Before driving
Driving the vehicle ............. 224
Cargo and luggage ............ 241
Trailer towing (except
hybrid model) ................... 242
Trailer towing
(hybrid model).................. 252
4-2. Driving procedures
Engine (ignition) switch
(except hybrid model
[vehicles without a
smart entry & start
system]) ........................... 262
Engine (ignition) switch
(except hybrid model
[vehicles with a smart
entry & start system])....... 266
Power (ignition) switch....... 276
EV drive mode ................... 282
Multidrive ........................... 284
Multi-mode Manual
Transmission ................... 289
Manual transmission.......... 294
Hybrid transmission ........... 297
Turn signal lever ................ 305
Parking brake .................... 306
Horn ................................... 3074-3. Operating the lights and
wipers
Headlight switch................. 308
Automatic High Beam ........ 316
Fog light switch .................. 320
Windshield wipers and
washer ............................. 322
Rear window wiper and
washer ............................. 326
4-4. Refueling
Opening the fuel tank
cap ................................... 328
4-5. Using the driving support
systems
Cruise control..................... 332
Speed limiter ...................... 337
Toyota parking
assist-sensor ................... 340
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 346
Stop & Start system ........... 362
Driving assist systems ....... 368
Hill-start assist control........ 374
Diesel particulate filter
system ............................. 376
4-6. Driving tips
Hybrid vehicle driving
tips ................................... 378
Winter driving tips .............. 380

3094-3. Operating the lights and wipers
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving

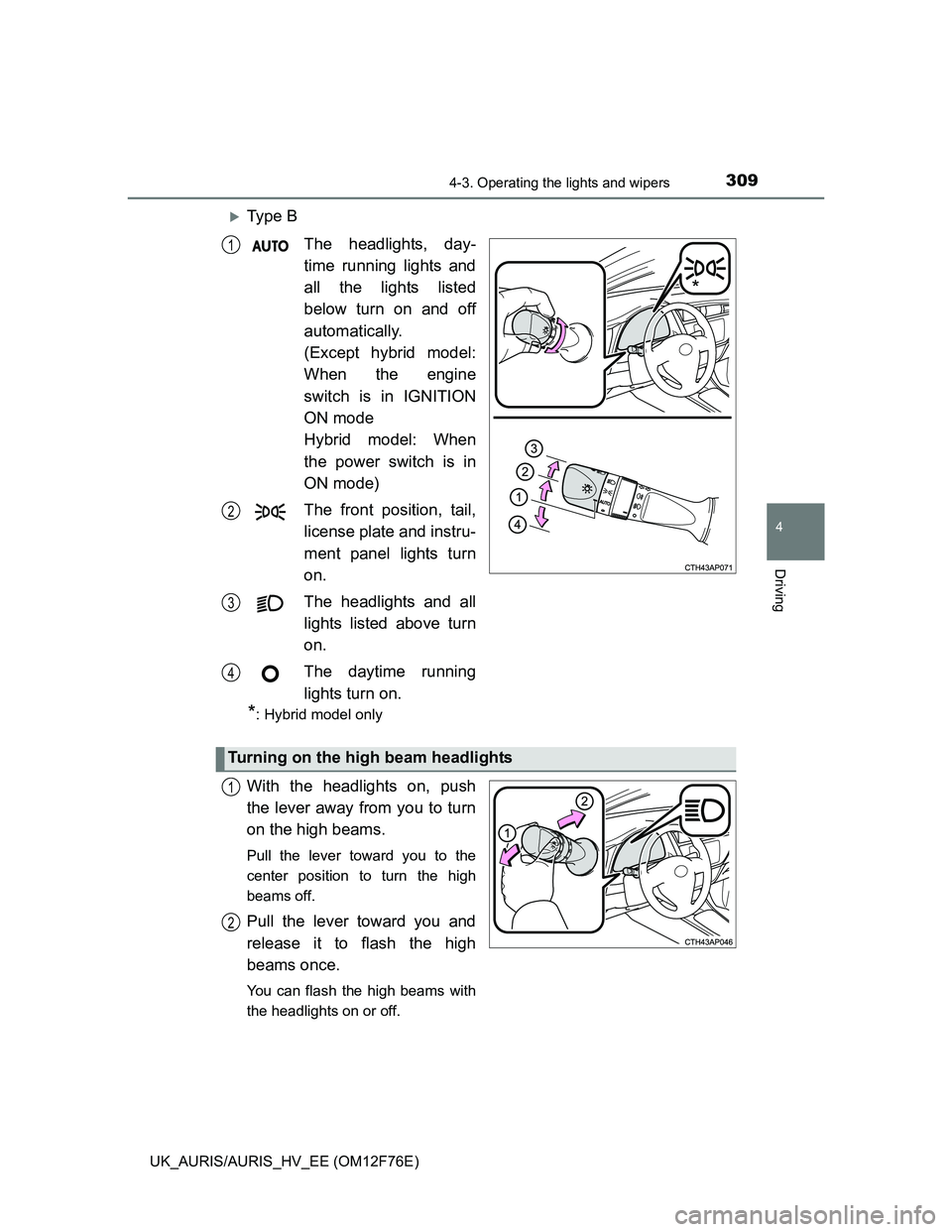

Ty p e B
The headlights, day-
time running lights and
all the lights listed
below turn on and off
automatically.
(Except hybrid model:
When the engine
switch is in IGNITION
ON mode
Hybrid model: When
the power switch is in
ON mode)
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
The daytime running
lights turn on.
*: Hybrid model only
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with
the headlights on or off.
*
1
2
3
4
Turning on the high beam headlights
1
2

3164-3. Operating the lights and wipers
UK_AURIS/AURIS_HV_EE (OM12F76E)
Push the lever away from you with
the headlight switch in
position.
The Automatic High Beam indica-
tor will come on when the head-
lights are turned on automatically
to indicate that the system is
active.
When all of the following conditions are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
Vehicle speed is above approximately 40 km/h (25 mph).
The area ahead of the vehicle is dark.
There are no oncoming or preceding vehicles with headlights or tail
lights turned on.
There are few streetlights on the road ahead.
If any of the following conditions are fulfilled, high beam will be auto-
matically turned off:
Vehicle speed drops below approximately 30 km/h (19 mph).
The area ahead of the vehicle is not dark.
Oncoming or preceding vehicles have headlights or tail lights
turned on.
There are many streetlights on the road ahead.

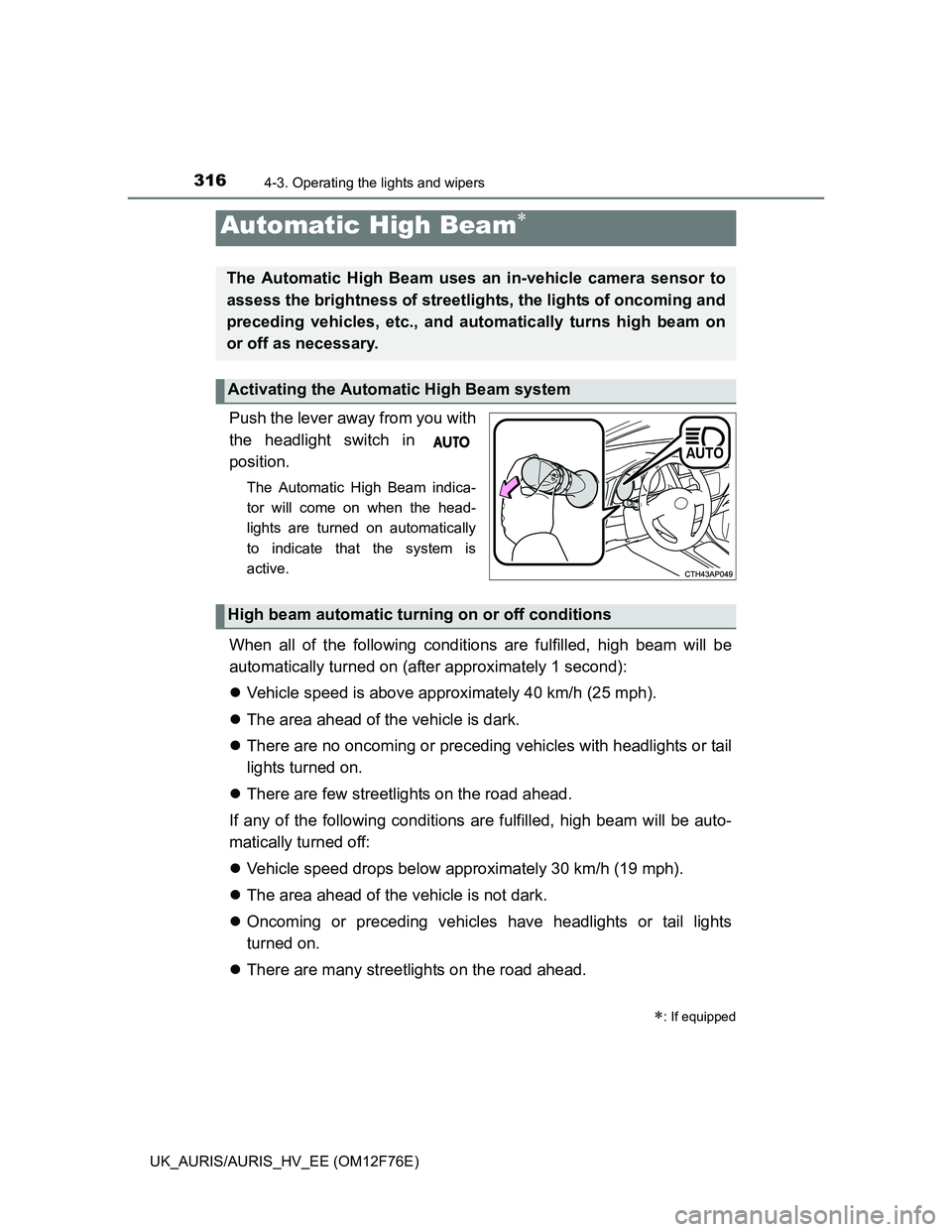

Automatic High Beam
: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetlights, the lights of oncoming and
preceding vehicles, etc., and automatically turns high beam on
or off as necessary.
Activating the Automatic High Beam system
High beam automatic turning on or off conditions

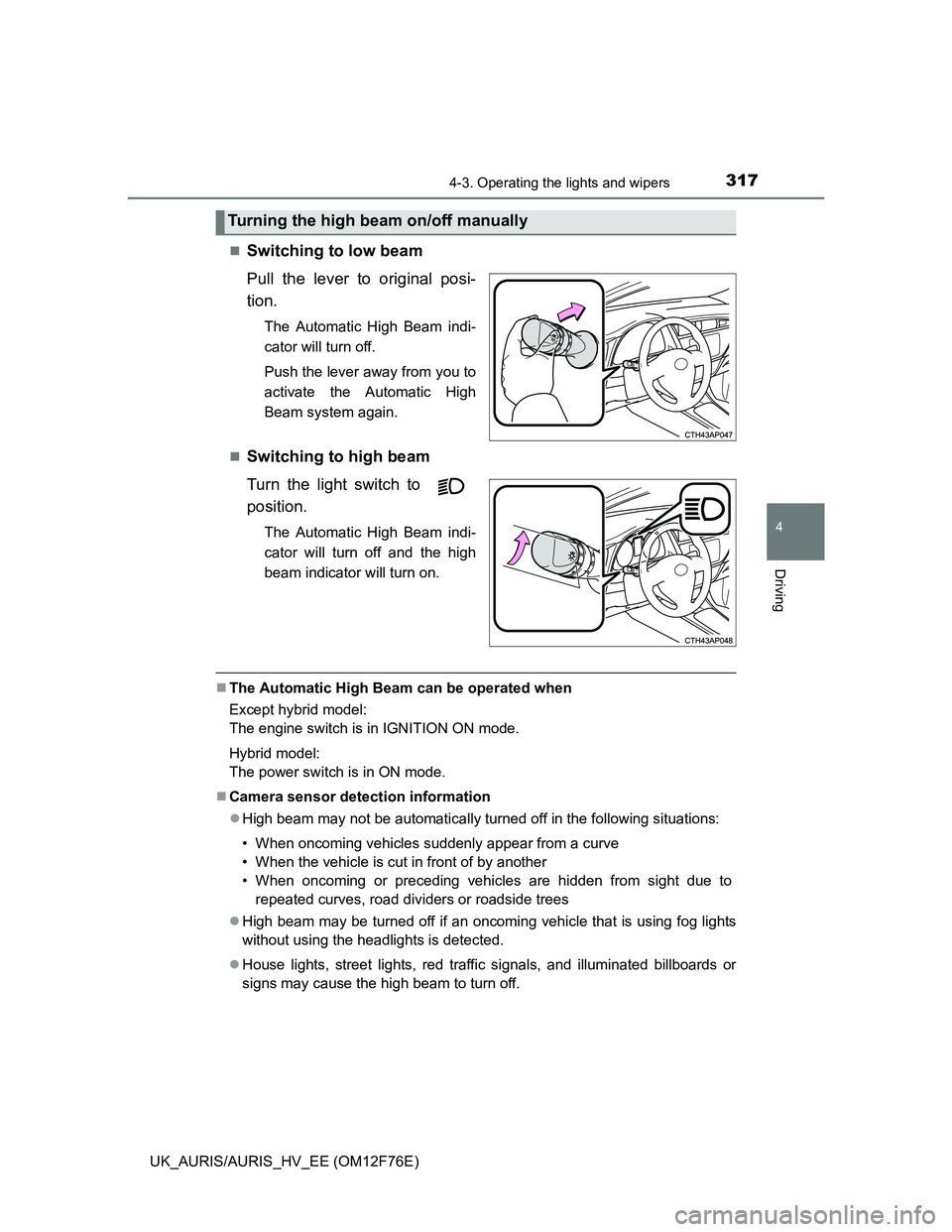

3174-3. Operating the lights and wipers
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
Switching to low beam
Pull the lever to original posi-
tion.
The Automatic High Beam indi-
cator will turn off.
Push the lever away from you to
activate the Automatic High
Beam system again.

Switching to high beam
Turn the light switch to
position.
The Automatic High Beam indi-
cator will turn off and the high
beam indicator will turn on.
The Automatic High Beam can be operated when
Except hybrid model:
The engine switch is in IGNITION ON mode.
Hybrid model:
The power switch is in ON mode.
Camera sensor detection information
High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another
• When oncoming or preceding vehicles are hidden from sight due to
repeated curves, road dividers or roadside trees
High beam may be turned off if an oncoming vehicle that is using fog lights
without using the headlights is detected.
House lights, street lights, red traffic signals, and illuminated billboards or
signs may cause the high beam to turn off.
Turning the high beam on/off manually

3184-3. Operating the lights and wipers

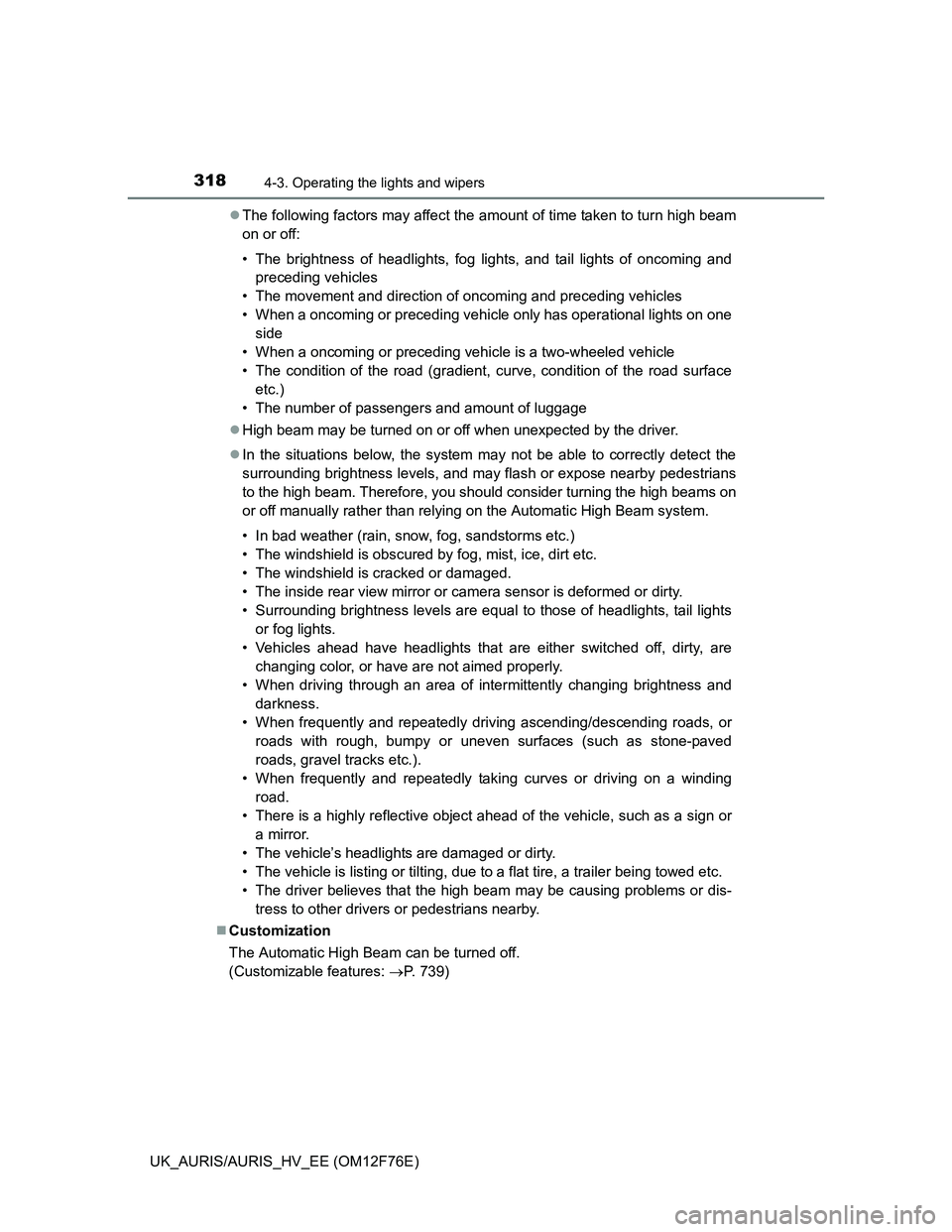

UK_AURIS/AURIS_HV_EE (OM12F76E)The following factors may affect the amount of time taken to turn high beam
on or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and
preceding vehicles
• The movement and direction of oncoming and preceding vehicles
• When a oncoming or preceding vehicle only has operational lights on one
side
• When a oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface
etc.)
• The number of passengers and amount of luggage
High beam may be turned on or off when unexpected by the driver.
In the situations below, the system may not be able to correctly detect the
surrounding brightness levels, and may flash or expose nearby pedestrians
to the high beam. Therefore, you should consider turning the high beams on
or off manually rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights
or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are
changing color, or have are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks etc.).
• When frequently and repeatedly taking curves or driving on a winding
road.
• There is a highly reflective object ahead of the vehicle, such as a sign or
a mirror.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.
Customization
The Automatic High Beam can be turned off.
(Customizable features: P. 739)

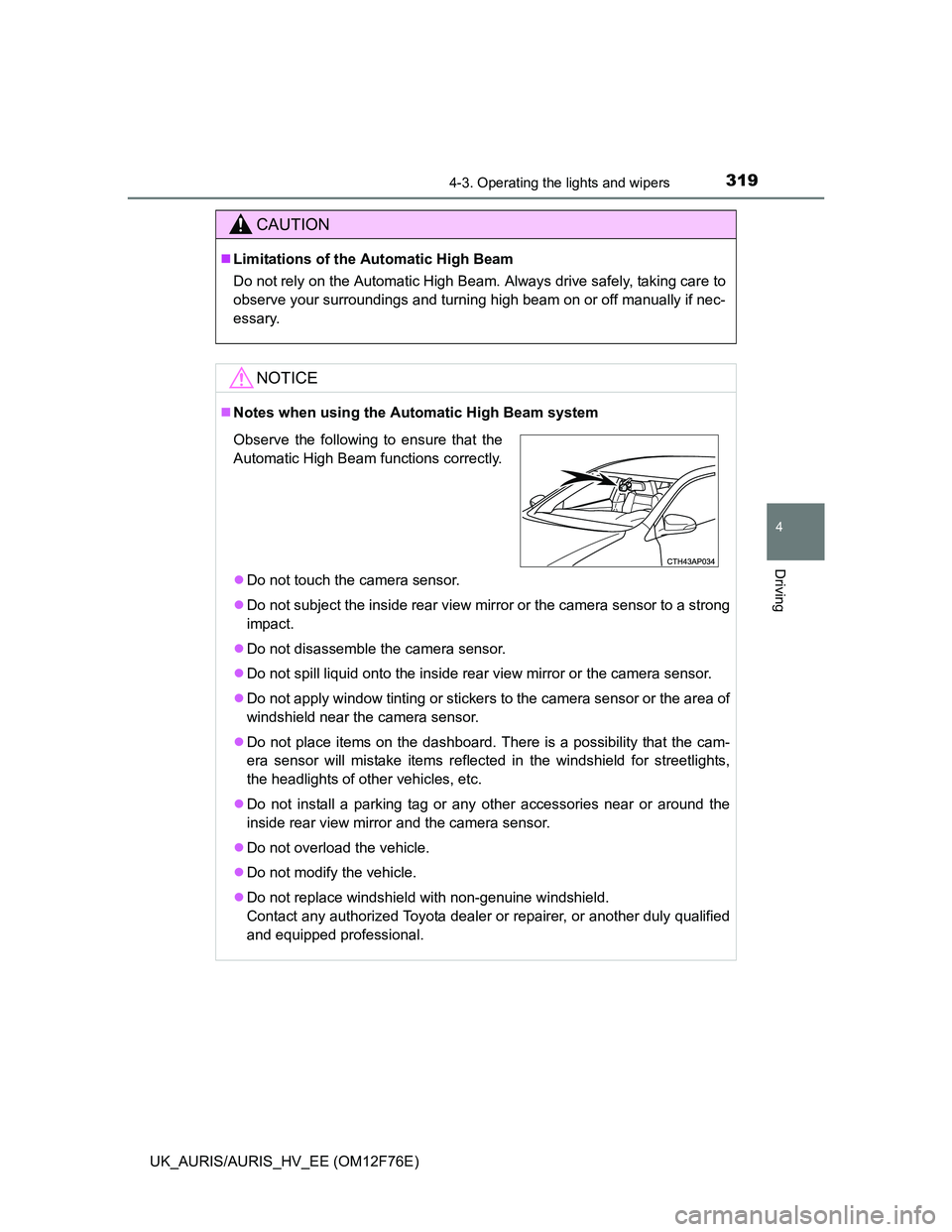

3194-3. Operating the lights and wipers
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
CAUTION
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if nec-
essary.
NOTICE
Notes when using the Automatic High Beam system
Do not touch the camera sensor.
Do not subject the inside rear view mirror or the camera sensor to a strong
impact.
Do not disassemble the camera sensor.
Do not spill liquid onto the inside rear view mirror or the camera sensor.
Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
Do not place items on the dashboard. There is a possibility that the cam-
era sensor will mistake items reflected in the windshield for streetlights,
the headlights of other vehicles, etc.
Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
Do not overload the vehicle.
Do not modify the vehicle.
Do not replace windshield with non-genuine windshield.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Observe the following to ensure that the
Automatic High Beam functions correctly.

5506-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
*1: Vehicles with 1ZR-FAE engine
*2: Vehicles with 1NR-FE engine
*3: Vehicles without discharge headlights (low beam)
*4: Vehicles with discharge headlights (low beam)
*5: Vehicles without PTC 600W heater
*6: Vehicles with PTC 600W heater

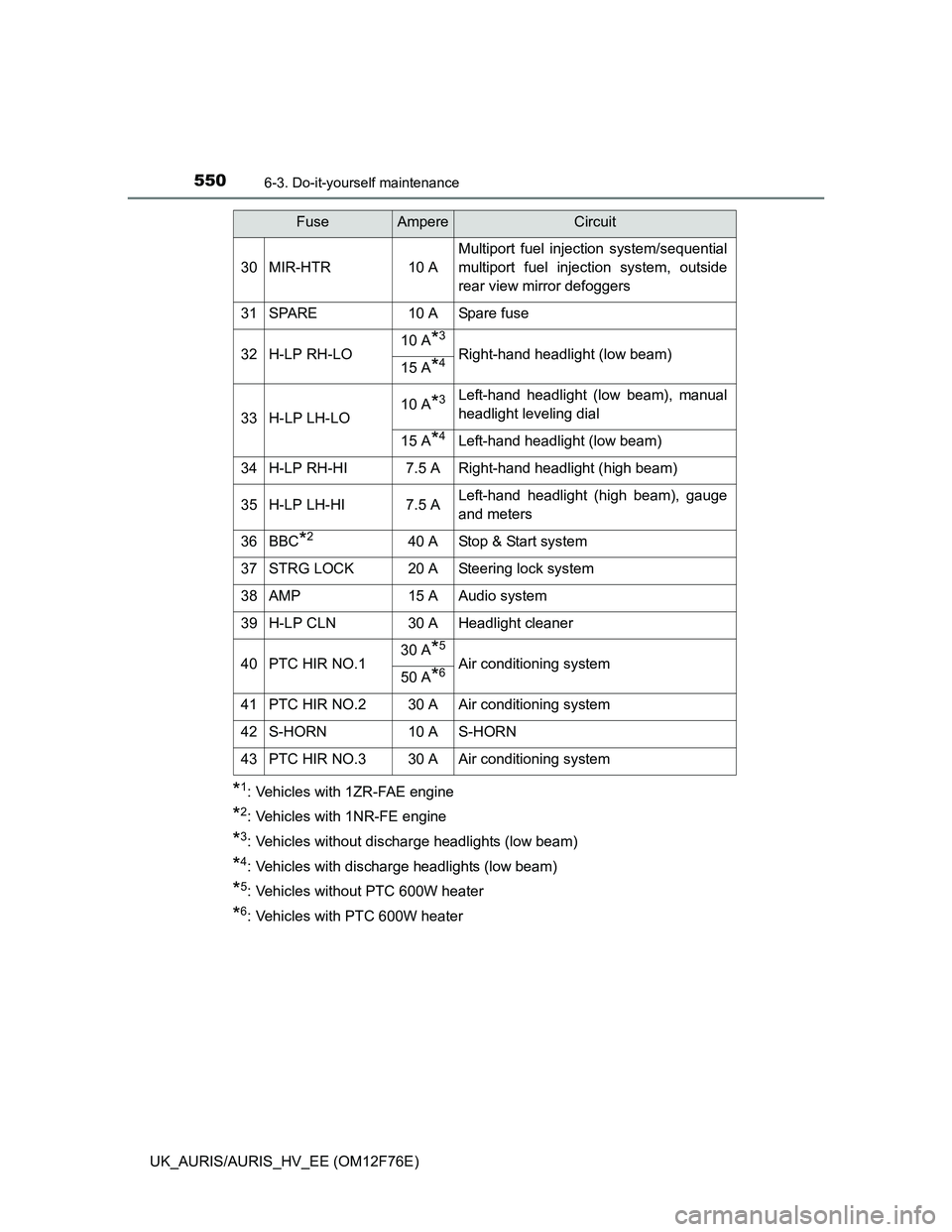

30MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
31SPARE10 ASpare fuse
32H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
33H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
34H-LP RH-HI7.5 ARight-hand headlight (high beam)
35H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
36BBC*240 AStop & Start system
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39H-LP CLN30 AHeadlight cleaner
40PTC HIR NO.130 A*5
Air conditioning system50 A*6
41PTC HIR NO.230 AAir conditioning system
42S-HORN10 AS-HORN
43PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit
